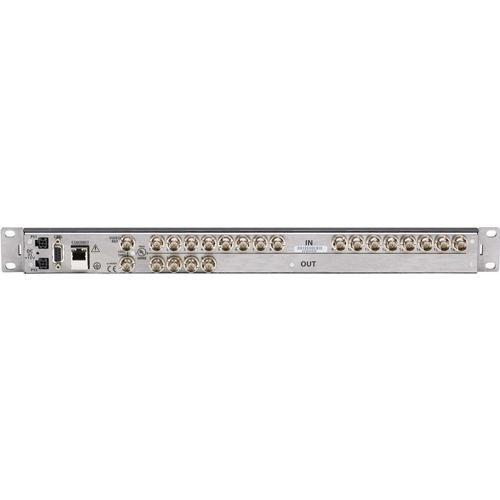

Product description The NVISION 1 RU 16x4 AES Digital Audio Router from Grass Valley operates in either synchronous or asynchronous mode, and is Dolby E compliant for phase accurate multichannel audio. The asynchronous router allows easy interconnections when different audio sample rates are present, as with desktop audio production using 44.1, 48, 96, and 192 kHz audio formats.
The optional NVISION Compact router control panel system is scalable, and allows up to four routers to be controlled from up to 16 remote control panels without the use of an external controller. The routers can be remotely controlled and monitored via a serial connection and over Ethernet, using NVISION protocols or other third-party control software. When integrated with the NVISION's routers, it offers full complement of user interface options, easy-to-use Java-based configuration editor, a choice of several core system controllers, and a wide variety of highly configurable hardware and virtual control panels.
The included Java-based CRSC (Compact Router System Configurator) software can configure IP settings, partition routers into multiple levels, program remote control panels for device level control, build salvos, and reconfigure large routing networks to meet changing facility workflows. Configurations can be devised offline, and easily uploaded over a network to the system. The Configurator has simple help screens and menus to guide users through each step. - Unbalanced digital audio (AES-3id)
- Can operate in synchronous or asynchronous modes
- Accurate digital audio switching
- Supports remote control panel (optional)
- Compact and lightweight design for use in rugged conditions and saving rack space
- Non-square router configurations for monitoring applications
- Reliable power supply over 500,000 hours MTBF
- CRSC (Compact Router System Configurator) software provides easy configuration of routers, including salvos and partitioning
- Software also allows programming of remote control panels, and configuration of network settings
- Ethernet and serial control
- Local button panel and GUI panels
In the Box Grass Valley NVISION 1 RU 16x4 AES Digital Audio Router Limited 15-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley NVISION 1 RU 16x4 AES Digital Audio Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley CR1604-AES Specs | | | AC Input | 90 to 250 VAC, 50/60 Hz, auto-ranging | | Connectors | AC: 2, 12 VDC with external modules | | AC Power | PS0001-00, HB0321-00, 50 W, one IEC 320 | | Power Usage | AC: Not specified by the manufacturer | | Regulatory Compliance | UL listed and CE compliant | | | | Serial Port | Type: 1 serial port
Standard: SMPTE 207M, EIA-422, configurable
Connector: 1, DE-9 | | Ethernet | Type: 10/100 Base T
Standard: IEEE 802.3
Protocol: NVISION Ethernet
Connector: 1, RJ45 | | | | Type | Unbalanced digital audio | | Standard | AES3id | | Sample Rate | Synchronous 48 kHz
Asynchronous 32 to 192 kHz | | Connector | BNC | | Impedance | 75 Ohms | | Input Level | 200 mV to 3.0 V p-p | | Output Level | 1 V ±10% | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Relative Humidity | 0 to 90%, non-condensing | | | | Mounting | EIA 310-C, 19" (483 mm) | | Grounding Terminal | Cooper, accepts 14-6 AWG | | Weight | Not specified by the manufacturer | | Dimensions (H x W x D) | Not specified by the manufacturer |
