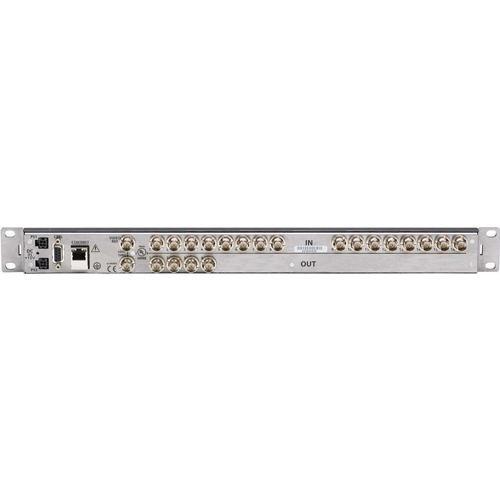

Product description The compact NVISION 1 RU 16x4 Triple Rate 3G/HD/SD Router from Grass Valley is versatile and suited to utility routing applications. Available in triple rate 3G/HD/SD format, the router comes in an 16x4 matrix configuration. It also has a built-in controller, eliminating the need for an external controller. This SMPTE 424M 3 Gb/s model operates error free, with automatic reclocking data paths for 270 Mb/s, 1.483 Gb/s, 1.485 Gb/s, 2.967 Gb/s and 2.970 Gb/s rates. The router protects your small router investment well into the future, with 1080p 50/60 support and Dolby E and DVB-ASI compliance. - Robust Design
-
- 1 RU
- Robust design for rugged conditions
- Reliable power supply over 500,000 hours MTBF
- Optional redundant power supply available
- Range operates with the entire NVISION router range
- Non-square router configuration for monitoring applications
- Powerful Configuration Tools
-
- Compact Router System Configurator (CRSC) software provides easy configuration of routers, including salvos and partitioning
- Software also allows programming of remote control panels, and configuration of network settings
- Multiple Control Capabilities
-
- Ethernet and serial control
- Local button panel
- Remote control panel
- Graphical User Interface (GUI) panels
- 3G/HD/SD Digital Video
-
- Triple rate 3G/HD/SD
- DVB-ASI compliant
- Router partitioning
- Scalable with the entire NVISION range of routers
- Highly reliable power supply (over 500,000 hours MTBF)
- Optional control panel
- Flexible System Architecture and Control
-
- The router control panel system is highly scalable, and allows up to four routers to be controlled from up to 16 remote control panels without the use of an external controller
- The router can be remotely controlled and monitored via a serial connection and over Ethernet, using NVISION protocols or other third-party control software
- Integration with NVISION Router Control System
-
- For control flexibility, the NVISION compact routers can be integrated with the NVISION’s router control system
- Offers a full complement of user interface options, full redundancy, and an easy-to-use Java-based configuration editor
- Flexible and scalable architecture offers a choice of several core system controllers, and a wide variety of highly configurable hardware and virtual control panels
- Flexible System Configuration
-
- The NVISION Compact Router System Configurator (CRSC) is a Java-based software that provides all the tools and flexibility needed to customize compact router systems to optimize and improve the efficiency of your facility
- Software can configure IP settings, partition routers into multiple levels, program remote control panels for device level control, build salvos, and reconfigure large routing networks to meet changing facility workflows
- Configurations can be devised offline, and easily uploaded over a network to the system
- Configurator has simple help screens and menus to guide users through each step
In the Box Grass Valley NVISION 1 RU 16x4 Triple Rate 3G/HD/SD Router Limited 15-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley NVISION 1 RU 16x4 Triple Rate 3G HD SD Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley CR1604-3GIG Specs | Inputs/Outputs | High-definition serial digital video | | Connector | BNC | | Impedance | 75 Ohms | | Output Level | 800 mV p-p ±10% | | Standard | SMPTE 259M-C, 292M and 424M | | Input/Output Return Loss | >15 dB, 5 MHz to 1.5 GHz
>10 dB, 1.5 GHz to 3 GHz | | Signal Path | Non-inverting | | Timing Jitter | ≤2.0 UIpp from 10 Hz to 100 kHz | | Alignment Jitter | ≤0.3 UIpp from 100 kHz to 300 MHz | | Rise / Fall time | ≤135 ps | | Overshoot | ≤10% of amplitude maximum | | Data Rate | Auto reclocking at 270 Mb/s and 1.483, 1.485, 2.967, 2.970 Gb/s or auto bypass with pass-through from 19 Mb/s to 3 Gb/s | | Cable Equalization | 1,312' (400 m) Belden 1694A at 270 Mb/s
820' (250 m) Belden 1855A at 270 Mb/s
492' (150 m) Belden 1694A at 1.5 Gb/s
328' (100 m) Belden 1855A at 1.5 Gb/s
328' (100 m) Belden 1694A at 3 Gb/s
147' (45 m) Belden 1855A at 3 Gb/s | | Serial Control | Type: 1 Serial port
Standard: SMPTE 207M, EIA-422, configurable
Connector: 1, DE-9 | | Ethernet | Type: 10/100 BaseT
Standard: IEEE 802.3
Protocol: NVISION Ethernet protocol
Connector: 1, RJ45 | | Regulatory Compliance | UL listed and CE compliant | | Electrical | AC Input: 90 to 250 VAC, 50/60 Hz, auto-ranging
AC Fuses: No user serviceable fuses
AC Connectors: 2, 12 VDC with external modules
AC Power: PS0001-00, HB0321-00, 50 W, one IEC 320
AC Power Usage: 20 W nominal | | Grounding Terminal | Cooper, accepts 14-6 AWG | | Environmental Specifications | Operating temperature: 32 to 104°F (0 to 40°C)
Relative humidity: 0 to 90%, non-condensing | | Mounting | EIA 310-C, 19" (48 cm) | | Dimensions | 1.8 x 19 x 1.4" (4.5 x 48.3 x 3.5 cm) | | Weight | 2 lb (4.4 kg) |
