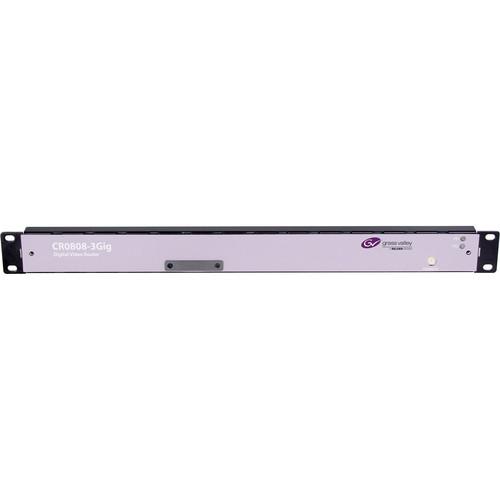

User Manual for Grass Valley NVISION 1 RU 8x8 Composite Analog Video Router Click to enlarge the picture
Contents of the user manual for the Grass Valley NVISION 1 RU 8x8
- Product category: Routers & Switchers Grass Valley
- Brand: Grass Valley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grass Valley Routers & Switchers
|
User manual for the Grass Valley NVISION 1 RU 8x8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grass Valley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!
|
Product description The NVISION 1 RU 8x8 Composite Analog Video Router from Grass Valley offers remarkable signal path linearity, and is designed to have very low differential gain and low differential phase to ensure no visible signal distortion. The NVISION Compact router control panel system is scalable, and allows up to four routers to be controlled from up to 16 remote control panels without the use of an external controller. The routers can be remotely controlled and monitored via a serial connection and over Ethernet, using NVISION protocols or other third-party control software. When integrated with the NVISION's router control system, it offers full complement of user interface options, easy-to-use Java-based configuration editor, a choice of several core system controllers, and a wide variety of highly configurable hardware and virtual control panels.
The included Java-based Compact Router System Configurator (CRSC) software can configure IP settings, partition routers into multiple levels, program remote control panels for device level control, build salvos, and reconfigure large routing networks to meet changing facility workflows. Configurations can be devised offline, and easily uploaded over a network to the system. Configurator has simple help screens and menus to guide users through each step. - Analog composite video for NTSC and PAL
- Supports remote control panel (optional)
- Ultra-thin and lightweight robust design for rugged conditions and saves rack space
- Non-square router configurations for monitoring applications
- Reliable power supply over 500,000 hours MTBF
- Range operates with the entire NVISION router range
- Compact Router System Configurator (CRSC) software provides easy configuration of routers, including salvos and partitioning
- Software also allows programming of remote control panels, and configuration of network settings
- Ethernet and serial control
- Local button panel and Graphical User Interface (GUI) panels
In the Box Grass Valley NVISION 1 RU 8x8 Composite Analog Video Router Limited 15-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley NVISION 1 RU 8x8 Composite Analog Video Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley CR0808-AV Specs | | | Type | Analog video | | Standard | NTSC, PAL | | Connector | BNC | | Impedance | 75 Ohms | | Input Return Loss | >45 dB, DC to 6 MHz
>30 dB, 6 MHz to 30 MHz | | Output Return Loss | >45 dB, DC to 6 MHz
>40 dB, 6 MHz to 30 MHz | | Input Level | 1 V p-p, nominal | | Output Level | 1 V p-p, nominal | | Output DC | 0 V ±30 mV relative to backporch | | Input Range | ±2 V | | Insertion Loss | 0 dB ±0.1 dB, any input to any output | | Frequency Response | 0 dBr ±0.05 dB, DC to 6 MHz | | Differential Gain | <0.1 % | | Differential Phase | <0.1° | | Tilt | <0.1 % | | Scatter | Delay: <± 65° at sub-carrier (PAL or NTSC) any input to any output | | Noise | Spectrum: >60 dB test signal; luminance ramp | | CMRR | >60 dB at 120 Hz | | Crosstalk | >65 dB at sub-carrier frequency | | Isolation | Output-to-Output: >90 dB at sub-carrier frequency DC coupled system | | Reference Input | Type: Analog video reference
Standard: PAL, NTSC, or tri-level sync
Connector: Loop through, BNC
Impedance: 75 Ohms or Hi-Z
Input Level: 0.5 to 2.0 V p-p
Input Return Loss: ≥30 dB to 5 MHz | | | | Serial Port | Type: 1 serial port
Standard: SMPTE 207M, EIA-422, configurable
Connector: 1, DE-9 | | Ethernet | Type: 10/100 Base T
Standard: IEEE 802.3
Protocol: NVISION Ethernet
Connector: 1, RJ45 | | | | AC Input | 90 to 250 VAC, 50/60 Hz, auto-ranging | | Connectors | AC: 2, 12 VDC with external modules | | AC Power | PS0001-00, HB0321-00, 50 W, one IEC 320 | | Power Usage | AC: 9 W nominal | | Grounding Terminal | Cooper, accepts 14-6 AWG | | Regulatory Compliance | UL listed and CE compliant | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Relative Humidity | 0 to 90%, non-condensing | | | | Mounting | EIA 310-C, 19" (483 mm) | | Dimensions (H x W x D) | 1 RU: 1.8 x 19 x 1.4" (4.5 x 48.3 x 3.5 cm) | | Weight | 4.4 lb (2 kg) |
