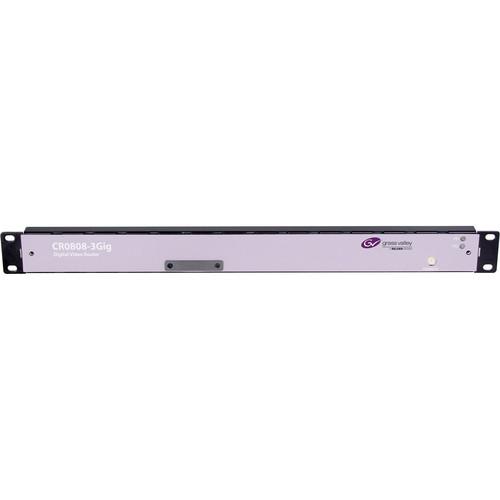

Product description The compact NVISION 1 RU 8x8 SD Digital Video Router from Grass Valley is versatile and ideally suited to utility routing applications. Available in triple rate 3G/HD/SD format, the router comes in an 8x8 matrix configuration. It also has a built-in controller, eliminating the need for an external one. This SMPTE 259M SD model is an ideal solution for 270 Mb/s and DVB-ASI operations. It provides non-inverting operation with any input to any output, with switching on the frame boundary, thus ensuring Dolby interoperability even with embedded audio. - Robust Design
-
- 1 RU
- Robust design for rugged conditions
- Reliable power supply over 500,000 hours MTBF
- Optional redundant power supply available
- Range operates with the entire NVISION router range
- Non-square router configuration for monitoring applications
- Powerful Configuration Tools
-
- Compact Router System Configurator (CRSC) software provides easy configuration of routers, including salvos and partitioning
- Software also allows programming of remote control panels, and configuration of network settings
- Multiple Control Capabilities
-
- Ethernet and serial control
- Local button panel
- Remote control panel
- Graphical User Interface (GUI) panels
- SD Digital Video
-
- Supports SD rates
- DVB-ASI compliant
- Router partitioning
- Scalable with the entire NVISION range of routers
- Highly reliable power supply (over 500,000 hours MTBF)
- Optional control panel
- Non-reclocking versions available
- Flexible System Architecture and Control
-
- The router control panel system is highly scalable, and allows up to four routers to be controlled from up to 16 remote control panels without the use of an external controller
- The router can be remotely controlled and monitored via a serial connection and over Ethernet, using NVISION protocols or other third-party control software
- Integration with NVISION Router Control System
-
- For control flexibility, the NVISION compact routers can be integrated with the NVISION’s router control system
- Offers a full complement of user interface options, full redundancy, and an easy-to-use Java-based configuration editor
- Flexible and scalable architecture offers a choice of several core system controllers, and a wide variety of highly configurable hardware and virtual control panels
- Flexible System Configuration
-
- The NVISION Compact Router System Configurator (CRSC) is a Java-based software that provides all the tools and flexibility needed to customize compact router systems to optimize and improve the efficiency of your facility
- Software can configure IP settings, partition routers into multiple levels, program remote control panels for device level control, build salvos, and reconfigure large routing networks to meet changing facility workflows
- Configurations can be devised offline, and easily uploaded over a network to the system
- Configurator has simple help screens and menus to guide users through each step
In the Box Grass Valley NVISION 1 RU 8x8 SD Digital Video Router Limited 15-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley NVISION 1 RU 8x8 SD Digital Video Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley CR0808-SD Specs | Electrical | AC Input: 90 to 250 VAC, 50/60 Hz, auto-ranging
AC Fuses: No user serviceable fuses
AC Connectors: 2, 12 VDC with external modules
AC Power: PS0001-00, HB0321-00, 50 W, one IEC 320
AC Power Usage: 20 W nominal | | Serial Control | Type: 1 Serial port
Standard: SMPTE 207M, EIA-422, configurable
Connector: 1, DE-9 | | Ethernet | Type: 10/100 BaseT
Standard: IEEE 802.3
Protocol: NVISION Ethernet protocol
Connector: 1, RJ45 | | Regulatory Compliance | UL listed and CE compliant | | Environmental Specifications | Operating Temperature: 32 to 104°F (0 to 40°C)
Relative Humidity: 0 to 90%, non-condensing | | Inputs/Outputs | High-definition serial digital video | | Standard | SMPTE 259M | | Data Rate | Auto reclocking at 270 Mb/s or auto bypass with pass-through from 19 to 360 Mb/s | | Connector | BNC | | Impedance | 75 Ohms | | Cable Equalization | 1,148' (350 m) Belden 1694A
656' (200 m) Belden 1855A, or equivalent cable, at 270 Mb/s | | Signal Path | Non-inverting | | Input/Output Return Loss | >15 dB, 5 to 540 MHz | | Output Level | 800 mVpp ±10% | | Rise / Fall time | 600 ps +10% | | Overshoot | ≤ 10% of amplitude maximum | | Alignment Jitter | ≤ 0.2 UIpp from 1.0 kHz to 27 MHz | | Timing Jitter | ≤ 0.2 UIpp from 10 Hz to 1.0 kHz | | Mounting | EIA 310-C, 19" (48 cm) | | Grounding Terminal | Cooper, accepts 14-6 AWG | | Dimensions | 1.8 x 19 x 1.4" (4.5 x 48.3 x 3.5 cm) | | Weight | 2 lb (4.4 kg) |
