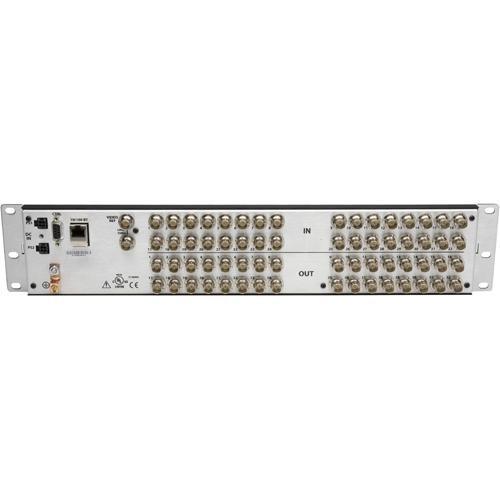

Click to enlarge the picture
Grass Valley NVISION 2 RU 32x32 Triple Rate 3G HD SD Router Contents of the user manual for the Grass Valley NVISION 2 RU 32x32
  • Product category: Routers & Switchers Grass Valley
  • Brand: Grass Valley
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Grass Valley Routers & Switchers

User manual for the Grass Valley NVISION 2 RU 32x32 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Grass Valley product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!



Product description

The compact NVISION 2 RU 32x32 Triple Rate 3G/HD/SD Router from Grass Valley is versatile and suited to utility routing applications. Available in triple rate 3G/HD/SD format, the router comes in an 32x32 matrix configuration. It also has a built-in controller, eliminating the need for an external controller. This SMPTE 424M 3 Gb/s model operates error free, with automatic reclocking data paths for 270 Mb/s, 1.483 Gb/s, 1.485 Gb/s, 2.967 Gb/s and 2.970 Gb/s rates. The router protects your small router investment well into the future, with 1080p 50/60 support and Dolby E and DVB-ASI compliance.
    Robust Design
    • 2 RU
    • Robust design for rugged conditions
    • Reliable power supply over 500,000 hours MTBF
    • Optional redundant power supply available
    • Range operates with the entire NVISION router range
    • Non-square router configuration for monitoring applications
    Powerful Configuration Tools
    • Compact Router System Configurator (CRSC) software provides easy configuration of routers, including salvos and partitioning
    • Software also allows programming of remote control panels, and configuration of network settings
    Multiple Control Capabilities
    • Ethernet and serial control
    • Local button panel
    • Remote control panel
    • Graphical User Interface (GUI) panels
    3G/HD/SD Digital Video
    • Triple rate 3G/HD/SD
    • DVB-ASI compliant
    • Router partitioning
    • Scalable with the entire NVISION range of routers
    • Highly reliable power supply (over 500,000 hours MTBF)
    • Optional control panel
    Flexible System Architecture and Control
    • The router control panel system is highly scalable, and allows up to four routers to be controlled from up to 16 remote control panels without the use of an external controller
    • The router can be remotely controlled and monitored via a serial connection and over Ethernet, using NVISION protocols or other third-party control software
    Integration with NVISION Router Control System
    • For control flexibility, the NVISION compact routers can be integrated with the NVISION’s router control system
    • Offers a full complement of user interface options, full redundancy, and an easy-to-use Java-based configuration editor
    • Flexible and scalable architecture offers a choice of several core system controllers, and a wide variety of highly configurable hardware and virtual control panels
    Flexible System Configuration
    • The NVISION Compact Router System Configurator (CRSC) is a Java-based software that provides all the tools and flexibility needed to customize compact router systems to optimize and improve the efficiency of your facility
    • Software can configure IP settings, partition routers into multiple levels, program remote control panels for device level control, build salvos, and reconfigure large routing networks to meet changing facility workflows
    • Configurations can be devised offline, and easily uploaded over a network to the system
    • Configurator has simple help screens and menus to guide users through each step
In the Box Grass Valley NVISION 2 RU 32x32 Triple Rate 3G/HD/SD Router
  • Limited 15-Month Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Grass Valley NVISION 2 RU 32x32 Triple Rate 3G HD SD Router in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Grass Valley CR3232-3GIG Specs

    Inputs/Outputs High-definition serial digital video
    Connector BNC
    Impedance 75 Ohms
    Output Level 800 mV p-p ±10%
    Standard SMPTE 259M-C, 292M and 424M
    Input/Output Return Loss >15 dB, 5 MHz to 1.5 GHz
    >10 dB, 1.5 GHz to 3 GHz
    Signal Path Non-inverting
    Timing Jitter ≤2.0 UIpp from 10 Hz to 100 kHz
    Alignment Jitter ≤0.3 UIpp from 100 kHz to 300 MHz
    Rise / Fall time ≤135 ps
    Overshoot ≤10% of amplitude maximum
    Data Rate Auto reclocking at 270 Mb/s and 1.483, 1.485, 2.967, 2.970 Gb/s or auto bypass with pass-through from 19 Mb/s to 3 Gb/s
    Cable Equalization 1,312' (400 m) Belden 1694A at 270 Mb/s
    820' (250 m) Belden 1855A at 270 Mb/s
    492' (150 m) Belden 1694A at 1.5 Gb/s
    328' (100 m) Belden 1855A at 1.5 Gb/s
    328' (100 m) Belden 1694A at 3 Gb/s
    147' (45 m) Belden 1855A at 3 Gb/s
    Serial Control Type: 1 Serial port
    Standard: SMPTE 207M, EIA-422, configurable
    Connector: 1, DE-9
    Ethernet Type: 10/100 BaseT
    Standard: IEEE 802.3
    Protocol: NVISION Ethernet protocol
    Connector: 1, RJ45
    Regulatory Compliance UL listed and CE compliant
    Electrical AC Input: 90 to 250 VAC, 50/60 Hz, auto-ranging
    AC Fuses: No user serviceable fuses
    AC Connectors: 2, 12 VDC with external modules
    AC Power: PS0001-00, HB0321-00, 50 W, one IEC 320
    AC Power Usage: 35 W nominal
    Grounding Terminal Cooper, accepts 14-6 AWG
    Environmental Specifications Operating temperature: 32 to 104°F (0 to 40°C)
    Relative humidity: 0 to 90%, non-condensing
    Mounting EIA 310-C, 19" (48 cm)
    Dimensions 3.5 x 19 x 1.4" (8.9 x 48.3 x 3.5 cm)
    Weight 4 lb (8.8 kg)
    Package Weight 6.2 lb
    Box Dimensions (LxWxH) 20.7 x 8.6 x 5.6"
