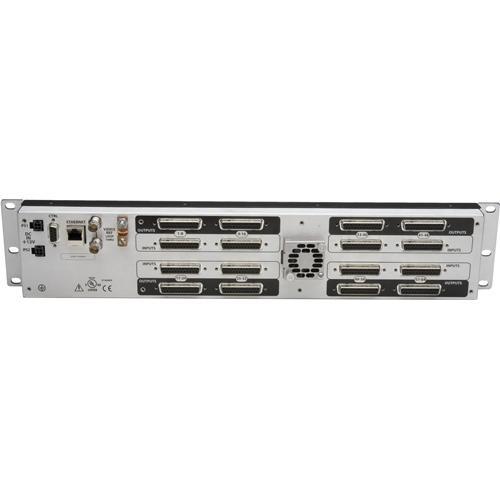

User Manual for Grass Valley NVISION 2 RU 32x4 Analog Audio Router Click to enlarge the picture
Contents of the user manual for the Grass Valley NVISION 2 RU 32x4
- Product category: Routers & Switchers Grass Valley
- Brand: Grass Valley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grass Valley Routers & Switchers
|
User manual for the Grass Valley NVISION 2 RU 32x4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grass Valley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!
|
Product description The compact NVISION 2 RU 32x4 Analog Audio Router from Grass Valley is versatile and suited to utility routing applications. The 32x4 matrix analog audio router offers remarkable audio fidelity with +24 dBu input and output levels, and virtually no crosstalk. It is an ideal solution for SMPTE longitudinal timecode (SMPTE 12M LTC). - Robust Design
-
- 2 RU
- Robust design for rugged conditions
- Reliable power supply over 500,000 hours MTBF
- Optional redundant power supply available
- Range operates with the entire NVISION router range
- Non-square router configuration for monitoring applications
- Multiple Control Capabilities
-
- Ethernet and serial control
- Local button panel
- Remote control panel
- Graphical User Interface (GUI) panels
- Stereo Analog Audio
-
- +24 dBu operating levels
- Can be used to route Timecode
- Router partitioning
- Optional control panel
- Flexible System Architecture and Control
-
- The router control panel system is highly scalable, and allows up to four routers to be controlled from up to 16 remote control panels without the use of an external controller
- The router can be remotely controlled and monitored via a serial connection and over Ethernet, using NVISION protocols or other third-party control software
- Integration with NVISION Router Control System
-
- For control flexibility, the NVISION compact routers can be integrated with the NVISION’s router control system
- Offers a full complement of user interface options, full redundancy, and an easy-to-use Java-based configuration editor
- Flexible and scalable architecture offers a choice of several core system controllers, and a wide variety of highly configurable hardware and virtual control panels
- Flexible System Configuration
-
- The NVISION Compact Router System Configurator (CRSC) is a Java-based software that provides all the tools and flexibility needed to customize compact router systems to optimize and improve the efficiency of your facility
- Software can configure IP settings, partition routers into multiple levels, program remote control panels for device level control, build salvos, and reconfigure large routing networks to meet changing facility workflows
- Configurations can be devised offline, and easily uploaded over a network to the system
- Configurator has simple help screens and menus to guide users through each step
In the Box Grass Valley NVISION 2 RU 32x4 Analog Audio Router Limited 15-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley NVISION 2 RU 32x4 Analog Audio Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley CR3204-AA Specs | Signal Type | Analog audio | | Connector | DB-25 | | Impedance | Input 20 kOhms, output 50 Ohms, nominal | | Frequency Response | 20 Hz to 100 kHz, <±0.5 dB | | THD + Noise | <0.005% | | SNR | >95 dB relative to +24 dBu (20 Hz to 20 kHz) | | Crosstalk | >85 dB worst case | | Input CMRR | >75 dB | | Serial Control | Type: 1 Serial port
Standard: SMPTE 207M, EIA-422, configurable
Connector: 1, DE-9 | | Ethernet | Type: 10/100 BaseT
Standard: IEEE 802.3
Protocol: NVISION Ethernet protocol
Connector: 1, RJ45 | | Environmental Specifications | Operating temperature: 32 to 104°F (0 to 40°C)
Relative humidity: 0 to 90%, non-condensing | | Regulatory Compliance | UL listed and CE compliant | | Electrical | AC Input: 90 to 250 VAC, 50/60 Hz, auto-ranging
AC Fuses: No user serviceable fuses
AC Connectors: 2, 12 VDC with external modules
AC Power: PS0001-00, HB0321-00, 50 W, one IEC 320
AC Power Usage: 40 W nominal | | Grounding Terminal | Cooper, accepts 14-6 AWG | | Mounting | EIA 310-C, 19" (48 cm) | | Dimensions | 3.5 x 19 x 2.5" (8.9 x 48.3 x 5.7 cm) | | Weight | 8.8 lb (4 kg) |
