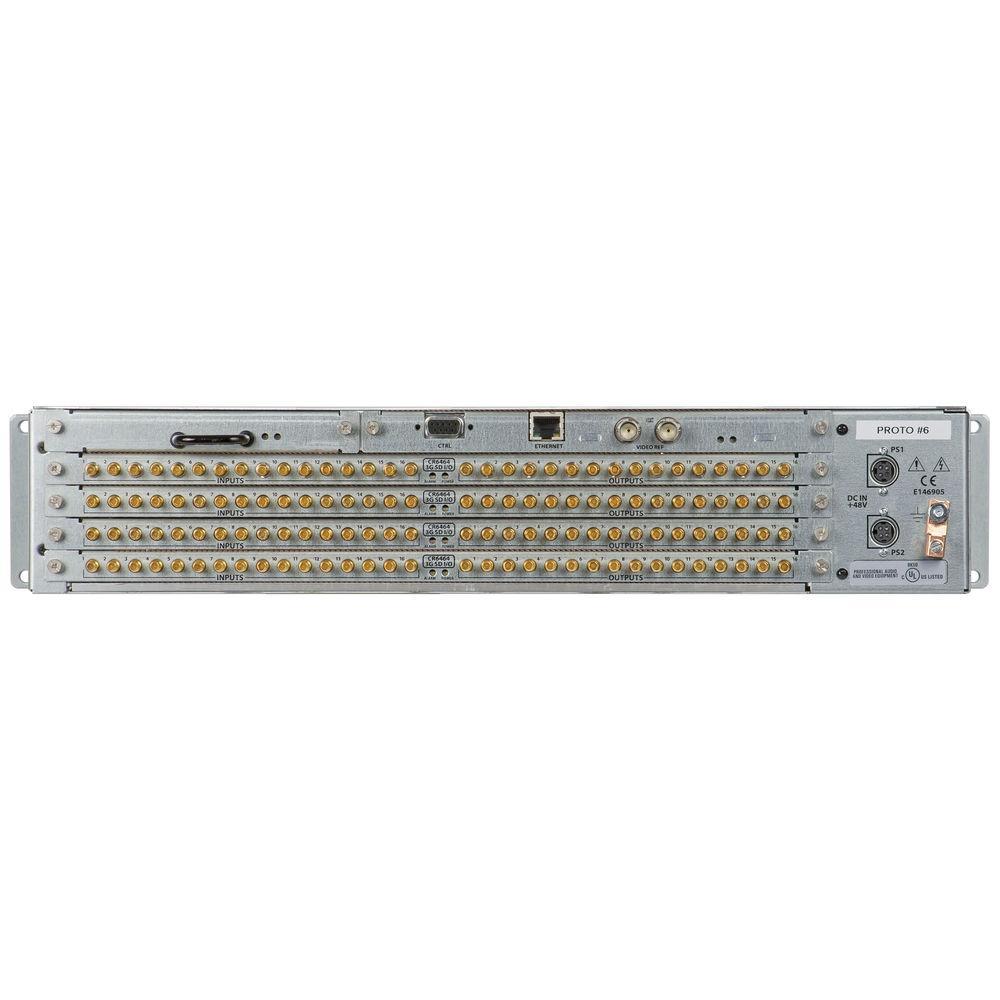

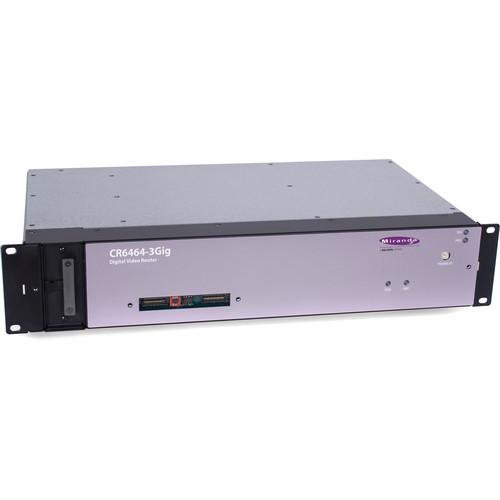

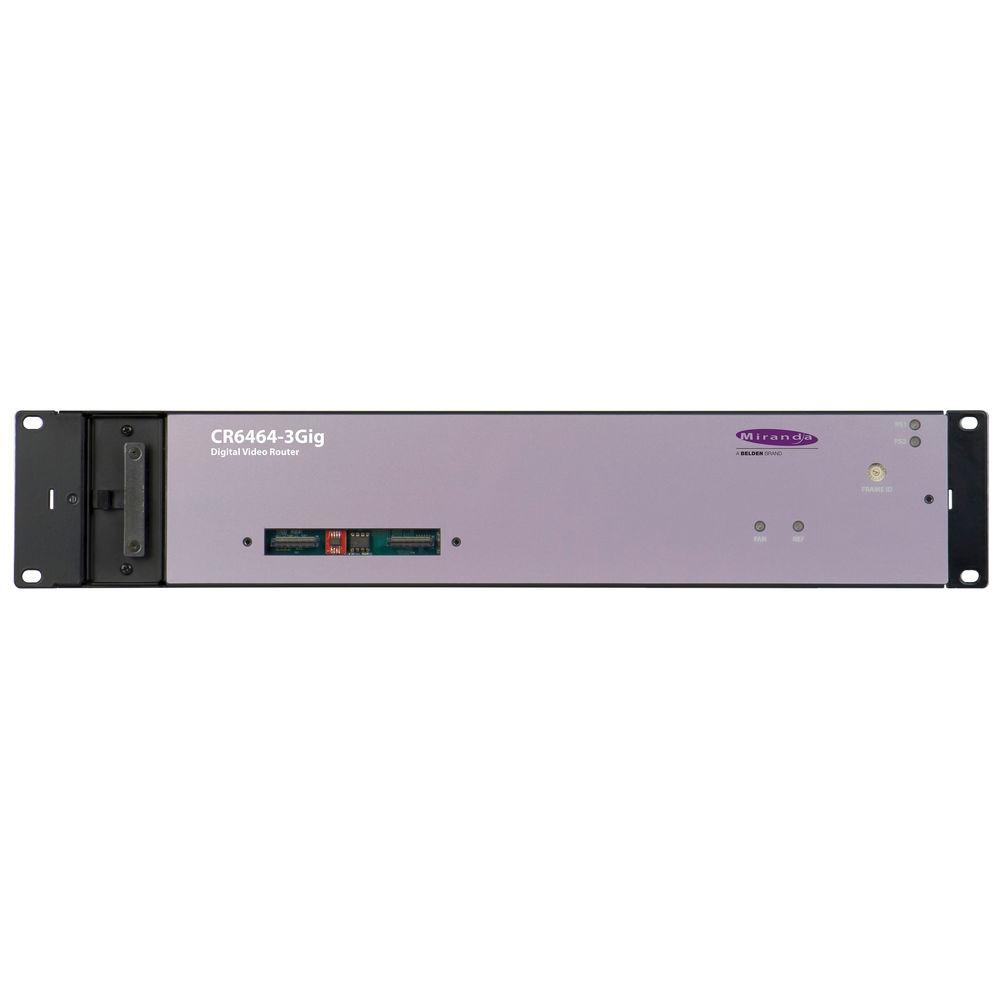

Product description The compact NVISION CR6400 3G/SDI Digital Video Router from Grass Valley fits 64 inputs and 64 outputs in a slim 2 RU frame and is ideal for small facilities, trucks, stadiums or any location that is space-constrained such as editing suites, post-production, and playout facilities. The robust matrix supports its 64-squared matrix, thanks to the introduction of DIN connectors rather than the typical BNC connectors. Supporting 3G-SDI signal format, this durable and ultra-reliable router contains a hot swappable module for easy serviceability and is tested for performance from 32 to 113°F.The space-saving nature of the router provides the power and flexibility of a larger, enterprise-class router, along with the flexibility to fit into most complex workflows, integrating easily with multiviewers, signal processing platforms, and master control switchers. -
- High-density 64x64 matrix in 2 RU
- Optional, redundant power supply available
- Broadcast quality components for high quality signal performance
- Rugged design to smoothly handle both movement and extreme temperature
- Local control panel option mounts to the front of the router or can be used for remote access using a remote panel expansion kit RP32 (available separately)
- Operates with or without external control system
- Field serviceable modules are hot swappable
- Crosspoint and control card
- Input and output cards
- Fan module
In the Box Grass Valley NVISION CR6400 3G/SDI Digital Video Router Limited 15-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley NVISION CR6400 3G SDI Digital Video Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley CR6464-3GIG Specs | | | Reclocking | 270 Mb/s, and 1.483, 1.485, 2.966, and 2.970 Gb/s, or auto bypass. Pass-through: 10 Mb/s to 3.0 Gb/s | | Input Return Loss | > 15 dB, 5 MHz to 1.5 GHz | | Output Level | 800 mV p-p ± 10% | | DC Output Offset | 0 ± 0.5 VDC | | Rise / Fall time | < 135 ps | | Overshoot | ≤ 10% of amplitude | | Timing Jitter | < 0.2 UI p-p | | Alignment Jitter | < 0.3 UI at 100 kHz | | Return Loss | > 10 dB, 1.5 GHz to 3.0 GHz | | | | Data Rates | Up to 1.5 Gb/s, reclocking at 143, 177, 270, 360 & 540 Mb/s and 1.483 & 1.485 Gb/s rates, automatic bypass for other rates | | Impedance | 75 Ohms | | Cable Equalization | Up to 492' (150 m), Belden 1694A or equivalent cable, at 1.483 Gb/s and 1.485 Gb/s, and 1.312' (400m) at 143 to 540 Mb/s | | Input Return Loss | > 15 dB, 5 MHz to 1.5 GHz | | Level | 800 mV p-p ± 10% | | DC Output Offset | 0 ± 0.5 VDC | | Rise / Fall time | < 270 ps (20% to 80%) | | Overshoot | < 10% of amplitude | | Jitter | < 0.2 UI p-p | | Return Loss | > 15 dB, 5 MHz to 1.5 GHz | | | | Data Rates | SD-SDI: Auto reclocking at 143, 177, 270, 360 & 540 Mb/s and automatic bypass for other rates | | Impedance | 75 Ohms | | Cable Equalization | Up to 984' (300 m), Belden 1694A or equivalent cable | | Input Return Loss | ≥ 15 dB, 5 to 540 MHz | | Output Level | 800 mV p-p ± 10% | | Offset | 0 ± 0.5 VDC | | Rise / Fall time | 0.4 to 1.5 ns | | Overshoot | ≤ 10% of amplitude | | Jitter | ≤ 0.2 UI p-p | | Return Loss | ≥ 15 dB, 5 to 540 MHz | | | | Input & Output | 75 Ohms
> 1312' (400 m), Belden 1694A or equivalent, 270 Mb/s SD-SDI
> 492' (150 m), Belden 1694A or equivalent, near 1.5 Gb/s HD-SDI
> 328' (100 m), Belden 1694A or equivalent, near 3.0 Gb/s 3G-SDI | | | | Power | 2 connectors, DIN 4 | | Ethernet | 1 connector, 10/100BaseT, RJ-45 jack | | RS-422 | 1 connector, 9-pin D type, usage determined by software, SMPTE 207M | | Reference Video | 2 connectors, BNC, 75 Ohms | | Control Panel | Two 2 x 60 connectors (optional, available separately) | | Removable | 4 x I/O card slots at rear
1 x crosspoint card slot at rear
1 x control card slot at rear
1 x fan module removable at the front | | Grounding Terminal | Copper, accepts 14-6 AWG | | Power Supply | 12 VDC ± 10%, 5 A | | Power Consumption | 77 W maximum | | Dimensions | Height: 3.5" (88 mm), fits EIA 2 RU 3.5" (89 mm)
Width: 19" (48 cm)
Depth: 11" (27 cm) from front of rack to extended ground screw | | Weight | 11.8 lb (5.35 kg) without I/O cards, without control panel
15.3 lb (6.94 kg) with 4 x I/O card, without control panel |
