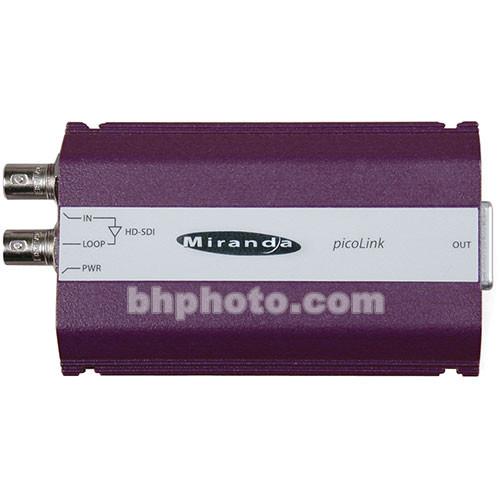

Product description The Miranda SDM-874P is a miniature digital video interface converting SDI/HDSDI video signal to Digital RGB (DVI-HDTV). It provides automatic input scan rate detection and supports a wide variety of input formats (525i, 625i, 720p, 1080i, 1080p). Note: Power Supply Purchased Separately - Primary Application
- The primary application is to convert SD/HD serial to Digital RGB for the purposes of feeding a DVI-HDTV display or a projector (CRT, LCD, Plasma, DLP, D-ILA etc). In order to support the emerging popularity of 24p equipment and digital display, the SDM- 874p outputs DVI-D with selectable 3:2 sequence insertion.
- Automatic Input Detection
- This unit automatically detects a line input source and adjusts conversion parameters accordingly.
- Internal Test Generator
- An internal color bar generator with 4:3 markers provides reference for image set up and monitoring.
- Apple Cinema Compatible
- The SDM-874p is compatible with the very popular 1920 x 1200 Apple Cinema Display. The SDM-874p outputs "Letter Box" type 1920x1200 to preserve the HD aspect ratio.
- Compact Size
- Measuring 4" in length, this device will fit "in line" studio situations and small desktop applications.
In the Box Grass Valley SDM-874P SDI/HSDI to DVI Converter - HDTV Resolutions, DVI Digital Output Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley SDM-874P SDI HSDI to DVI Converter - HDTV Resolutions, DVI Digital Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley SDM-874P Specs | Input | HDSDI/SDI digital video, Looping, SMPTE 259M-C (270Mbps) and SMPTE 292M (1.485, 1.485/1.001 Gbps), on a BNC connector | | Output | Digital DVI Video, Fixed Digital RGB, DVI-I, Female, compliant to DVI 1.0 pin out | | Conversion | HDSDI/SDI Digital Video to Digital DVI Video | | Control | Slide Switches:
Output Format
Normal and Test | | Power Source | 5 VDC on an Optional Power Supply | | Dimensions (WxDxH) | 4 x 1 x 0.7"
10.2 x 2.5 x 1.8cm | | Weight | Less than 1 lb | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 10.0 x 6.5 x 1.5" |
