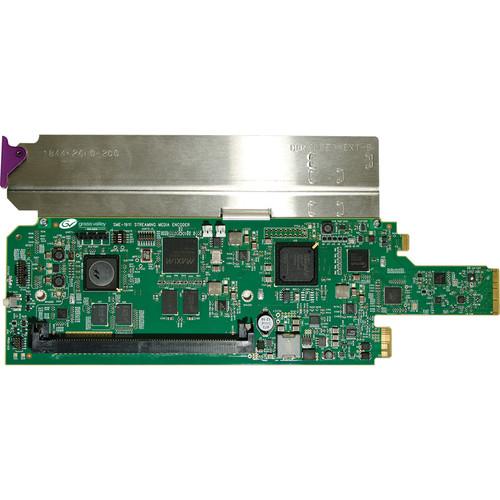

User Manual for Grass Valley SME-1011 Monitoring Streaming Media Encoder Click to enlarge the picture
Contents of the user manual for the Grass Valley SME-1011 Monitoring Streaming Media
- Product category: Computer Hardware Grass Valley
- Brand: Grass Valley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grass Valley Computer Hardware
|
User manual for the Grass Valley SME-1011 Monitoring Streaming Media contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grass Valley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!
|
Product description Designed for multi-format video/audio over IP in television facilities, the SME-1911 from Miranda is a compact H.264 streaming encoder with a 3G/HD/SD SDI input. It is compatible with the Miranda Densité 3 Frame (sold separately), which supports up to 20 units.
Two high profile H.264 streams are generated simultaneously from the SDI input. The main high-resolution stream is ideal for in-house IPTV applications while the low-resolution proxy targets streaming and display within a control system network. Both streams are full frame rate and provide high-efficiency compression.
The SME-1911 operates with a wide range of decoders, and offers exceptional space and power efficiency with up to 20 dual stream encoders per frame. - Key Features
- - Space- and power-efficient design offers up to 20 streaming encoders per frame
- Integrated fiber I/O using optional SFP module (available separately)
- Audio encoding of 2 channels of AAC or MPEG-1 Layer II
- Dolby Digital can be passed to the streaming output
- Effective management of embedded audio with: selection of 2 channel out of 16, and selection of 5.1 channel for downmix
- Comprehensive metadata detection includes timecode, closed caption (608, 708), AFD, WSS, and teletext
- H.264 high profile video encoding up to level 4.0 for optimized bandwidth utilization
- Full frame rate encoding, with encoded resolutions up to 1080i 59.94/50, including 720p 59.94/50 standards
- Flexible bandwidth management using fixed presets from 128x96 at 256 Kb/s to HD at 5 Mb/s
- Dual-resolution streaming allows simultaneous output of lower resolution proxy plus high-quality main stream
- Operates with wide range of decoders, including STBs, PC clients, and Grass Valley's iControl facility monitoring and Kaleido-IP multi-viewers
- Supports streaming of MPEG-TS over unicast or multicast using RTP/UDP In the Box Grass Valley SME-1011 Monitoring Streaming Media Encoder Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley SME-1011 Monitoring Streaming Media Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley SME-1911-3RU Specs | Electrical Input | Signal:
3G/HD/SD-SDI SMPTE 424M, 292M, and 259M-C compliant
Supported Data Rates:
270, 1483.5, 1485, 2967, 2970 Mb/s
Cable Length (Belden 1694A):
3G: 360 ft (110 m) at 3 Gb/s
HD: 656 ft (200 m) at 1.5 Gb/s
SD: 1,312 ft (400 m) at 270 Mb/s
Return Loss:
> 15 dB for up to 1.5 GHz
> 10 dB from 1.5 to 3 GHz | | IP Input / Output | Quantity: 1
Connector: 100 Mb/s Ethernet with RJ45 connector IEEE 802.3 | | IP Streaming | Signal Path:
8 bits
Compression:
H.264 high profile (level 4.0)
Frame Rate:
Full rate of input signal – except 3G is half the rates
Bitrate:
256 Kb/s to 5 Mb/s
Audio Encoding:
AAC, MPEG-1 Layer II | | Power | 9 W |
