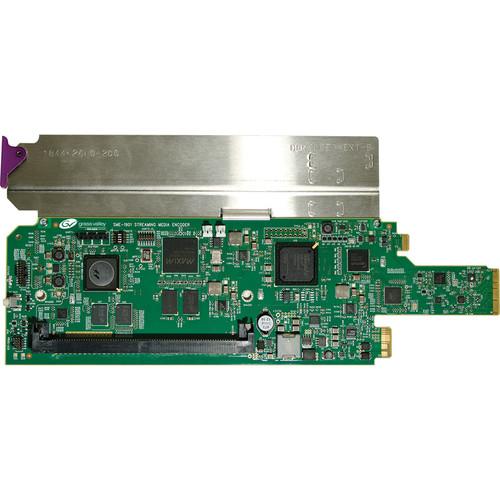

Product description Designed for multi-format video/audio over IP in television facilities, the SME-1901 from Miranda is a compact H.264 streaming encoder with a 3G/HD/SD SDI input and 1x6 SDI distribution amplifier. It is compatible with the Miranda Densité 3 Frame (sold separately), which supports up to 20 units.
Two high profile H.264 streams are generated simultaneously from the SDI input. The main high-resolution stream is ideal for in-house IPTV applications while the low-resolution proxy targets streaming and display within a control system network. Both streams are full frame rate and provide high-efficiency compression.
The SME-1901 operates with a wide range of decoders, and offers exceptional space and power efficiency with up to 20 dual-stream encoders per frame. It is ideal for monitoring of core routers over IP, while also providing "fan-in" and "fan-out" distribution amplification. - Key Features
- - A space- and power-efficient design offers up to 20 streaming encoders per frame
- High-quality SDI distribution amplifier with up to six 3G/HD/SD outputs
- Highly robust performance with bypass relay protection (available with -R rears)
- Integrated fiber I/O using optional SFP module-
- Audio encoding of 2 channels of AAC or MPEG-1 Layer II
- Dolby Digital can be passed to the streaming output
- Effective management of embedded audio with: selection of 2 channel out of 16, and selection of 5.1 channel for downmix
- Comprehensive metadata detection includes timecode, closed caption (608, 708), AFD, WSS, and teletext
- H.264 high profile video encoding up to level 4.0 for optimized bandwidth utilization
- Full frame rate encoding, with encoded resolutions up to 1080i 59.94/50, including 720p 59.94/50 standards
- Flexible bandwidth management using fixed presets from 128x96 at 256 Kb/s to HD at 5 Mb/s
- Dual-resolution streaming allows simultaneous output of lower resolution proxy plus high-quality main stream
- Operates with wide range of decoders, including STBs, PC clients, and Grass Valley's iControl facility monitoring and Kaleido-IP multi-viewers
- Supports streaming of MPEG-TS over unicast or multicast using RTP/UDP In the Box Grass Valley SME-1901 Monitoring Streaming Media Encoder and DA Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley SME-1901 Monitoring Streaming Media Encoder and DA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley SME-1901-3RU Specs | Electrical Input | Signal:
3G/HD/SD-SDI SMPTE 424M, 292M, and 259M-C compliant
Supported Data Rates:
270, 1483.5, 1485, 2967, 2970 Mb/s
Cable Length (Belden 1694A):
3G: 360 ft (110 m) at 3 Gb/s
HD: 656 ft (200 m) at 1.5 Gb/s
SD: 1,312 ft (400 m) at 270 Mb/s
Return Loss:
> 15 dB for up to 1.5 GHz
> 10 dB from 1.5 to 3 GHz | | IP Input / Output | Quantity: 1
Connector: 100 Mb/s Ethernet with RJ45 connector IEEE 802.3 | | IP Streaming | Signal Path:
8 bits
Compression:
H.264 high profile (level 4.0)
Frame Rate:
Full rate of input signal – except 3G is half the rate
Bitrate:
256 Kb/s to 5 Mb/s
Audio Encoding:
AAC, MPEG-1 Layer II | | Electrical Outputs | Quantity: 6
Signal:
3G/HD/SD-SDI SMPTE 424M, 292M, and 259M-C compliant
Supported Data Rates:
270, 1483.5, 1485, 2967, 2970 Mb/s
Return Loss:
> 15 dB for up to 1.5 GHz
> 10 dB from 1.5 to 3 GHz
Jitter (Wideband):
3G: < 0.3 UI
HD/SD: < 0.2 UI
Rise / Fall Time:
HD: 135 ps max., 20% to 80%
SD: 400-800 ps, 20% to 8 | | DA Processing | Signal Path: 10 bits
Latency: < 6 ns | | Power | 10 W | | Note | Cable length and return loss specifications will be reduced when using the output protected by the bypass relay on SME-1901-3SRP-R rears. Please refer to the manual for more details. |
