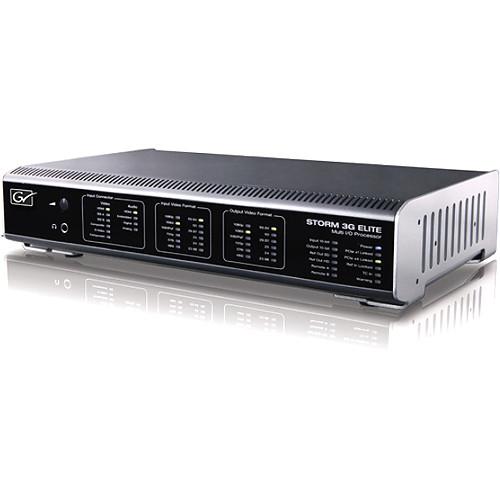

Product description The STORM 3G Elite Multi-I/O Processor from Grass Valley is a 2 RU rack-mountable device, providing complete connectivity and HD/SD hardware for real-time, same frame, down conversion with real-time, full-quality, full-resolution 3G 10-bit HD-SDI, SD-SDI, DV, and HD/ SD analog output from the timeline.The STORM 3G Elite consists of a breakout box with a PCIe 4X I/F card for desktop connection (4x mode: up to 1080p50/60) as well as an Express 34 card (1x mode: up to 1080i) for laptop connection. Video interfaces include dual 3G-SDI, which can be used as either a single 3G-SDI signal or a pair of high-definition and standard-definition signal outputs. Other interfaces include 1080p-capable HDMI I/O, composite (SD only), and component (up to 1080i) analog video I/O.For audio, the STORM 3G Elite has 4 pairs of AES/EBU interfaces (as 8 BNC connectors, each accommodating 8 audio I/Os up to 48 kHz, 24-bit). Another 4 pairs of XLR balanced audio are also available, with a stereo pair each of balanced and unbalanced audio monitor out. A switchable line/mic (switchable phantom power) is also available for a dedicated voice-over input.The STORM 3G Elite also features control/sync. It has two RS-422 interfaces, one for controlling a VTR as master and another for control of a slave. Linear timecode I/O, reference in/through/out interfaces (which accept both bi-sync and tri-sync level), and a locking power connector round out the rest of the interfaces. - HD/SD-SDI input and output with embedded audio and timecode
- HDMI input and output for full resolution, real-time monitoring from the included EDIUS Pro 6.5 NLE software
- Embedded HDMI audio input and output for high-quality audio monitoring
- Video and audio output stay in sync, with editing windows for accurate editing and trimming
- Reference input supports bi-level or tri-level sync
- RS-422 master and slave machine-control support
- Allows you to edit any mix of SD and HD resolution video content together in real time
- Works with many different native video formats, including DV, HDV, AVCHD, uncompressed, and more
- Real-time SD/HD resolution, aspect ratio, and frame-rate conversion and output, including 16:9-to-4:3 and NTSC-to-PAL
- Supports file-based formats, including Infinity JPEG 2000, XDCAM and XDCAM EX, P2 (DVCPRO and AVC-Intra), and GFCam
- Compatible with Windows 7 (32-bit or 64-bit)
UPC: 631069608014 In the Box Grass Valley STORM 3G Elite Multi-I/O Processor STORM 3G Elite Breakout Box PCI Express 4X IF Bus Card with Connection Cable Express 34 Bus Card with Connection Cable Limited 15-Month Warranty User Manual PDF 3.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley STORM 3G Elite Multi-I O Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley 608700 Specs | Bus Interface | PCI Express Rev. 1.1 x4 lane
ExpressCard/34 | | Video Formats (Input/Output) | 1920 x 1080p50/59.94
1920 x 1080i50/59.94
1920 x 1080psF23.98/24/25/29.97
1280 x 720p50/59.94
720 x 486i59.94
720 x 576i50
HDMI:1920 x 1080p50/59.94
1920 x 1080i50/59.94
1280 x 720p50/59.94
720 x 480i59.94
720 x 576i50
720 x 480p59.94
720 x 576p50 | | Video Output Connector | 3G-SDI
Video: SMPTE-292M, SMPTE-259M-C
Audio: SMPTE-299M, SMPTE-272M-A
Analog Component (BNC: Y/Pb/Pr)
Analog Composite (BNC)
Timecode: LTC/VITC Packet (HD), D-VITC (SD) HDMI 1 port (HDCP not supported):
Video: YCbCr4:2:2 or RGB4:4:4 (8/10-bit)
Audio: LPCM 8-channel (24- bit/48 kHz) | | Video Input Connector | 3G-SDI
Video: SMPTE-292M, SMPTE-259M-C
Audio: SMPTE-299M, SMPTE-272M-A
Analog Component (BNC: Y/Pb/Pr)
Analog Composite (BNC)
Timecode: VITC Packet (HD), D-VITC (SD)
HDMI 1 port (HDCP not supported): Video: YCbCr4:2:2 or RGB4:4:4 (8/10-bit), Audio: LPCM 8-channel (24- bit/48 kHz) | | Audio Format | LPCM 48 kHz/24-bit | | Audio Output Connector | HDMI LPCM 8-channel
HD/SD-SDI embedded audio 8-channel
AES/EBU digital audio 8-channel
Balanced analog audio 4-channel
Balanced analog audio monitor 2-channel
Unbalanced analog audio monitor 2-channel | | Audio Input Connectors | HDMI LPCM 8-channel
3G-SDI embedded audio 8-channel
AES/EBU digital audio 8-channel
Balanced analog audio 4-channel | | Reference Input | BNC: Black Burst or Tri-Level Sync | | Machine Control | 9-Pin D-Sub: RS-422 A x 2 (Master/Slave) | | Power Requirements | 12 V: 1.6 A
3.3 V: 0.5 A | | Regulatory Compliance | CE, FCC CLASS B, and C-Tick | | Minimum System Requirements | Any Intel Core 2 or Core iX CPU. Intel or AMD single core CPU with a 3 GHz processor speed or faster (multiple CPUs and/or multi-core CPUs are recommended). SSE2 and SSE3 instruction set supported
1 GB RAM (2 GB or more recommended)
One free PCI Express x1 bus slot
800 MB or more space required for software installation
Drive with ATA100/7,200 rpm or faster capable of sustaining at least 20 MB/s data transfer: Available hard disk space should be twice the size of the file to be edited. A RAID stripe set of 2 or more hard disk drives is required for multiple HD stream output
A graphics card with at least 256 MB of graphics memory (512 MB recommended) with support for Direct3D 9.0°C or later, and PixelShader Model 3.0 or later is required (PixelShader Model 4.0 or later recommended)
Sound card with WDM driver support required
DVD-ROM drive is required for software installation. For writing onto DVD or Blu-ray disc, a compatible drive is required
Windows 7 (32-bit or 64-bit) | | Dimensions | 2 RU | | | | Package Weight | 15.65 lb | | Box Dimensions (LxWxH) | 21.4 x 14.4 x 9.7" |
