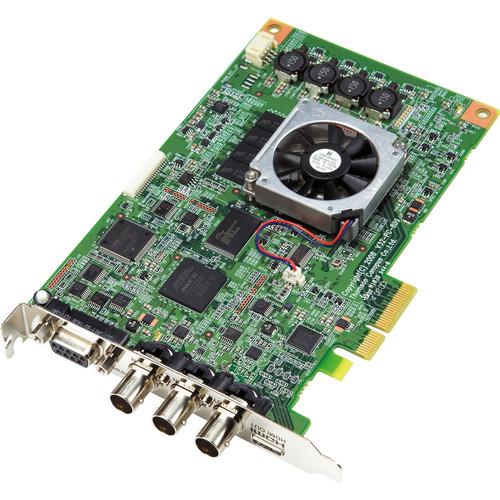

Product description The Grass Valley Storm 3G Hardware Card is a PCI Express card-based hardware that allows you to perform multi-format 3G-SDI (serial digital interface) editing and preview your projects in real-time using HDMI monitors. It also features RS-422 control and reference sync input.
Besides reference input support for blackburst and tri-level sync support, the 3G Storm Card also features machine control-based external VTR ingest. In addition, optional VTR emulation software allows you to control an Edius workstation like a VTR for direct playout from the workstation. Precisely synchronized full resolution preview of effects and content are available from the Edius timeline.
You can use the hardware board for handling a mix of high-definition and standard-definition (HD and SD) video content, video, audio, title, graphics layers, and any combination of real-time effects. In addition, the Storm 3G board also offers live, complete, and high resolution HD/SD video output. Operating systems such as Windows 7 (32/64-bit) and Windows Vista (32/64-bit), and Windows XP (32-bit) are supported by the system. - PCI Express card-based hardware allows you to perform multi-format 3G-SDI (serial digital interface) editing
- Features include RS-422 control, reference sync input, and real-time HD/SD preview via HDMI
- Reference input support for blackburst and tri-level sync support
- Features machine control-based external VTR ingest
- Optional VTR emulation software enables you to control an Edius workstation like a VTR for direct playout from the workstation
- Precisely synchronized full resolution preview of effects and content are available from the Edius timeline
- Handles a mix of high-definition and standard-definition (HD and SD) video content, video, audio, title, graphics layers, and any combination of real-time effects
- Offers live, complete, and high resolution HD/SD video output
- Compatible with Windows 7 (32/64-bit) and Windows Vista (32/64-bit), and Windows XP (32-bit) operating systems
- Timecode input and output support via the RS-422 port for accurate editing from field logs
- Supports file formats such as Infinity JPEG 2000, XDCAM HD and XDCAM EX, P2 (DVCPRO and AVC-Intra), and GFCam
- Compatible with video formats such as AVCHD, AVC-Intra and MPEG-2 as well as uncompressed video
UPC: 631069600889 In the Box Grass Valley Storm 3G Hardware Card Hardware Setup Manual 15-Month Warranty User Manual PDF 2.6mbcfsqbabtebyzurayxeuxdsxy Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley Storm 3G Hardware Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley 600889 Specs | Host Bus Interface | PCI Express Rev. 1.1 x4 lane | | Video Formats | Video Formats (Input/Output) (3G-SDI): 1920x1080p50/59.94
1920x1080i50/59.94
1920x1080psF23.98/24/25/29.97
1280x720p50/59.94
720x486i59.94
720x576i50
Video Formats (Output) (mini HDMI): 1920x1080p50/59.94
1920x1080i50/59.94
1280x720p50/59.94
720x480i59.94
720x576i50
720x480p59.94
720x576p50 | | Output Connector | Video: SMPTE-292M, SMPTE-259M-C
Audio: SMPTE-299M, SMPTE-272M-A
Timecode : LTC/VITC Packet (HD), D-VITC (SD)
Mini HDMI 1 port (HDCP not supported): Video: YCbCr 4:2:2 or RGB 4:4:4 (8-bit/10-bit), Audio: LPCM 8-channel (24-bit/48 kHz) | | Input Connector | 3G-SDI: Video: SMPTE-292M, SMPTE-259M-C
Audio: SMPTE-299M, SMPTE-272M-A
Timecode: VITC Packet (HD), D-VITC (SD) | | Audio Formats | LPCM 48 kHz/24-bit | | Output Connectors | Mini HDMI LPCM 8-channel
3G-SDI embedded audio | | Reference Input | BNC: Black Burst or Tri-Level Sync | | Control | Machine Control: 9-pin D-Sub: RS-422A (Master/Slave) | | Power Requirements | +12V: 1.6A, +3.3V: 0.5A | | Compliance | CE, FCC CLASS B, C-Tick | | System Requirements | Any Intel Core 2 or Core iX CPU. Intel or AMD single core CPU with a 3 GHz processor speed or faster (multiple CPUs and/or multi-core CPUs are recommended). SSE2 and SSE3 instruction set supported
1 GB RAM (2 GB or more recommended)
One free PCI Express x1 bus slot
800 MB or more space required for software installation
Drive with ATA100/7,200 rpm or faster capable of sustaining at least 20 MB/s data transfer: Available hard disk space should be twice the size of the file to be edited, A RAID stripe set of two or more hard disk drives is required for multiple HD stream output
A graphics card with at least 256 MB of graphics memory (512 MB recommended) with support for Direct3D 9.0c or later, and PixelShader Model 3.0 or later is required (PixelShader Model 4.0 or later recommended)
Sound card with WDM driver support required
DVD-ROM drive is required for software installation. For writing onto DVD or Blu-ray disc, a compatible drive is required
Free USB port (1.1 or higher) is required for security key
Windows XP (SP3 or later, 32-bit)
Windows Vista (SP1 or later, 32-bit or 64-bit)
Windows 7 (32-bit or 64-bit) | | Dimensions | 4.38 x 6.60" (111.15 x 167.65 mm) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.1 x 6.8 x 2.8" |
