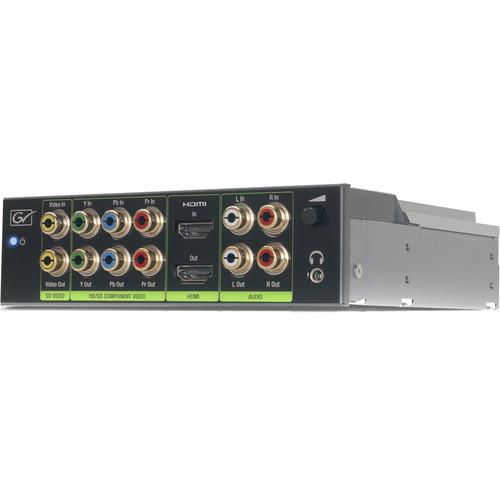

Product description The STORM Mobile Multi I/O Processor from Grass Valley strengthens the EDIUS non-linear editing system's real-time field editing capability by providing a variety of inputs and outputs including HDMI (for video formats up to 1080i), analog component, analog composite, S-Video, and unbalanced audio. It fits into the internal 5" drive bay of desktops via a PCIe x1 card interface (available separately). The STORM Mobile offers integrated hardware down-conversion function for editing HD content to an SD output, for example, creating DVDs. It has a separate headphone output with a digital amplifier for audio monitoring. By using the HDMI output of your camcorder, you can capture videos with this STORM Mobile processor at a higher quality (HQ mode: 4:2:2, I-Frame, 150 Mb/s) than with outputting AVCHD (4:2:0, Long GOP, 18 Mb/s). This is very useful when creating footage for keying work. MXF capture with MPEG-2 (XDCAM compatible) or AVC-Intra (P2 compatible) is also available. - HDMI input/output for connectivity with HDMI devices and real-time monitoring for EDIUS non-linear editing system software (available separately)
- Component, S-Video, and composite analog video input/output
- 8-channel embedded audio through HDMI
- Requires a PCIe x1 card interface (available separately) for desktop PC connection
- Unbalanced stereo analog audio input/output
- Real-time display streamlines workflows
- Hardware down-conversion to monitor HD project in an SD monitor at the same time
- Always outputs a true, native resolution picture without any frame skipping or degradation
- 3D Y/C Separation function allows you to capture old analog formats at the best possible picture quality for making old VHS, Video8, and Hi8 assets
- Allows for high-quality capture from camera through output
- Power supplied via desktop PCIe x1 card
In the Box Grass Valley STORM Mobile Multi I/O Processor for EDIUS Software (5" Internal Drive Bay Unit) Limited 15-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley STORM Mobile Multi I O Processor for EDIUS Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley 608779 Specs | Video In | 1 x HDMI
1 x HD/SD component
1 x S-Video (common with component)
1 x Composite | | Video Out | 1 x HDMI 1 x HD/SD component
1 x S-Video (common with component)
1 x Composite | | Audio In | 8-channel embedded HDMI
2-channel unbalanced audio (RCA pin) | | Audio Out | 8-channel embedded HDMI
2-channel unbalanced audio (RCA pin)
1 x Headphone (stereo mini jack) | | Bus Interface | PCI Express Rev. 1.1 x1 lane (card available separately) | | Capture Format | Supported Capture Formats:
HDMI Connector:
1920 x 1080 59.94i / 50i
1440 x 1080 59.94i / 50i
1280 x 720 59.94p / 50p
720 x 576 50p / 50i (4:3 & 16:9)
720 x 480 59.94p / 59.94i (4:3 & 16:9)
Note: SD progressive video is captured as interlaced video
Component Connector:
1920 x 1080 50i / 59.94i
1440 x 1080 50i / 59.94i
1280 x 720 50p / 59.94p
720 x 576 50i (4:3 & 16:9)
720 x 486 59.94i (4:3 & 16:9)
720 x 480 59.94i (4:3 & 16:9)
S-Video/Composite Connector:
720 x 576 50i (4:3 & 16:9)
720 x 486 59.94i (4:3 & 16:9)
720 x 480 59.94i (4:3 & 16:9)
Note: STORM Mobile will not capture analog video protected by Macrovison or CGMS-A. | | Supported Output Formats | 1920 x 1080 59.94i / 50i / 29.97p / 25p / 23.98p / 29.97p over 59.94i / 25p over 50i / 23.98p over 59.94i
1440 x 1080 59.94i / 50i / 29.97p / 25p / 23.98p / 29.97p over 59.94i / 25p over 50i / 23.98p over 59.94i
1280 x 1080 59.94i / 29.97p / 23.98p / 29.97p over 59.94i / 23.98p over 59.94i / 23.98p over 59.94p
1280 x 720 59.94p / 50p / 29.97p over 59.94p / 25p over 50p
960 x 1080 23.98p over 59.94p
960 x 720 59.94p / 50p / 29.97p over 59.94p / 25p over 50p
720 x 576 50i (4:3 & 16:9, D1) / 50i (4:3 & 16:9, DVD) / 50i (4:3 & 16:9, DV) / 25p over 50i (4:3 & 16:9)
720 x 486 59.94i (4:3 & 16:9) / 29.97p over 59.94i (4:3 & 16:9) / 23.98p over 59.94i (4:3 & 16:9)
720 x 480 59.94i (4:3 & 16:9, DVD) / 59.94i (4:3 & 16:9) / 29.97p over 59.94i (4:3 & 16:9) / 23.98p over 59.94i (4:3 & 16:9) | | Output Formats | Via HDMI Out:
1920 x 1080 59.94i / 50i / 29.97p / 25p / 23.98p
1280 x 720 59.94p / 50p
720 x 576 50i → 50p (interlaced signal is automatically converted to progressive)
720 x 480 59.94i → 59.94p (interlaced signal is automatically converted to progressive)
Via Component Out:
1920 x 1080 29.97p / 25p / 23.98p
1920 x 1080 59.94i or 720 x 486 59.94i (down-converted)
1920 x 1080 50i or 720 x 576 50i (down-converted)
1280 x 720 59.94p or 720 x 486 59.94i (down-converted)
1280 x 720 50p or 720 x 576 50 (down-converted)
720 x 576 50i
720 x 486 59.94i Via S-Video/Composite Out: 720 x 576 50i (down-converted) 720 x 576 50i 720 x 486 59.94 / 59.94i (down-converted) 720 x 486 59.94i | | Minimum System Requirements | Bus Interface:
Requires 1 x PCI Express x1 bus slot (desktop)
Operating System
Standalone:
Windows 10 / 8 / 8.1 / 7 (32-bit or 64-bit)
Windows Vista (SP2 or later, 32-bit or 64-bit)
Windows XP (SP3 or later, 32-bit)
With EDIUS Software:
Windows 7 / 8 / 8.1 / 10 (64-bit)
Note: For Windows 8 / 8.1 / 10 EDIUS v7.21b1530 or later is required. | | Dimensions (W x H x D) | 5.8 x 1.7 x 5.6" (148 x 42 x 142 mm) | | Weight | 1.8 lb (0.8 kg) | | | | Package Weight | 2.72 lb | | Box Dimensions (LxWxH) | 11.2 x 8.3 x 3.6" |
