User Manual for Grass Valley STORM Pro HD-SDI Input Output & HDMI Output PCIe x1 Board for EDIUS Editing System Click to enlarge the picture
Contents of the user manual for the Grass Valley STORM Pro HD-SDI Input
- Product category: Computer Hardware Grass Valley
- Brand: Grass Valley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grass Valley Computer Hardware
|
User manual for the Grass Valley STORM Pro HD-SDI Input contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grass Valley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!
|

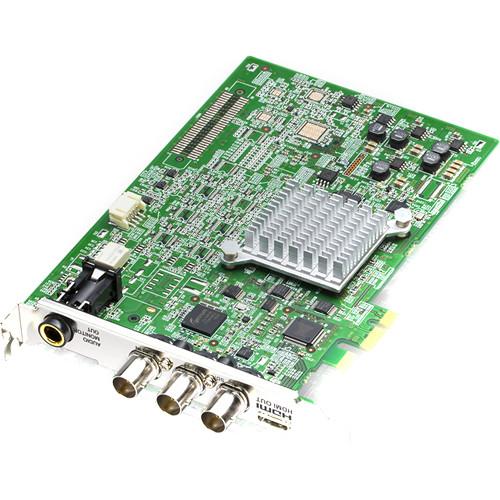

Product description The STORM Pro HD-SDI Input/Output & HDMI Output PCIe x1 Board from Grass Valley is suitable for editors who require high-quality audio and video monitoring capability from their EDIUS non-linear editing system. It allows the users in a file-based, networked environment to preview projects at the same quality level as the final, delivered output. When used in conjunction with EDIUS editing software (available separately), this PCI Express card-based hardware provides constantly synced, full-resolution preview of effects, and content directly from the timeline. - Suitable for editors of broadcast-quality programs who require a means to preview and evaluate their video and audio
- HDMI output for full-resolution, real-time monitoring with 2- / 8-channel embedded audio
- HD-SDI output for full-resolution, real-time monitoring with 8-channel embedded audio
- HD-SDI input, with 8-channel embedded audio
- Video and audio outputs remain synced for accurate editing and trimming
UPC: 631069608694 In the Box Grass Valley STORM Pro HD-SDI Input/Output & HDMI Output PCIe x1 Board for EDIUS Editing System Limited 15-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley STORM Pro HD-SDI Input Output & HDMI Output PCIe x1 Board for EDIUS Editing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley 608694 Specs | Bus Interface | PCI Express Rev. 1.1 x1 lane | | Video Formats | Output:
1920 x 1080i50 / 59.94
1920 x 1080psF/ 23.98
1280 x 720p 50 / 59.94
720 x 480i59.94
720 x 576i50 | | Video Input | 1 x SDI (SMPTE ST 292/ST 259-C) | | Video Output | 2 x SDI (SMPTE ST 292/ST 259-C)
1 x HDMI mini connector (HDMI 1.3, HDCP not supported) | | Audio Input | 8-channel embedded audio (SMPTE ST 299/ ST 272-C) | | Audio Output | 8-channel SDI embedded audio (SMPTE ST 299/272-A)
2- / 8-channel HDMI embedded audio 24-bit, 48 kHz (LPCM)
Stereo monitor audio (1/4" TRS) | | Minimum System Requirements | CPU
Any Intel Core 2 or Core iX CPU
Intel or AMD single core CPU with a 3 GHz processor speed or faster (multiple CPUs and/or multi-core CPUs are recommended)
SSSE3 (Supplementary SSE3) instruction set supported
Memory
1 GB RAM minimum (4 GB or more recommended for SD/HD projects)
Requirements for RAM and video memory vary depending on the project format
Hard Disk
6 GB of hard disk space is required for EDIUS installation
Drive with ATA100 / 7,200 RPM or faster required for video storage:
Available HDD disc space should be twice the size of the file to be edited
RAID-0 is recommended for HD resolution editing
PCI Bus
1 x Free PCI Express x1 bus slot
Graphics card (for EDIUS) supporting higher resolution than 1024 x 768 (32-bit), Direct3D 9.0c or later, and PixelShader Model 3.0 or later is required
For 10-bit SD Editing: 1 GB or more graphics card recommended
For HD Editing: 2 GB or more graphics card recommended
DVD-ROM Drive
Required for EDIUS installation
Blu-ray Disc writer, DVD-R/RW or DVD+R/RW drive is required when creating Blu-ray Discs or DVDs
Operating System
EDIUS v7.42 or later
Windows 7/8/8.1/10 (64-bit) | | Regulatory Compliance | CE, FCC Class A, C-Tick, ICES | | Power Requirements | 12 VDC 0.5 A, 3.3 VDC 0.5 A | | Dimensions (H x W) | 4.37 x 3.5" (161 x 111 mm) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 11.2 x 8.4 x 3.7" |
