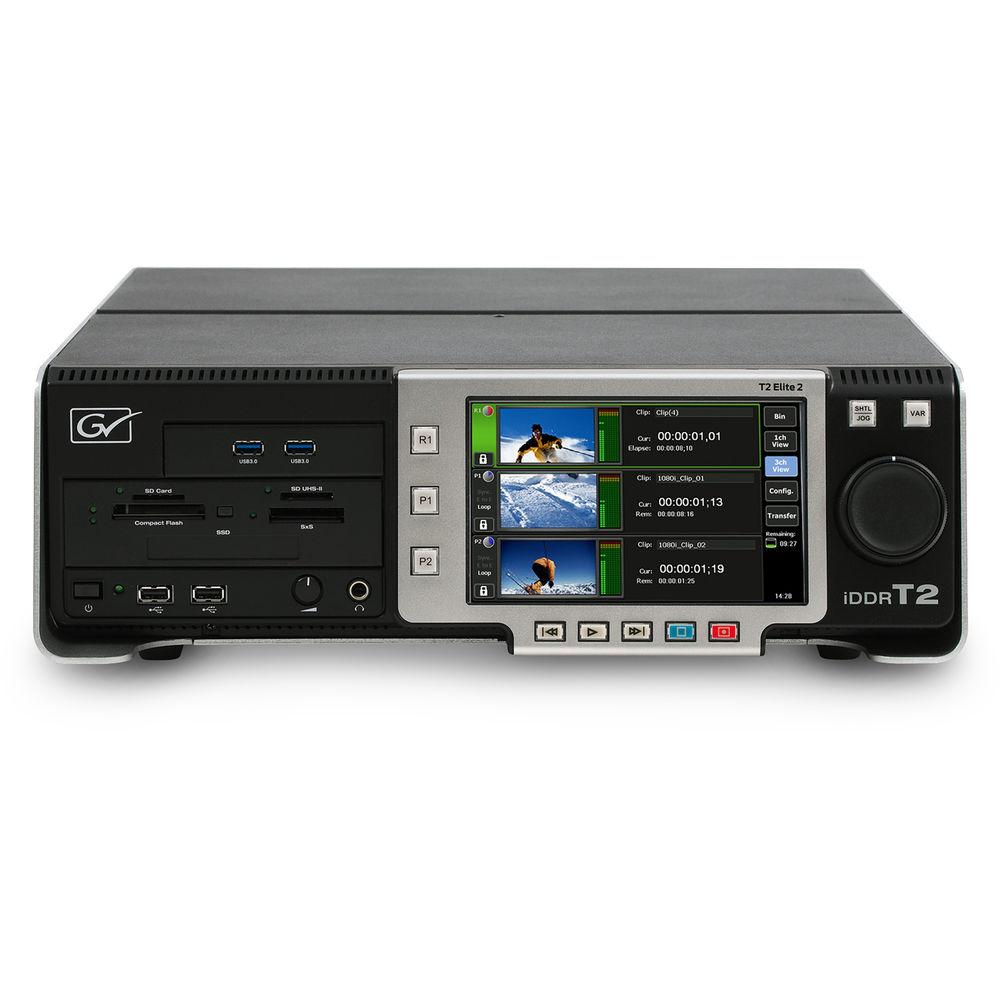

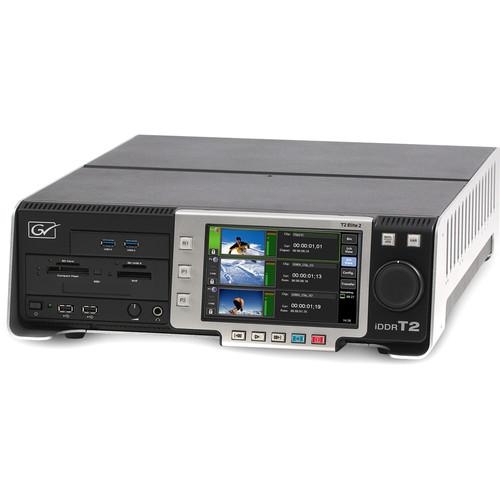

Product description The T2 Elite 2 Digital Recorder and Player from Grass Valley is a complete and self-contained SD and HD audio/video playout center. It supports real-time HD cross conversion and quick real-time playlist rendering. The front-panel transport controls have the look and feel of a traditional VTR. Two output channels support SD and HD content and are useful for independent editing and previewing, or for delivering content to two different display systems simultaneously. These are also suitable for edge-blending and displaying 3D content. The LCD front panel can display high-quality images and is complemented by a software application suite for managing and selecting media clips, clip editing, and trimming, and playout including playlist creation. Featuring extensive rear-panel audio/video connectivity, T2 can also accept files via USB 3.0, or by data transfer over a standard Gigabit Ethernet network including Grass Valley HQ, Grass Valley HQ + Alpha, AVC-ULTRA, AVCHD, MPEG-2, P2, ProRes 422, ProRes 4444, TIFF, TGA, XAVC, XAVC S and XDCAM files. Note: Note while Importing Files:
1. For MP4, MXF, XAVC, and XAVC S, 1920 x 1080 59.94p or 1920 x 1080 50p files will automatically be converted to Grass Valley HQ AVI.
2. For P2 and XAVC, for resolutions greater than 1920 x 1080, the file will be scaled to HD or SD and then imported. - Features
-
- True HD support; 720p, 1080i, and 1080p24
- Supports 720p to 1080i real-time cross-conversion
- Up/down conversion for a wider range of resolutions and application support
- Native import/playback for most standard formats
- Synchronize multiple T2s for 4K playback
- RAID-0 support
- Multi-format support (transcoding to Grass Valley HQ AVI) for most standard and broadcast formats
- One record and two playback channels work independently and simultaneously
- 2-channel synchronized playback for key/fill rolls, edge blend displays, multiscreen, and 3D applications
- Embedded audio (8 channels per SDI connection)
- AES/EBU audio supported
- Workstation mode included
- On-the-fly editing, including trimming, mark in/out, markers with comments, basic transition effects and insertion of placeholders for playlists
- Full back-up and restore feature
- Timecode chase playback with LTC input
- Integration support for third-party control (BVW, GPIO, and AMP)
- Ingest management including MXF XDCAM format support with closed caption data, direct ingest to external media/storage, user-defined clip names, and scheduler
- Import from Final Cut Pro in QuickTime format using the free Grass Valley HQ codec for Mac onto an exFAT HDD
- Supports ProRes 422 and ProRes 4444
- File-based operation enhancements including FTP transfer rate limit to maintain playback performance, NTP synchronization, and watch folder transfers
- Direct access to a media folder with EDIUS and the ability to edit a growing file — AVI (Grass Valley HQ) and MXF (XDCAM)
- Export a growing MXF (XDCAM) file via FTP
- Export to Sony XDCAM drive (U1/U2)

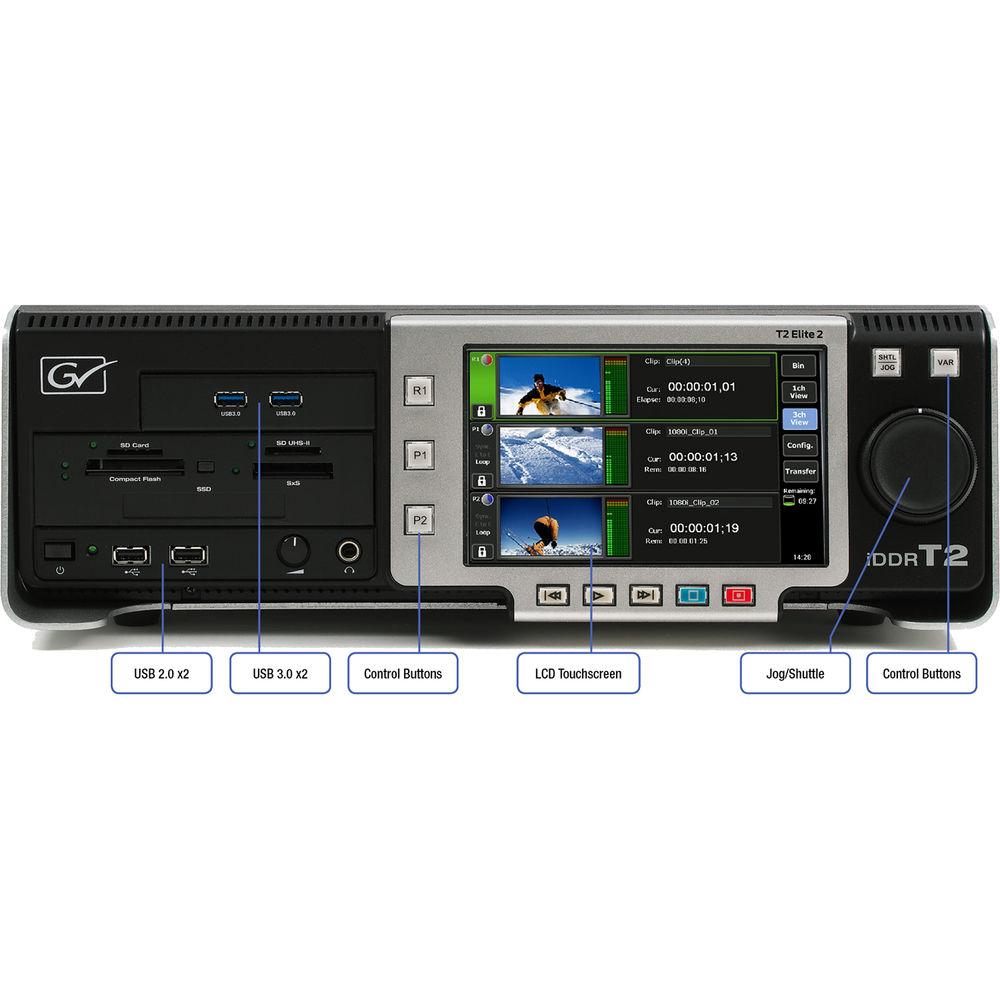

- Media card reader supports SD, SD (UHS-II), CF, SxS, 2.5" SSD
- Fast playlist rendering speed (up to 10 times real-time)
- Robust design
- Applications
-
- Events and staging
- Auditoriums
- Corporate A/V centers
- Educational facilities
- Broadcast display support
- Regional sports companies
- Switcher support for playback
In the Box Grass Valley T2 Elite 2 Digital Recorder and Player Limited 15-Month Warranty raqrqfrawaxaxdbf Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley T2 Elite 2 Digital Recorder and Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

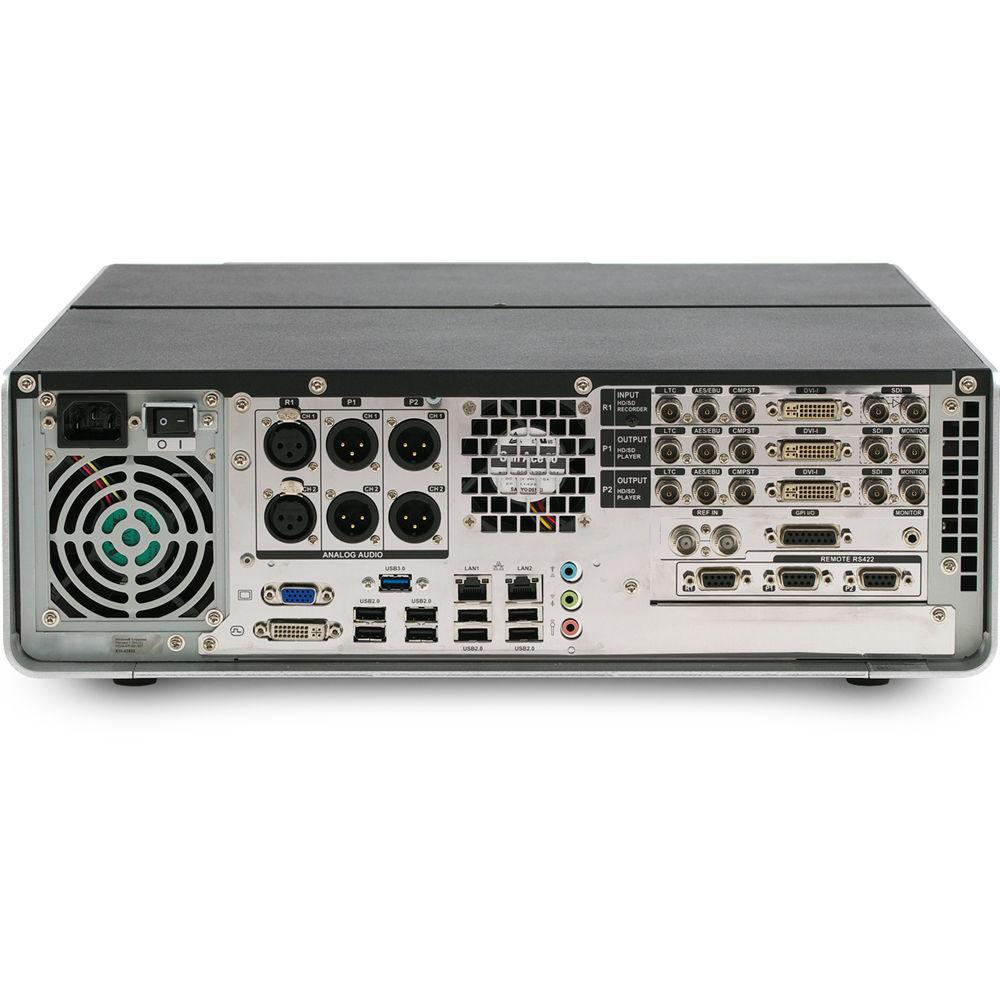

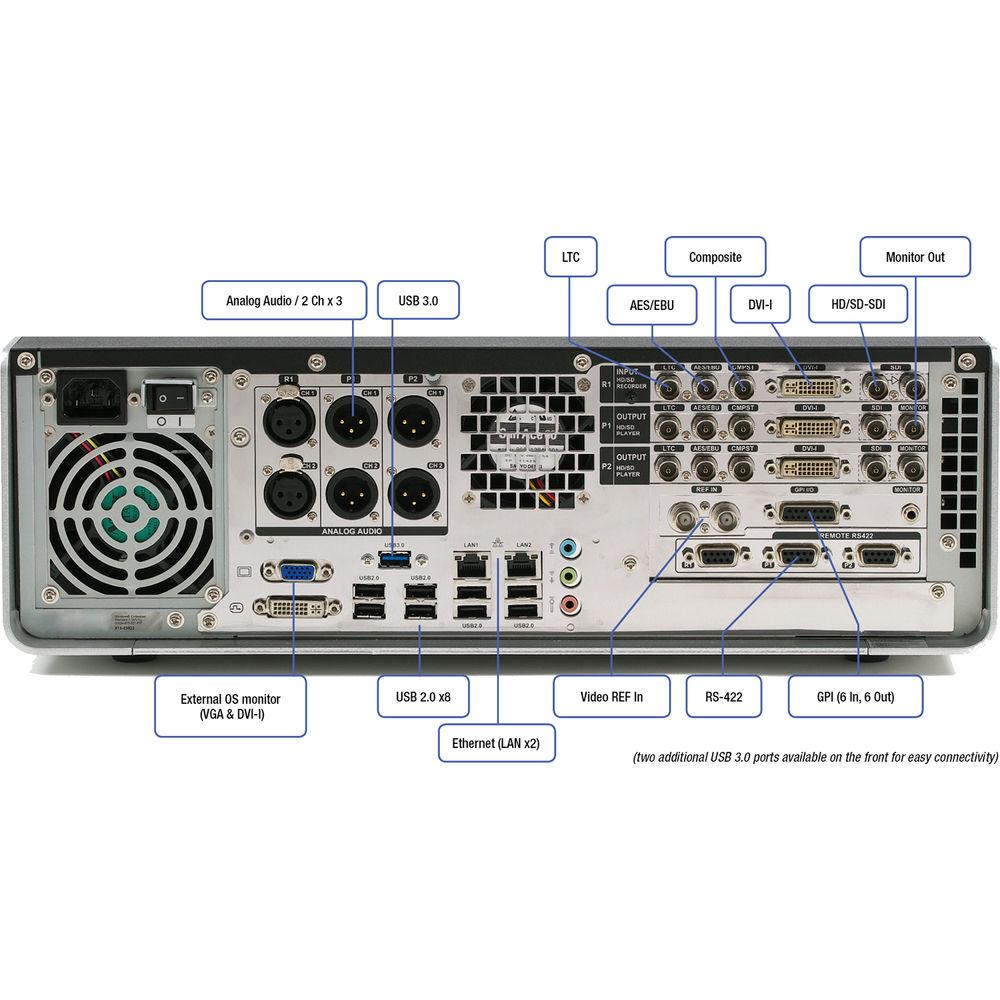

Technical parametersGrass Valley T2 Elite 2 Specs | | | Input | 1 x SD/HD SDI, analog component (Y-Pb-Pr), DVI-I, composite | | Output | 1 x SD/HD SDI (one for each playback channel), analog component (Y-Pb-Pr), DVI-I (one for each playback channel), composite | | | | Formats | Supported Type:
HD, SD
Recording:
AVI-Grass Valley HQ, 4:2:2, XDCAM HD422 (50 Mb/s), HD (25 Mb/s), IMX, DVCAM | | Bit Rate | Up to 200 MB/s | | Resolutions | SD:
720 x 576i 50
720 x 486i 59.94
HD:
1920 x 1080i 59.94
1920 x 1080i 50
1920 x 1080p 24
1920 x 1080 PsF 24
1920 x 1080p 23.98
1920 x 1080 PsF 23.98
1440 x 1080i 59.94
1440 x 1080i 50
1440 x 1080p 24
1440 x 1080 PsF 24
1440 x 1080p 23.98
1440 x 1080 PsF 23.98
1280 x 720p 59.94
1280 x 720p 50 | | | | Formats | Supported Types:
HD, SD, computer
Playback (Native Import/Playback):
AVC ULTRA (AVC-Intra 200; AVC LongG 50/25)
AVCHD (H.264/AVC)
AVI (DV, DVCPRO, DVCPRO 50, DVCPRO HD, Grass Valley HQ, Grass Valley HQ + Alpha)
GF (DV, DVCPRO, DVCPRO 50, MPEG-2)
MXF (Grass Valley HQ, AVC-Intra 50, AVC-Intra 100, AVC-Intra 200, D10, DV, DVCPRO, DVC-PRO 50, DVCPRO HD, H.264/AVC, MPEG-2)
P2 (DV, DVCPRO, DVCPRO 50, DVCPRO HD, AVC-Intra 50, AVC-Intra 100)
XAVC (XAVC HD Intra 100/50; Long422 50/35/25)
XAVC S (H.264/AVC)
XDCAM (DV, IMX, MPEG-2)
XDCAM EX (MPEG-2)
QuickTime (Grass Valley HQ, ProRes 422, ProRes 422 HQ, ProRes 422 LT, ProRes 422 Proxy, Grass Valley HQ + Alpha, ProRes 4444)
MP4 (H.264/AVC) | | Bit Rate | Up to 200 Mb/s per channel | | Resolutions | SD:
720 x 576i 50
720 x 486i 59.94
HD:
1920 x 1080i 59.94
1920 x 1080i 50
1920 x 1080p 24
1920 x 1080 PsF24
1920 x 1080p 23.98
1920 x 1080 PsF23.98
1280 x 720p 59.94
1280 x 720p 50
1280 x 720p 23.98
Computer:
1280 x 1024
1024 x 768
800 x 600
640 x 480 | | | | Analog Audio | 2-channel, XLR connections | | Digital Audio | AES/EBU (2-channel), BNC connections
Embedded audio on SDI, HD or SD (8-channel) | | Recording Format | 24-bit, PCM, 48 kHz sampling (20-bit PCM for SD-SDI) | | | | Analog Audio | 2-channel per output video, XLR connections | | Digital Audio | AES/EBU (2-channel), BNC connections
Embedded audio on SDI, HD or SD (8-channel) | | Recording Format | 24-bit, PCM, 48 kHz sampling (20-bit PCM for SD-SDI) | | | | Protocol | BVW (pre-roll/post-roll, variable control in sync mode, audio monitoring with variable speed), GPI, AMP (Advanced Media Protocol) for Grass Valley switchers and external control software
Timecode chase playback with LTC input | | Connections | RS-422 (9-pin D Conn per channel), Ethernet | | | | Connections | Gigabit Ethernet, USB 3.0 (compatible with USB 2.0), VGA, DVI-I | | Capacity | 2 TB (RAID-0, 2 x 1 TB SSD)
Approximately 28 hours of HD @ Grass Valley HQ (150 Mb/s) to 72 hours of XDCAM HD422 @ 50 Mb/s | | | | Export Formats | Grass Valley HQ, Grass Valley HQ + Alpha, MXF (XDCAM HD422 (50 Mb/s), HD (25 Mb/s), IMX, DV)
Transcoding to Grass Valley HQ AVI:
AVI (Grass Valley HQX, Grass Valley HQX + Alpha, Grass Valley Lossless, uncompressed)
MPEG-2
MXF (Grass Valley HQX, Grass Valley HQX + Alpha, Grass Valley HQ)
P2 (AVC-Intra 2K 422, AVC-Intra 4K LT, AVC-Intra 4K 422)
QuickTime (Grass Valley HQX, Grass Valley HQX + Alpha, DV, DVCPRO HD, DVCPRO 50, H.264, JPEG2000, animation, Motion JPEG, MPEG-4, Photo JPEG, PNG, ProRes 422, ProRes 4444, QuickTime Video, Sorenson Video 3, uncompressed)
Windows Media (Windows Media Video)
Sequenced files (TGA ,BMP, JPG, TIFF, PNG, GIF)
Rewrapping MXF (OP-1a):
GXF (AVC-Intra 100, AVC-Intra 50, D10 DVC-PRO HD, DVCPRO50, DVCPRO, DV, MPEG-2)
P2 (DV, DVCPRO, DVCPRO 50, DVCPRO HD, AVC-Intra 50, AVC-Intra 100)
P2 (AVC-Intra 200, AVC-LongG 50, AVC-LongG 25) | | Import Formats | Native Import/Playback:
AVCHD (H.264/AVC; Dolby Digital (AC-3), linear PCM)
AVI (Grass Valley HQ, Grass Valley HQ + Alpha, DV, DVCPRO, DVCPRO 50, DVCPRO HD; linear PCM)
GF (DV, DVCPRO, DVCPRO 50, MPEG-2; linear PCM (48 kHz, 16-bit/24-bit))
MP4 (H.264/AVC; Linear PCM/MPEG-2 AAC)
MXF (AVC-Intra 50, AVC-Intra 100, AVC-Intra 200, D10, DV, DVCPRO, DVCPRO 50, DVCPRO HD, MPEG-2, H.264/AVC; linear PCM, A-law)
MXF (Grass Valley HQ; linear PCM)
P2 (DV, DVCPRO, DVCPRO 50, DVCPRO HD, AVC-Intra 50, AVC-Intra 100, AVC-Intra 200, AVC-LongG 50, AVC-LongG 25; Linear PCM (48 kHz, 16-bit/24-bit))
QuickTime (Grass Valley HQ, Grass Valley HQ + Alpha, ProRes 422, ProRes 422 HQ, ProRes 422 LT, ProRes 422 Proxy, ProRes 4444; AAC, Apple Lossless, MP3, ADPCM, A-law, U-law, Linear PCM)
XDCAM (DV, IMX, MPEG-2; 8-channel AES3, Linear PCM, A-law)
XDCAM EX (MPEG-2; Linear PCM (48 kHz, 16-bit))
XAVC (XAVC HD Intra Class 100/50, XAVC HD Long422 50/35/25; Linear PCM)
XAVC S (H.264/AVC; Linear PCM/MPEG-2 AAC)
Still images
Transcoding (AVI (HQ)):AVCHD (H.264/AVC; Dolby Digital (AC-3), linear PCM)
AVI (Grass Valley Lossless, Grass Valley HQX, Grass Valley HQX + Alpha, uncompressed; Linear PCM)
GF (DV, DVCPRO, DVCPRO 50, MPEG-2; Linear PCM (48 kHz, 16-bit/24-bit))
MP4 (H.264/AVC; Linear PCM/MPEG-2 AAC)
MPEG-2 (MPEG-2; MPEG-1 Audio Layer-2, Dolby Digital (AC-3), Linear PCM)
MXF (AVC-Intra 50, AVC-Intra 100, AVC-Intra 200, D10, DV, DVCPRO, DVCPRO 50, DVCPRO HD, PEG-2, H.264/AVC; Linear PCM, A-law)
MXF (JPEG 2000; Linear PCM, A-law)
MXF (Grass Valley HQ; Linear PCM)
MXF (Grass Valley HQ + Alpha, Grass Valley HQX, Grass Valley HQX + Alpha; Linear PCM)
P2 (DV, DVCPRO, DVCPRO 50, DVCPRO HD, AVC-Intra 50, AVC-Intra 100, AVC-Intra 200, AVC-LongG 50, AVC-LongG 25)
P2 (AVC-Intra 2K 422, AVC-Intra 4K LT, AVC-Intra 4K 422; Linear PCM)
QuickTime (Grass Valley HQ, Grass Valley HQ + Alpha, ProRes 422, ProRes 422 HQ, ProRes 422 LT, ProRes 422 Proxy, ProRes 4444; AAC, Apple Lossless, MP3, ADPCM, A-law, U-law, Linear PCM)
QuickTime (Grass Valley HQX, Grass Valley HQX + Alpha, DV, DVCPRO, DVCPRO 50, DVCPRO HD, H.264, JPEG 2000, Animation, MPEG-4, Photo JPEG, PNG, uncompressed, Motion JPEG, Sorenson Video 3, QuickTime Video; AAC, Apple Lossless, MP3, ADPCM, A-law, U-law, Linear PCM)
Windows Media (Windows Media Video; Windows Media Audio)
XDCAM (DV, IMX, MPEG-2; 8-channel AES3, Linear PCM, A-law)
XDCAM EX (MPEG-2; Linear PCM (48 kHz, 16-bit))
XAVC (XAVC HD Intra Class 100/50, XAVC HD Long422 50/35/25; Linear PCM)
XAVC S (H.264/AVC; Linear PCM/MPEG-2 AAC)
XAVC S (H.264/AVC; Linear PCM/MPEG-2 AAC)
Still images
Rewrap MXF:
GXF (AVC-Intra 100, AVC-Intra 50, D10, DVCPRO HD, DVCPRO 50, DVCPRO, DV, MPEG-2)
P2 (DV, DVCPRO, DVCPRO 50, DVCPRO HD, AVC-Intra 50, AVC-Intra 100, AVC-Intra 200, AVC-LongG 50, AVC-LongG 25;Linear PCM (48 kHz, 16-bit/24-bit)) | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Dimensions | 21.6 x 16.9 x 5.5" (55 x 43 x 14 cm) | | Weight | 33 lb (15 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 17.0 x 6.0" |
