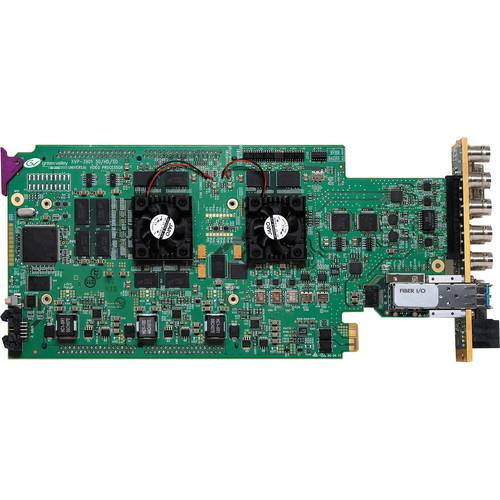

User Manual for Grass Valley XVP-3901-FS-R 3G HD SD Frame Sync Optimized for Rears with Bypass Relay Click to enlarge the picture
Contents of the user manual for the Grass Valley XVP-3901-FS-R 3G HD SD
- Product category: Video & Audio Processing Grass Valley
- Brand: Grass Valley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Grass Valley Video & Audio Processing
|
User manual for the Grass Valley XVP-3901-FS-R 3G HD SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Grass Valley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Grass Valley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Grass Valley product will considerably shorten its lifespan!
|
Product description The XVP-3901-FS-R from Miranda is a highly integrated, 3G/HD/SD frame synchronizer/aspect ratio converter and optional AV signal processor. It is designed to synchronize and process HD and SD signals for 3G/HD/SD hybrid plants. It is compatible with the Miranda Densité 3 Frame, sold separately.
This model is identical to the XVP-3901, except that it supports rears with bypass relay and does not have up/down/cross conversion capabilities. It features a dual 3G/HD/SD input selector and provides multiple outputs. Even though it doesn't up/down/cross convert the input signal, the XVP-3901-FS-R can still perform ARC control on SD signals, useful when converting 16:9 SD signals to 4:3 SD, and vice versa. - Video
- - Frame synchronizer and aspect ratio converter (50/59.94 Hz)
- Offers multirate 3G/HD/SD input and outputs
- Supports 3G level A (mapping 1) and level B
- Flexible HD/SD/URS reference input
- One frame of processing delay for all conversions
- Automatic ARC using AFD (SMPTE 2016), video index (RP-186), and WSS, with custom and fixed presets
- Bypass relay available with XVP-3901-110/75-3DRP-R rear module
- Keyer option for filling black pillars and letterbox
- Built-in proc amp with YUV/RGB color correction and legalizer
- Processes and converts ancillary data such as CC (608/708), timecode, and teletext/OP-47
- Inserts V-Chip and CGMS in XDS of CC (CEA-608)
- Optional SFP optical plug-in cartridges select between fiber and BNC inputs, and to output electrical and optical signals simultaneously
- Serial and GPIO ports for automation control
- Upgradeable to full XVP-3901 specification
- Dual fingerprint generation to monitor lip sync on SD and HD outputs - Optional Audio
- - Six channels of embedded audio processing (32 channels internal)
- Four AES inputs, four AES outputs
- Automation capabilities based on audio signal type detection
- Audio Downmix: 5.1 surround to Lt/Rt or Lo/Ro
- Optional audio dynamic processor (compressor/limiter/expander)
- Optional automatic loudness control with Grass Valley wideband processing (onboard)
- Optional loudness measurement of up to four audio programs, and logging with iControl for end-to-end loudness monitoring solutions
- Loudness solution compliant to EBU R128, A/85 ITU-R BS.1770-3, and ARIB TR-B32 Dolby E compatible
- Audio metadata processing (SMPTE 2020-A)
- Perfect audio/video sync plus additional audio user delay of up to two seconds
- Compatible with Grass Valley audio processing cards using ABUS
- Compatible with iControl multipoint A/V fingerprint analyzer for lip sync measurement
- Onboard Socket for Two Optional Module Expansions: Dolby E and Dolby Digital decoder, Dolby Digital and Dolby Digital Plus encoder, Dolby E encoder, Linear Acoustic upMAX, Linear Acoustic AEROMAX automatic loudness control In the Box Grass Valley XVP-3901-FS-R 3G/HD/SD Frame Sync Optimized for Rears with Bypass Relay Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Grass Valley XVP-3901-FS-R 3G HD SD Frame Sync Optimized for Rears with Bypass Relay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGrass Valley XVP-3901-FS-R Specs | Video Input / Output | 2 x Inputs
2 x Outputs
Signal
SMPTE-259M-C (270 Mb/s)
SMPTE-292M (1.485, 1.485/ 1.001 Gb/s)
SMPTE-424M (2.970, 2.970/ 1.001 Gb/s)
Supported Formats
SD: 480i59.94, 576i50
HD: SMPTE-274M: 1080i59.94/50
HD: SMPTE-296M: 720p59.94/50
3G: SMPTE-425M level A (mapping 1), level B: 1080p59.94/50
Cable Length
984 ft (300 m) Belden 1694A at 270 Mb/s
492 ft (150 m) Belden 1694A at 1.485 Gb/s
393 ft (120 m) Belden 1694A at 2.970 Gb/s
Return Loss
> 15 dB up to 3 GHz
Jitter
HD/SD: < 0.2 UI (alignment jitter)
3G: < 0.4 UI (alignment jitter) | | Reference Input | Signal
SMPTE 170M/SMPTE 318M/ITU 624-4 black burst
SMPTE 274M / SMPTE 296M tri-level sync
Return Loss: > 35 dB up to 5.75 MHz | | Video Processing | Signal Path: 10-bit minimum
Latency: One frame in all modes
Additional Delay: Up to 15 frames | | Audio Input | Quantity: 4
Sampling Frequency: 32 to 96 kHz
Quantization: Up to 24 bits
AES3
Level: 0.2 to 7 Vpp
Impedance: 110 Ω, balanced
AES3-id
Level: 0.2 to 2 Vpp
Impedance: 75 Ω
Return Loss: 15 dB at 6 MHz | | Audio Output | Quantity: 4
Sampling Frequency: 48 kHz
Quantization: 24 bits
AES3
Level: 2.75 Vpp
Impedance: 110 Ω, balanced
AES3-id
Level: 1.0 Vpp
Impedance: 75 Ω
Return Loss: 15 dB at 6 MHz | | Audio Processing | Quantization: 24 bits
Sampling: 48 kHz, synchronous
Number of Channels: 16, 8 pairs, 4 groups
Frequency Response: ±0.02 dB (20 Hz to 20 kHz)
SNR: 123 dB (A-weighted)
THD-N: -138 dB (20 Hz to 20 kHz) | | Miscellaneous | Fixed Delay: 0 to 2.0 s
Step: 1 ms (coarse), 1 sample (fine) | | GPI | Connector: 26-pin D-sub, opto-isolated
GPI In: Input selection (1-2)
Presets: 1-4
GPI Out: Selected input (1-2)
Selected Preset: 1-4 | | RS-422 | RS-422 A (automation)
Connector: RJ-45
Signal: OXTEL series automation protocol
RS-422 B (audio metadata)
Connector: 26-pin D-sub
Signal: RDD6 | | ABUS Connector | As per ABUS standard | | Fiber | Full specifications available on SFP optical plug-in cartridges webpage and datasheet | | Test Pattern Generator | Video
Color bars - 100% white bar with 75% color
Audio
Left channel pulsed 1 kHz tone
Right channel steady 1 kHz tone | | Power | 25 W | | Note | Cable length and return loss specifications will be reduced when using the output protected by the bypass relay on XVP-3901-110/75-3DRP-R rears. Please refer to the manual for more details. |
