User Manual for Greenlee 200EP-G Tone Probe Amplifier with Headset Jack & Flashlight Click to enlarge the picture
Contents of the user manual for the Greenlee 200EP-G Tone Probe Amplifier with
- Product category: Installation & Maintenance Tools Greenlee
- Brand: Greenlee
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Greenlee Installation & Maintenance Tools
 |
User manual for the Greenlee 200EP-G Tone Probe Amplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Greenlee product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Greenlee user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Greenlee product will considerably shorten its lifespan!
|

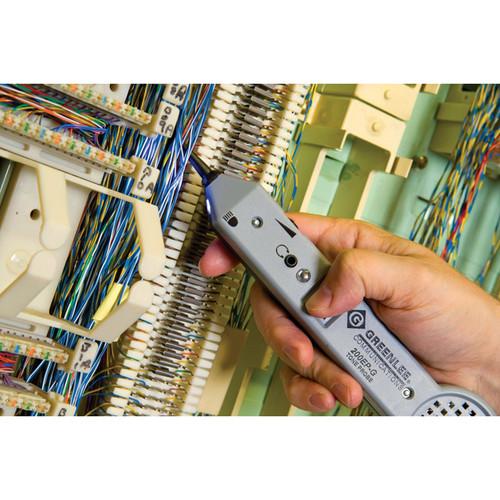

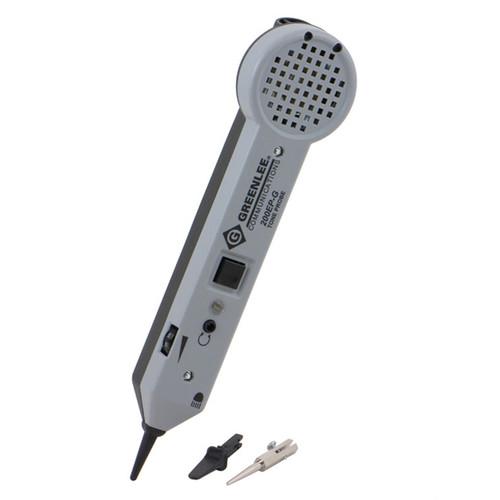

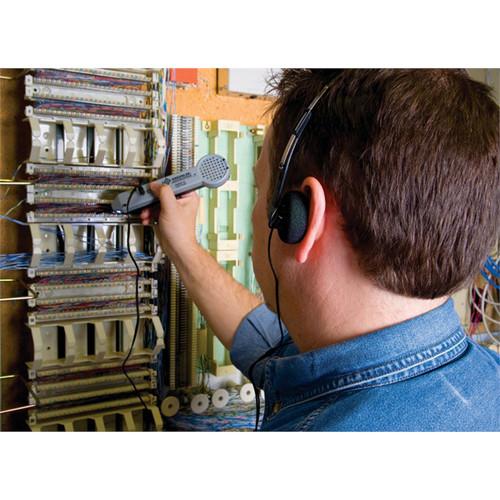

Product description The 200EP-G from Greenlee is a tone probe amplifier suitable for testing/tracing wires and cables without disturbing any surrounding insulation. It features a 3.5mm headset jack for monitoring tone in headphones and a flashlight for getting around dark situations. It is suitable for use with any Greenlee tone generator, and utilizes a plastic carbon-fiber tip to prevent accidental shorts. The tone probe runs on one 9V battery, and can do so for up to 50 hours at a clip. - Notable Features
-
- Resistive plastic carbon-fiber tip to prevent accidental shorts when probing wires
- Adjustable volume sensitivity control
- Battery compartment
- Recessed terminal ports for handset connection
- Spring-loaded ON/OFF/flashlight button
- LED
- Headset jack (acoustically protected)
- On-board flashlight
UPC: 783310499879 In the Box Greenlee 200EP-G Tone Probe Amplifier with Headset Jack & Flashlight Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Greenlee 200EP-G Tone Probe Amplifier with Headset Jack & Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGreenlee 200EP-G Specs | Gain | 30 dB, nominal | | Impedance | Input 100 MOhms, nominal
Metal probe tip: 0 Ohms
Plastic probe tip: 300 Ohms
Headset: 8 Ohms, minimum | | Headset Connector | 1 x 3.5 mm | | Battery | 1 x 9 V | | Battery Life | 50 hours, nominal | | Operating/Storage Temperature | 32 to 122°F / 0 to 50°C | | Dimensions (L x W x D) | 9.1 x 2.2 x 1.1" / 23.1 x 5.5 x 2.8 cm | | Weight | 5.1 oz / 145.0 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 12.2 x 2.6 x 1.2" |
