Greenlee 701K-G Standard Tone and Probe

Search your instruction manual in PDF to download

User Manual for Greenlee 701K-G Standard Tone and Probe Kit

Click to enlarge the picture
Greenlee 701K-G Standard Tone and Probe Kit Contents of the user manual for the Greenlee 701K-G Standard Tone and Probe
  • Product category: Installation & Maintenance Tools Greenlee
  • Brand: Greenlee
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Greenlee Installation & Maintenance Tools

User manual for the Greenlee 701K-G Standard Tone and Probe contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Greenlee product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Greenlee user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Greenlee product will considerably shorten its lifespan!

Product description

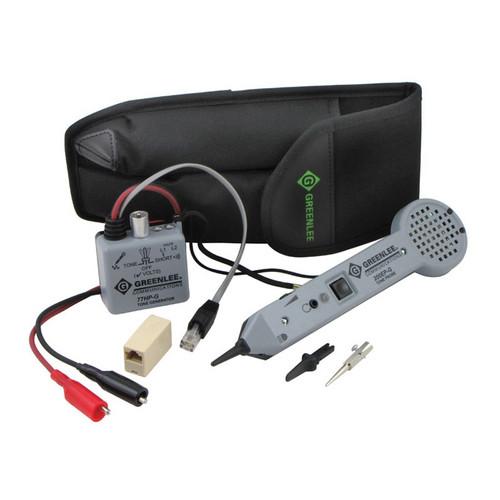

The 701K-G is a kit comprised of a Greenlee 200EP Tone Probe Amplifier, a 7HP-G High Power Tone Generator, and a rugged nylon carrying case. The amplifier and tone-generator are intended to facilitate the testing and tracing of wire and cables.

The probe, which can operate at levels of 30 dB, features a 3.5mm headset jack for monitoring tone in headphones, and comes with a plastic probe tip to prevent accidental shorts. The accompanying power-tone generator provide the alternating 890/960 Hz signal to trace a given wire, or pair of wires. Both the tone generator and the probe are battery powered, lasting up to 50 hours off of a 9V battery. When the items are not in use, you can store them in the woven nylon carrying case. UPC: 783310499909 In the Box Greenlee 701K-G Standard Tone and Probe Kit
  • 200EP-G Tone Probe Amplifier with Headset Jack & Flashlight
  • Tone Probe Amplifier
  • Carrying Case
  • Limited 1-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the Greenlee 701K-G Standard Tone and Probe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)


    Technical parameters

    Greenlee 701K-G Specs

    Gain 30 dB, nominal
    Input Impedance 100 MOhms
    Resistance Plastic probe tip: 300 Ohms
    Metal probe tip: 0 Ohms
    Headset Jack 3.5 mm stereo plug, 8 Ohms minimum
    Battery 1 x 9 VDC (NEDA 1604, JIS 006P, or IEC 6LR61)
    Battery Life 50 hours (nominal)
    Operating/Storage Temperature 32 to 122°F / 0 to 50°C
    Dimensions (L x W x D) 9.1 x 2.2 x 1.1" / 23.1 x 5.5 x 2.8 cm
    Weight 5.1 oz / 145.0 g
    Output Frequency Alternating between 890 and 960 Hz
    Frequency (Operating) Warbling:
    Slow: 1.3 Hz
    Fast: 6 Hz
    Voltage Protection Rating 52 VDC into 600 Ohm Circuit
    Battery 9 VDC (NEDA 1604, JIS 006P or IEC 6LR61)
    Battery Life (approx.) 50 hours
    Power Talk battery: 4.5 VDC
    Output: 7 dBm
    Impedance 600 Ohms
    Operating/Storage Temperature 32 to 122°F / 0 to 50°C
    Dimensions (L x W x H) 1.3 x 2.5 x 2.2" / 3.2 x 6.4 x 5.7 cm
    Weight 4.5 oz / 128.0 g
    Package Weight 1.01 lb
    Box Dimensions (LxWxH) 12.35 x 5.55 x 2.7"
