User Manual for Greenlee 711K Standard Tone and Probe Kit Click to enlarge the picture
Contents of the user manual for the Greenlee 711K Standard Tone and Probe
- Product category: Installation & Maintenance Tools Greenlee
- Brand: Greenlee
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Greenlee Installation & Maintenance Tools
|
User manual for the Greenlee 711K Standard Tone and Probe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Greenlee product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Greenlee user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Greenlee product will considerably shorten its lifespan!
|

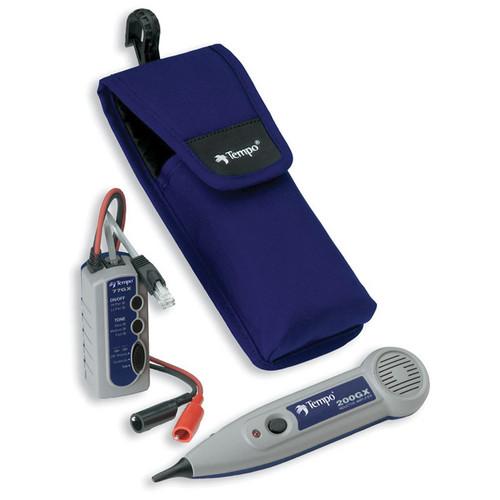

Product description The 711K is a kit comprised of a Greenlee 200GX Tone Probe Amplifier and a 77GX Tone Generator. The amplifier and tone-generator are intended to facilitate the tracing and troubleshooting a variety of electrical circuits in a variety of circumstances, including communication, alarm/security, automotive scenarios, and more. It accomplishes all of this without piercing insulation.
The probe, which can operate at levels of 30 dB, includes an LED for a visual indication of signal strength, and for recessed telephone test-set connectors. Also provided is a plastic probe tip to prevent accidental shorts.
The accompanying power-tone generator provides three selectable warble tones, a two-line modular test lead, and two-color LEDs which help you identify the polarity of a signal. It also includes a weather resistant case, and operates in conjunction with the tone probe via standard alligator clips. UPC: 783310605584 In the Box Greenlee 711K Standard Tone and Probe Kit 200GX Tone Probe 77GX Tone Generator Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Greenlee 711K Standard Tone and Probe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGreenlee 711K Specs | | | Gain | 30 dB | | Input Impedance | 100 MOhms | | Resistance | Plastic probe tip: 300 Ohms | | Battery | 1 x 9 VDC (NEDA 1604, JIS 006P, or IEC 6LR61) | | Battery Life | 50 hours (nominal) | | Operating/Storage Temperature | 32 to 122°F / 0 to 50°C | | Dimensions (L x W x D) | 9.0 x 1.9 x 1.4" / 22.9 x 4.8 x 3.5 cm | | Weight | 4.6 oz / 0.13 kg | | | | Output Frequency | Alternating between 577 and 984 Hz (±1%) | | Frequency (Operating) | Warbling:
Slow: 1.3 Hz
Medium: 6 Hz
Fast: 13 Hz | | Voltage Protection Rating | 60 VDC into 600 Ohm Circuit | | Battery | 9 VDC (NEDA 1604, JIS 006P or IEC 6LR61) | | Battery Life (approx.) | 100 hours | | Power | Talk battery: 5.5 VDC
High power: 8 dBm
Low power: 1 dBm | | Impedance | 600 Ohms | | Auto Shut-Off | 4 hours | | Operating/Storage Temperature | 32 to 122°F / 0 to 50°C | | Dimensions (L x W x H) | 4.0 x 1.7 x 1.5" / 10.1 x 4.1 x 3.8 cm | | Weight | 0.29 lb / 0.13 kg | | | | Package Weight | 0.98 lb | | Box Dimensions (LxWxH) | 12.4 x 5.5 x 2.7" |
