User Manual for Greenlee AT8L LAN Toner Kit Click to enlarge the picture
Contents of the user manual for the Greenlee AT8L LAN Toner Kit
- Product category: Installation & Maintenance Tools Greenlee
- Brand: Greenlee
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Greenlee Installation & Maintenance Tools
|
User manual for the Greenlee AT8L LAN Toner Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Greenlee product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Greenlee user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Greenlee product will considerably shorten its lifespan!
|

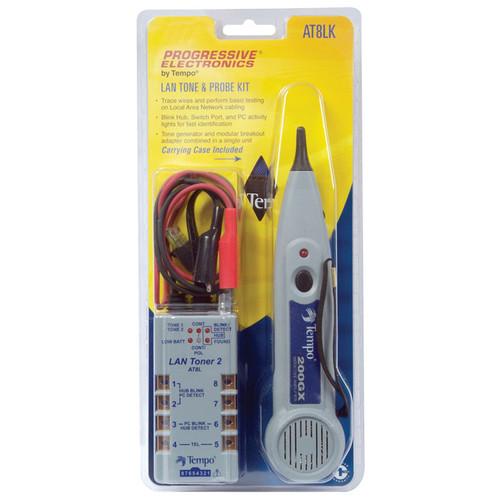

Product description The AT8L LAN Toner Kit is a kit comprised of a Greenlee 200GX Tone Probe Amplifier, an AT8L LAN Toner, and a nylon case. The amplifier and tone-generator are intended to facilitate the tracing and troubleshooting a variety of electrical circuits in a variety of circumstances, including Datacom, Telecom, alarm/security, audio, and CATV. It accomplishes all of this without piercing insulation.
The probe, which can operate at levels of 30 dB, includes an LED for a visual indication of signal strength, and for recessed telephone test-set connectors. Also provided is a plastic probe tip to prevent accidental shorts.
The accompanying power-tone generator provides two selectable warble tones for identifying multiple cable runs, tone signaling, continuity testing, telephone line polarity indication, and more. UPC: 783310605843 In the Box Greenlee AT8L LAN Toner Kit 200GX Tone Probe AT8L Tone Generator Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Greenlee AT8L LAN Toner Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGreenlee AT8LK Specs | | | Gain | 30 dB | | Input Impedance | 100 MOhms | | Resistance | Plastic probe tip: 300 Ohms | | Battery | 1 x 9 VDC (NEDA 1604, JIS 006P, or IEC 6LR61) | | Battery Life | 50 hours (nominal) | | Operating/Storage Temperature | 32 to 122°F / 0 to 50°C | | Dimensions (L x W x D) | 9.0 x 1.9 x 1.4" / 22.9 x 4.8 x 3.5 cm | | Weight | 4.6 oz / 0.13 kg | | | | Battery | Talk battery: 4.2 VDC into 600 Ohms | | Output Power | 8 dBm into 600 Ohms | | Output Frequency | Tracing tones
Tone 1: 820 / 1110 Hz
Tone 2: 577 / 820 Hz
Warbling rate
Tone 1: 1.9 Hz
Tone 2: 5.5 Hz | | Voltage Protection Rating | 60 VDC into 600 Ohms | | Battery Life (approx.) | 50 hours | | Auto Shut-Off | About 5 hours | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | -13 to 185°F / -25 to 85°C | | Relative Humidity | 80% max | | Dimensions (L x W x H) | 4.6 x 2.1 x 1.2" / 117.8 x 52.5 x 30.5 mm | | Weight | 0.4 lb / 0.2 kg, with battery | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 12.2 x 5.5 x 2.9" |
