Product description

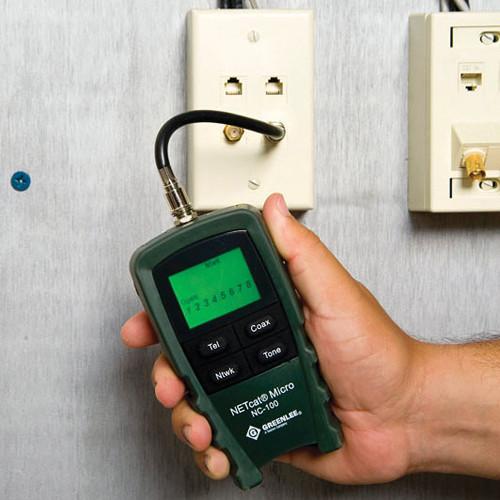

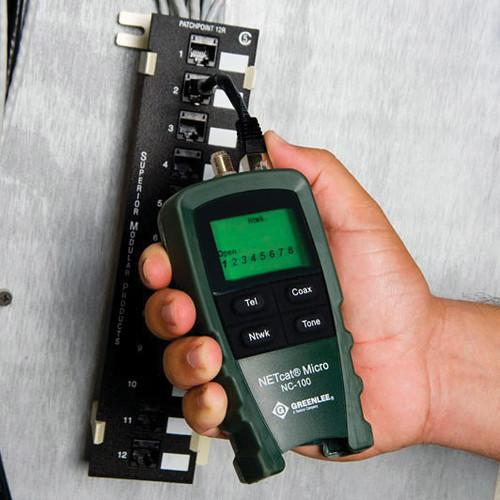

The Greenlee - NC-100 NETcat Micro is a wiring tester designed to verify shielded twisted pairs (STP), unshielded twisted pairs (UTP), and coaxial cables for digital voice, data, and video signals. It uses high-speed digital technology to detect shorts, opens, reversed polarity, crossed, and split pairs, and correct allocation of wire pairs.
    Key Features
    • Tests shielded twisted pair (STP), unshielded twisted pair (UTP), and coaxial cables
    • TIA/EIA standard wiring pair verification
    • Detects shorts, opens, reversed polarity, crossed, and split pairs
    • Verifies wiremaps
    • Generates three distinct, selectable digital tone patterns for cable tracing and troubleshooting
    • Tracing modes can be adjusted for high-performance LAN cables
    • Complete set of connector types standard (telephone, LAN, and coax)
    • Nested remote allows end-to-end testing of all wiring types
    • Simple testing of LAN wiring and phone lines
    • Detection of common wiring and connector errors
    • Warning of hazardous voltages
    • Checks for reversed telephone wires
    • High-contrast LCD with backlight
    • Powered via 9V battery
UPC: 783310236368 In the Box Greenlee NC-100 NETcat Micro - Wiring Tester for Digital Voice, Data, and Video

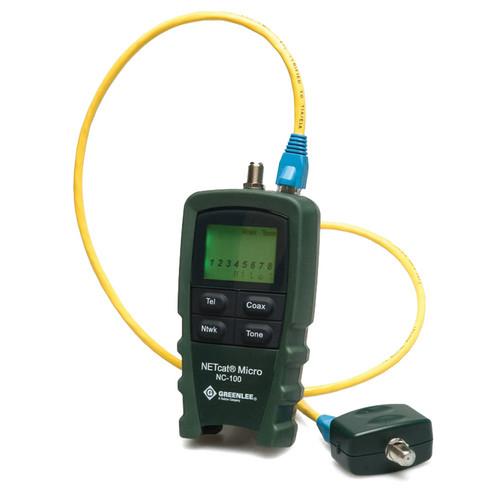

  • Nested Remote Unit
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Greenlee NC-100 NETcat Micro - Wiring Tester for Digital Voice, Data, and Video in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Greenlee NC-100 Specs

    Type Micro digital voice, data, and video wiring
    Backlight Green LED
    Buttons Four momentary contact push buttons
    Display LCD Icon and seven-segment type
    Interface Connector RJ45 shielded socket

    RJ12 6-way socket

    F-type threaded female coaxial connectors
    Tone Pair Tracing Tones: Alternating frequencies of 577 Hz and 983 Hz are produced at three user-selectable rates
    Standards TIA/EIA
    Cable Length Minimum Cable Length for Network Split-Pair Detection: 5 to 10' / 1.5 to 3.0 m (depending on cable type)
    Assumptions Pair Connection Assumptions: It is assumed when testing telephone and network cables that the allocation of pairs to circuit numbers is in accordance with TIA standards
    Power Source 9 V alkaline battery (PP3, 6LR61)
    Humidity Up to 95%, non-condensing
    Operating Temperature 32 to 122 °F / 0 to 50 °C
    Storage Temperature 14 to 140 °F / -10 to 60 °C
    Dimensions (L x W x D) 5.90 x 2.75 x 1.29" / 150 x 70 x 33 mm)
    Weight 0.48 lb / 220 g (including remote unit and battery)
    Package Weight 1.05 lb
    Box Dimensions (LxWxH) 10.5 x 7.0 x 2.0"
