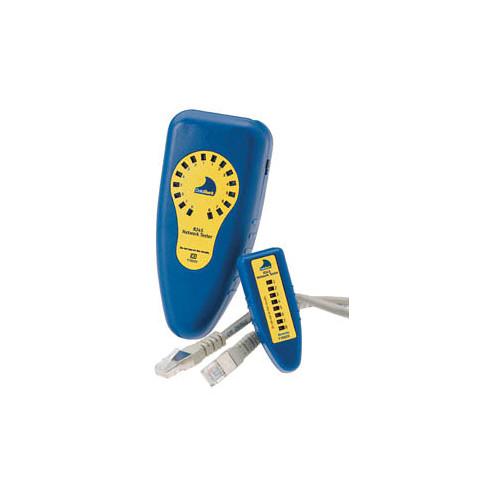

Product description The Greenlee PA70025 DataShark RJ45 Network Tester Kit is a continuity tester for UTP and flat satin cables with RJ45 terminations. It is intended to troubleshoot problems in telephone and computer network cables and identify good connections, shorts, and cross-connections. The kit comes with a main unit for transmitting signals and test patch cords, a remote unit for testing installed cable runs, two RJ45 patch cords to connect the tester to a wall jack or patch panel, and a carrying case to conveniently transport and store your equipment. - Key Features
-
- Quickly and easily test both telephone or computer patch cables and installed cable runs
- Continuity tester for UTP and flat satin cables with RJ45 terminations
- Identifies good connections, opens, shorts, and cross-connections
- Automatic test cycle
- LED clearly lights for each pin and maps the cable
- Cable test begins once the cable is plugged into the unit and the tester’s power button is set to On
- Choice of fast or slow display speeds
- Maximum Cable Length: 1000'
- Can also be used to test RJ11 and RJ12 connections
- Operates up to 50 hours with a fully charged 9V battery
- Kit Includes
-
- Main unit
- Remote unit
- Two RJ45 patch cords
- Carrying case
UPC: 769328113280 In the Box Greenlee PA70025 DataShark RJ45 Network Tester Kit Main Unit Remote Unit 2 x RJ45 Patch Cords Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Greenlee PA70025 DataShark RJ45 Network Tester Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGreenlee PA70025 Specs | Connection Type | RJ11, RJ12, and RJ45 UTP modular plug | | Output | Main Unit: 9 VDC nominal at 3 mA, maximum | | Battery | 9 VDC | | Battery Life | 15 hours continuous use | | Maximum Cable Length | 1000' / 304.80 m | | Dimensions (L x W x D) | Main Unit: 4.25 x 2.48 x 1.10" / 108 x 63 x 28 mm
Remote Unit: 4.25 x 1.38 x 1.10" / 108 x 35 x 28 mm | | Weight | 5.15 oz / 146 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 9.6 x 5.8 x 2.8" |
