User Manual for GTX STUDIO Bi-Color Flat LED Panel Click to enlarge the picture
Contents of the user manual for the GTX STUDIO Bi-Color Flat LED Panel
- Product category: LED Lights GTX STUDIO
- Brand: GTX STUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GTX STUDIO LED Lights
 |
User manual for the GTX STUDIO Bi-Color Flat LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GTX STUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GTX STUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GTX STUDIO product will considerably shorten its lifespan!
|

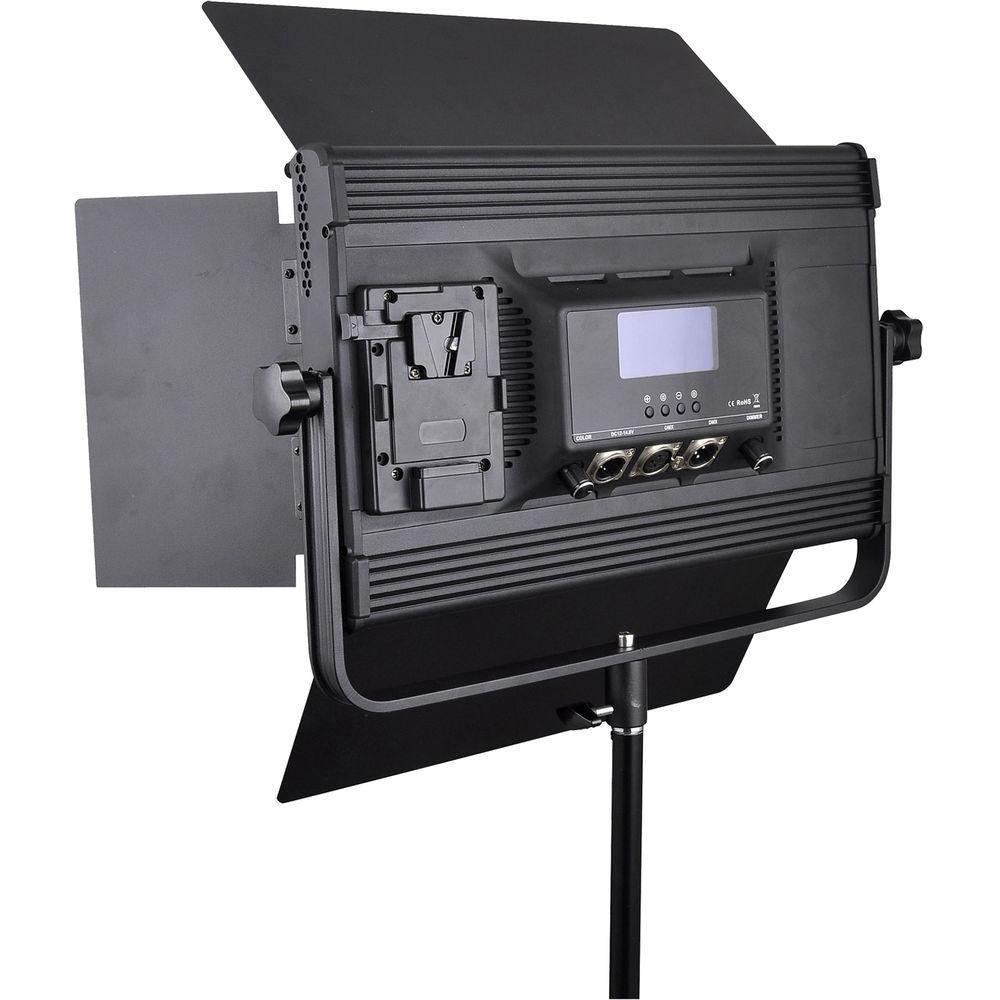

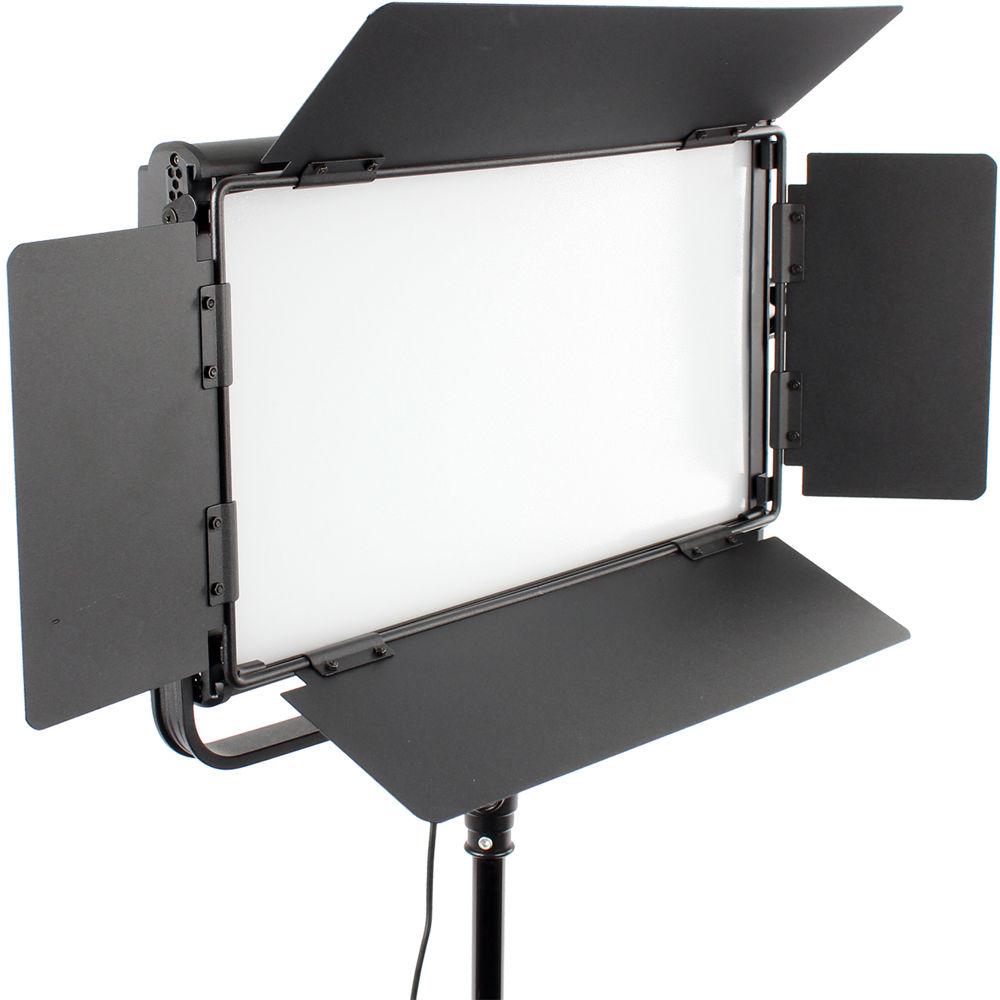

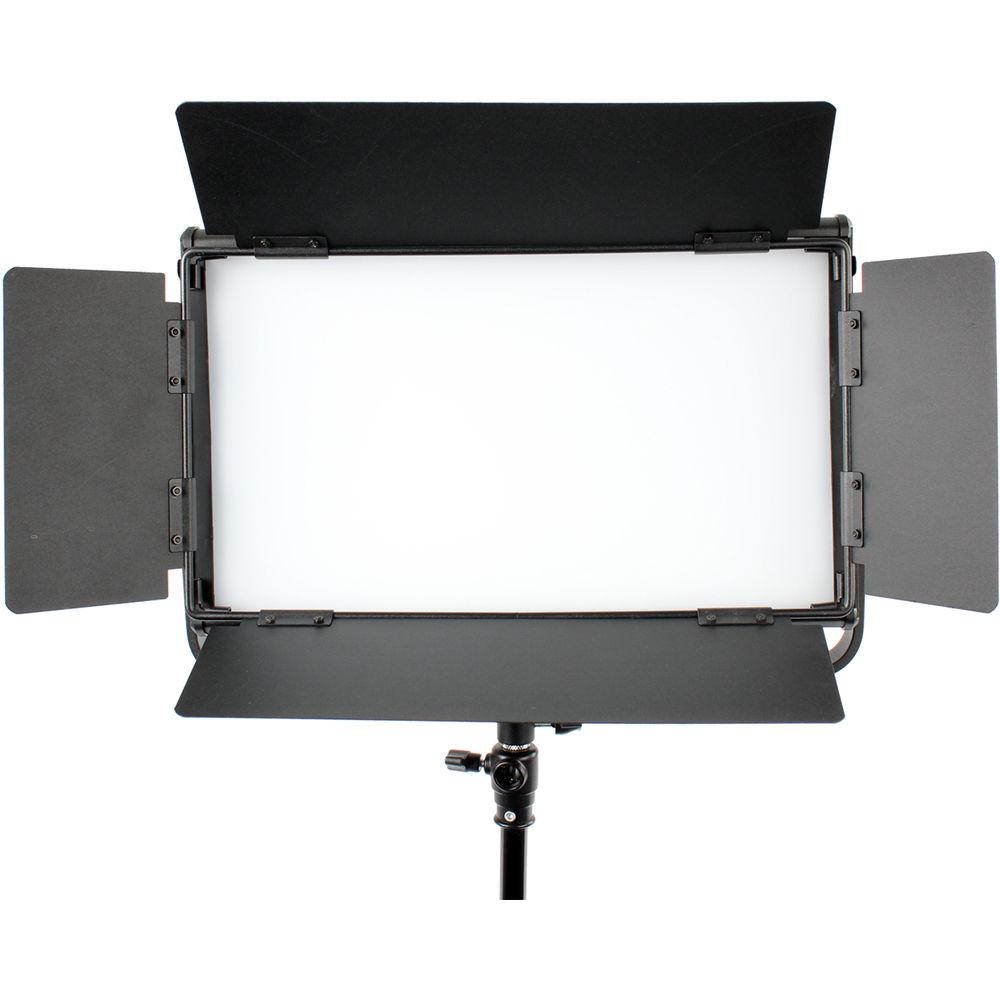

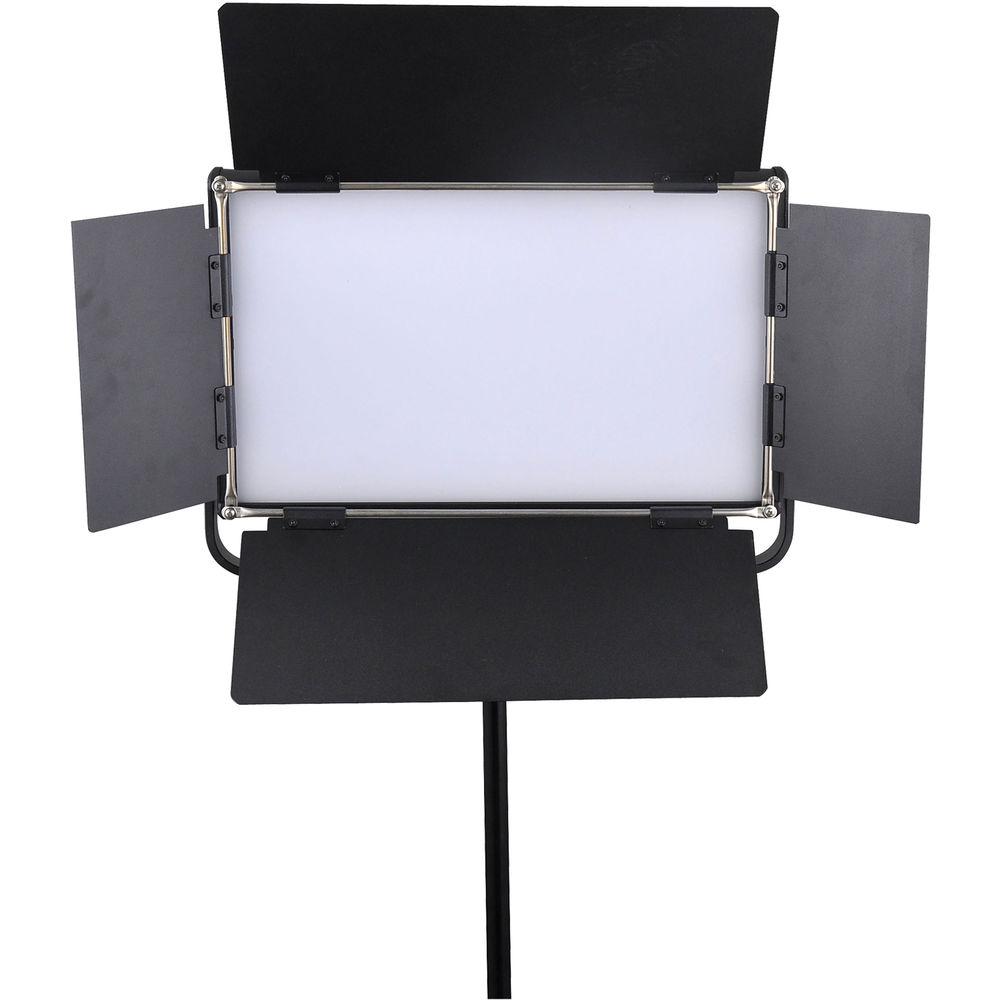

Product description The Bi-Color Flat LED Panel from GTX Studio is a 9 x 15" fixture with color temperature that's variable from 3200 to 6000K or anywhere in between, with a high CRI of 96. Light intensity is also variable from 0 to 100% and while you can make adjustments locally on the fixture, you can also make them remotely from a console using onboard DMX or wirelessly via a GTX app. Settings can be monitored on the unit's large LCD screen. Another means of control are the included 4-way barndoors. By swinging one or more of its leaves into the beam's path, you can selectively light areas of the subject that you want to, and keep light from areas that you don't want illuminated. The panel is ready for worldwide use thanks to its 100 to 240 VAC adapter but you can also run it on optional V-mount batteries when mains power is unavailable. - Benefits
-
- 3200 to 6000K (+/-150K), CRI96
- 2000 lux at 3.28'
- Power: 100W
- 100 to 240 VAC Power adapter with power cable included
- Integrated diffuser
- Separate adjustments for color temperature and dimming

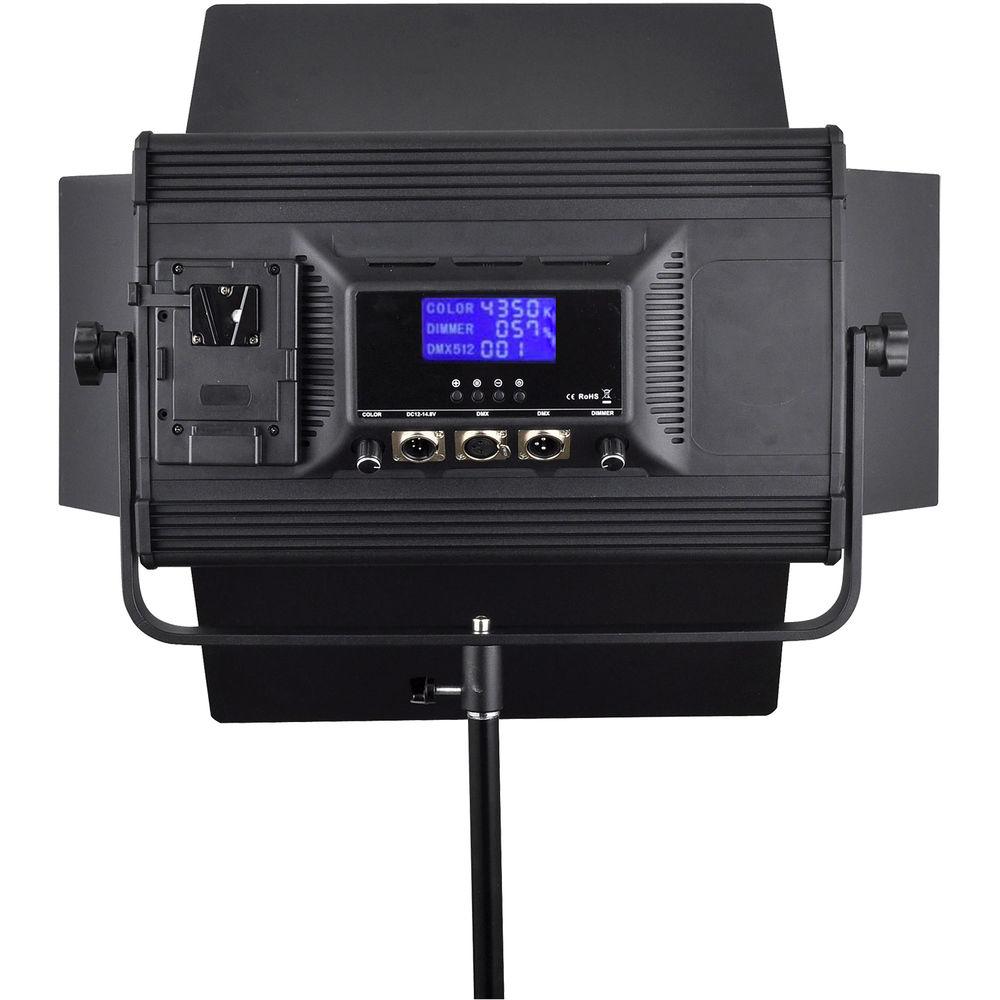

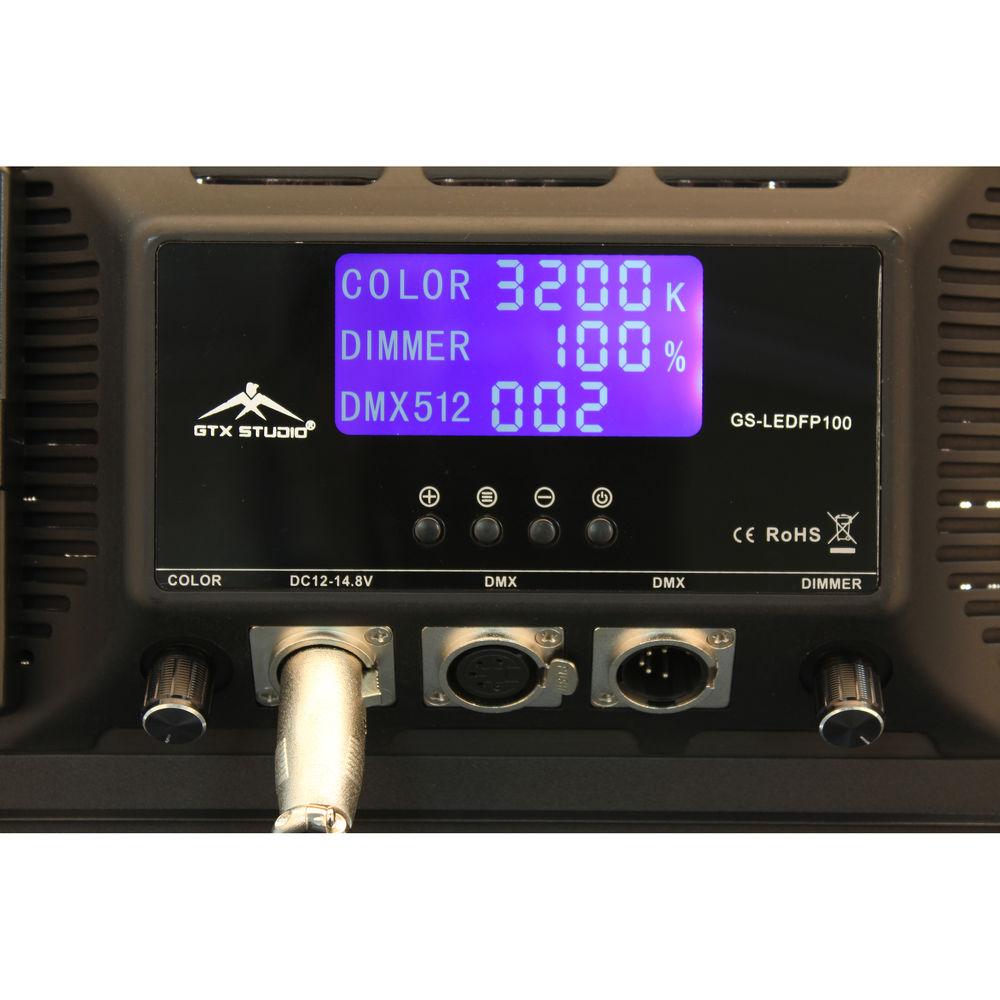

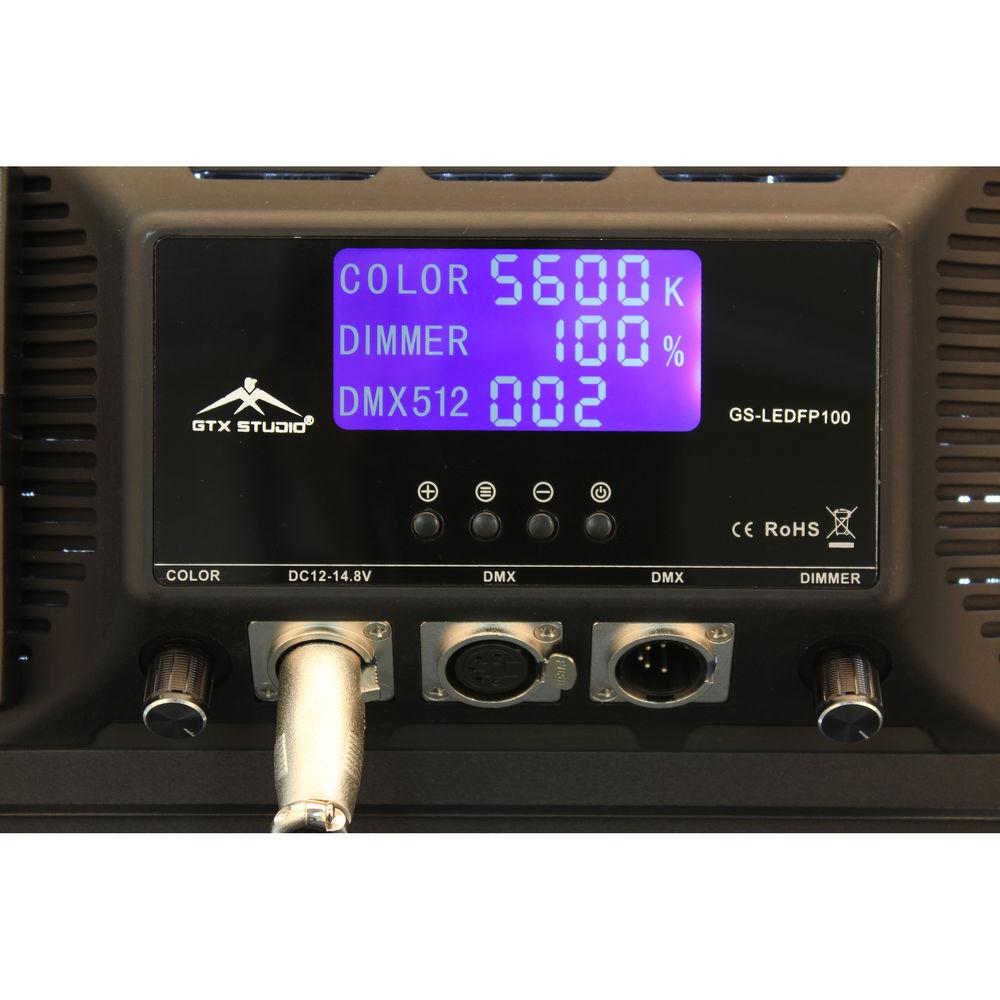

- Large LCD display shows color temperature, dimmer, and DMX option

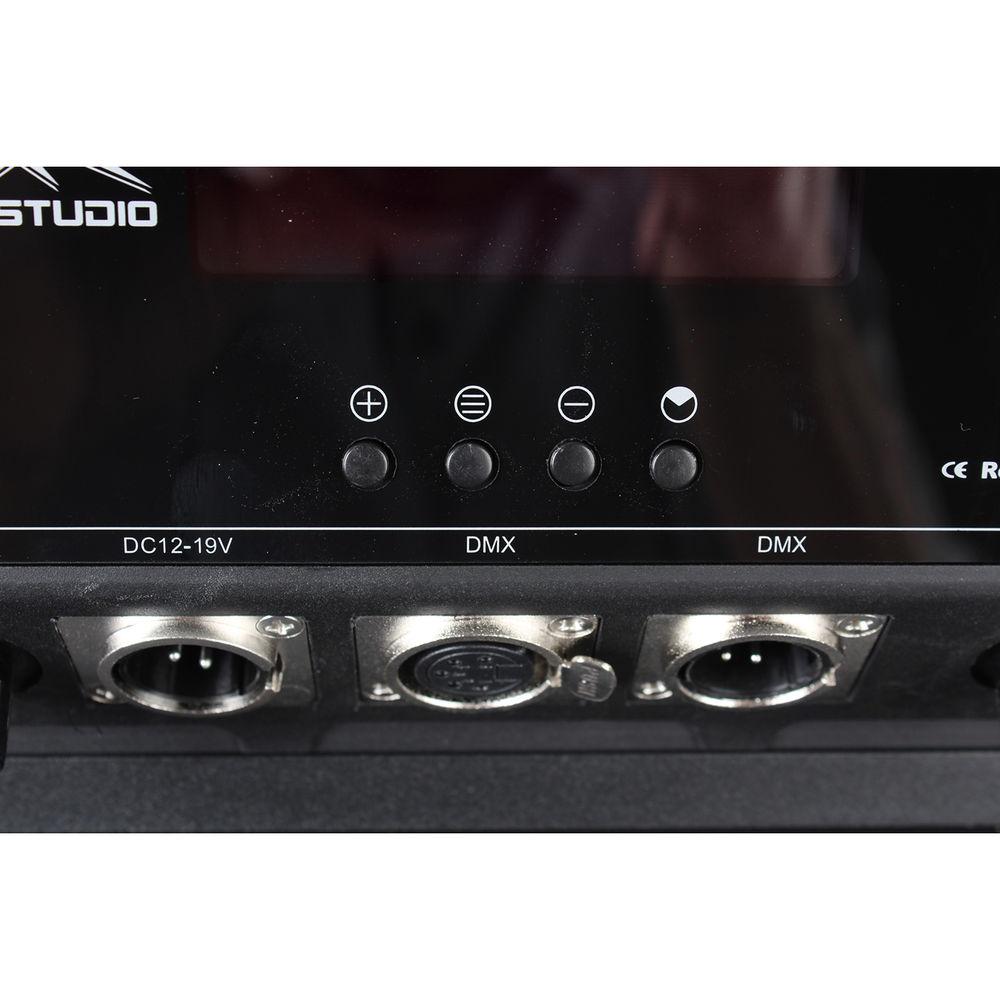

- DMX input and output
- V-mount for battery
- U-Mount bracket for standard 5/8" light stand
- Optional remote control via App
In the Box GTX STUDIO Bi-Color Flat LED Panel 4-Way Barndoors AC Adapter and Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GTX STUDIO Bi-Color Flat LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGTX STUDIO GS-LEDFP100-BI Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 6000K ± 150K | | Color Accuracy Standard | CRI 96 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | LCD | | Photometrics | 185.8 fc / 2000 lux at 3.28' / 1 m | | Fixture Dimensions | 15.0 x 9.0" / 38.1 x 22.9 cm (Including Yoke) | | | | Battery Plate | 1 x V-Mount | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W |
