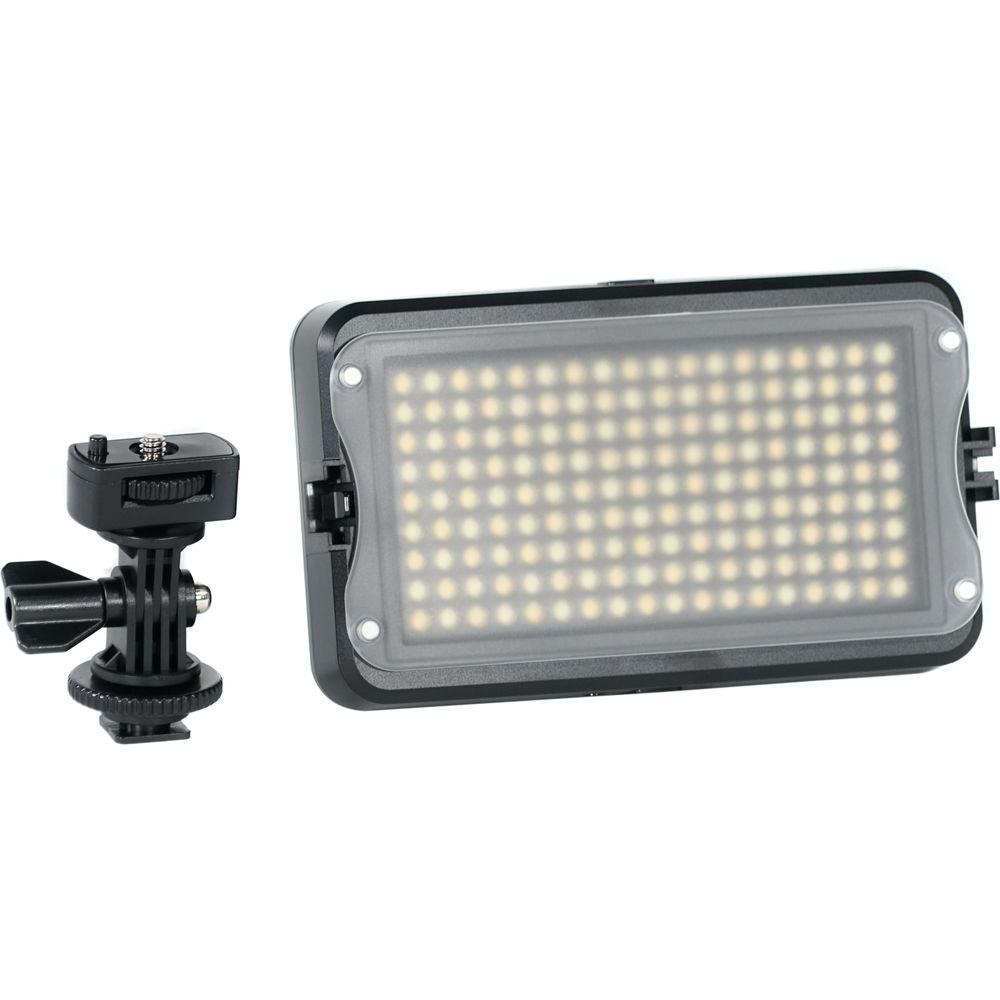

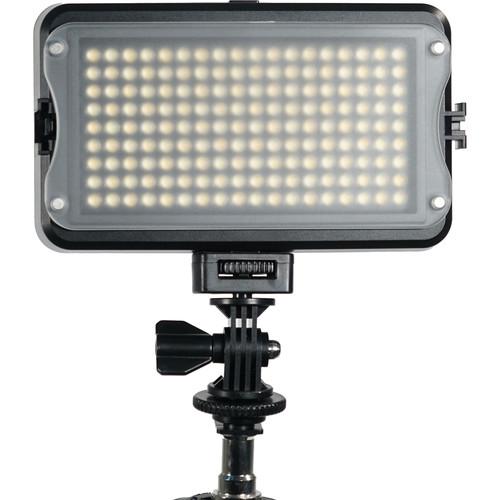

Product description The 162 Bicolor On-Camera LED Light from GVB Gear features an LCD display and a shoe mount adapter. The output of the light can be dimmed from 100 to 20% brightness and has a color temperature output of 3300 to 5600K. The integrated LCD screen provides a readout on color temperature and brightness, as well as remaining battery power.

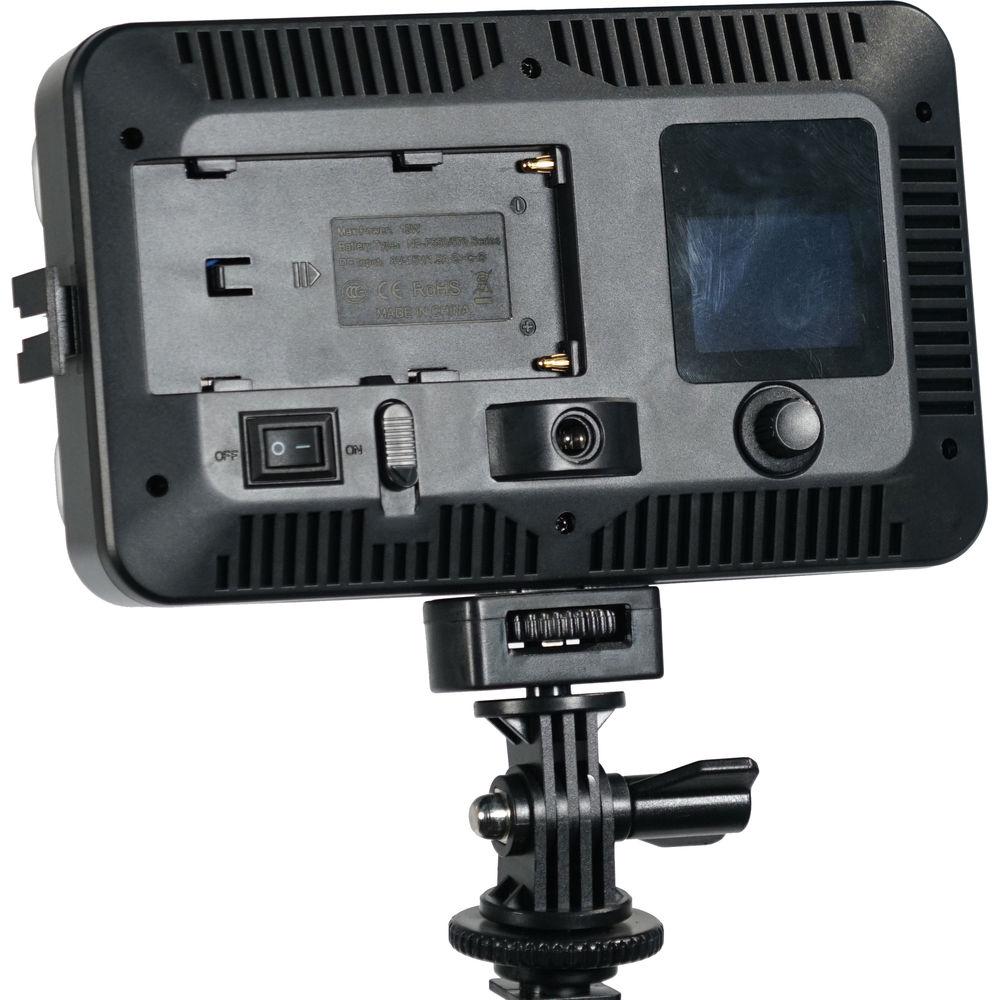

The fixture features an independent on/off switch and magnetically attached diffusion that keeps this a compact and easy-to-use fixture. Built-in 1/4"-20 threaded mounting holes on the top and bottom of the unit, along with the included cold shoe adapter, make for easy mounting either onto an accessory arm or your camera's hot shoe. The fixture can be side-stacked with additional units and uses a separately available L-series battery or AC power adapter. - The light consists of 162 LEDs.
- Press the control knob to switch between brightness and color temperature control.
- Includes shoe mount adapter and LCD display.
- The built-in LCD display shows brightness percentage, color temperature, and battery status.
- The included diffusion filter reduces the multiple shadow effects common to LED array-type lights. The magnetic attachment system makes it more compact and stable than using sheets of diffusion with tape or clothespins.
UPC: 815206023094 In the Box GVB Gear 162 Bicolor On-Camera LED Light with LCD Display and Shoe Mount Adapter Shoe Mount Adapter White Diffusion Filter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GVB Gear 162 Bicolor On-Camera LED Light with LCD Display and Shoe Mount Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGVB Gear GVBV162B Specs | | | Color Temperature | 3300 to 5600K | | Color Accuracy Standard | CRI 96 | | Photometrics | 5600K:
325.1 fc / 3498.1 lux at 1.5' / 0.46 m
102.2 fc / 1099.7 lux at 3' / 0.91 m
3200K:
278.7 fc / 2998.8 lux at 1.5' / 0.46 m
92.9 fc / 999.6 lux at 3' / 0.91 m
4400K:
557.4 fc / 5997.6 lux at 1.5' / 0.46 m
232.3 fc / 2499.5 lux at 3' / 0.91 m | | Dimming | Yes, 20 to 100% | | Display | LCD | | Number of LEDs | 162 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 8 to 15 VDC at 1.5 A | | Power Input Connector | Barrel / Coax | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female A 1/4"-20 to cold shoe adapter is included. | | Dimensions | 2.7 x 3.9 x 1.3" / 68 x 98 x 32 mm | | Weight | 8.1 oz / 230 g | | | | Package Weight | 0.93 lb | | Box Dimensions (LxWxH) | 9.95 x 5.5 x 2.3" |
