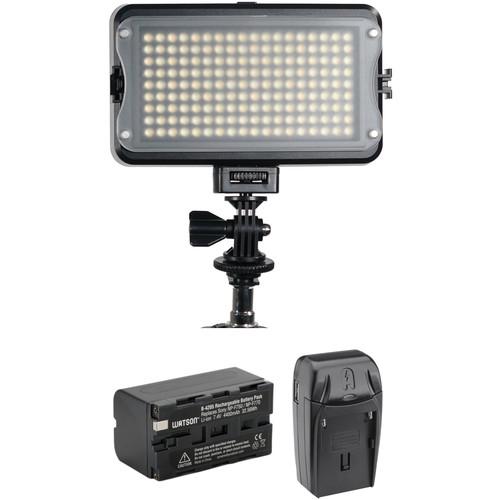

Product description The GVB Gear 162-LED Bicolor On-Camera Light Kit from B&H Photo uses 162 LEDs to output variable color light. This lightweight, on-camera light features an LCD display, a shoe mount, and dimming from 100% to 20%. The 162-LED light can be powered using the included 1400mAh, 7.4V L-series type battery, or via AC power. A compact AC/DC charger with European plug adapter, interchangeable battery plate, and a DC car adapter is included in the kit. - GVB Gear 162 Bicolor On-Camera LED Light with LCD Display and Shoe Mount Adapter The 162 Bicolor On-Camera LED Light from GVB Gear features an LCD display and a shoe mount adapter. The output of the light can be dimmed from 100 to 20% brightness and has a color temperature output of 3300 to 5600K. The integrated LCD screen provides a readout on color temperature and brightness, as well as remaining battery power.
The fixture features an independent on/off switch and magnetically attached diffusion that keeps this a compact and easy-to-use fixture. Built-in 1/4"-20 threaded mounting holes on the top and bottom of the unit, along with the included cold shoe adapter, make for easy mounting either onto an accessory arm or your camera's hot shoe. The fixture can be side-stacked with additional units and uses a separately available L-series battery or AC power adapter. - The light consists of 162 LEDs.
- Press the control knob to switch between brightness and color temperature control.
- Includes shoe mount adapter and LCD display.
- The built-in LCD display shows brightness percentage, color temperature, and battery status.
- The included diffusion filter reduces the multiple shadow effects common to LED array-type lights. The magnetic attachment system makes it more compact and stable than using sheets of diffusion with tape or clothespins.
UPC: 815206023094 - Watson NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh) The Watson NP-F770 Lithium-Ion Battery Pack works with the same cameras as the Sony NP-F770 and NP-F750. This replacement battery pack features a capacity of 4400mAh and 7.4V of output power. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effects.
- Compatible Cameras
- Sony
- DCR-SD1000
- DCR-SR40
- DCR-TRV900
- DCR-VX2000
- DCR-VX2100
- DCR-VX2200
- HDR-AX2000
- HDR-FX1
- HDR-FX7
- HDR-FX1000
- HVR-HD1000
- HVR-V1
- HVR-Z1
- HVR-Z5
- HVR-Z7
- HXR-MC1500
- HXR-MC2000
- HXR-NX5
- HXR-NX5R
- NEX-EA50
- NEX-FS100
- NEX-FS700
UPC: 847628541061 - Watson Compact AC/DC Charger for L & M Series Batteries This versatile Compact AC/DC Charger from Watson charges all Sony L & M series type lithium-ion batteries via the included dedicated battery plate. The charger runs on 100 to 240 VAC power, allowing for worldwide use. It features a fold-out 2-prong US plug and is supplied with a European plug adapter as well as a 12 VDC car charger that plugs into a cigarette lighter. This makes the charger ideal for use both at home and on the road.
The Compact AC/DC Charger features a USB power output that allows you to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input--even while charging your camera or camcorder batteries. With its easily interchangeable plate, the charger can also be used for other battery models via the purchase of an additional battery adapter plate. - Compatibility
- Compatible with any Sony NP-F550, NP-F570, NP-F730H, NP-F750, NP-F770, NP-F930, NP-F950, NP-F960, NP-F970, NP-FM30, NP-FM50, NP-FM500H, NP-FM55H, NP-FM70, NP-FM90, NP-FM91, NP-QM71, NP-QM71D, NP-QM91, NP-QM91D type batteries.
- Compact
- Charger features a fold-out AC plug for easy storage and travel.
- Versatile
-
- Comes with an included Euro plug adapter for charging in Europe.
- Included DC adapter with car lighter plug lets you charge while on the road.
- USB Output
- Charge or supply power for MP3 devices, mobile phones, digital cameras, and other related devices with a USB power input.
- Safety Features
- The charger features protection against overcharging and overheating.
UPC: 847628541566 In the Box - 162 Bicolor On-Camera LED Light with LCD Display and Shoe Mount Adapter
- Shoe Mount Adapter
- White Diffusion Filter
- Limited 1-Year Warranty
- Watson - NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh)
- Watson - Compact AC/DC Charger for L & M Series Batteries
Table of Contents
|
Upload User Manual
Have you got an user manual for the GVB Gear 162-LED Bicolor On-Camera Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GVB Gear 162 Bicolor On-Camera LED Light with LCD Display and Shoe Mount Adapter
| | | Color Temperature | 3300 to 5600K | | Color Accuracy Standard | CRI 96 | | Photometrics | 5600K:
325.1 fc / 3498.1 lux at 1.5' / 0.46 m
102.2 fc / 1099.7 lux at 3' / 0.91 m
3200K:
278.7 fc / 2998.8 lux at 1.5' / 0.46 m
92.9 fc / 999.6 lux at 3' / 0.91 m
4400K:
557.4 fc / 5997.6 lux at 1.5' / 0.46 m
232.3 fc / 2499.5 lux at 3' / 0.91 m | | Dimming | Yes, 20 to 100% | | Display | LCD | | Number of LEDs | 162 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 8 to 15 VDC at 1.5 A | | Power Input Connector | Barrel / Coax | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female A 1/4"-20 to cold shoe adapter is included. | | Dimensions | 2.7 x 3.9 x 1.3" / 68 x 98 x 32 mm | | Weight | 8.1 oz / 230 g | | | | Box Dimensions (LxWxH) | 9.95 x 5.5 x 2.3" | - Watson NP-F770 Lithium-Ion Battery Pack (7.4V, 4400mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Amp-Hours | 4400 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.8 x 1.5 x 1.6" / 70.0 x 38.0 x 40.0 mm | | Weight | 7.2 oz / 204 g | | | | Box Dimensions (LxWxH) | 5.35 x 2.95 x 1.95" | - Watson Compact AC/DC Charger for L & M Series Batteries
| Compatible Battery Series | Sony L
Sony M | | Charging Time | 2 to 6 Hours | | USB Output Ports | 1 x USB Type-A (5 VDC at 1 A) | | Output Voltage | 4.2 to 8.4 VDC at 800 mA | | DC Power Input | Car Adapter: 12 to 24 VDC | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 100 mA | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 2 x 1.3 x 3.5" / 5.1 x 3.3 x 9 cm | | Weight | 3.1 oz / 88 g | | | | Box Dimensions (LxWxH) | 7.05 x 4.15 x 2.9" |
