User Manual for GVB Gear PL60 Pocket-Sized On-Camera Light with USB Charging Power Click to enlarge the picture
Contents of the user manual for the GVB Gear PL60 Pocket-Sized On-Camera Light
- Product category: On Camera Lights GVB Gear
- Brand: GVB Gear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GVB Gear On Camera Lights
 |
User manual for the GVB Gear PL60 Pocket-Sized On-Camera Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GVB Gear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GVB Gear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GVB Gear product will considerably shorten its lifespan!
|

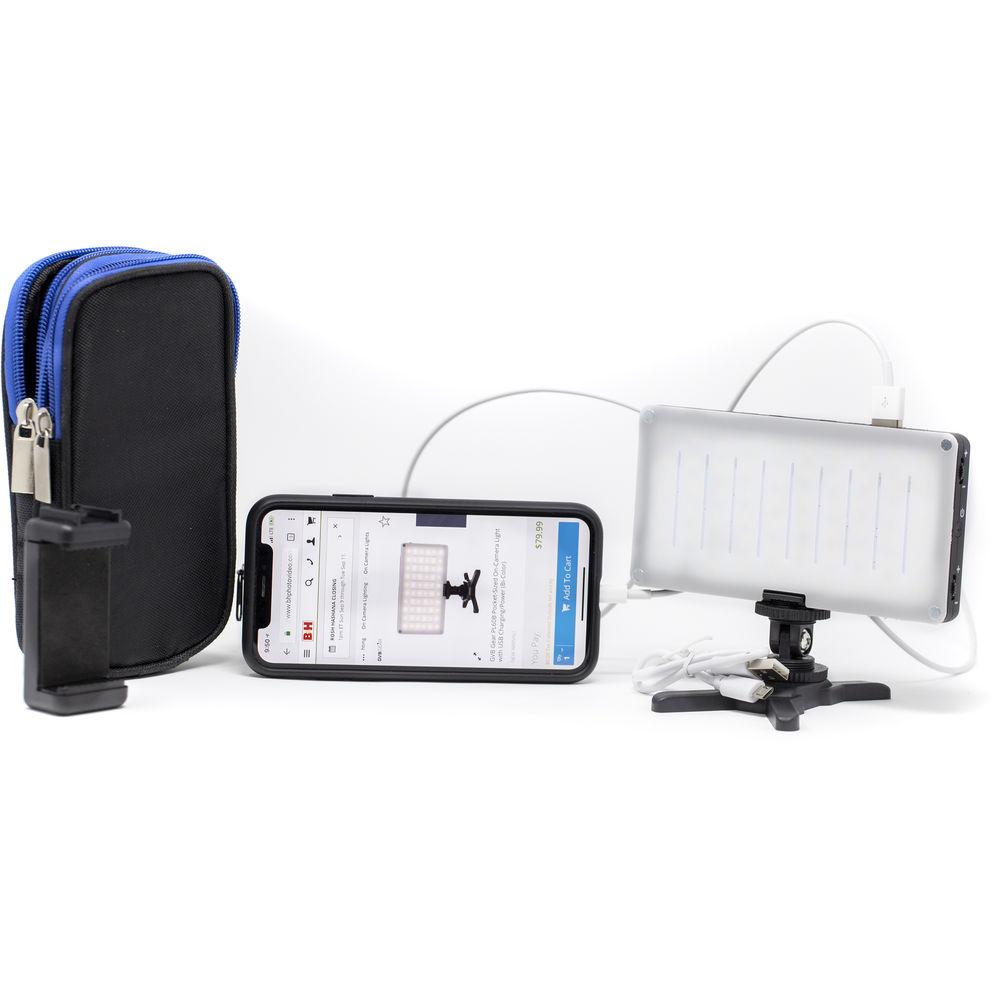

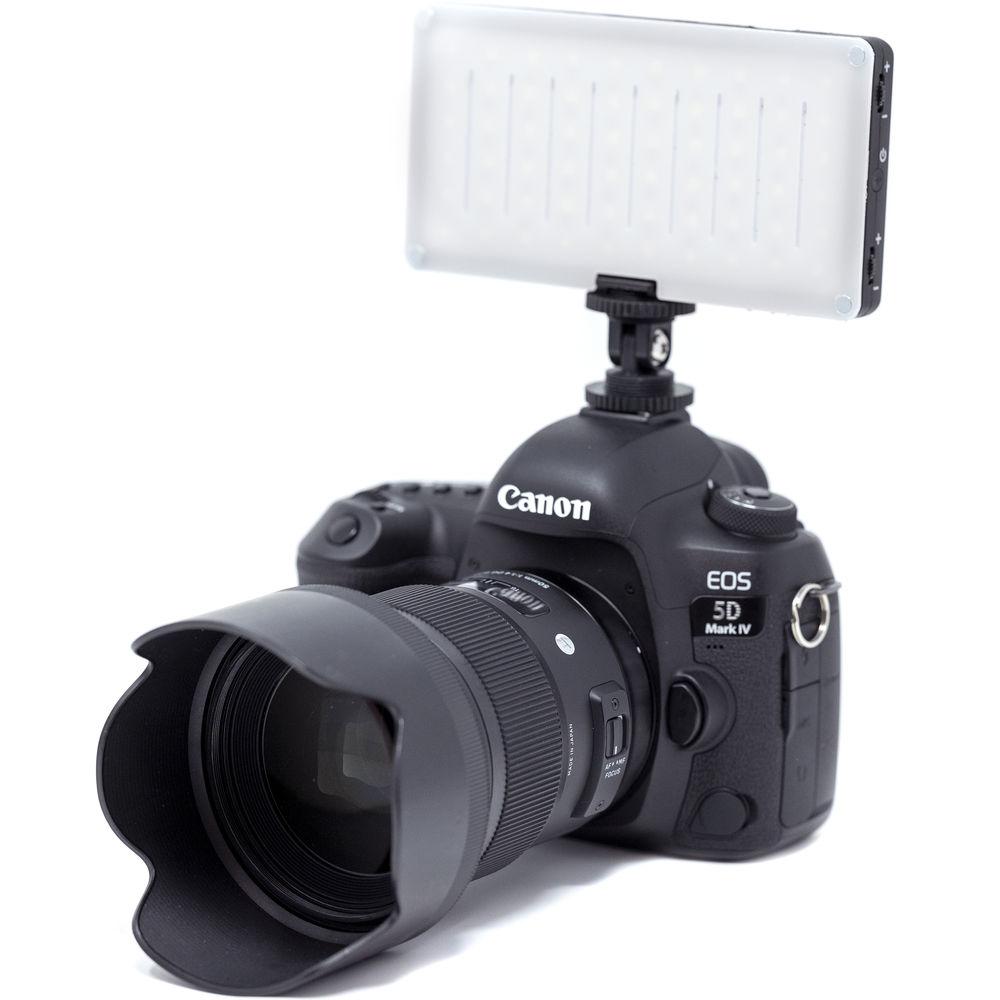

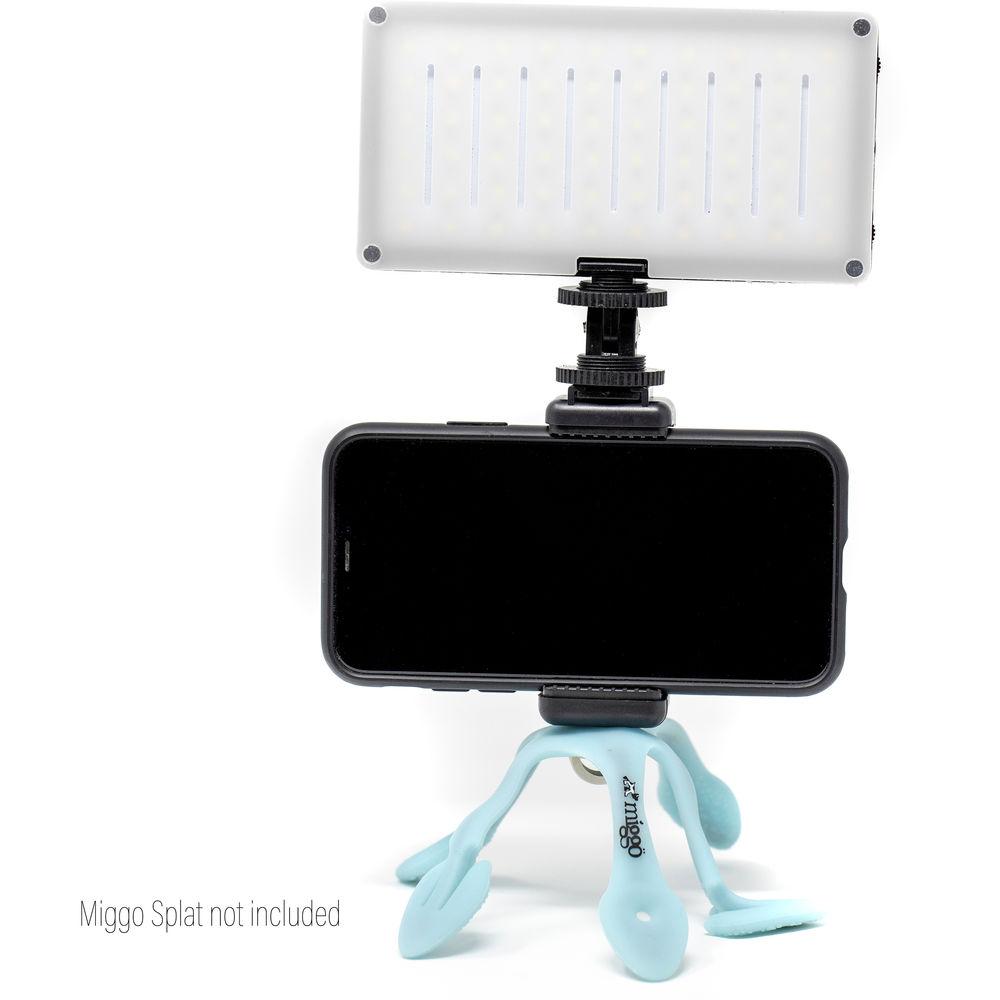

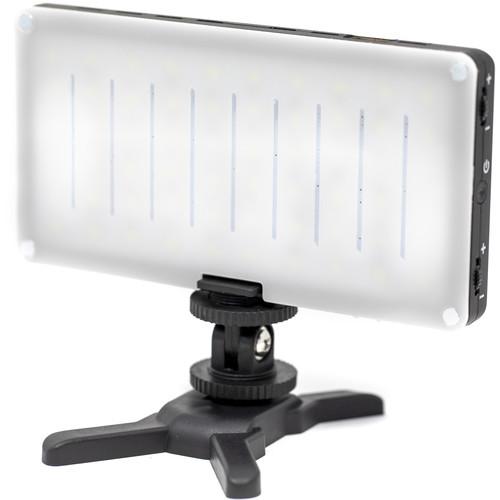

Product description The GVB Gear PL60 Pocket-Sized On-Camera Light with USB Charging/Power is a compact daylight fixture that mounts onto your camera's hot shoe or the included base. It features an integrated 5000mAh battery that charges via USB. You can also use the fixture to charge/power mobile devices via its USB and USB Type-C connectors. The PL60 features 60 daylight-balanced LEDs with a 120° beam spread.
The PL60 is locally dimmable on the unit itself and included with the PL60 are a diffuser and a tungsten filter that converts the 5600K output of the fixture to 3200K. The diffuser and tungsten filter both magnetically attach to the fixture and can be stacked on top of each other. An included shoe mount enables mounting the light onto your camera or onto the base that is also included with the fixture. - Small, self-contained light fixture
- Includes magnetically attached diffuser and tungsten conversion filter
- Integrated battery charges via USB

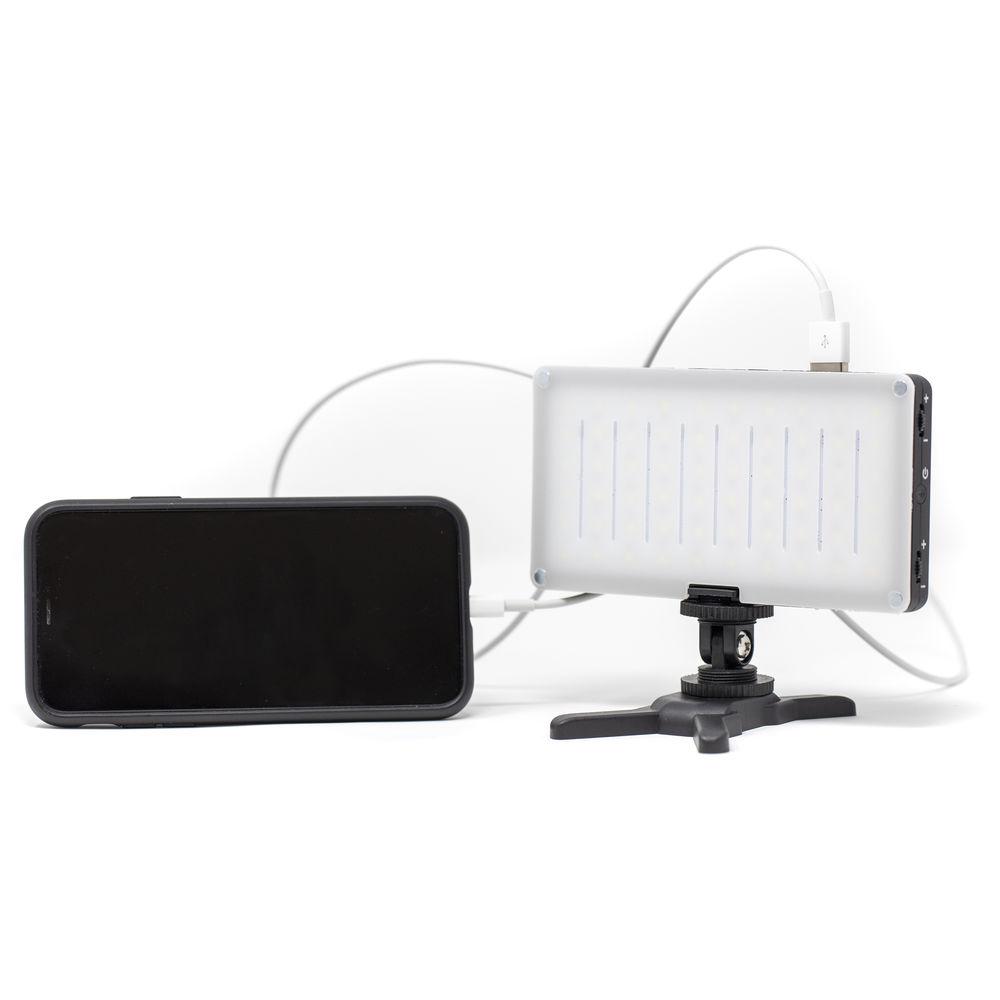

- Provides USB and USB Type-C outputs for charging smartphones
UPC: 815206024374 In the Box GVB Gear PL60 Pocket-Sized On-Camera Light with USB Charging/Power (Daylight) Hot Shoe Base Hot Shoe Bracket Diffusion Filter Tungsten Conversion Filter USB Charging Cable Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GVB Gear PL60 Pocket-Sized On-Camera Light with USB Charging Power in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGVB Gear PL60 Specs | | | Beam Angle | 120° | | Color Temperature | 5600K | | Color Temperature with Included Filter | 3200K | | Photometrics | 120° at 5600K:
371.6 fc / 4000 lux at 1.51' / 0.46 m
83.6 fc / 900 lux at 2.99' / 0.91 m | | Dimming | Yes | | Number of LEDs | 60 (Daylight) | | | | Capacity (mAh) | 5000 mAh | | Battery Chemistry | Lithium-Ion | | | | Power Input Connector | Micro-USB | | Power Output Ports | 1 x USB Type-A
1 x USB Type-C | | | | Mount Type | Cold Shoe | | Dimensions | 6 x 3 x 0.5" / 15.2 x 7.6 x 1.3 cm | | Weight | 6.3 oz / 179 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 8.0 x 4.0 x 2.0" |
