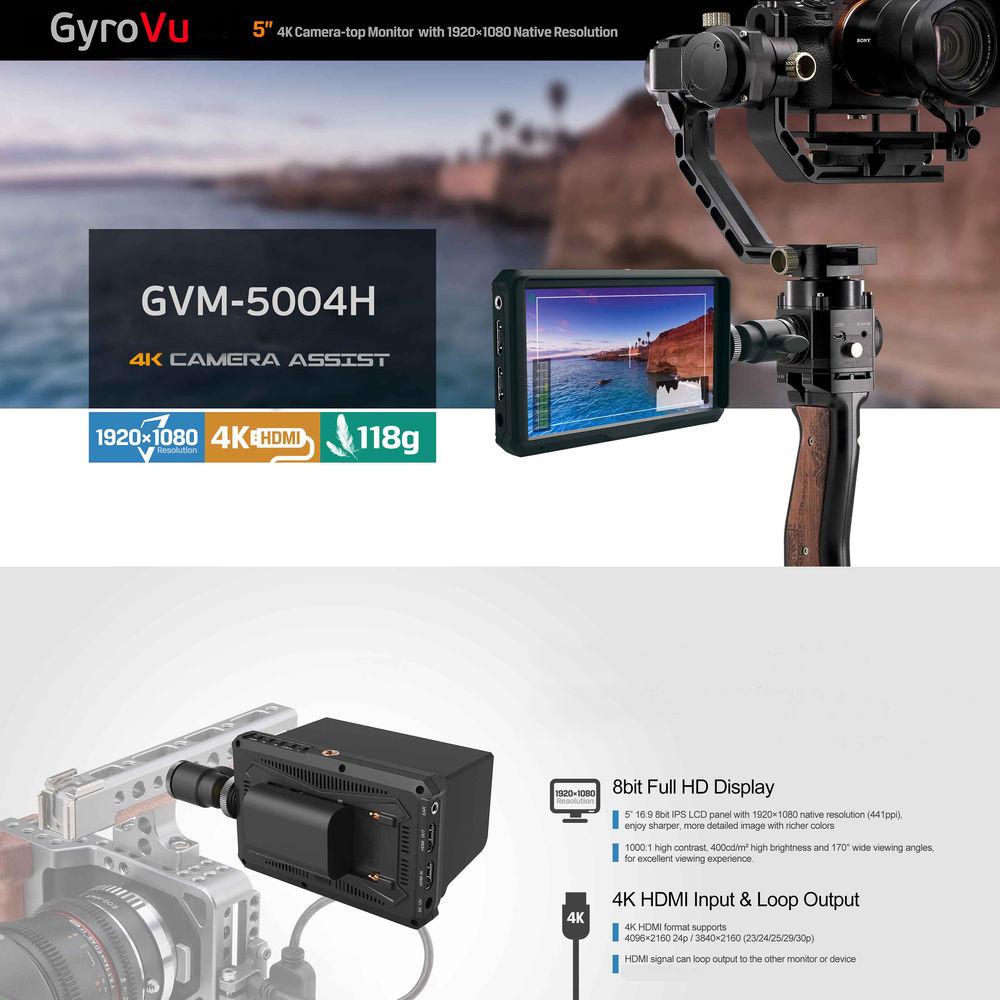

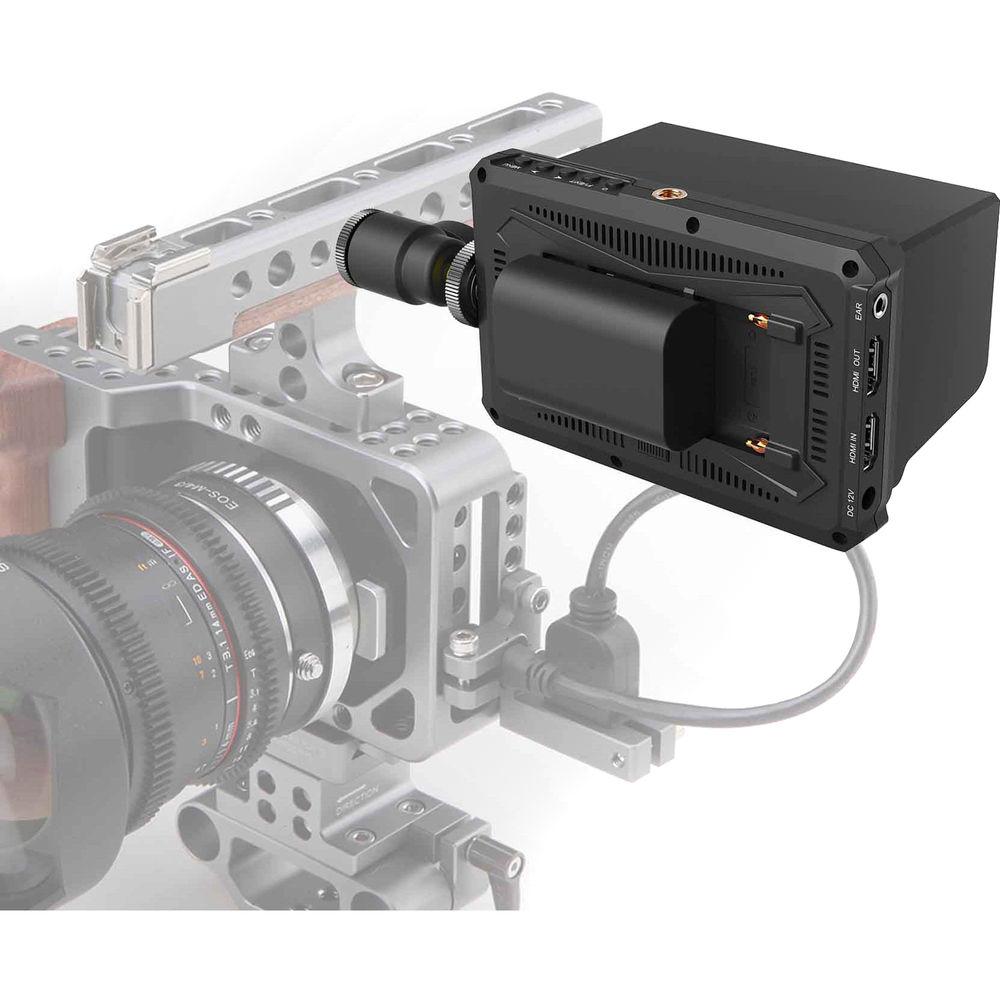

Product description Monitor your videos and compose your shots with the GyroVu Lightweight 4K 5" On-Camera HDMI Monitor, which includes a carbon fiber clamp mount that fits rods up to 30" in diameter for DJI Ronin Series gimbal stabilizers. Using an 8-bit 1920 x 1080 IPS LCD panel with a 1000:1 contrast ratio, 400 cd/m² brightness, and a 170° viewing angle, focusing by eye is possible, and critical focus can be achieved using the pixel zoom function. Since this monitor is lightweight, using it atop a small mirrorless camera won't add bulk to a compact setup.

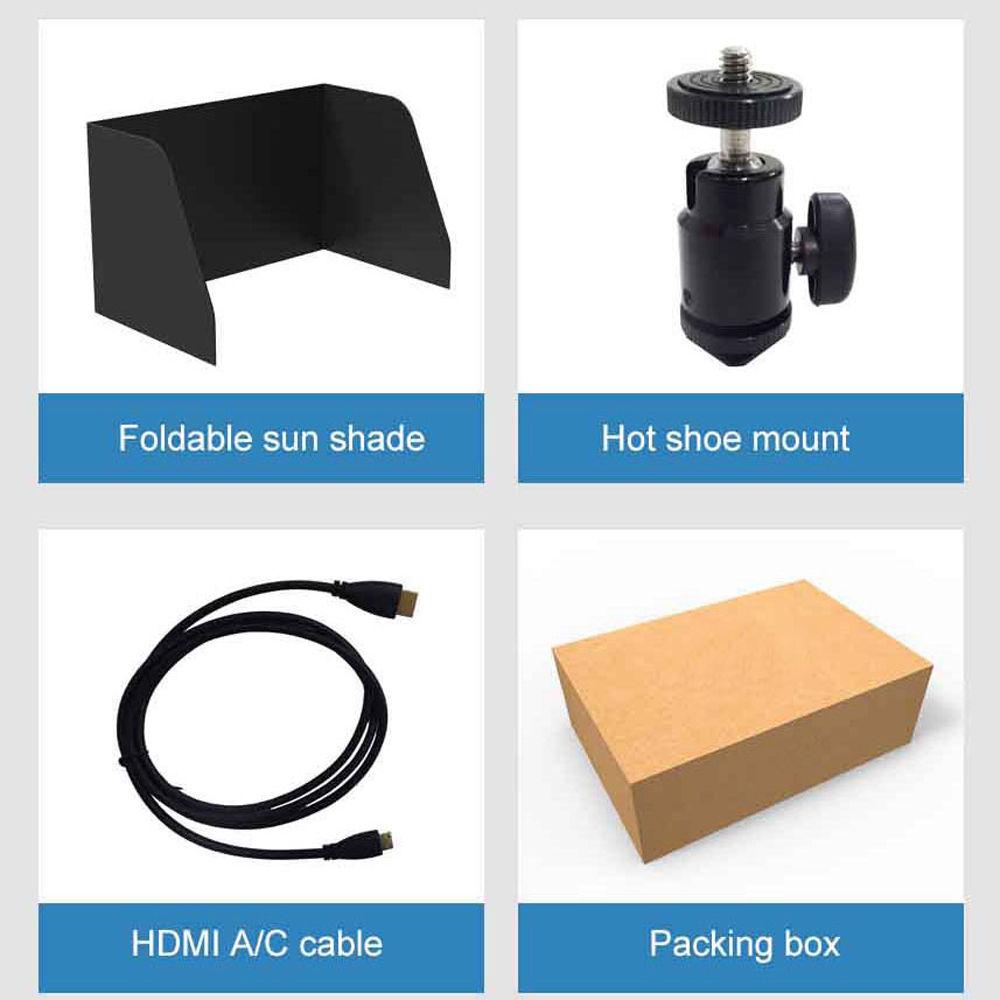

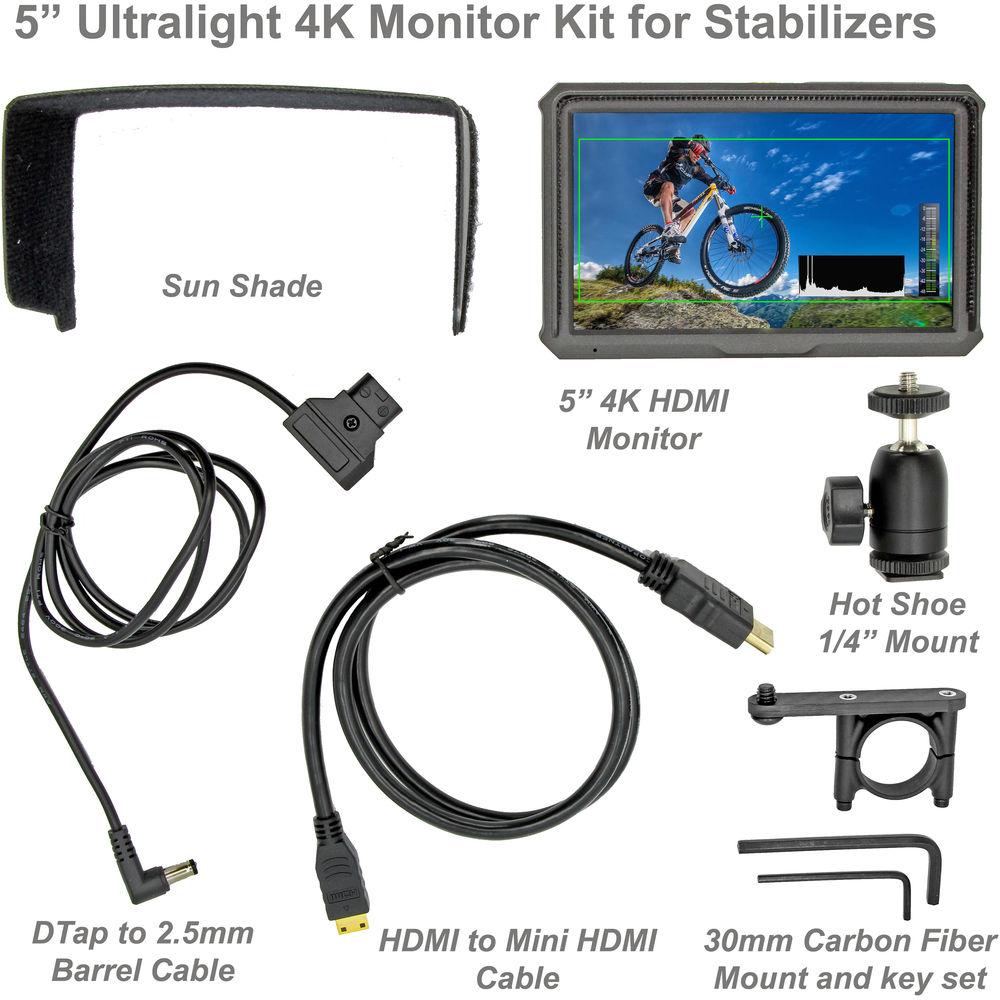

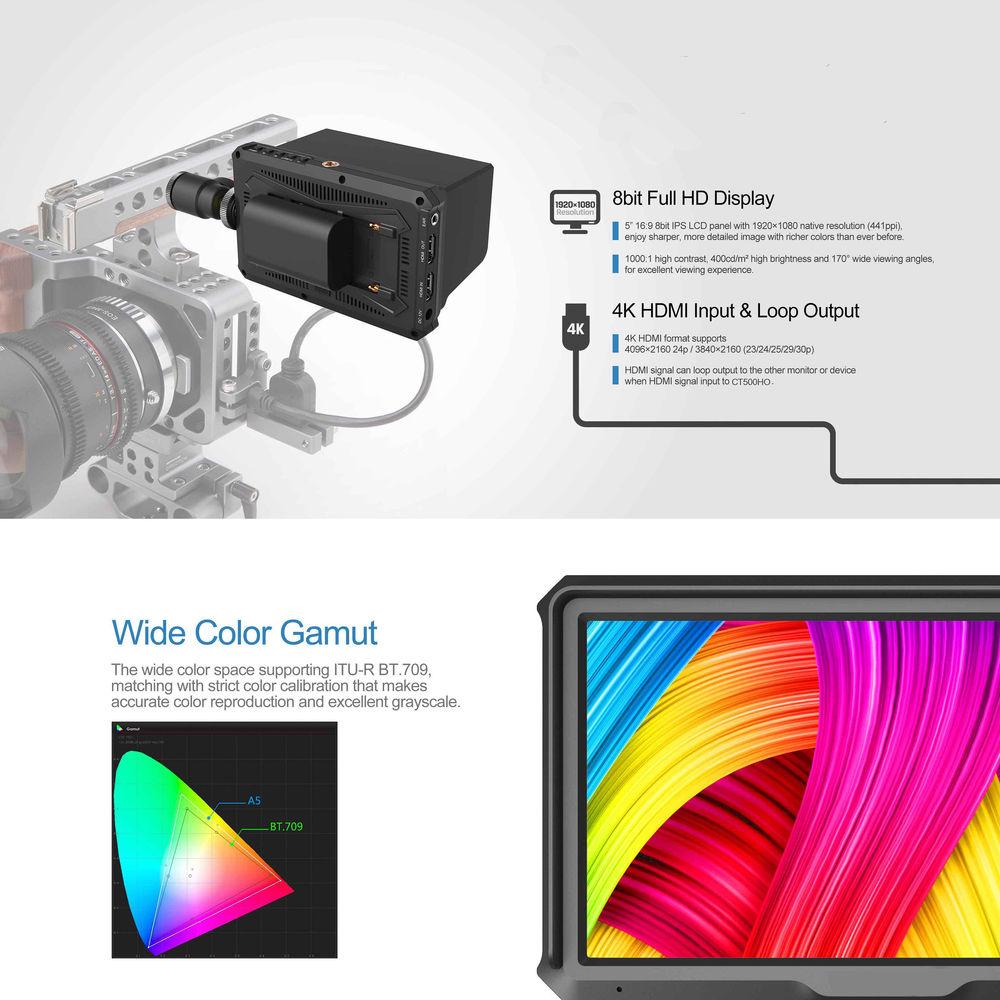

The HDMI input accepts DCI and UHD 4K resolutions, allowing the camera provide a sharp image to use for framing. The monitor's dual-purpose battery plate will accept either L-series batteries or LP-E6 batteries. A carbon fiber clamp mount that fits rods up to 30" in diameter is included, designed to attach to the handle of a DJI Ronin Series stabilizer. Also included are a sun hood for blocking reflections and glare, a shoe mount with a ball head for placing the monitor atop your camera, a D-Tap to 25mm barrel power cable, two Allen wrenches to tighten the mount screws, and a mini-HDMI to HDMI cable. - Lightweight 5" on-camera monitor with 1920 x 1080 resolution; accepts up to DCI and UHD 4K HDMI input and active loop out.
- Dual battery plate accepts two Sony L-series or two Canon LP-E6 batteries.
- Wide color gamut, 400 cd/m
|
Upload User Manual
Have you got an user manual for the GyroVu Lightweight 5" On-Camera HDMI Monitor with Carbon Fiber Clamp for DJI Ronin Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

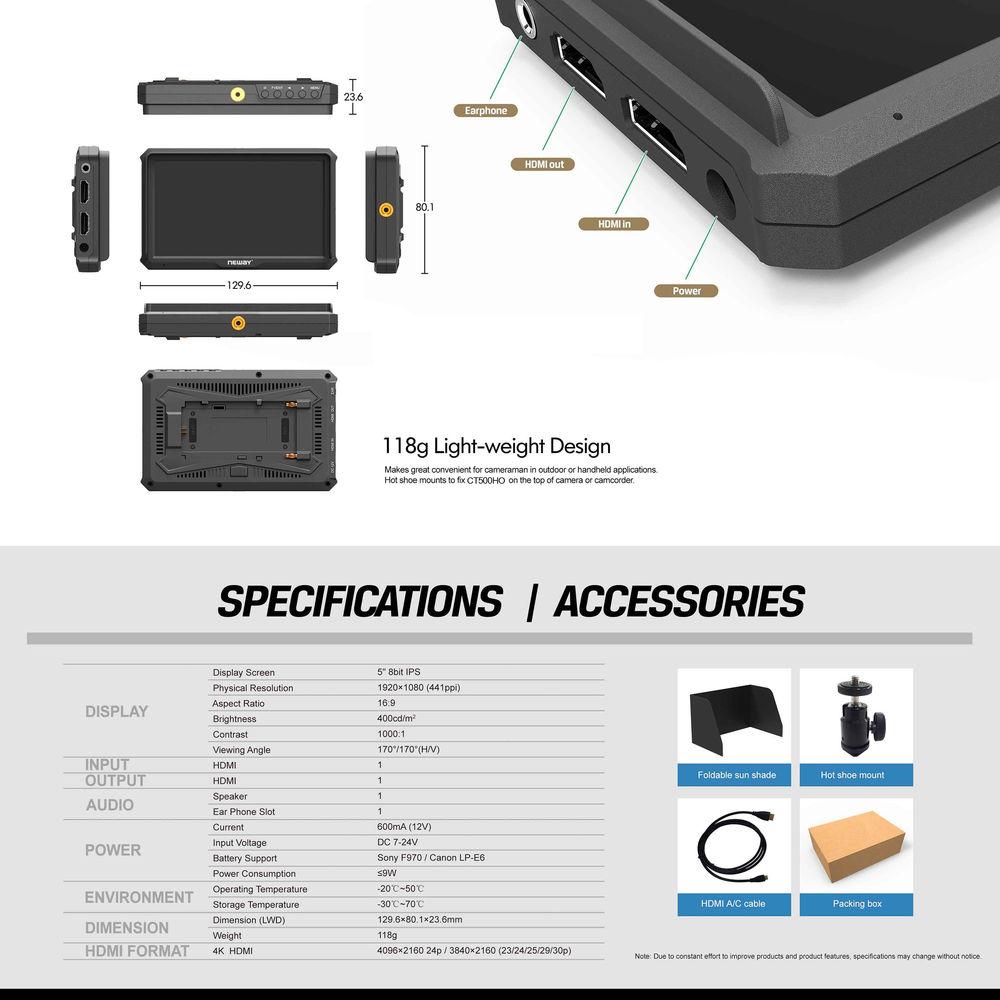

Technical parametersGyroVu GVM-5004H-R2 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Touchscreen | No | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 441 ppi | | Real-Time LUT Monitoring | No | | Image Controls | Histogram, Pixel-to-Pixel Zoom, Screen Markers, Zebra | | | | Video | 1 x HDMI Type A (HDMI 1.4b) Input
1 x HDMI Type A (HDMI 1.4b) Output | | HDCP Support | No | | Embedded Audio | HDMI: 2-Channel | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x Barrel Input | | Other I/O | None | | Card Slot | None | | | | Video Format | HDMI (8-Bit)
DCI 4K: 24
UHD 4K: 23.98/24/25/29.97/30 | | | | DC Input Power | 7 to 24 VDC at 600 mA | | Battery Type | 2 x LP-E6 or L-Series | | Power Consumption | 9 W (Typical) | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 5.1 x 3.2 x 0.9" / 12.95 x 8.13 x 2.29 cm | | Weight | 4.2 oz / 119 g | | | | Package Weight | 1.265 lb | | Box Dimensions (LxWxH) | 6.9 x 4.9 x 2.55" |
