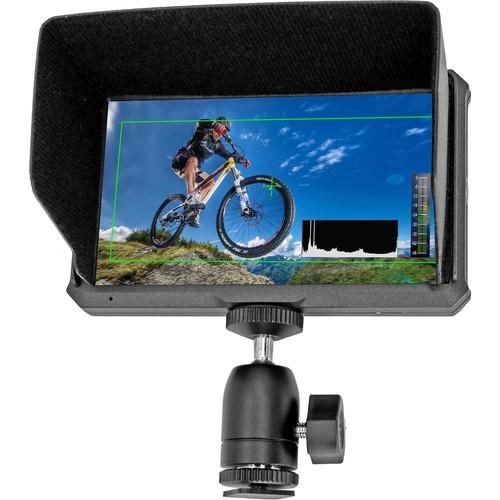

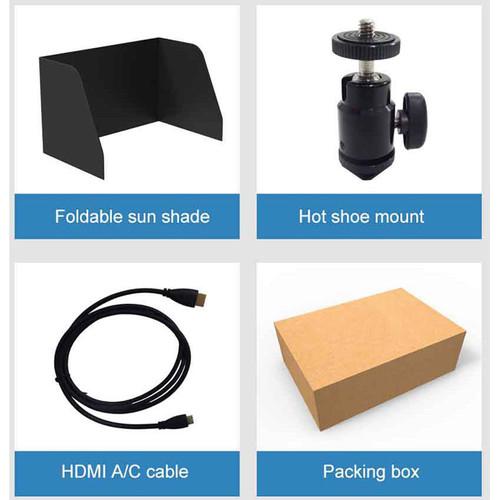

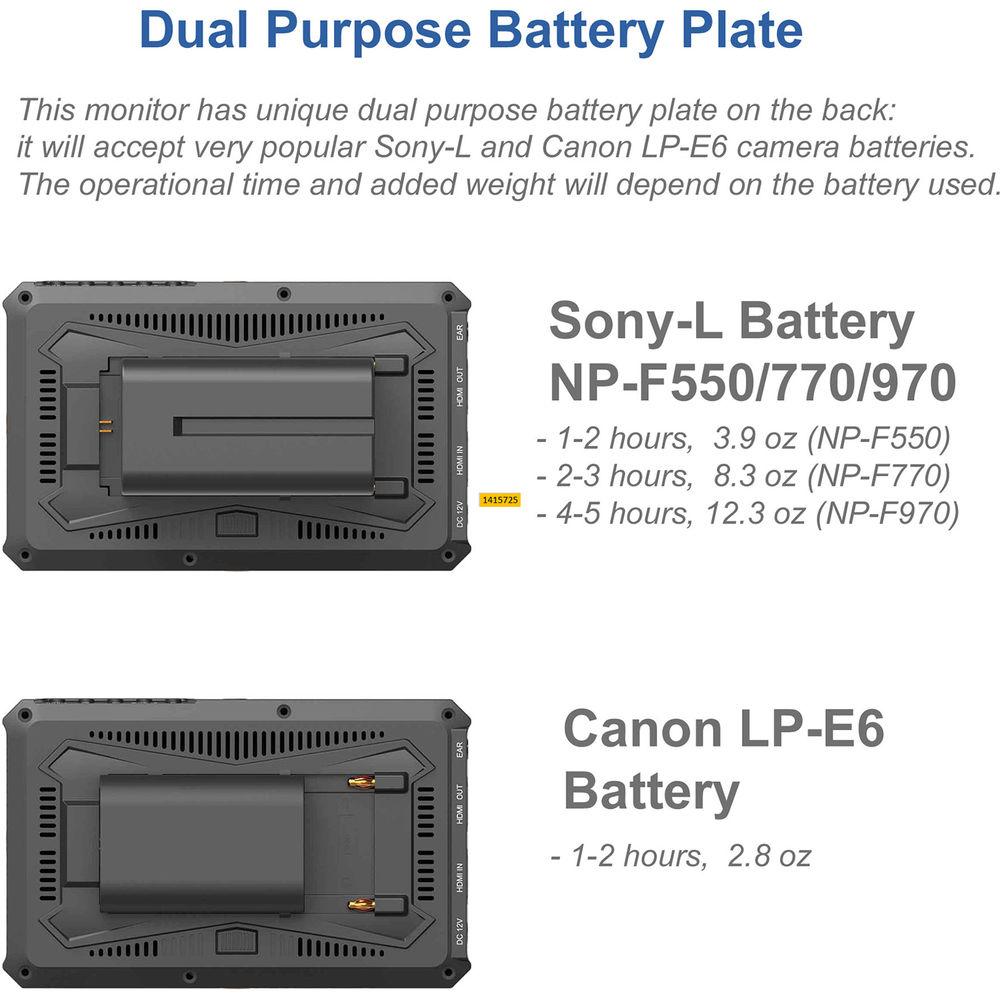

Product description Help compose your videos with the GyroVu Ultra Lightweight 5" On-Camera Monitor. Using an 8-bit 1920 x 1080 IPS LCD panel, focusing by eye is possible, and critical focus can be achieved using the zoom function. Since this monitor is lightweight, using it atop a small mirrorless camera won't add bulk to a compact setup. The HDMI input can accept 4K resolutions, letting the camera provide a sharp image to use for framing. For power, the monitor's battery plate will accept either L-series batteries or LP-E6 batteries. Included with the monitor are a sun hood for blocking reflections and glare, a shoe mount ball head for placing the monitor atop your camera, and a mini-HDMI to HDMI cable. UPC: 647603938806 In the Box GyroVu Ultra Lightweight 5" On-Camera Monitor Folding Sun Hood Shoe Mount Ball Head Mini-HDMI to HDMI Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GyroVu Ultra Lightweight 5" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

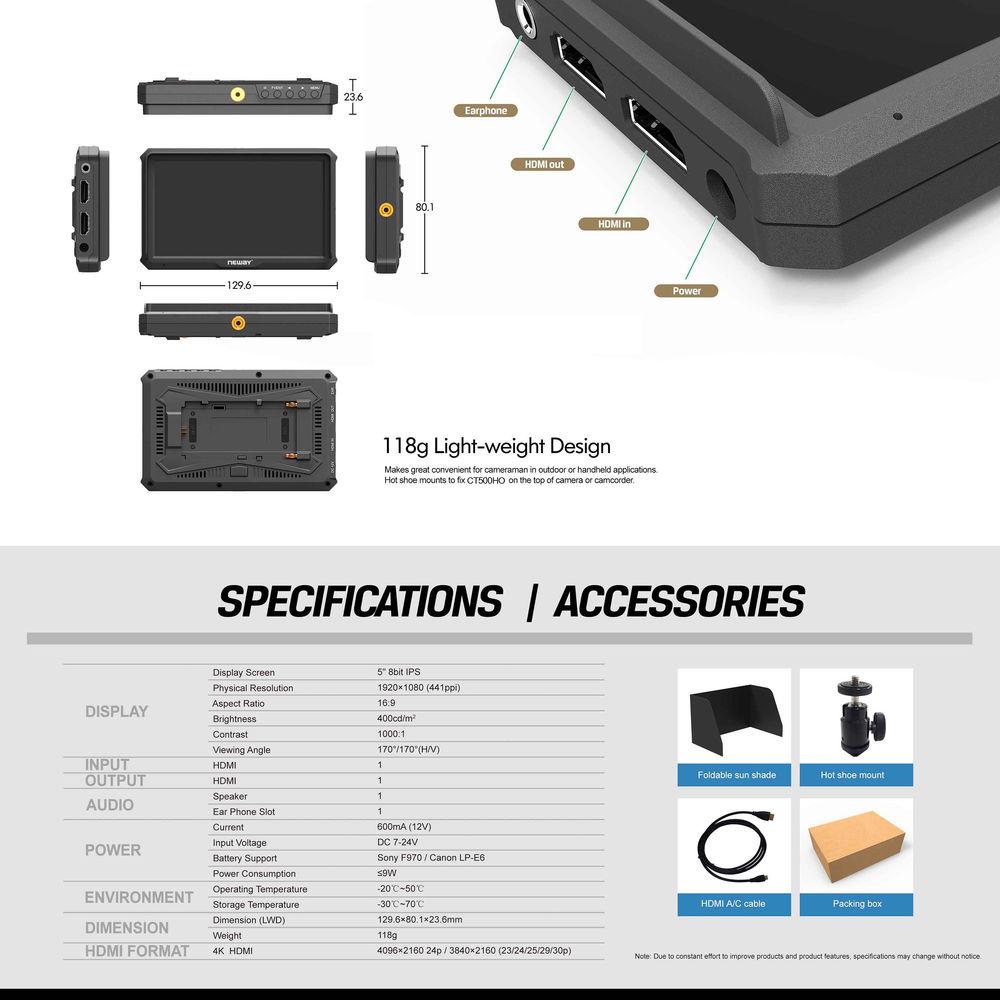

Technical parametersGyroVu GVM-5004H Specs | | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Touchscreen | No | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 441 ppi | | Real-Time LUT Monitoring | No | | Image Controls | Histogram, Screen Markers, Zebra | | | | Video | 1 x HDMI Type A (HDMI 1.4b) Input
1 x HDMI Type A (HDMI 1.4b) Output | | Embedded Audio | HDMI: 2-Channel | | Audio | None | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | None | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 24/25/30 | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Operating Current | 600 mA (Typical) | | Power Consumption | 9 W (Maximum) | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | | | Dimensions (W x H x D) | 5.12 x 3.15 x 0.94" / 13 x 8 x 2.4 cm | | Weight | 4.16 oz / 118 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.6" |
