GyroVu Ultra Lightweight 5" On-Camera Monitor

Search your instruction manual in PDF to download

User Manual for GyroVu Ultra Lightweight 5" On-Camera Monitor with Gimbal-Mount Kit

Click to enlarge the picture
GyroVu Ultra Lightweight 5" On-Camera Monitor with Gimbal-Mount Kit Contents of the user manual for the GyroVu Ultra Lightweight 5" On-Camera Monitor
  • Product category: On Camera Monitors GyroVu
  • Brand: GyroVu
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for GyroVu On Camera Monitors

GyroVu Ultra Lightweight 5" On-Camera Monitor with Gimbal-Mount Kit GyroVu Ultra Lightweight 5" On-Camera Monitor with Gimbal-Mount Kit GyroVu Ultra Lightweight 5" On-Camera Monitor with Gimbal-Mount Kit GyroVu Ultra Lightweight 5" On-Camera Monitor with Gimbal-Mount Kit
User manual for the GyroVu Ultra Lightweight 5" On-Camera Monitor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any GyroVu product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official GyroVu user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a GyroVu product will considerably shorten its lifespan!



Product description

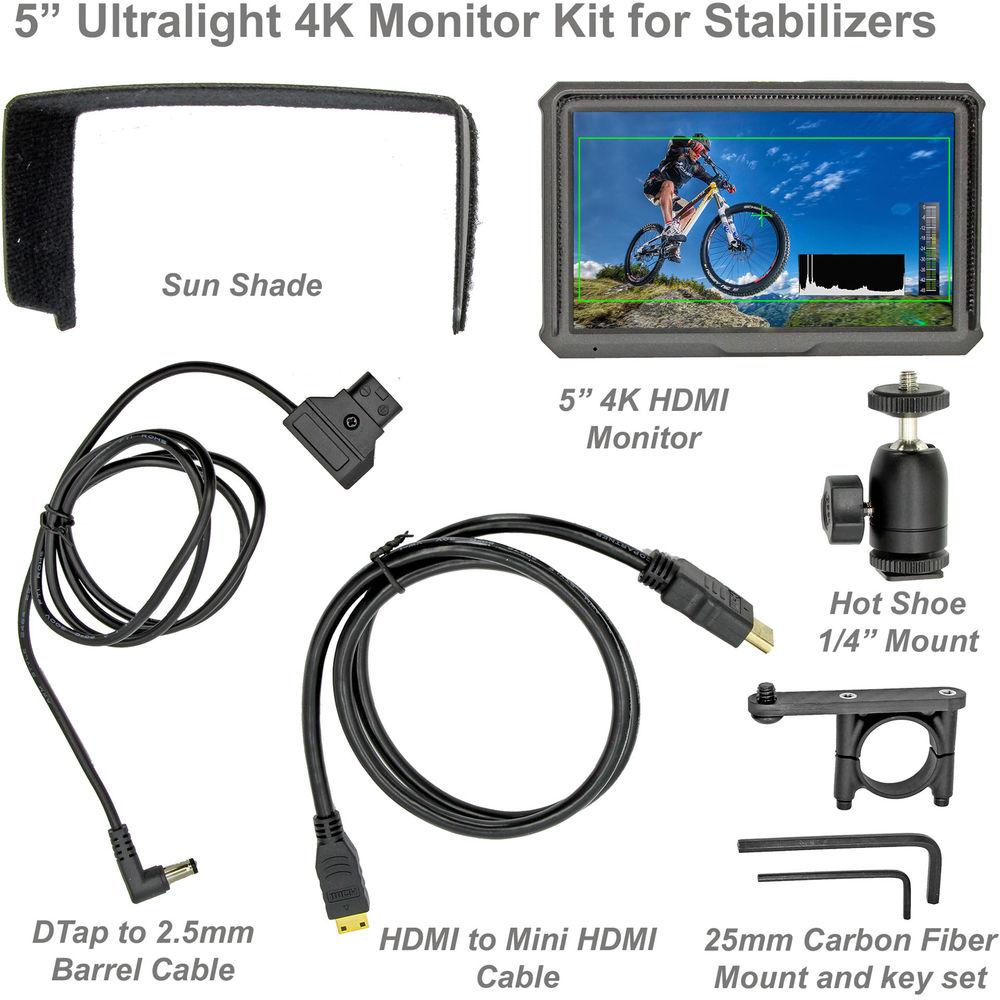

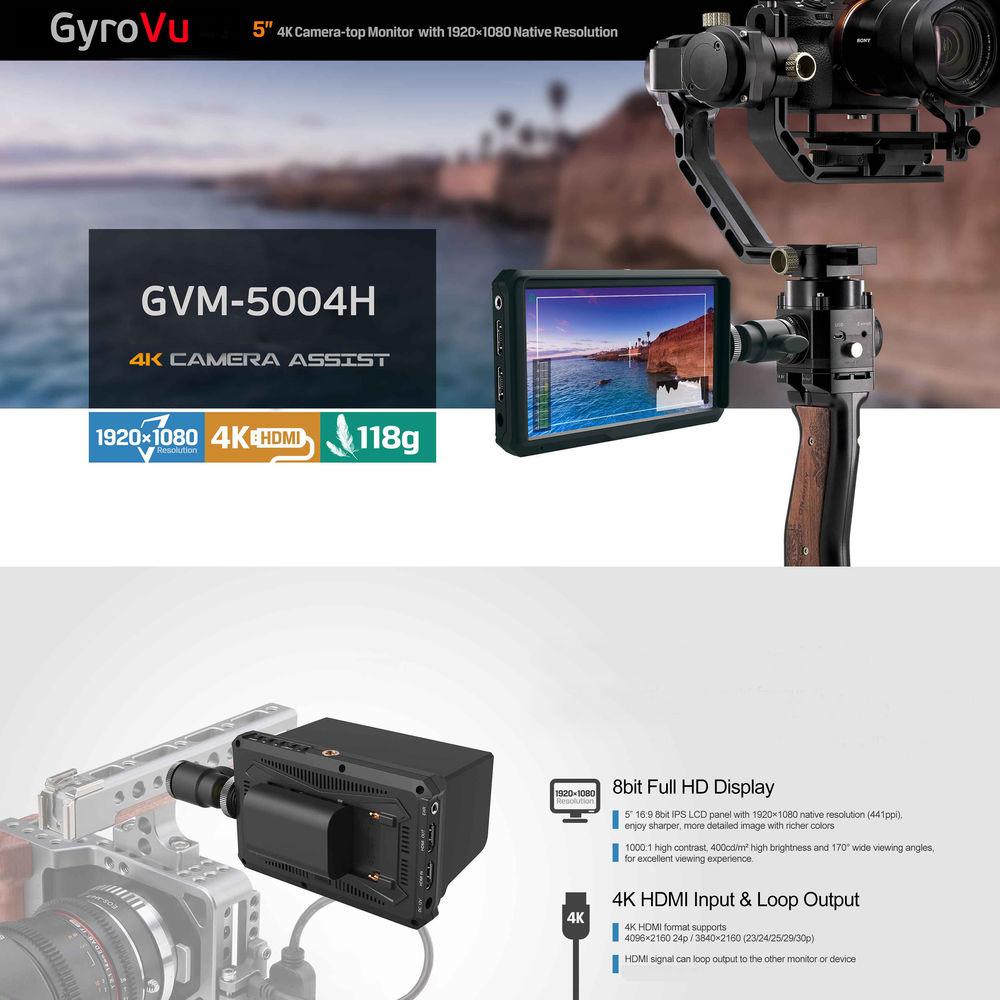

Help compose your videos with the GyroVu Ultra Lightweight 5" On-Camera Monitor. Using an 8-bit 1920 x 1080 IPS LCD panel, focusing by eye is possible, and critical focus can be achieved using the zoom function. Since this monitor is lightweight, using it atop a small mirrorless camera won't add bulk to a compact setup. The HDMI input can accept 4K resolutions, letting the camera provide a sharp image to use for framing. To attach the monitor to your gimbal stabilizer, this kit includes a 25mm gimbal bar clamp. A D-Tap cable is included for the monitor to draw power from your stabilizer. Included with the monitor are a sun hood for blocking reflections and glare, a shoe mount ball head for placing the monitor atop your camera, and a mini-HDMI to HDMI cable. UPC: 647603938813 In the Box GyroVu Ultra Lightweight 5" On-Camera Monitor with Gimbal-Mount Kit
  • Folding Sun Hood
  • Shoe Mount Ball Head
  • Mini-HDMI to HDMI Cable
  • 25mm Gimbal Bar Clamp
  • D-Tap Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the GyroVu Ultra Lightweight 5" On-Camera Monitor with Gimbal-Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

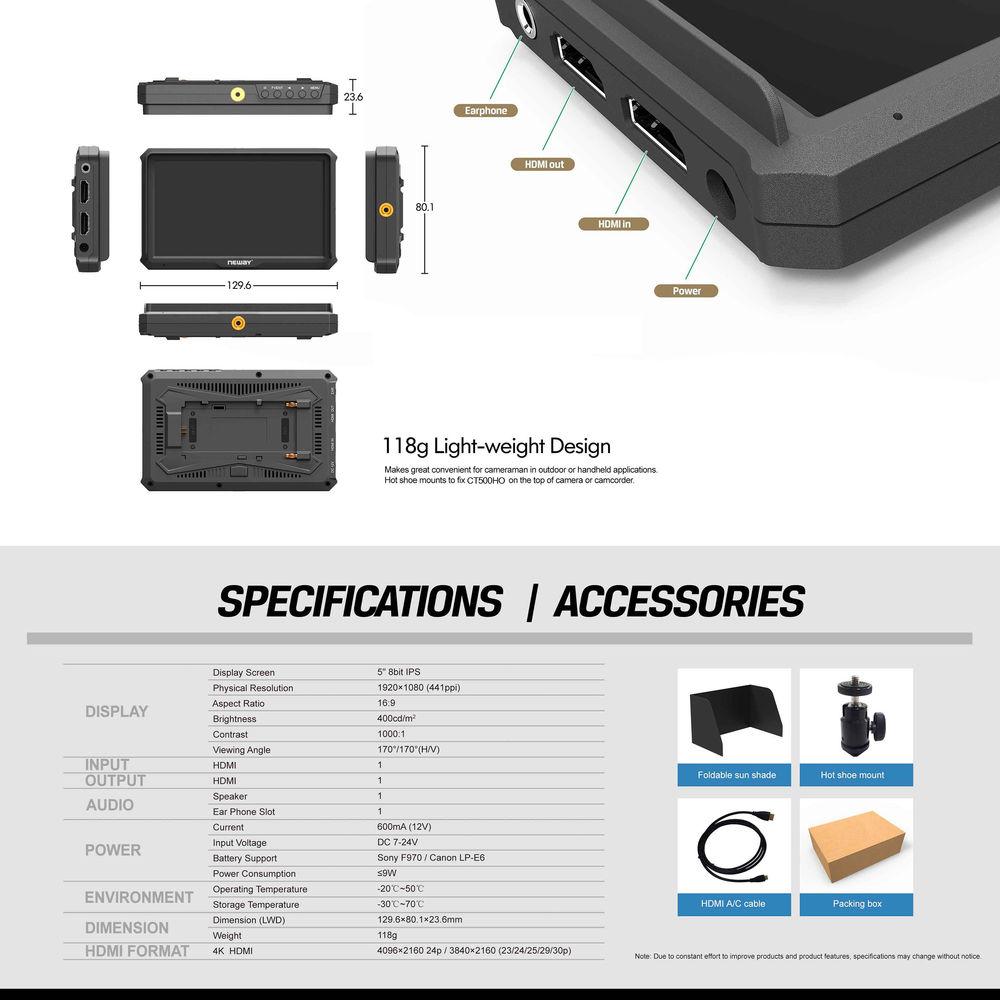

    GyroVu GVM-5004HRM Specs

    Panel Type IPS-Type LCD
    Display Size 5.0" / 12.7 cm
    Screen Resolution 1920 x 1080
    Aspect Ratio 16:9
    Viewing Angle Horizontal: 170°
    Vertical: 170°
    Touchscreen No
    Maximum Brightness 400 cd/m2
    Contrast Ratio 1000:1
    Bit Depth / Color Support 8-Bit (16.7 Million Colors)
    Pixels Per Inch (ppi) 441 ppi
    Real-Time LUT Monitoring No
    Image Controls Histogram, Screen Markers, Zebra
    Video 1 x HDMI Type A (HDMI 1.4b) Input
    1 x HDMI Type A (HDMI 1.4b) Output
    Embedded Audio HDMI: 2-Channel
    Audio None
    Built-In Speaker None
    Power 1 x Barrel Input
    Other I/O None
    Card Slot None
    Video Format HDMI
    DCI 4K: 24
    UHD 4K: 24/25/30
    DC Input Power 7 to 24 VDC

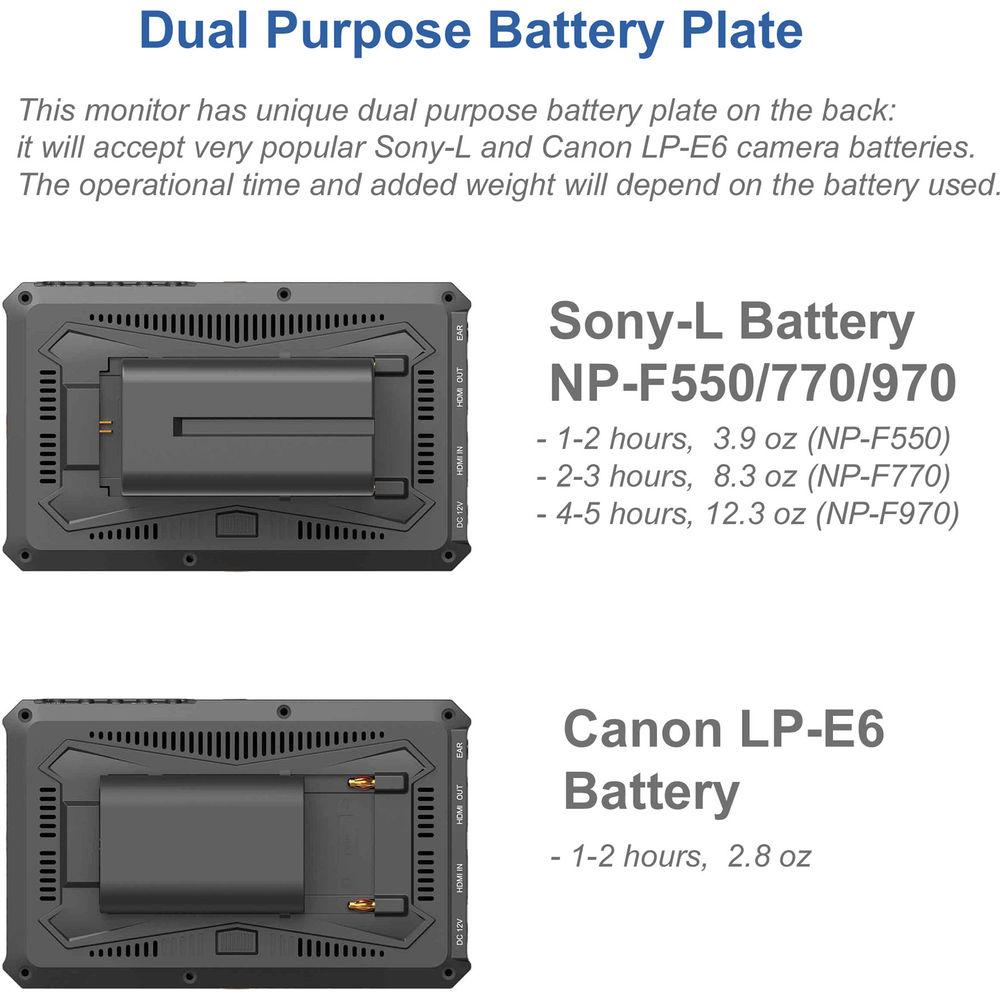

    Battery Type 1 x LP-E6 or L-Series
    Operating Current 600 mA (Typical)
    Power Consumption 9 W (Maximum)
    Mounting 3 x 1/4"-20 Female
    Operating Temperature -4 to 122°F / -20 to 50°C
    Storage Temperature -22 to 158°F / -30 to 70°C
    Dimensions (W x H x D) 5.12 x 3.15 x 0.94" / 13 x 8 x 2.4 cm
    Weight 4.16 oz / 118 g
    Package Weight 1.35 lb
    Box Dimensions (LxWxH) 7.1 x 5.1 x 2.6"
