User Manual for hahnel Modus 600RT Speedlight with Viper Transmitter Kit for Sony Cameras Click to enlarge the picture
Contents of the user manual for the hahnel Modus 600RT Speedlight with Viper
- Product category: On Camera Flashes hahnel
- Brand: hahnel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for hahnel On Camera Flashes
 |
User manual for the hahnel Modus 600RT Speedlight with Viper contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any hahnel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official hahnel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a hahnel product will considerably shorten its lifespan!
|

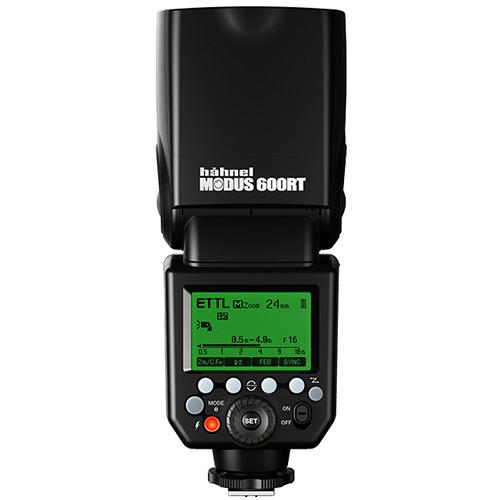

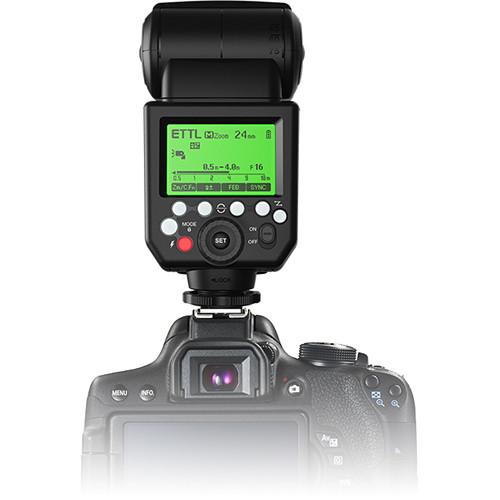

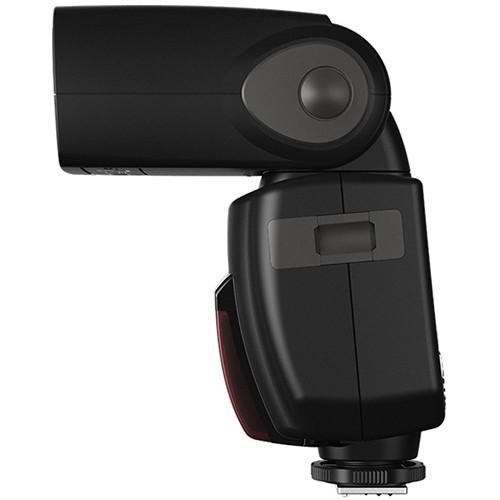

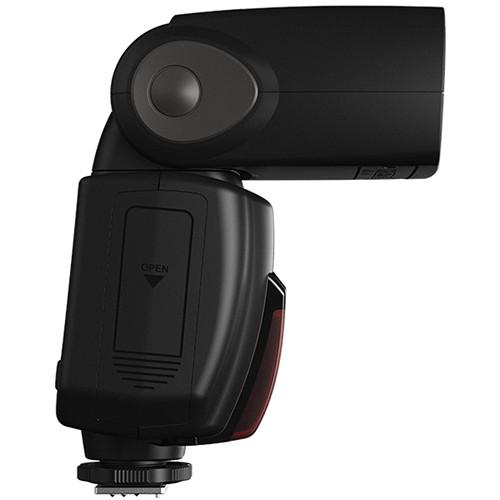

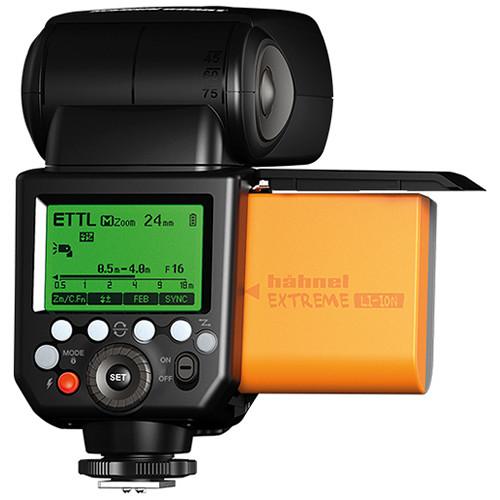

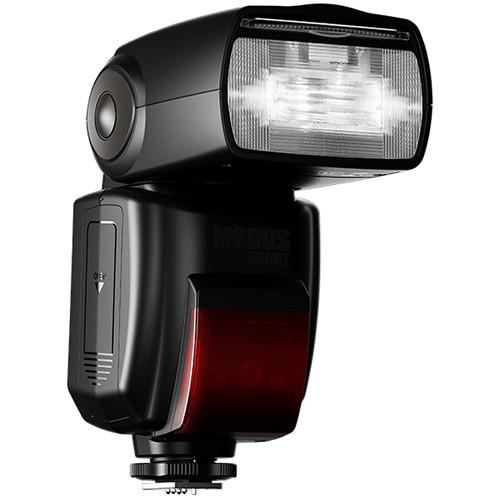

Product description A Guide to On-Camera Flash Read More Comprising the essential items you need for off-camera lighting, this Modus 600RT Speedlight with Viper Transmitter Kit from hahnel pairs the powerful flash with a wireless transmitter compatible with its 2.4 GHz radio system. The Viper transmitter retains full TTL metering with Sony cameras for easy exposure, but also allows you to manually control output levels of up to three groups of lights. Trigger distances of up to 328' are possible, making for an uncomplicated workflow whether you are shooting in the studio or on location. A fully-featured unit powered by a lithium-ion battery, the Modus 600RT is a capable speedlight offering both ADI / P-TTL metering for Sony cameras as well as a manual exposure mode. It boasts a powerful guide number of 197' at ISO 100 and 200mm and can be set from full power to 1/128 power for an 8-stop exposure range. However, it does not compromise on speed, with blazing fast recycle times of 1.5 seconds or lower. The Modus 600RT's zoom head can be adjusted to suit focal lengths from 20 to 200mm, with a wide panel expanding that to 14mm and a second panel also available for bouncing. Complementing this is the flash's ability to tilt from -7 to 90° and rotate 360°, which combined allow you to aim the light nearly anywhere. A high-speed sync mode is available for use with shutter speeds as fast as 1/8000 second, and regular front- and rear-curtain sync can also be selected. Finally, the unit's 2000mAh battery can last for up to 500 full-power pops before needing to be recharged. - Modus 600RT Flash
-
- Dot-matrix LCD with five modes for cycling through settings, adjustments made via eight buttons and center dial
- Output varies from 1/1 to 1/128, with exposure compensation available from -3 to +3 in 1/3 EV steps
- Lasts for approximately 500 flashes at full power and 1000 flashes at 1/2 power
- Programmable stroboscopic mode that fires up to 100 times depending on frequency and power settings
- Rated color temperature of 5600K, can be mixed with other daylight-balanced sources with minimal color cast
- Works as an optical slave up to 50' away for synced firing with a third-party master flash
- 2.5mm jack for wired communication with other equipment
- Micro-USB slot allows you to connect the flash to a computer for firmware upgrade
- AF assist beam automatically activates in low-light situations
- Mini stand and protective case included
- Viper TTL Transmitter
-
- Triggers hahnel flashes with built-in wireless system, or other speedlights via optional Viper receiver
- Backlit LCD display with four top buttons and rotating dial
- 2.4 GHz radio frequency for working at distances of up to 328'
- Controls output levels for up to three groups of flashes
- 2.5mm jack and mini-USB slot for wired communication with other equipment
- Runs on two user-supplied AA batteries

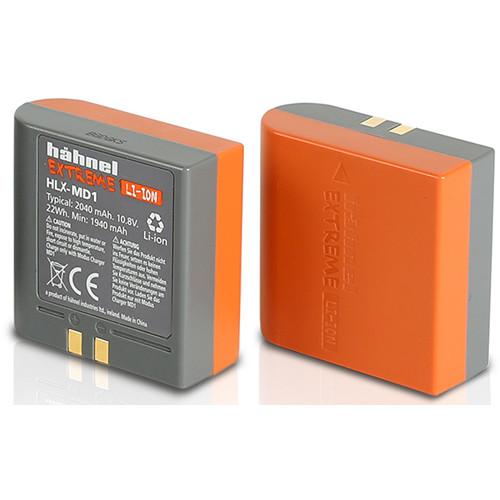

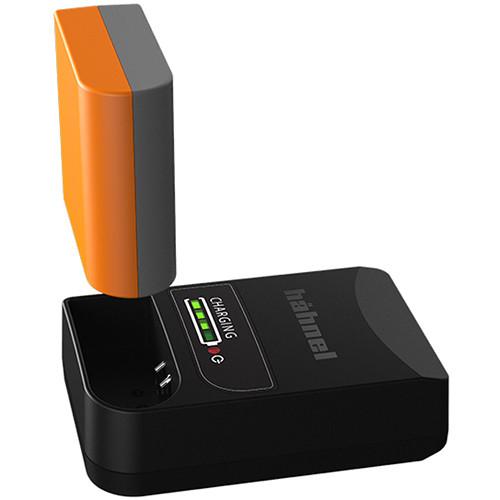

In the Box hahnel Modus 600RT Speedlight with Viper Transmitter Kit for Sony Cameras Viper TTL Transmitter HLX-MD1 Li-Ion Battery Pack (11.1V, 2000mAh) MD1 Battery Charger with Power Cable Mini Stand Protective Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the hahnel Modus 600RT Speedlight with Viper Transmitter Kit for Sony Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametershahnel Modus 600RT Specs | Mount | Shoe | | Guide No. | 196.85' / 60 m ISO 100 at 200 mm Position | | Exposure Control | ADI / P-TTL, Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to 90° | | Swivel Head | 360° | | Coverage | Up to 14 - 200 mm | | Off-Camera Terminal | 2.5 mm | | Recycle Time | Approximately 0.1 to 1.5 Seconds | | Flash Duration | 1/300 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 328.08' / 100 m
Mode: Master, Slave
Method: Optical Pulse
Distance: Up to 49.21' / 15 m | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 1 x Proprietary Rechargeable Li-Ion Battery | | Dimensions (W x H x D) | 2.5 x 3.0 x 7.5" / 6.4 x 7.6 x 19.0 cm | | Weight | 19.05 oz / 540 g with Battery |
