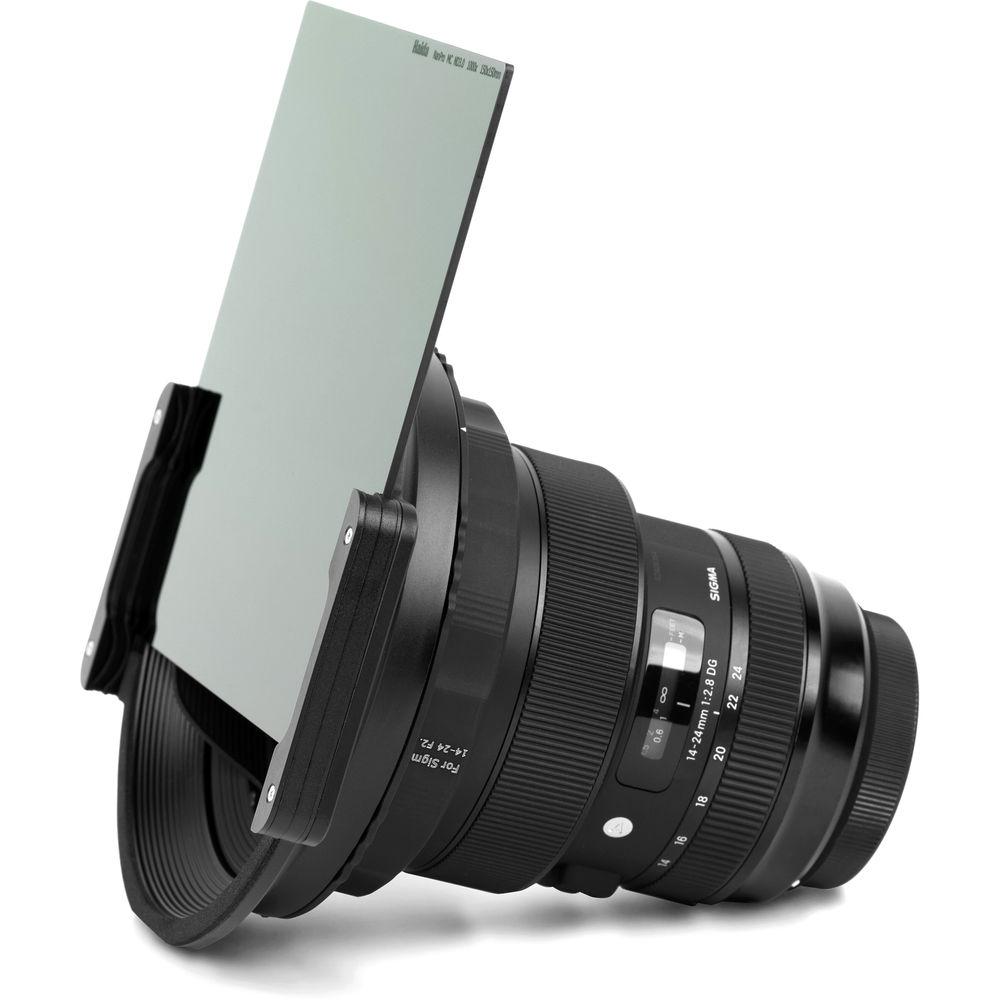

Product description This Haida 150 Filter Holder Kit is designed to allow for the convenient use of 150mm wide, 2mm thick filters with a Sigma 14-24mm f/2.8 DG HSM Art lens without vignetting.

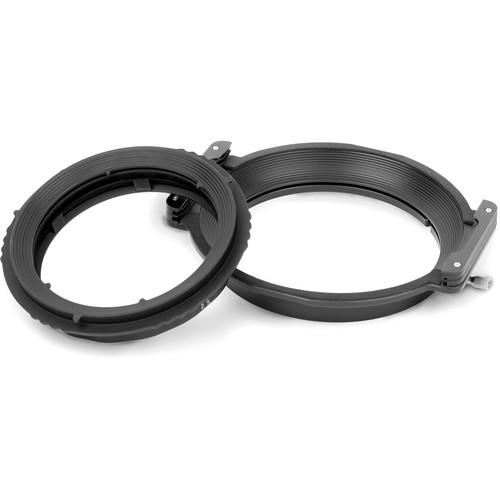

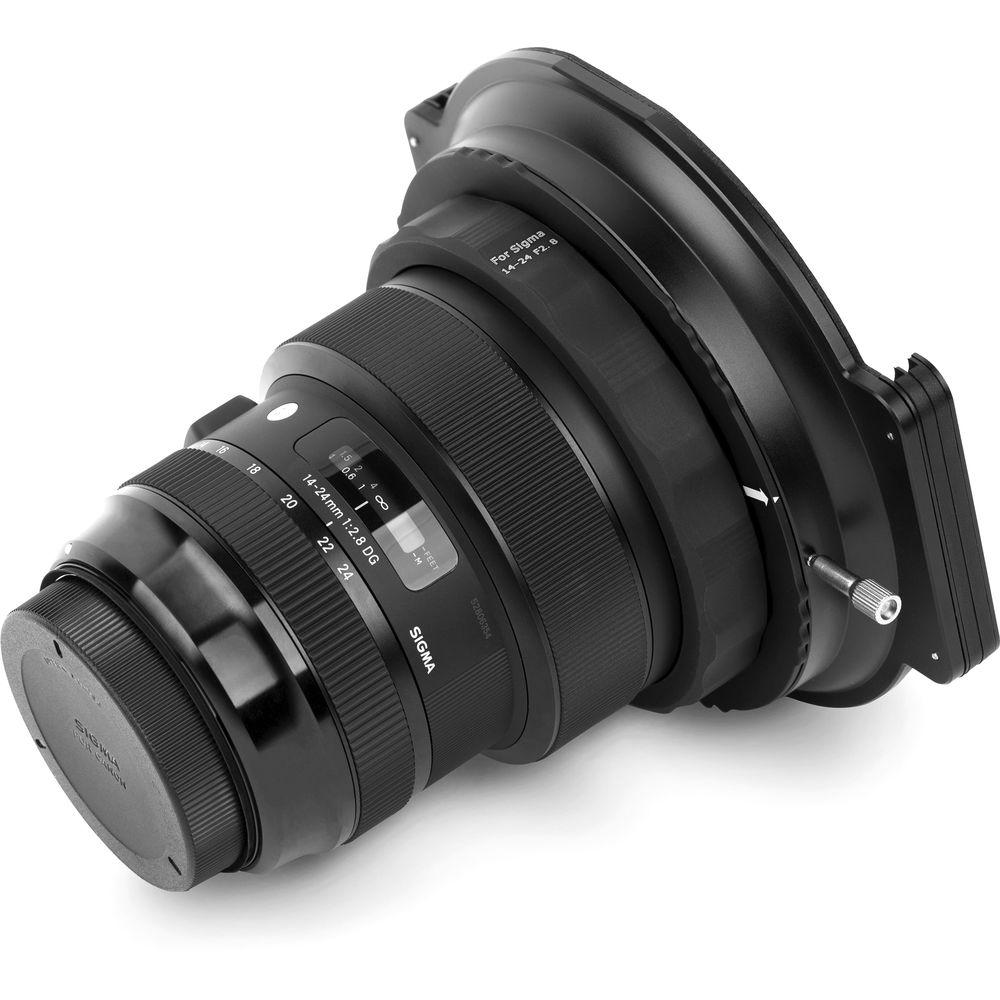

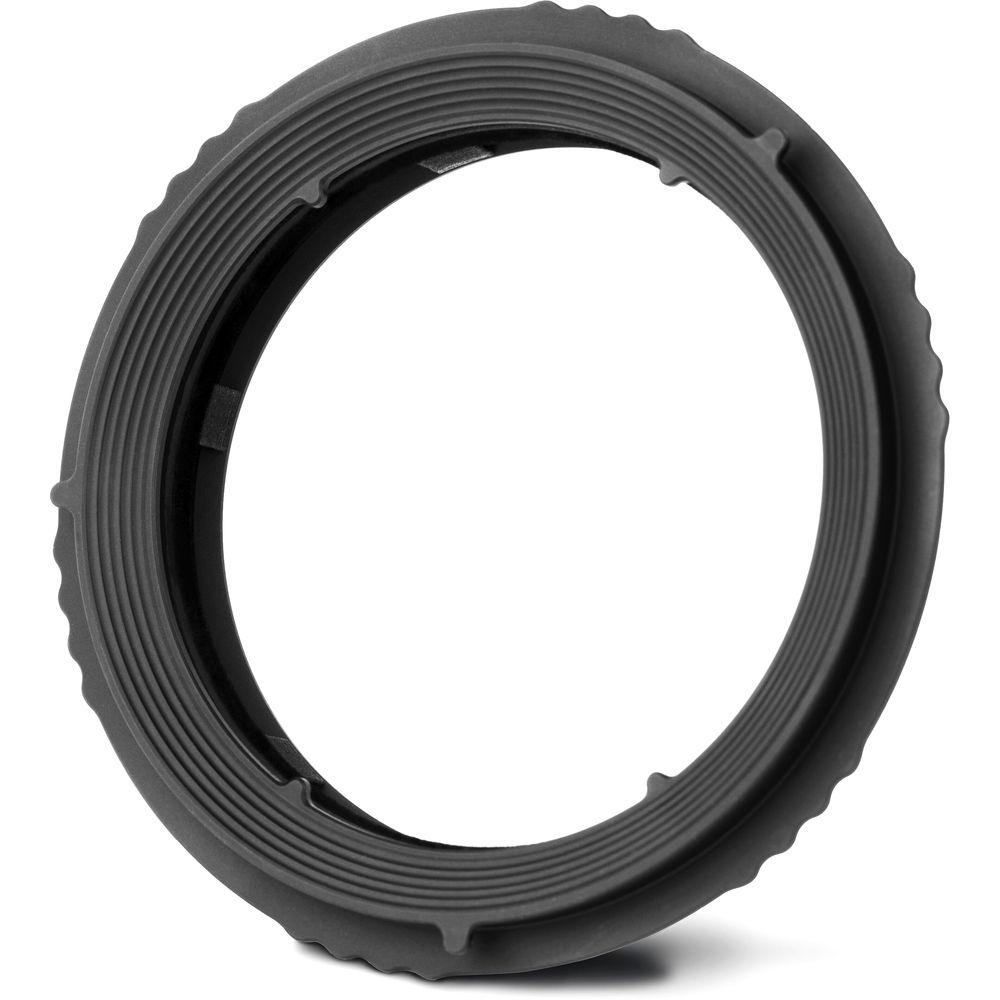

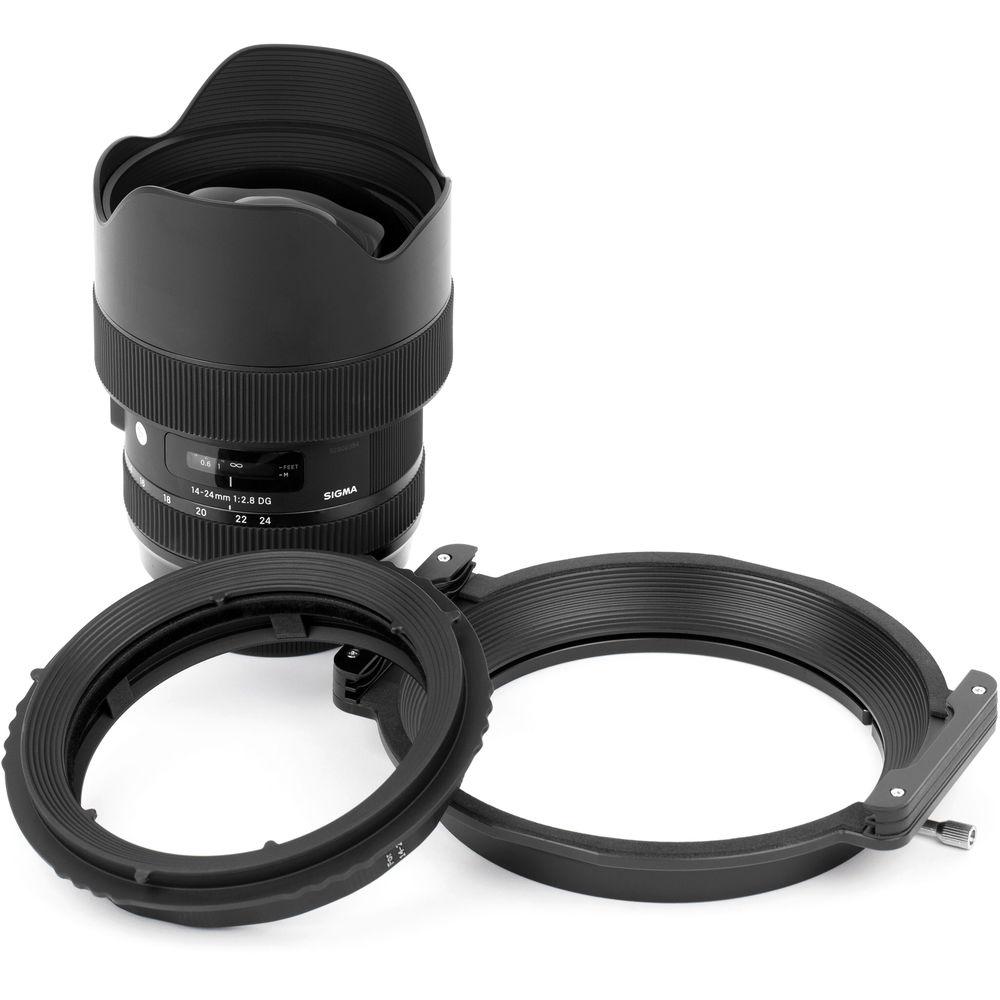

The kit consists of three main components, a front filter holder, a filter holder adapter ring, and an adapter ring lens collar. Use of the filter holder is easily accomplished by first sliding the filter holder adapter ring over the rear of a Sigma 14-24mm f/2.8 DG HSM Art lens until it has achieved a secure fit. Afterwards, the adapter ring lens collar can also be slid over the rear of the lens. The adapter ring lens collar can then be screwed into the adapter ring to lock both components into place.
Adapter rings are separately available for lenses with 67mm, 72mm, 77mm, 82mm, 95mm, or 105mm front filter threads. After being fitted onto an adapter ring, the filter holder's screw-on locking pin helps to provide a reliable, yet adjustable connection that allows the holder to be rotated 360°, permitting the use of graduated neutral density and other filters that are enhanced by varied positioning. This Haida 150 Filter Holder Kit is pre-installed with two pairs of filter slots, a configuration that accommodates two rectangular filters. Also included is a third pair of filter slots and a second set of screws designed to attach all three pairs, which allows up to three rectangular filters to be used at the same time.
To prevent stray light, which could have unwanted effects on exposure, from coming in between an installed filter and a connected lens, two gaskets are positioned along the front of the filter holder. These gaskets are designed to form a seal between the pairs of plastic filter slots.
This kit's filter holder can also be used with a Haida filter holder adapter ring for a Zeiss Distagon T* 15mm f/2.8 (ZE and ZF.2), Nikon AF-S NIKKOR 14-24mm f/2.8G ED, Canon EF 14mm f/2.8L II USM, Sigma 12-24mm f/4.5-5.6 DG HSM II, Rokinon/Samyang 14mm f/2.8 IF ED UMC, Tokina AT-X 16-28mm f/2.8 Pro FX, Canon EF 11-24mm f/4L USM, Tamron SP 15-30mm f/2.8 Di (VC or non-VC) USD, Tamron SP 15-30mm f/2.8 Di VC USD G2, Olympus M.Zuiko Digital ED 7-14mm f/2.8 PRO, Nikon AF NIKKOR 14mm f/2.8D ED, Pentax HD D FA 15-30mm f/2.8 ED SDM WR, Sigma 20mm f/1.4 DG HSM Art, Sigma 12-24mm f/4 DG HSM Art, Samyang XP 14mm f/2.4, Sony FE 12-24mm f/4 G, or Sigma 14mm f/1.8 DG HSM Art lens. -
- Allows filters to be conveniently used with a Sigma 14-24mm f/2.8 DG HSM Art lens without vignetting
- Holds 150mm wide, 2mm thick filters
- Preconfigured to hold two rectangular filters and can accommodate up to three rectangular filters
- Screw-on locking pin allows for adjustment of filter holder's grip for 360° rotation on adapter ring
- Gaskets help to prevent stray light, which could have unwanted effects on exposure, from coming in between an installed filter and a connected lens
- Separately available aluminum-alloy adapter rings for lenses with 67mm, 72mm, 77mm, 82mm, 95mm, or 105mm front filter threads
- Filter holder can also be used with a Haida filter holder adapter ring for a Zeiss Distagon T* 15mm f/2.8 (ZE and ZF.2), Nikon AF-S NIKKOR 14-24mm f/2.8G ED, Canon EF 14mm f/2.8L II USM, Sigma 12-24mm f/4.5-5.6 DG HSM II, Rokinon/Samyang 14mm f/2.8 IF ED UMC, Tokina AT-X 16-28mm f/2.8 Pro FX, Canon EF 11-24mm f/4L USM, Tamron SP 15-30mm f/2.8 Di (VC or non-VC) USD, Tamron SP 15-30mm f/2.8 Di VC USD G2, Olympus M.Zuiko Digital ED 7-14mm f/2.8 PRO, Nikon AF NIKKOR 14mm f/2.8D ED, Pentax HD D FA 15-30mm f/2.8 ED SDM WR, Sigma 20mm f/1.4 DG HSM Art, Sigma 12-24mm f/4 DG HSM Art, Samyang XP 14mm f/2.4, Sony FE 12-24mm f/4 G, or Sigma 14mm f/1.8 DG HSM Art lens
In the Box Haida 150 Filter Holder Kit for Sigma 14-24mm Art Lens Filter Holder Adapter Ring Lens Collar 6 x Filter Slots 4 x Screws for up to Two Pairs of Filter Slots 5 x Screws for up to Three Pairs of Filter Slots Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Haida 150 Filter Holder Kit for Sigma 14-24mm Art Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHaida HD4130 Specs | Material | Filter Holder Plate: Aluminum alloy
Filter Holder Slots: Plastic
Filter Holder Adapter Ring: Aluminum alloy
Adapter Ring Lens Collar: Aluminum alloy | | Compatibility | Filter Holder Plate: Haida 150 adapter ring for a Zeiss Distagon T* 15mm f/2.8 (ZE and ZF.2), Nikon AF-S NIKKOR 14-24mm f/2.8G ED, Canon EF 14mm f/2.8L II USM, Sigma 12-24mm f/4.5-5.6 DG HSM II, Rokinon/Samyang 14mm f/2.8 IF ED UMC, Tokina AT-X 16-28mm f/2.8 Pro FX, Canon EF 11-24mm f/4L USM, Tamron SP 15-30mm f/2.8 Di (VC or non-VC) USD, Tamron SP 15-30mm f/2.8 Di VC USD G2, Olympus M.Zuiko Digital ED 7-14mm f/2.8 PRO, Nikon AF NIKKOR 14mm f/2.8D ED, Pentax HD D FA 15-30mm f/2.8 ED SDM WR, Sigma 20mm f/1.4 DG HSM Art, Sigma 12-24mm f/4 DG HSM Art, Samyang XP 14mm f/2.4, Sony FE 12-24mm f/4 G, Sigma 14mm f/1.8 DG HSM Art, or Sigma 14-24mm f/2.8 DG HSM Art lens
Haida 150 adapter ring for lenses with 67mm, 72mm, 77mm, 82mm, 95mm, or 105mm front filter threads
Adapter Ring: Haida 150 adapter ring lens collar for Sigma 14-24mm f/2.8 DG HSM Art lens
Adapter Ring Lens Collar: Sigma 14-24mm f/2.8 DG HSM Art lens
Accepts up to three rectangular filters (150mm wide, 2mm thick) | | Rotating | Yes, 360° | | Dimensions | 6.5 x 5.9 x 2.1" / 165.0 x 150.0 x 53.0 mm | | Weight | 7.1 oz / 200.0 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 2.5" |
