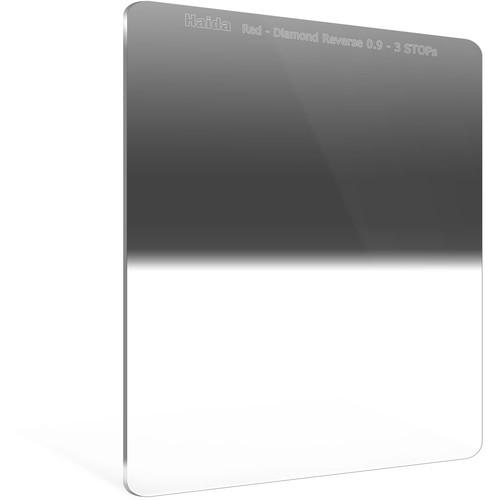

User Manual for Haida 150 x 170mm Red Diamond Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.3 Filter Click to enlarge the picture
Contents of the user manual for the Haida 150 x 170mm Red Diamond
- Product category: Graduated Neutral Density Haida
- Brand: Haida
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Haida Graduated Neutral Density
|
User manual for the Haida 150 x 170mm Red Diamond contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Haida product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Haida user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Haida product will considerably shorten its lifespan!
|
Product description How to Use ND Filters: Tips, Tricks, and Special Effects Read More This 150 x 170mm Red Diamond Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.3 Filter from Haida is compatible with the Haida 150 Filter Holder. It can be applied to darken bright skies, specifically during a sunrise or sunset, while allowing for a normal, unaffected exposure in the other regions of the image.
This filter achieves its effect with a 0.9 band of density across its center region that provides a 3-stop reduction in light from entering a lens. This band extends approximately 15mm in both vertical directions. With a soft-edged line of transition, it tapers to a 0.3 density that provides a 1-stop reduction in light at the edge above it. Directly below the 0.9 band of density, it tapers to clear, with a hard-edged line of transition before the clear area.
The placement of a 0.9 band of density that tapers to a density of 0.3 above it with a clear area directly below, allows the Haida 150 x 170mm Red Diamond Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.3 Filter to match the positioning of the sun when it is at, or immediately above, the horizon. In such instances, the sun can appear closer to the center of an image as opposed to the upper edge, and an increase in brightness is created that is more prominent on both sides of the sun than above it. This pattern of brightness corresponds to the density pattern on the Haida 150 x 170mm Red Diamond Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.3 Filter. The hard-edged line of transition in this reverse, graduated neutral density filter is useful for hard transitions between the sky and land, while the 3-stop to 1-stop gradation with a soft-edged line of transition is applicable to multiple regions of brightness within the sky.
Haida Red Diamond filters are constructed from shock-resistant optical glass. To prevent internal ghosting and reflections, while further enhancing clarity and color fidelity, each glass surface includes 10 layers of anti-reflective nano coatings. An additional 10 scratch-resistant hydrophobic coatings further protect the filter's substrate and result in an improved beading effect when its surfaces come in contact with water or oil, allowing for more efficient cleaning. Additionally, Haida Red Diamond filters feature rounded edges for easier placement within a compatible filter holder slot.
A metallic case for storage and transport is included, as well as a light-blocking gasket. This gasket forms a seal that is intended to prevent stray light, which could have unwanted effects on exposure, from coming in between the filter and the lens behind it. -
- Compatible with Haida 150 Filter Holder
- Effectively darkens bright skies, specifically during a sunrise or sunset, while allowing for a normal, unaffected exposure in the other regions of the image
- 3-stop band of density that tapers to a 1-stop density at the edge above it while directly above a clear area creates a neutral density pattern that matches the positioning of the sun when it is at, or immediately above, the horizon
- 3-stop band of density extends approximately 15mm in both vertical directions
- Density pattern corresponds to the brightness pattern of the sun when it appears at or is closer to the horizon as opposed to a higher angle, which creates an increase in brightness that is more prominent on both sides of the sun than above it
- Hard-edged line of transition between the 3-stop band of density and the clear area below it is useful for hard transitions between the sky and land
- 3-stop to 1-stop gradation with soft-edged line of transition is applicable to multiple regions of brightness within the sky
- Filter does not affect the overall coloration of the image
- Shock-resistant optical glass construction
- 10 layers of anti-reflective nano coatings on each glass surface prevent internal ghosting and reflections, while further enhancing clarity and color fidelity
- 10 additional scratch-resistant hydrophobic coatings on each glass surface further protect the filter substrate and result in an improved beading effect when in contact with water or oil for greater cleaning efficiency
- Rounded edges for easier placement within a compatible filter holder slot
- When combined with a compatible filter holder, included gasket helps to prevent light from coming in between the filter and the lens behind it, which can have an unwanted effect on exposure
- Metallic filter case for storage and transport
In the Box Haida 150 x 170mm Red Diamond Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.3 Filter (3- to 1-Stop) Filter Case Light-Blocking Gasket Limited 1-Year Warranty Introduction to ND Filters: The Basics BH Online Videos 05/29/2015 uxctdevdfscffbsq How to Use ND Filters: Beyond the Basics BH Online Videos 05/29/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Haida 150 x 170mm Red Diamond Hard-Edge Reverse-Graduated Neutral Density 0.9 to 0.3 Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHaida HD4397 Specs | Filter Type | Graduated ND | | Graduation Type | Reverse | | Density | 0.3 (1 Stop) to 0.9 (3 Stops) | | Shape | Rectangle | | Rectangular Size | 5.91 x 6.69" / 150.0 x 170.0 mm | | Filter Thickness | 0.08" / 2.0 mm | | Filter Material | Glass | | Coatings | Multi-Coating |
