User Manual for HamiltonBuhl ActionPro 24MP Full HD Digital Camcorder Click to enlarge the picture
Contents of the user manual for the HamiltonBuhl ActionPro 24MP Full HD Digital
- Product category: Consumer Camcorders HamiltonBuhl
- Brand: HamiltonBuhl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HamiltonBuhl Consumer Camcorders
 |
User manual for the HamiltonBuhl ActionPro 24MP Full HD Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HamiltonBuhl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HamiltonBuhl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HamiltonBuhl product will considerably shorten its lifespan!
|

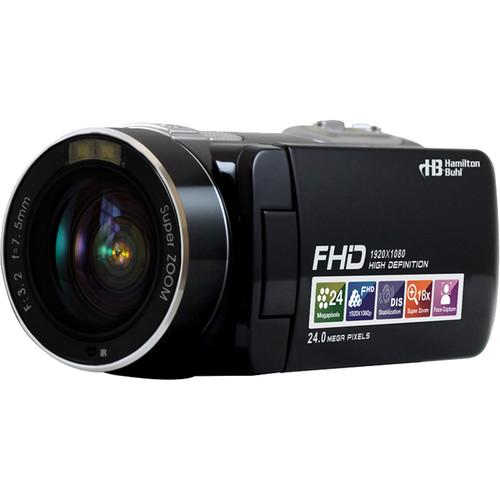

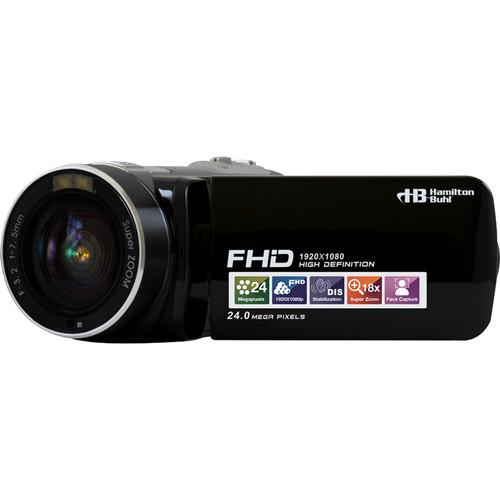

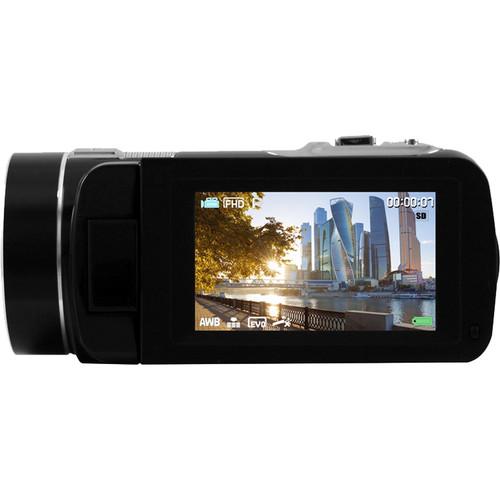

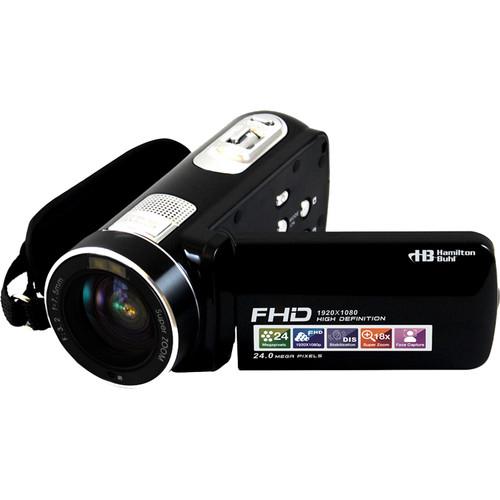

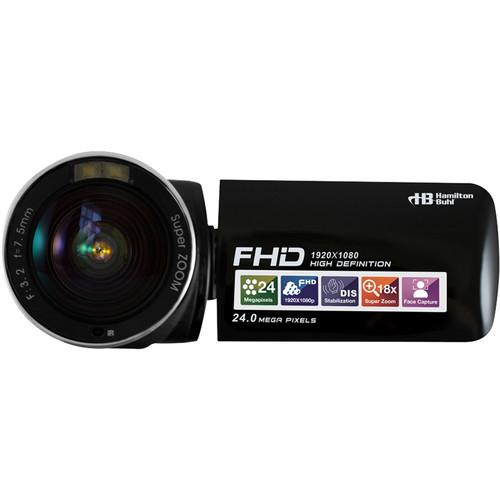

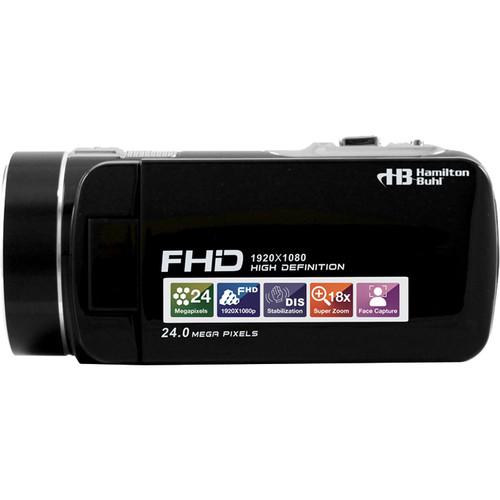

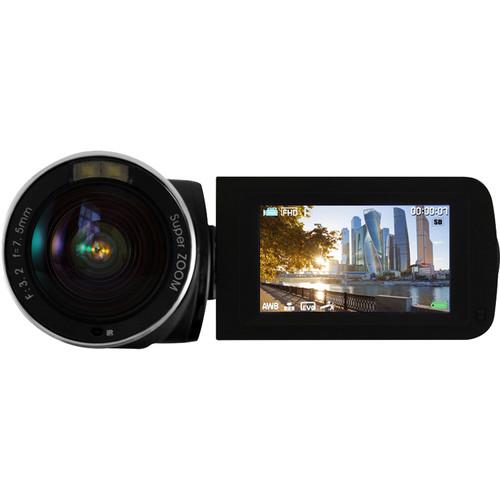

Product description The ActionPro 24MP Full HD Digital Camcorder from HamiltonBuhl captures clear and crisp images at a resolution of 1920 x 1080 at 12 fps. It offers a 24MP, 5mm CMOS sensor, an 18x digital zoom, and a rotating 2.7" TFT-LCD screen. The ActionPro camcorder makes it easy to capture engaging videos with features such as face detection, image stabilization, and a built-in LED flashlight. UPC: 681181624201 In the Box HamiltonBuhl ActionPro 24MP Full HD Digital Camcorder 8GB SD Card Wall Power Adapter USB Cable A/V Cables Rechargeable Li-Ion Battery Carry Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HamiltonBuhl ActionPro 24MP Full HD Digital Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHamiltonBuhl ActionPro Specs | | | Sensor | 1-Chip 5 mm CMOS | | Sensor Resolution | 24 MP | | | | Focal Length | 7.5mm | | Maximum Aperture | f/3.2 | | Fixed Focus | Yes | | Zoom | Digital: 18x | | Built-In ND Filters | None | | | | System | NTSC/PAL | | Recording Media | x microSD | | Video Format | 1920 x 1080p at 12 fps
1280 x 720p at 30 fps VGA @ 30 fps | | Aspect Ratio | 16:9 4:3 | | Channels | 1.0-Channel | | Audio Format | PCM | | Sampling Frequency | AAC: 16.0 kHz | | Bit Rate | AAC: 256.0 Kb/s | | | | Screen Size | 2.7" | | Screen Resolution | 230,400 Dots | | Resolution | 960 x 240 | | | | Screen Size | 2.7" | | EVF Resolution | 230,400 Dots | | | | Shutter Speed | 1/20 Seconds (Photo, Video) | | Video ISO Range | 100 - 400 (Auto) | | Streaming ISO Range | 100 - 400 (Auto) | | Scene Modes | None | | White Balance Modes | None | | Creative Effects | Yes | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Built-In Light/Flash | Light - Yes
Flash - Yes | | Wi-Fi | None | | Accessory Shoe | None | | Tripod Mount | None | | | | Outputs | 1 x HDMI (Unspecified) NTSC/PAL selectable, Composite (Mini-HDMI and cable not included) | | Microphone Input | No | | Headphone Jack | Yes | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.7 VDC
Battery Charge Time: 3 hours | | Charging Method | USB | | Charging Time | 3 Hours | | Power Adapter | None | | Operating Temperature | 32 to 104°F / 0 to 40°C
Humidity: 45% | | Dimensions (W x H x D) | 5.0 x 2.5 x 2.2" / 12.7 x 6.3 x 5.6 cm | | Weight | 0.63 lb / .29 kg | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.1 x 5.7 x 4.1" |
