User Manual for HamiltonBuhl ALS700 Assistive Listening System with Transmitter and Six Receivers Click to enlarge the picture
Contents of the user manual for the HamiltonBuhl ALS700 Assistive Listening System with
- Product category: Assistive Listening Systems HamiltonBuhl
- Brand: HamiltonBuhl
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HamiltonBuhl Assistive Listening Systems
 |
User manual for the HamiltonBuhl ALS700 Assistive Listening System with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HamiltonBuhl product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HamiltonBuhl user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HamiltonBuhl product will considerably shorten its lifespan!
|
Product description Provided by third party: Most of us take hearing for granted. Sound, such as speech, occurs somewhere in the environment around us, and we, quite simply, "hear" it. And, It is well-recognized that hearing is critical to speech and language development, communication, learning and social interactions.
Breakdown learning, communication and social barriers with the HamiltonBuhl ALS700 Assistive Listening System. Separate the sound that your audience wants to hear from the background noise, and deliver it at the right amplification level, directly into the individual's ear.
Individuals utilizing the ALS700 receivers will easily achieve the required volume increase and gain the same level of understanding without making it too loud for everyone else.
A single ALS700 System transmitter can serve an unlimited number of receivers in a 150 foot range! Fully ADA compliant, the ALS700 is the ideal assistive listening system for any environment: school, movie theater, house of worship, performance theater and more.

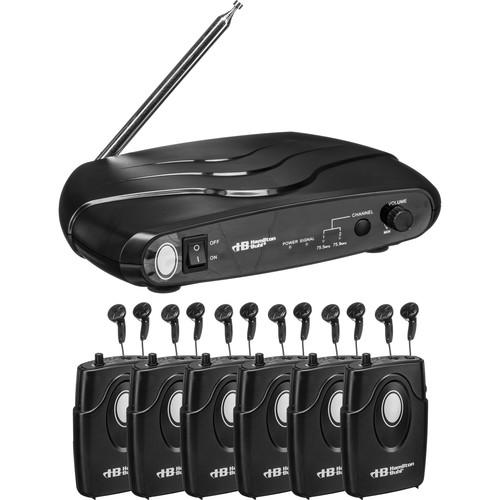

Each ALS700 System includes:
1 - Transmitter
6 - Receivers
6 - Earbuds (ALSH700 on-ear headphones available for purchase)

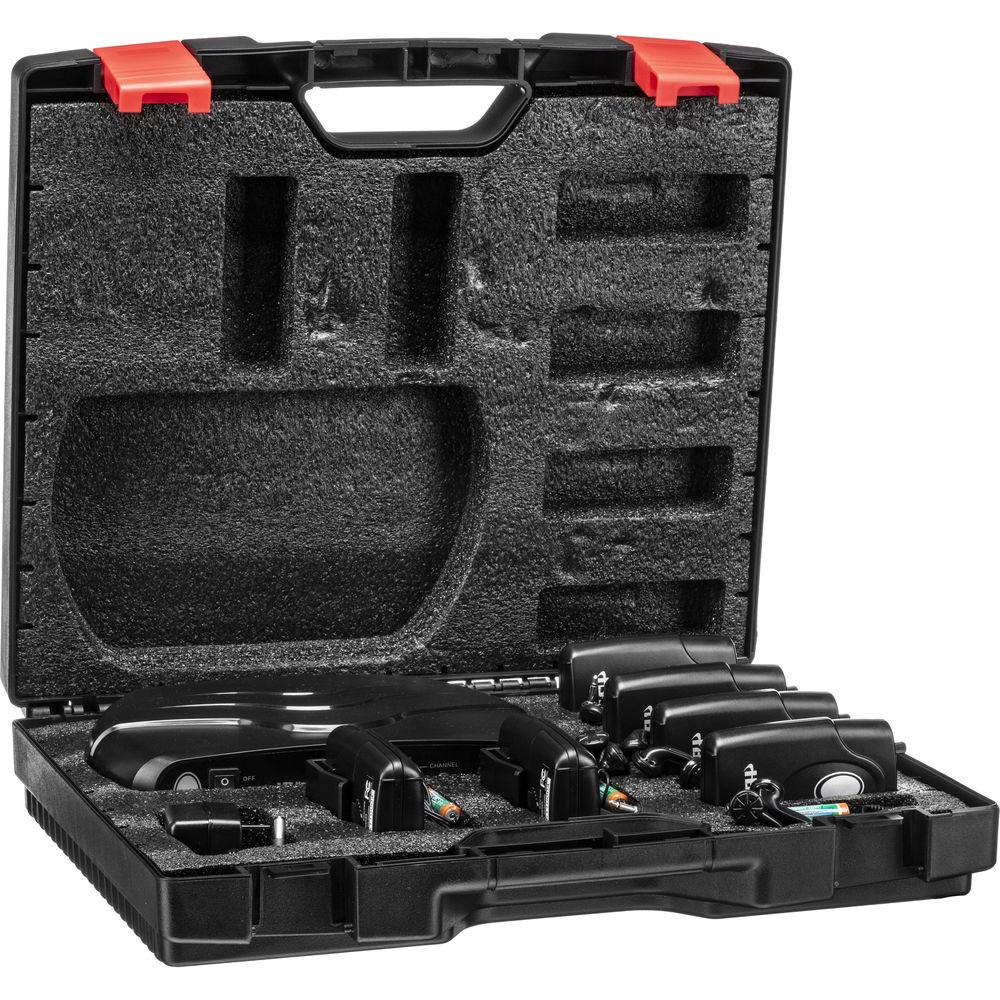

1 - Carry case -
- Frequency Response 100Hz - 8KHz
- Signal to Noise Ratio 41dB
- Total Harmonic Distortion <0.5%
- RF Carrier Frequencies Channel 1: 75.5MHz
- Channel 2: 75.9MHz
- Frequency Stability >0.005%
- Modulation FM ± 75KHz max.
- Operating Range Up to 150 feet line of sight

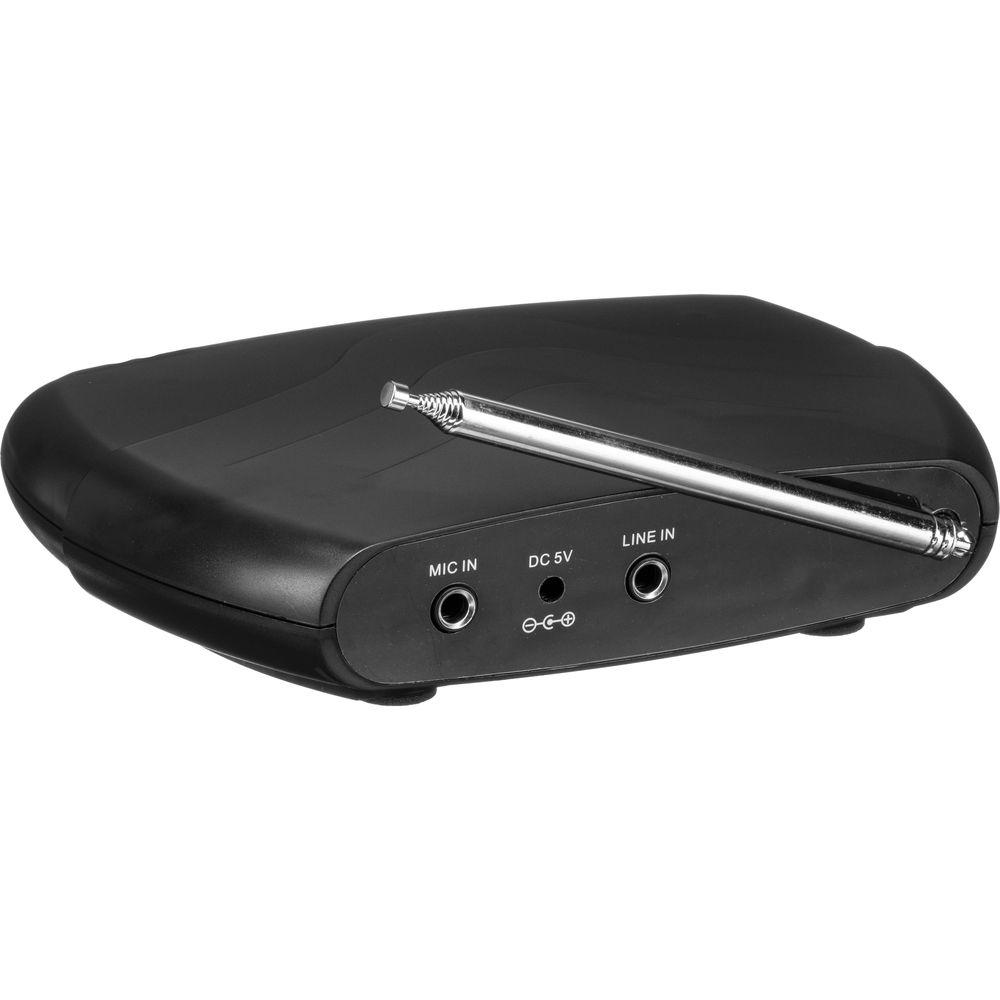

- Transmitter
- Mic Input Connector: 1/4" Phone jack
- Impedance: Unbalanced
- Line Input Connector: 1/4" Phone jack
- Impedance: 100K unbalanced
- Antenna: Permanently mounted, telescoping
- Power Output: 13dBm
- Power Requirements: 5V DC, regulated @ 200mA
- Adapter included
- Dimensions: 9" x 6.07 x 1.97"

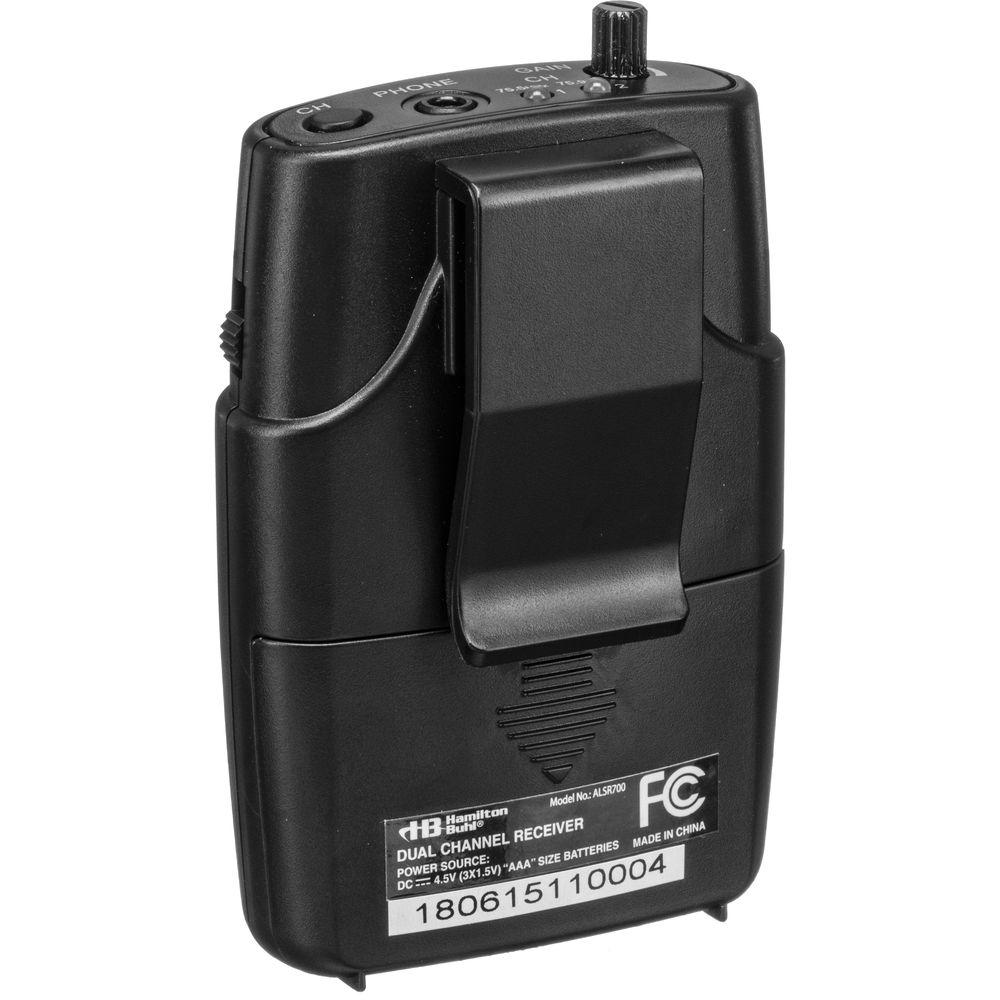

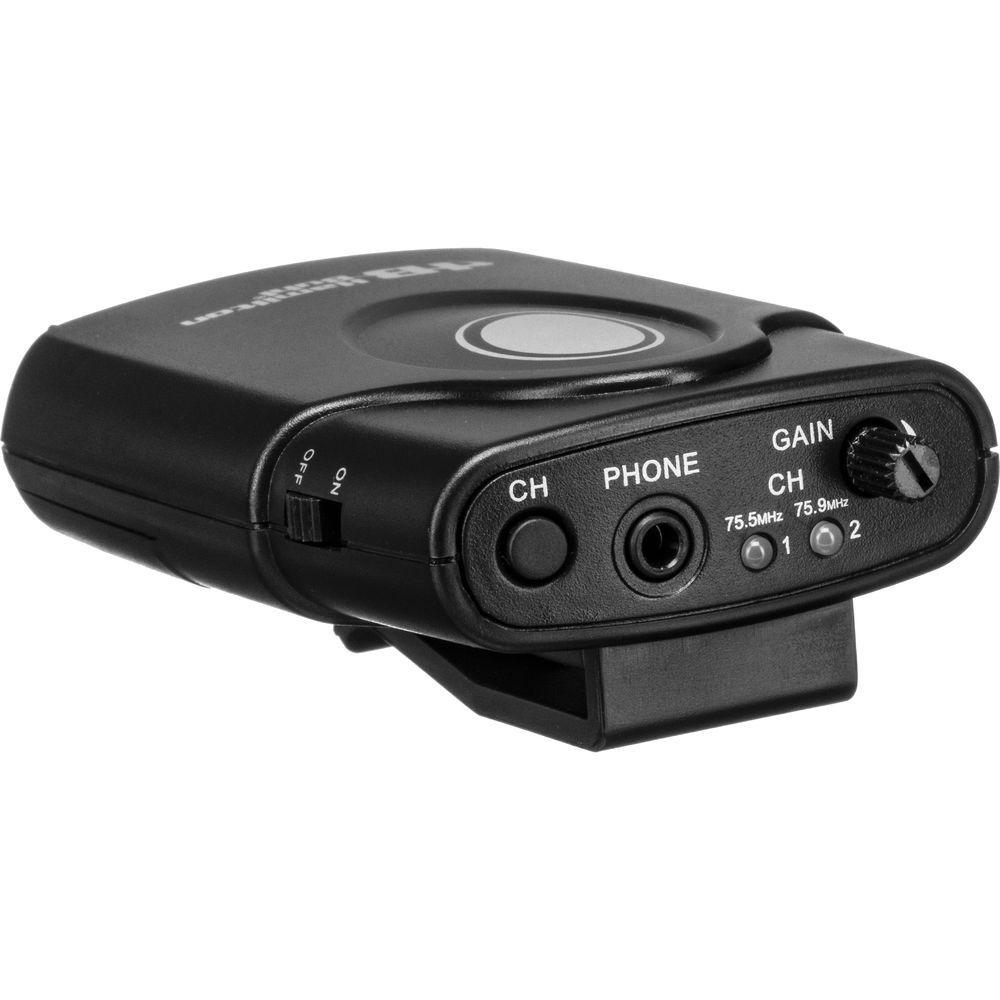

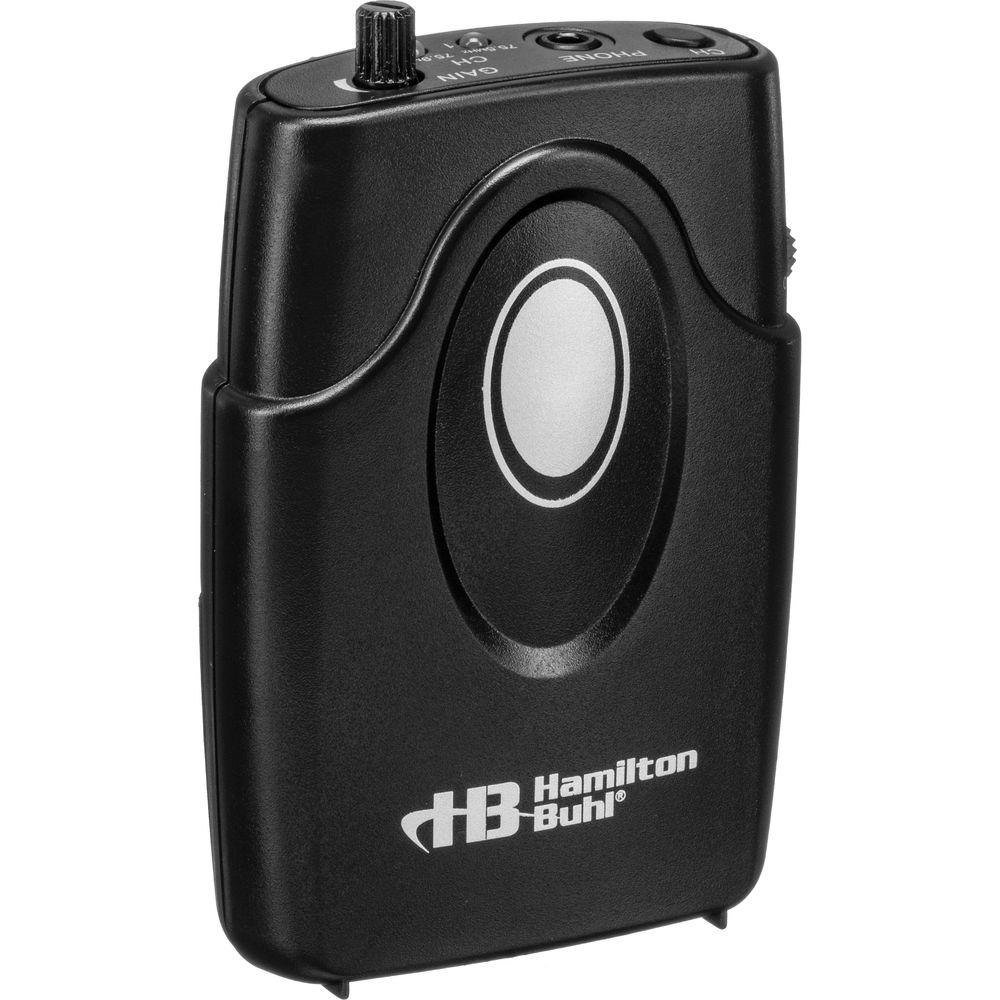

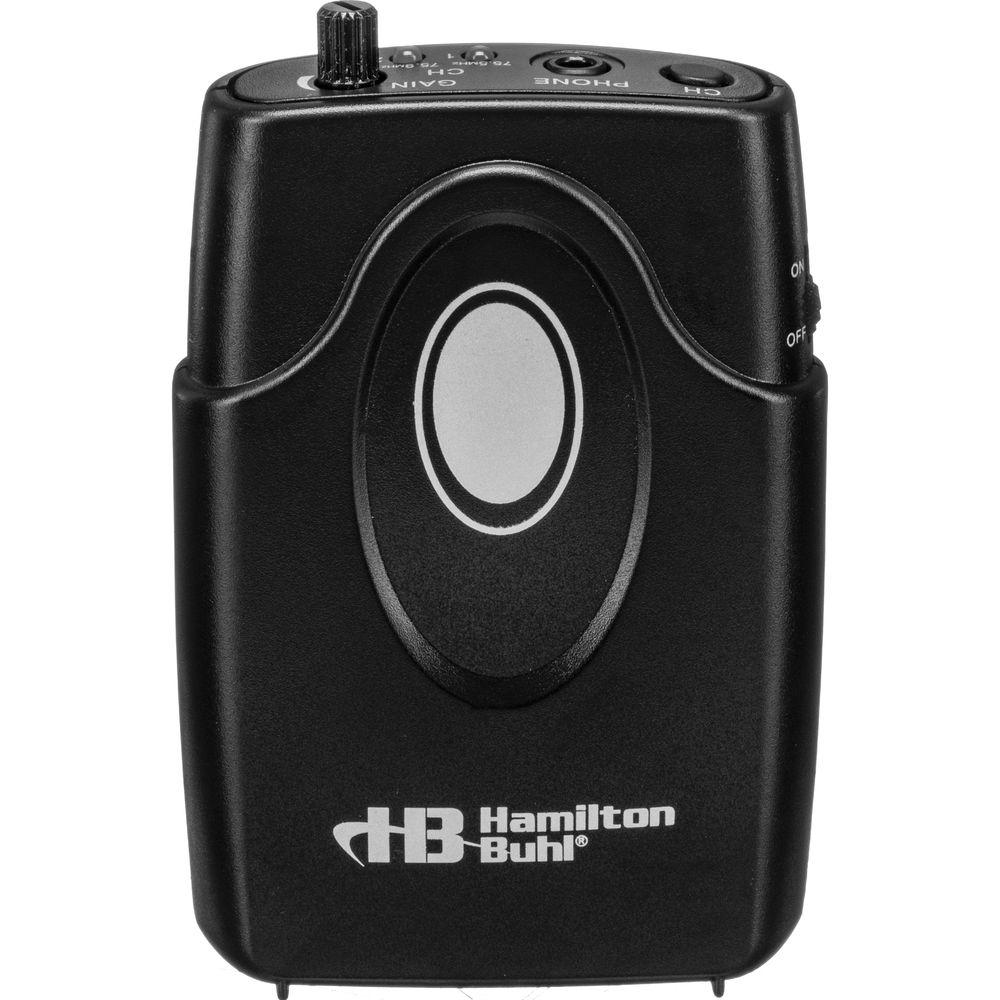

- Receiver:
- Audio Output 100mW
- Connectors 3.5mm jack for earphone output

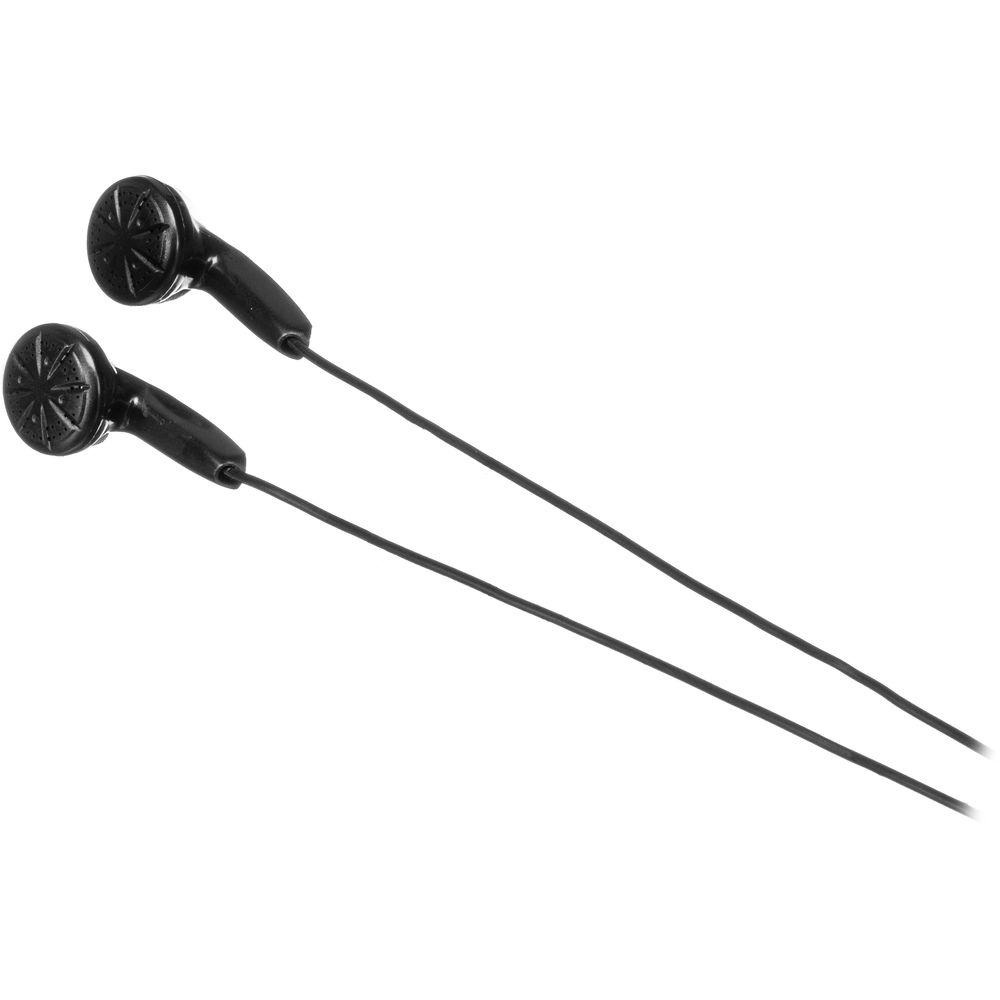

- Earphones Mono earbuds
- Antenna Integral with earphone cord
- Sensitivity 3uV for 12dB with squelch defeated
- Squelches at 10uV for min. 50dB S/N ratio
- Mute Threshold 5 - 8uV
- Power Requirements Three (3) 1.5V AAA size batteries
- Dimensions 2.54" x 1,32" x 3.92"
UPC: 681181621804 In the Box HamiltonBuhl ALS700 Assistive Listening System with Transmitter and Six Receivers 1 x Transmitter 6 x Receivers 6 x Earbuds (ALSH700 on-ear headphones available for purchase) 1 x Carry case 1 Year Limited Warranty Guides & Manuals tfrvvcrawudffyvcdz Table of Contents
|
Upload User Manual
Have you got an user manual for the HamiltonBuhl ALS700 Assistive Listening System with Transmitter and Six Receivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HamiltonBuhl ALS700 Assistive Listening System with Transmitter and Six Receivers can be downloaded in PDF format at the link stated below.
Technical parametersHamiltonBuhl ALS700 Specs | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 15.9 x 13.9 x 4.0" |
