HamiltonBuhl LCP 12 901BT 12 Station

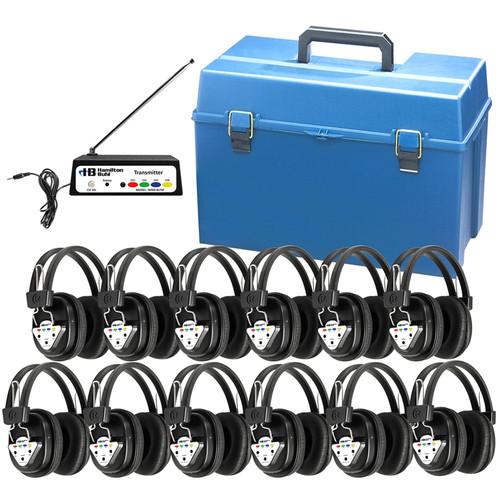

User Manual for HamiltonBuhl LCP 12 901BT 12 Station Bluetooth Wireless Listening Center

• Product category: Assistive Listening Systems HamiltonBuhl
• Brand: HamiltonBuhl
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HamiltonBuhl Assistive Listening Systems

Product description

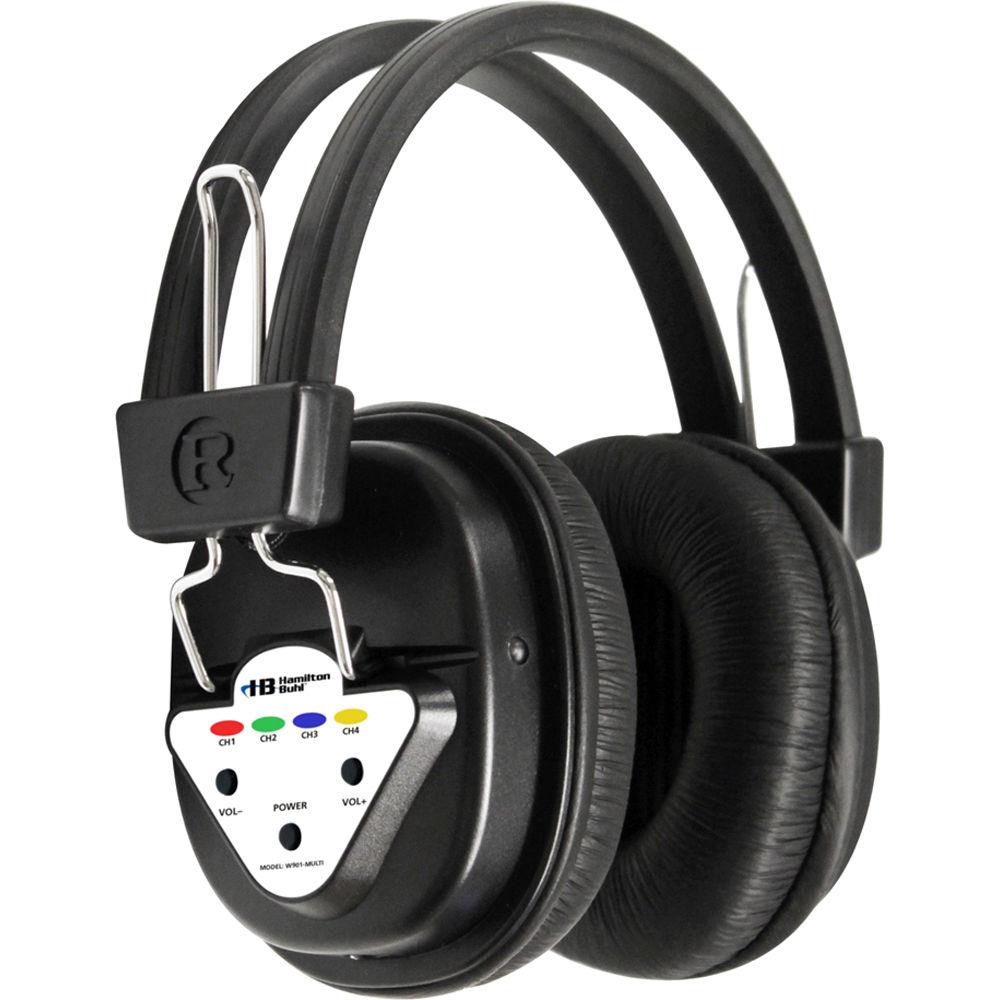

• W901-Multi Multi-Channel Wireless Headphones for 900-Series The W901-Multi Multi-Channel Wireless Headphones from Hamilton Buhl provide clear wireless audio at a range of up to 300'. Suitable for use in classrooms and other institutions, the headphones offer four different color-coded frequencies, allowing you to create multiple wireless audio systems in the same environment.

  The headphones pair with a W900-Multi wireless transmitter (sold separately). As long as identical frequencies are set on the transmitter and headphones, the transmitter will send wireless audio to an unlimited number of headphones. Multiple transmitters and sets of headphones can be used to create up to four different systems using four different audio sources in the same area without interference.

  The headphones use a built-in NiMH battery that offers up to 10 hours of operation from an 8 hour charge. An LED indicator shows when the headphones are fully charged. The headphones have a fully-adjustable headband and thick ear cushions to provide a high level of comfort.
  • Up to 300' wireless audio range
  • Four color-coded tuning frequencies
  • Adjustable headband and thick ear cushions for comfort
  • Rechargeable NiMH battery provides up to 10 hours of operation on an 8 hour charge
  • LED charging indicator light
  • Contains no toxic chemicals, mercury-free
  UPC: 681181510467

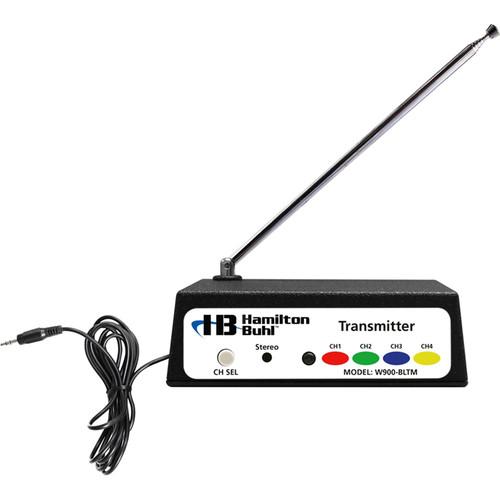

• W900-BLTM Bluetooth 900 Series Transmitter The W900-BLTM Bluetooth 900 Series Transmitter from Hamilton Buhl receives audio signal via Bluetooth or aux input. It transmits high quality audio in FM to W901 series headphones within a 300' range. The transmitter allows you to switch to four different frequencies with color-coded switches: Blue (72.5 MHz), Yellow (72.1 MHz), Green (72.9 MHz), and Orange (74.7 MHz).
  • No interference from other electronic equipment
  • Operates on dedicated channels
  • Listen with an infinite number of headphones on one frequency with one transmitter
  UPC: 681181620678

• LCP3175 Small Plastic Carrying Case for Listening Centers (Blue)

• Limited 1-Year Warranty

• 12 VDC AC Power Supply

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• W901-Multi Multi-Channel Wireless Headphones for 900-Series

  System Type	VHF-FM
  Channels	4
  Switchable Frequencies	Blue 72.5 MHz Yellow 72.1 MHz Green 72.9 MHz Orange 74.7 MHz
  Speakers	Mylar, 30 mm
  Battery Type/Life	Internal NiMH Battery Approx. 10 Hours of Operation from 8 Hour Charge
  Weight	10 oz (283 g), approx.
  Dimensions	4 x 9 x 9" (10.2 x 22.9 x 22.9 cm)

  Box Dimensions (LxWxH)	7.4 x 6.3 x 3.7"

• W900-BLTM Bluetooth 900 Series Transmitter

  System Type	Bluetooth
  Switchable Frequencies	Blue: 72.5 MHz Yellow: 72.1 MHz Green: 72.9 MHz Orange: 74.7 MHz
  Channels	4
  Antenna	Telescopic
  Range	300'
  Audio Input	-20 to 20 dBm
  Power Output	10 mW
  Power Supply	12 VAC
  Weight	0.7 lb (0.3 kg)
  Dimensions	4 x 9 x 9" (10.2 x 22.9 x 22.9 cm)

  Box Dimensions (LxWxH)	6.3 x 3.8 x 3.6"

• LCP3175 Small Plastic Carrying Case for Listening Centers (Blue)
