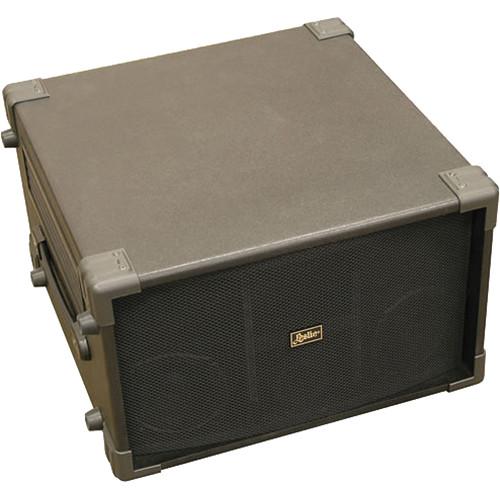

User Manual for Hammond 2101MK II Leslie Rotary Speaker Keyboard Amplifier Click to enlarge the picture
Contents of the user manual for the Hammond 2101MK II Leslie Rotary Speaker
- Product category: Keyboard Amplifiers Hammond
- Brand: Hammond
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hammond Keyboard Amplifiers
 |
User manual for the Hammond 2101MK II Leslie Rotary Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hammond product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hammond user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hammond product will considerably shorten its lifespan!
|

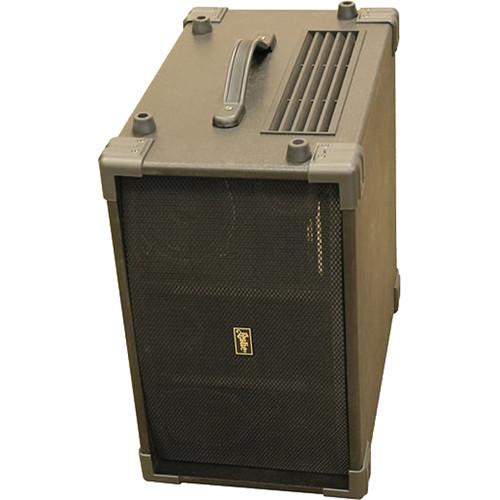

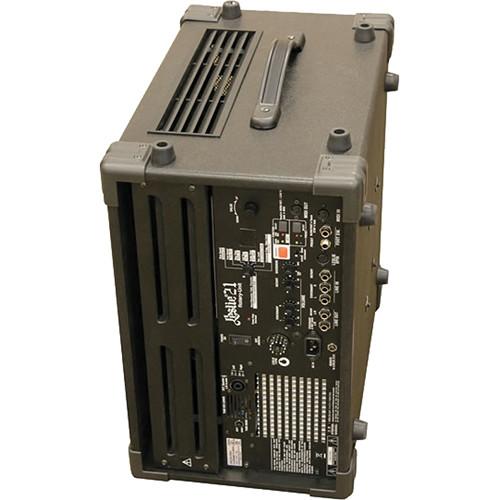

Product description The 2101MKII Leslie Rotary Speaker from Hammond delivers the classic "Sound-In-Motion" effect of a true rotor from a compact, 200W, 3-channel keyboard amplifier. The rotary channel's signal is separated with the highs reproduced by a mechanical horn rotor and the lows reproduced by two 5" speakers with digital rotor simulations. Both the mechanical and digital rotors operate in two modes: Fast (Tremolo) or Slow (Chorale). The stationary left and right channels accommodate signals from another sound source such as a synthesizer or external sound module and utilize the same two 5" low frequency drivers along with two additional 2" soft-dome tweeters for high frequencies. There are 16 different functions for both rotors, which may be saved to two presets for instant recall via select button, foot switch, or MIDI program change messages. The amplifier's enclosure is constructed from impact-resistant MDF with a black leather-like finish. The 2101MKII ships with the FS-9H foot switch and a standard IEC power cable. Control Panel - 11-Pin Socket
- Allows direct connection between a Leslie speaker and Hammond organ
- 8-Pin Din Socket
- Allows direct connection between a Leslie speaker and Hammond models XK-1, XB-1, XM-2, and XM-1 using the optional special 8-pin cable
- Line In Jack
- Rotary: Input for the rotary speakers for organs and instruments without the multi-pin connector
Stationary Left and Right: Inputs for stationary speakers. Signals received here will not be passed through the rotary system - Stationary Input Select
- Stereo: Left and right inputs are output in stereo
Mono: Left and right inputs are summed into mono - Line Out Jack
- Stationary & Bass (Left/Mono, Right): Allows both the Stationary and the Low Rotary channels to be connected to an external amplifier
Rotary (Left/Mono, Right): Allows the Low Rotary channel to be connected to an external amplifier - Remote to Leslie 2121
- Connects power control from the optional Leslie 2121 keyboard amplifier to the 2101 MKII for single-button power control
- Foot Sw
- Preset: A latching foot switch is used to toggle between preset 1 and 2
Slow/Fast/Stop: Allows you to control the speed of the Leslie rotors. Each time the foot switch is activated, the rotors will switch between SLOW and FAST. If the foot switch is pressed and held for more than 1 second, the rotors will stop.
One FS-9H foot switch is included and works with either input. - MIDI In and Out
- MIDI In: Connects to the MIDI Out of an organ or keyboard organ, keyboard, or external device
MIDI Out: Connects to the MIDI In of an additional Leslie model 21 Horn-Unit when two units are connected in series
The MIDI In from the organ and the Foot Sw signal of the Horn-Unit are merged in the MIDI Out. - Volume Controls
- Rotary: Adjusts volume of rotary channel
Stationary L: Adjusts the volume control of the stationary left channel
Stationary R: Adjusts the volume control of the stationary right channel - Tube Mode and Overdrive
- Overdrive: Adjusts the Overdrive level of the rotary channel
Tube Mode: The soft overdrive offers a warm smooth sound, while progressing to the hard setting increases saturation with a "crunchier" sound - Ext. Speaker
- Neutrik NL4FX: Four-contact speaker output capable of driving a minimum of 4 ohms, such as the optional Leslie LPS-21 speaker
- Power Amp Overload
- Illuminates as the maximum output of the power amplifier is approached
In the Box Hammond 2101MK II Leslie Rotary Speaker Keyboard Amplifier Standard IEC Power Cable FS-9H Foot Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond 2101MK II Leslie Rotary Speaker Keyboard Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond 2101MK II Specs | Type | 3-Channel: Rotary, Stationary Left, Stationary Right | | Animation | Horn rotor
Digital bass rotor | | Power Output | Total Output: 200 W
Rotary Horn: 50 W
Stationary Channels: 2 x 75 W | | Speakers | Horn: Compression driver
Woofer: 2 x 5.1" / 13.0 cm
Tweeter: 2 x 2.0" / 5.0 cm | | Controls | Volume: STA-L, STA-R, and rotary
Overdrive
Tube Mode: Soft and hard
Function Selector: 8-position
Touch Buttons: Preset 1, 2 and memory
Value: Up and down | | Tube Type | 12AU7 | | Stationary Channel Mode | Mono / Stereo | | Display | LED Display: 7-segment, 2-digit | | Terminals | Leslie 11-pin socket
Leslie 8-pin socket
Rotary input
Line Output: Stationary L, Stationary R, Rotary L, Rotary R
MIDI in
MIDI out
Remote: Remote power for #2121 Speaker
External speaker out | | Foot Switch | Foot Switch 1: Preset
Foot Switch 2: Slow, Fast, Stop | | Power Consumption | 120 VAC
190 W
1.6 A | | Construction Material | Impact-resistant MDF
Impact-resistant polymer paint | | Dimensions (W x D x H) | 20.1 x 20.5 x 13.0" / 51.0 x 52.0 x 33.0 cm | | Weight | 50.7 lb / 23.0 kg | | | | Package Weight | 63.45 lb | | Box Dimensions (LxWxH) | 23.0 x 23.0 x 17.0" |
