User Manual for Hammond 2121 Leslie Stationary Speaker Keyboard Amplifier Click to enlarge the picture
Contents of the user manual for the Hammond 2121 Leslie Stationary Speaker Keyboard
- Product category: Keyboard Amplifiers Hammond
- Brand: Hammond
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hammond Keyboard Amplifiers
|
User manual for the Hammond 2121 Leslie Stationary Speaker Keyboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hammond product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hammond user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hammond product will considerably shorten its lifespan!
|

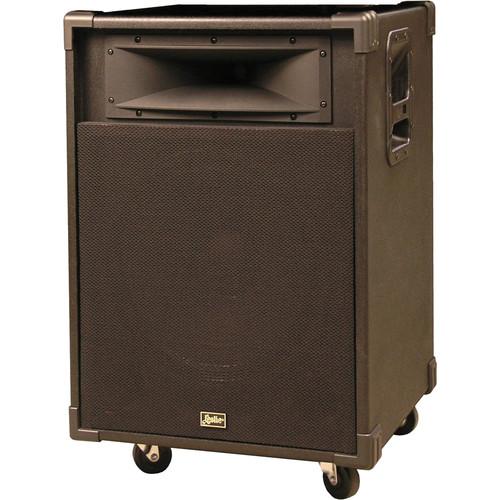

Product description The 2121 Leslie Stationary Speaker from Hammond is a premium 200-watt keyboard amp which completes the Leslie "21" system by taking the lower rotor signal from the 2101 MKII rotary speaker. The speaker features a three-channel mini-mixer with volume and tone controls. Input one offers a combo XLR/1/4", which accepts mic and line level signals. Phantom power and an insert for signal processing is also provided. Inputs two and three accept 1/4" line level signals and will work with any digital piano, synthesizer, or external module. A 1/4" output jack allows for the connection of an additional speaker. The amplifier features a 150-watt 15" woofer and 50-watt horn-mounted compression driver. The amplifier's enclosure is constructed from impact resistant MDF with a black leather-like finish. The 2121 ships with the DCC-2 remote cable and a standard IEC power cable. Control Panel - Input 1
- Input Connection: Combo XLR (Lo-Z)/ 1/4" TRS (Hi-Z) connection jack
Gain: Selects Mic or Line for the proper impedance for the input
Phantom: Engages 48V phantom power to the XLR input
Insert: Send and return cable for adding a separately sold signal processor
Volume: Level control for input 1 - Input 2 and 3
- Input Connections: 1/4" TRS line input (Hi-Z) for channels 2 and 3
Volume: Level controls for inputs 2 and 3 - Remote to Leslie 2101
- The Leslie 2121 can be powered "ON" from the Leslie 2101, 2102, 2103 via the included DCC-2 cable
- Master Volume
- Controls the maximum volume of the entire unit
- Tone
- Treble: Boosts or attenuates high frequencies
Bass: Boosts or attenuates low frequencies - TW. Level
- Fine-tunes the treble response of the unit
- Line Out Jack
- This jack connects an additional speaker or amplifier and carries the sum of all incoming signals. It is not affected by the tone controls or the master volume control
In the Box Hammond 2121 Leslie Stationary Speaker Keyboard Amplifier DCC-2 Remote Cable Standard IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond 2121 Leslie Stationary Speaker Keyboard Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond 2121 Specs | Type | Powered Speaker: 2-way, bass-reflex | | Speakers | LF Driver: 15.0" / 38.0 cm
HF Driver: Compression | | Frequency Range | 40 Hz to 15 kHz | | Maximum SPL | 121 dB 1 W / 1 m | | Power Output | LF (400 Hz): 150 W
HF (1 kHz): 50 W | | Crossover Frequency | 700 Hz | | Controls | Input 1: Phantom, gain, and volume
Input 2: Volume
Input 3: Volume
Tone: Bass and treble
Master: Volume
TW: Treble adjustment
Power: On and off | | Terminals | Input 1: XLR/1/4" TRS -20 dB (Line - 600 ohm), -40 dB (Mic - 50 kohm)
Input 2: 1/4" TRS -15 dB (Line - 10 kohm)
Input 3: 1/4" TRS -15 dB (Line - 50 kohm)
Send/Return 1/4" TRS: Send -6 dB (Ring - 600 ohm), Return -6 dB (Tip - 50 kohm)
Line Out: 1/4" TRS 0 dB (Line - 1 kohm) (0 dB = 0.775V)
Remote: Only from #2101/2102/2103
AC In | | Power Supply | 120 VAC
190 W
1.6 A | | Dimensions (W x H x D) | 19.9 x 30.0 x 19.9" / 50.6 x 76.3 x 50.6 cm | | Weight | 86.0 lb / 39.0 kg |
