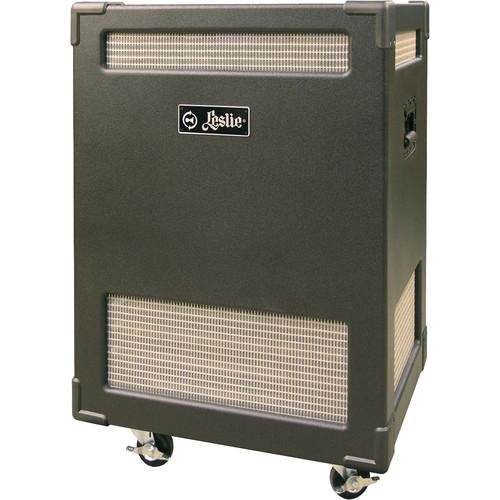

User Manual for Hammond 3300 Leslie Rotary Portable Speaker Click to enlarge the picture
Contents of the user manual for the Hammond 3300 Leslie Rotary Portable Speaker
- Product category: Keyboard Amplifiers Hammond
- Brand: Hammond
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hammond Keyboard Amplifiers
|
User manual for the Hammond 3300 Leslie Rotary Portable Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hammond product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hammond user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hammond product will considerably shorten its lifespan!
|
Product description Styled in a black finish, Hammond 3300 Leslie Rotary Portable Speaker is a "top of the line" and more powerful touring-grade version of the 971 model Leslie cabinet featuring a two-speed horn rotor coupled to a heavy duty driver and a 15" woofer firing into a bass rotor. The cabinet uses a 300W RMS solid-state amplifier with a vacuum tube preamplifier for tone. Its comparatively lightweight design features locking casters at the base and collapsible handles for greater portability while on tour.
The unit has 11-pin and 8-pin Leslie sockets for providing connection and onboard control of your Hammond organ. The 1/4" audio and 1/4" foot switch jacks allow for connection to other electronic organs, keyboards, and instruments without the need for an external preamplifier. A 1/4" subwoofer output allows for connection to an external powered subwoofer.
The newly designed dual-race horn bearing features a spindle base that is constructed from one piece for improved mounting straightness and rigidity. It also uses double-row bearings with deeper raceway grooves to provide a greater degree of contact between the bearings and the raceway. This design improves the radial/axial loads and balance of the instrument for lower noise levels and smoother operation.
For controls, the speaker cabinet includes knobs for master volume, bass, mid-range, treble, horn level, and subwoofer level. Additional speaker adjustments include slow and fast speed, rise time, fall times, and brake time. In the Box Hammond 3300 Leslie Rotary Portable Speaker (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond 3300 Leslie Rotary Portable Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond 3300 Specs | Channel | Single | | Inputs | 11-pin Leslie socket
8-pin Leslie socket
1/4" line input jack
1/4" foot switch jack | | Outputs | 1/4" line output jack suitable to drive a powered subwoofer | | Design | Two-speed horn and bass rotor | | Amplifier | 300 W RMS Solid-State Amplifier with Vacuum Tube preamplifier
220 W RMS for bass amplifier
80 W for treble amplifier | | Speakers | High-power horn driver
15" woofer | | Adjustments | Master volume
Bass
Mid-range
Treble
Horn level
Subwoofer level
Adjustable speed, rise time, fall times, brake time (with screwdriver on control panel) | | Dimensions (WxDxH) | 25 x 20.5 x 35.2" (63.5 x 52 x 89.5 cm) | | Weight | 125 lb (56.7 kg) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
