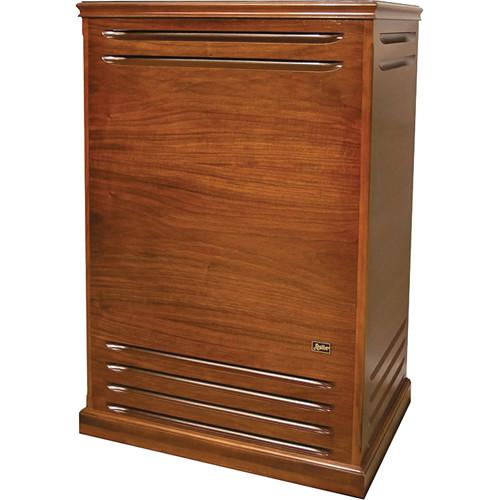

User Manual for Hammond 981SE Leslie Rotary Speaker Red Walnut Maple Veneer Click to enlarge the picture
Contents of the user manual for the Hammond 981SE Leslie Rotary Speaker Red
- Product category: Keyboard Amplifiers Hammond
- Brand: Hammond
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hammond Keyboard Amplifiers
|
User manual for the Hammond 981SE Leslie Rotary Speaker Red contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hammond product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hammond user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hammond product will considerably shorten its lifespan!
|
Product description The red walnut/maple veneer version of the Hammond 981SE Leslie Rotary Speaker is a more powerful Leslie cabinet featuring a two-speed horn rotor coupled to a heavy duty driver and a 15" woofer firing into a bass rotor. The cabinet uses a 300-watt RMS solid-state amplifier with a vacuum tube preamplifier for tone.
The unit has 11-pin and 8-pin Leslie sockets for providing connection and onboard control of your Hammond organ. The 1/4" audio and 1/4" footswitch jacks allow for connection to other instruments without the need for an external preamplifier.
The newly designed dual-race horn bearing features a spindle base that is constructed from one piece for improved mounting straightness and rigidity. It also uses double-row bearings with deeper raceway grooves to provide a greater degree of contact between the bearings and the raceway. This design improves the radial/axial loads and balance of the instrument for lower noise levels and smoother operation.
For controls, the speaker cabinet includes knobs for master volume, bass, mid-range, treble, horn level, subwoofer level, and overdrive for tube distortion. It also includes screwdriver adjustment controls for the fall and rise times of the rotors. In the Box Hammond 981SE Leslie Rotary Speaker Red Walnut/Maple Veneer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond 981SE Leslie Rotary Speaker Red Walnut Maple Veneer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond 981SE Specs | Channel | Single | | Inputs | 11-pin Leslie socket
8-pin Leslie socket
1/4" line input jack
1/4" foot switch jack (FS-9H not included) | | Outputs | 1/4" line output jack suitable to drive a powered subwoofer | | Design | Two-speed horn and bass rotor | | Amplifier | 300 W RMS Solid-State Amplifier with Vacuum Tube preamplifier | | Speakers | High-power horn driver
15" woofer | | Controls | Master volume
Bass,
Mid-range
Treble
Horn level
Subwoofer level
Adjustable fall & rise times for rotors (screwdriver control)
Overdrive control for tube distortion | | Dimensions (WxDxH) | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
