User Manual for Hammond G37 Leslie Rotary Speaker with Onboard Amplifier for Guitar Click to enlarge the picture
Contents of the user manual for the Hammond G37 Leslie Rotary Speaker with
- Product category: Guitar Amplifiers Hammond
- Brand: Hammond
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hammond Guitar Amplifiers
 |
User manual for the Hammond G37 Leslie Rotary Speaker with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hammond product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hammond user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hammond product will considerably shorten its lifespan!
|

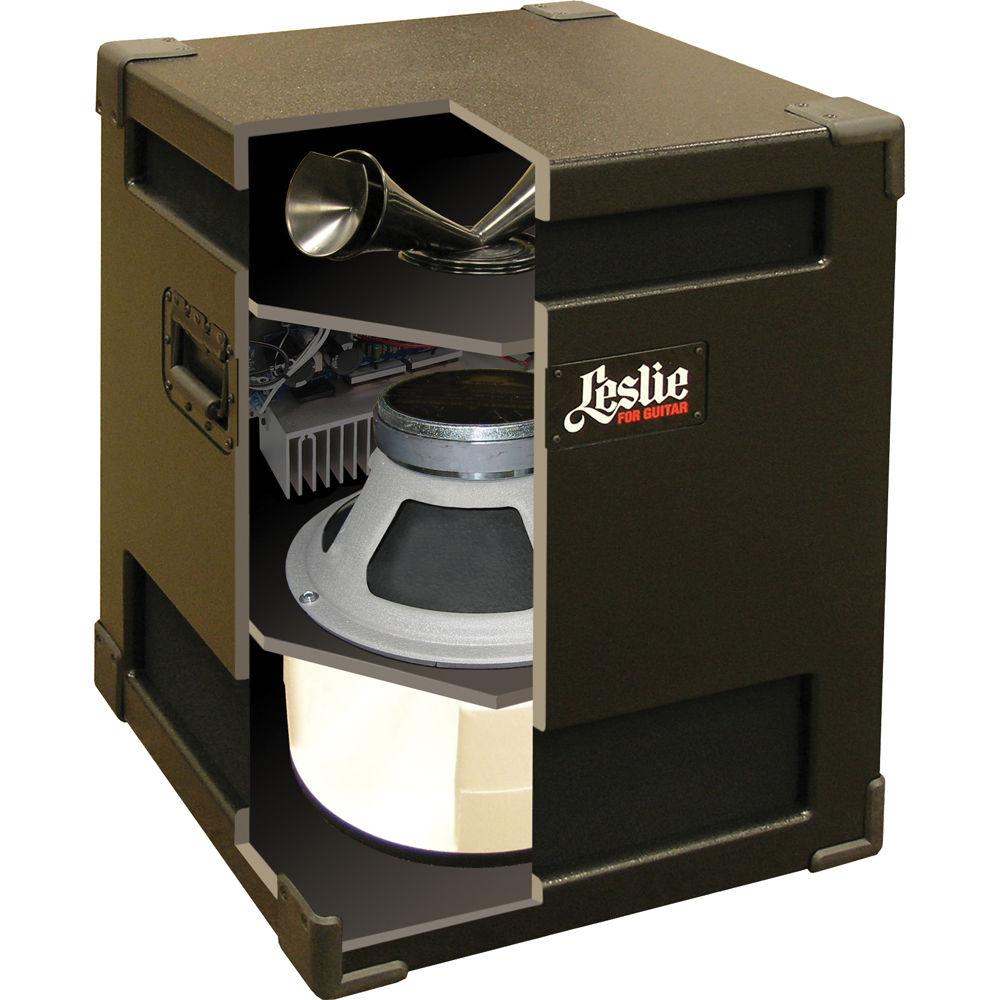

Product description Specifically designed for guitar players, the black Hammond G37 is a Leslie rotary speaker that has an onboard 100W solid-state power amplifier, with a vacuum tube preamp. It features a 12" V30 speaker, and allows you to control the speed of the rotary speaker with the included FS-10TL dual foot switch. This speaker and amp combo is built to accommodate a bevy of live and studio electric guitar applications across a wide variety of musical genres.
The Hammond G37's horn and bass rotor can be set to rotate at slow or fast speeds, and will automatically stop in the forward position when the stop mode is selected. With use of the optional V-20RT speed control pedal, the slow and fast speeds can be adjusted individually, for more expressive playing. - Single-Channel Input
- Features low and high gain input jacks
- Two-Speed Horn & Bass Rotor
- Slow/fast speeds can be individually adjusted. Horn and bass rotor will automatically stop in the forward position when the stop mode is selected
- Speakers
- 12" vintage V30 speaker made with all original materials and a high-frequency horn driver
- Amplifier
- Vacuum tube preamp with a 100-Watt RMS solid-state power amplifier

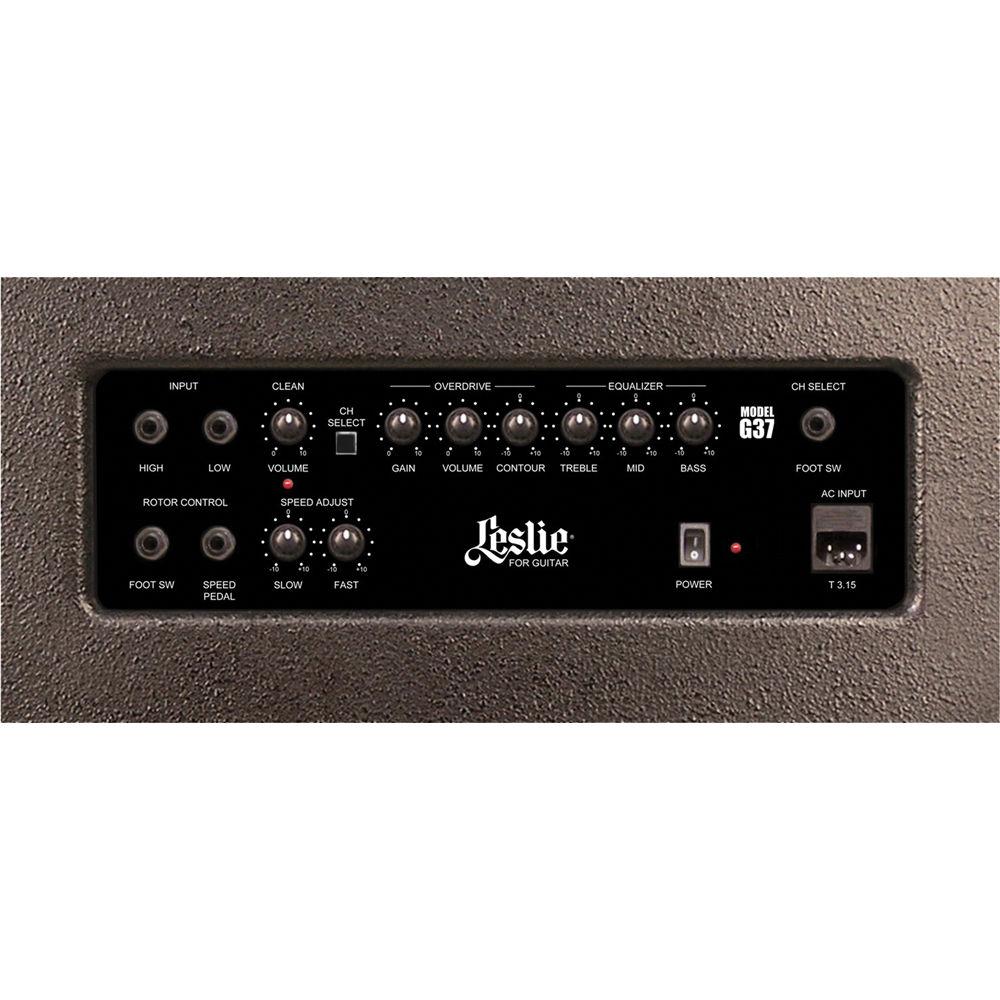

- Controls
- Clean volume, Ch select Overdrive: Gain, Volume, Contour
Equalizer: Treble, Mid, Bass
Controls Leslie G7 & G37 low rotor speed: Fast rotor speed, Power switch - Control Inputs
- Channel Select foot switch, speed select foot switch (slow, fast, stop), variable speed Control pedal (V-20RT)
- Cabinet
- Rugged-built, black painted cabinet is constructed of 3/4" MDF, with protective corners and two folding handles
- Included Accessories
- FS-10TL: Dual foot switches with 16' cord that enables the control of the speed of the rotors (slow, fast, stop)
- Optional Accessories
- V-20RT: Speed control pedal
FS-1TL: Single foot switch used to remotely control Channel Select In the Box Hammond G37 Leslie Rotary Speaker with Onboard Amplifier for Guitar (Black) FS-10TL Dual Foot Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond G37 Leslie Rotary Speaker with Onboard Amplifier for Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond G37 Specs | Preamplifier | Vacuum tube | | Speakers | 1x 12" V30 speaker
1x high-frequency horn driver | | Inputs | 1/4" low input jack
1/4" high input jack
1/4" channel select foot switch jack
1/4" speed select foot switch (slow, fast, stop) jack
1/4" variable speed control pedal (V-20RT) jack | | Controls | Clean volume, Ch select Overdrive: Gain, Volume, Contour
Equalizer: Treble, Mid, Bass
Controls Leslie G7 & G37 low rotor speed: Fast rotor speed, Power switch | | Amplifier (Power) | Solid-state, 100W RMS | | Cabinet | Rugged-built, black painted cabinet is constructed of 3/4" MDF, with protective corners and two folding handles | | Dimensions | 30 x 23 x 23" (76.2 x 58.42 x 58.42) | | Weight | 100 lb (45.4 kg) |
