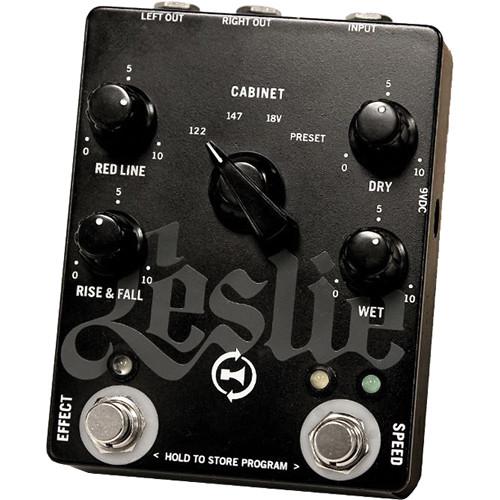

User Manual for Hammond Leslie G Pedal Digital Effect Pedal Click to enlarge the picture
Contents of the user manual for the Hammond Leslie G Pedal Digital Effect
- Product category: Pedals & Footswitches Hammond
- Brand: Hammond
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hammond Pedals & Footswitches
|
User manual for the Hammond Leslie G Pedal Digital Effect contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hammond product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hammond user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hammond product will considerably shorten its lifespan!
|
Product description The Leslie G Pedal from Hammond is a pedal made for guitar use, but can be used with other instruments as well. Based on the digital Leslie circuitry pioneered on Hammond "Sk" stage keyboards, the Leslie "G" Pedal has a smaller footprint to facilitate an easier fit into guitarist's pedal-boards, while retaining many of the features of the original pedal. Among the controls that this pedal features are two stomp switches, one toggles the effect on/off, and the other controls the slow/fast speed of the Leslie effect. When the effect is "off" the input is in the true bypass mode. The input jack is 1/4" TRS, and accepts mono or stereo signals with left and right stereo output jacks. - Three classic cabinet styles for the player to choose- Models 122, 147, and the 18v
- Rotary pot allows the simultaneous adjustment of the rise and fall times (or "ramp") of the virtual upper and lower rotors
- Distance of the virtual microphone is optimized for each cabinet's model, as is the "mix" of upper and lower levels
- Overdrive is also optimized for each cabinet selected
- Red Line control, provides precise adjustment of the overall "fast" speed of the virtual rotors
- The user can store a preset of their-own design, recalled by the cabinet selector
UPC: 766150300208 In the Box Hammond Leslie G Pedal Digital Effect Pedal 007-AD-LP1 AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond Leslie G Pedal Digital Effect Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond 002-GPEDAL Specs | Controls | Rise/Fall
Fast/Slow
Red Line
Dry/Wet mix
Cabinet selector
Footswitch, bypass
Footswitch, speed | | Connectors | 1/4" TRS phone jack, input
1/4" TRS phone jack, left output
1/4" TRS phone jack, right output
DC power, 9 VDC input | | Signal Processing | 32-bit 150 MIPs DSP | | Analog/Digital Conversion | 24-bit 115 dB | | Input Sensitivity | 0 dBV (low gain) and - 6 dBV (high gain) | | Input Impedance | 500 kOhms nominal | | Output Impedance | 150 ohms nominal | | Output Level | + 6 dBV | | Current Draw | 300 mA (max.) | | Power Supply | 007-AD-LP1 AC Adapter | | Dimensions | 4.75 x 7.31 x 2.25" (12.07 x 18.57 x 5.72 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 5.9 x 4.8 x 4.4" |
