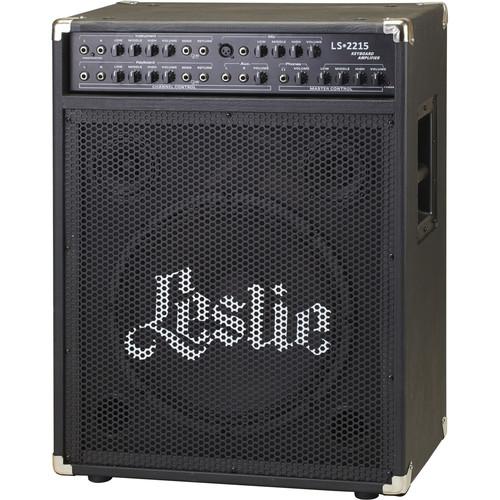

User Manual for Hammond Leslie LS 2215 Multi-Channel Non-Rotary Combo Amplifier Click to enlarge the picture
Contents of the user manual for the Hammond Leslie LS 2215 Multi-Channel Non-Rotary
- Product category: Keyboard Amplifiers Hammond
- Brand: Hammond
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hammond Keyboard Amplifiers
|
User manual for the Hammond Leslie LS 2215 Multi-Channel Non-Rotary contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hammond product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hammond user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hammond product will considerably shorten its lifespan!
|
Product description Designed by Hammond to power multiple instruments at once, the Leslie LS2215 is a four channel combo amplifier capable of handling 200W RMS. The amplifier is solid state, clean in tone, and stereo in operation, with two 4" tweeters and a single subwoofer. It features three input channels—one for mics, one for instruments, and one for keyboards—as well as a volume-controllable auxiliary input. Each main channel sports separate controls for lows, midrange, highs, and volume. Furthermore, connection points abound: the instrument and keyboard channels offer stereo inputs and an effects loop, while the microphone channel accepts both XLR and 1/4" points of entry. The master channel also has its own discrete EQ and volume controls, as well XLR and 1/4" line outputs for routing to mixers, PAs, or interfaces. Also, you can send signal to a slave amp—or receive sound from another amplifier—via the master send/return jacks located on the rear panel. Please note that this speaker does not feature rotary controls; only clean, solid-state amplification here. UPC: 766150300253 In the Box Hammond Leslie LS 2215 Multi-Channel Non-Rotary Combo Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond Leslie LS 2215 Multi-Channel Non-Rotary Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond 006-599-922150-BK Specs | Power Amp | Mono solid state 200 W RMS / 300 W peak | | Preamp | Stereo mini mixer | | Inputs | 2x 1/4" TR keyboard inputs, auto sensing between passive/active
2x 1/4" TR instrument inputs, auto sensing between passive/active
2x 1/4" TR auxiliary inputs
2x 1/4" TRS effects return inputs
1x 1/4" TRS effects return / power amp input
1x XLR mic input
1x 1/4" mono mic input | | Outputs | 1x 1/4" TRS stereo headphone output
2x 1/4" TR outputs
2x XLR outputs, each with ground
2x 1/4" TRS effect send outputs
1x 1/4" TRS effect send / slave amp output (send only provides right channel audio out to slave amp for stereo) | | Channels and Controls | Instrument: Low, mid, high, volume
Keyboard: Low, mid, high, volume
Microphone: Low, mid, high, volume
Auxiliary: Volume
Phones: Volume
Master: Low, mid, high, volume | | Tweeter | 2x 4" mid to high frequency drivers | | Woofer | 1x 15" low frequency driver
2x bass ports, front and rear | | Finish | Black | | AC Input | 110 / 120 VAC | | Dimensions (W x D x H) | Cabinet: 22.1 x 13.0 x 29.1" / 56.1 x 33.0 x 74.0 cm
Overall: 22.2 x 13.1 x 29.9" / 56.5 x 33.2 x 76.0 cm |
