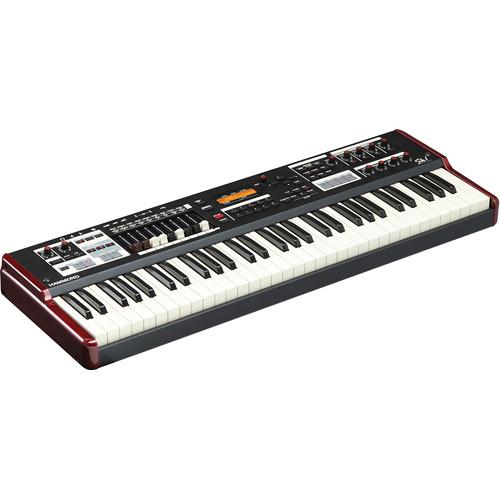

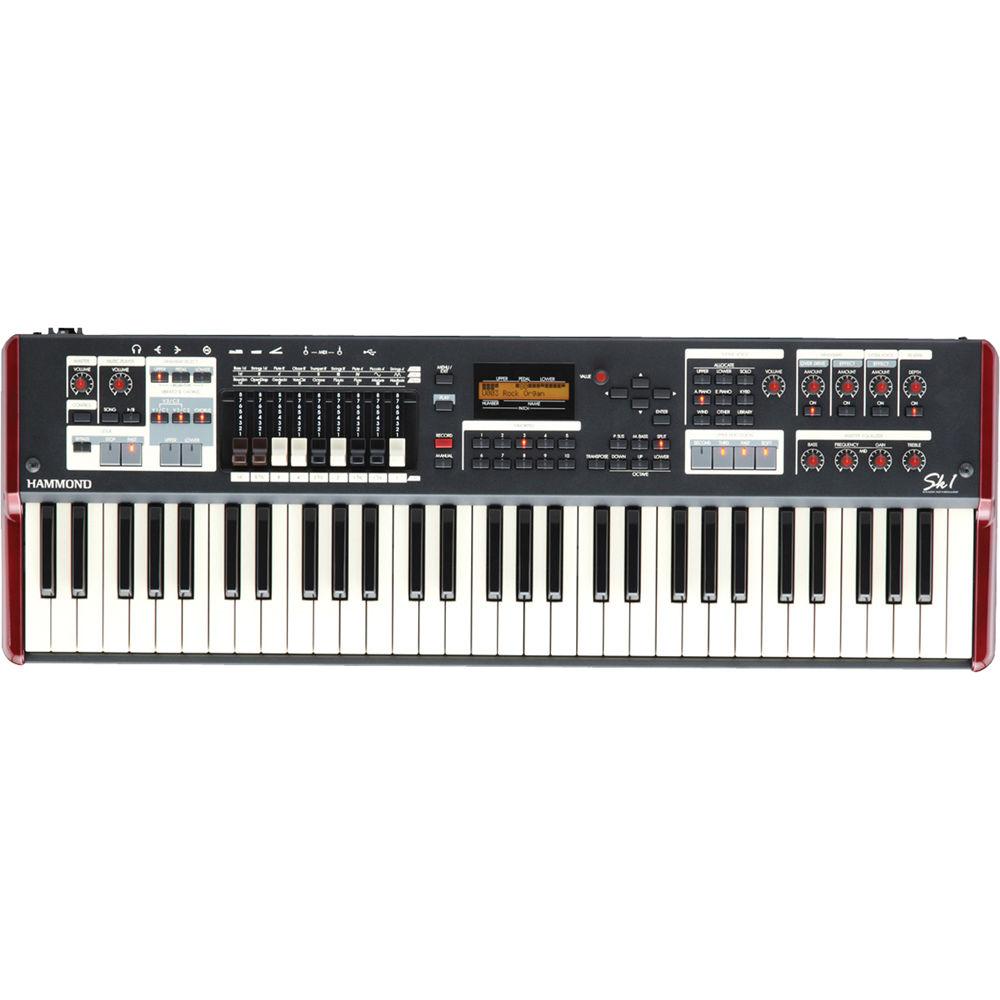

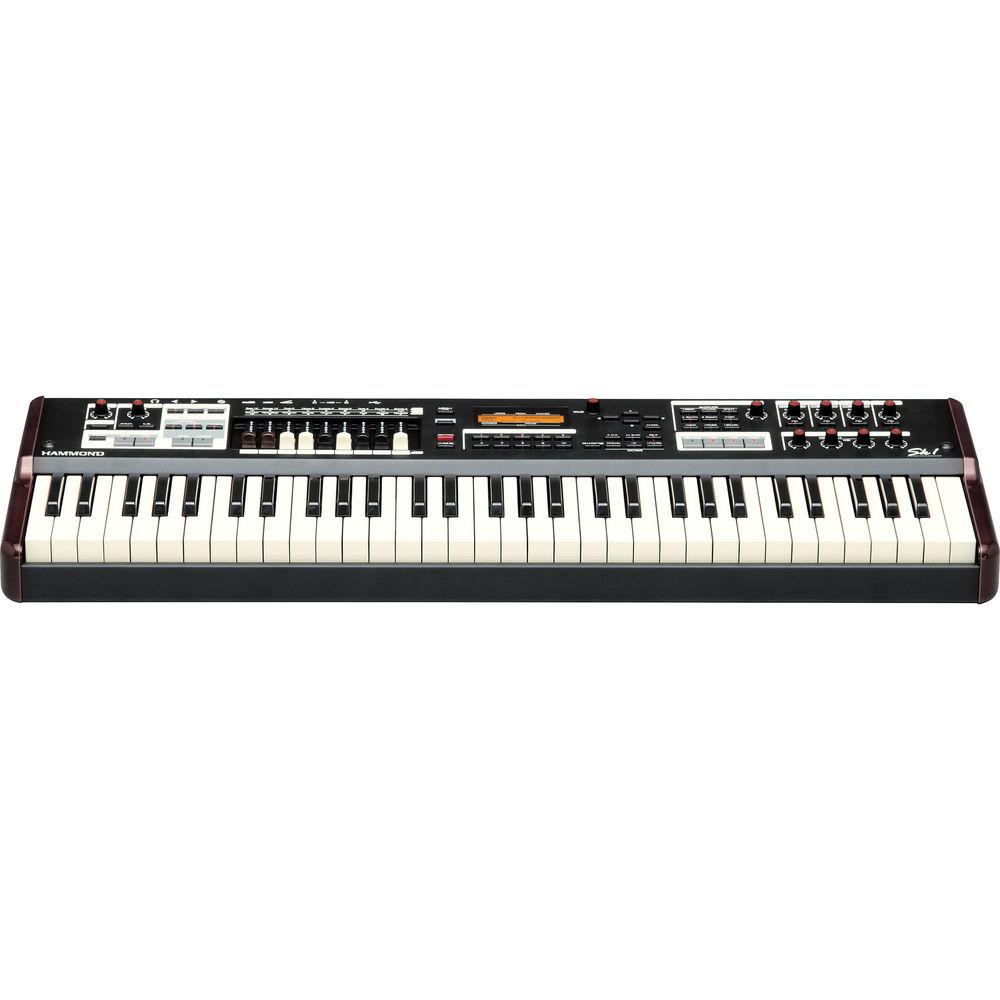

Product description The Sk1 from Hammond carries on the tradition of the original drawbar/tonewheel concept first developed in 1934. The single-manual, ultra-light (compared to the original) digital recreation provides the essential keyboard sounds required to play any show in any style, including a genuine and vintage-perfect Hammond organ along with an advanced digital Leslie processor.
In addition to the authentic tonewheel voices, the keyboard adds other performance sounds including an acoustic grand, Rhodes, Wurli, and FM pianos. Clavinet, harpsichord, accordion, wind, brass, synthesizer, and tuned percussion voices are also available, and can be played "solo" or added to the organ voices.
The Organ Generator may be switched to provide authentic models of the Vox Continental, Vox Jaguar and Farfisa combo organs, all of which can be registered in their original forms. A fourth organ mode provides thirty-two ranks of classical ("Church") pipe organ voices derived from the company's model 935 church organ.
Editing capabilities allow for controlling/adding volume, timbre, leakage, and motor noise to each of the ninety-six digital tonewheels, faithfully delivering any Hammond organ's individual personality, with the ability to save these profiles for instant recall. Twelve factory digital tonewheel profiles ranging from "showroom clean" to "road worn" are available for instant personalizing.
Chorus/vibrato, percussion, key-click and overdrive are adjustable, with all settings saved with every preset. The Pipe Organ voices are also scaling/voicing capable. The Fatar semi-weighted keyboards are designed to feel like a vintage B-3, yet remain comfortable for any pianist, with variable touch "depth."
The Sk1 can be used as a MIDI controller, with the ability to address three external zones. An onboard MP3/WAV music player is available for playing backing tracks, break music, educational aids, or any other tunes combined with the organ's stereo output. A physical Leslie speaker can be connected via a dedicated Leslie jack, as can various optional foot controller pedals. - Genuine Hammond organ with Virtual Tonewheels that provide its traditional sound
- Wide palette of voices, including organs, acoustic and electric pianos, wind, and various keyboards (Extra Voice section)
- Includes tones of vintage "combo" organs, and a variety of pipe organ ranks to provide church and classical organ voices
- The Organ and Extra Voice can be used together, and their outputs can be individually accessed, using the 8-pin Leslie speaker jack for the organ voice
- Digital and programmable Leslie is available for the drawbar voices, as well as the traditional chorus-vibrato as used on the legendary B-3
- The chorus-vibrato may be independently selected for the upper and lower manuals
- Digital multi-effects are available for the Organ and Extra Voice sections independently
- Master EQ allows for tailoring the total tonal response of the keyboard
- Play MP3 type audio files, convenient for accompanying solo performances or practicing
- External Zones are available for use as a MIDI master keyboard
- One-hundred user-defined patches, along with ten "Favorite" quick-call patches available for on-stage use
- Built-in USB port for easy access to a PC or for saving the audio file set up of the music player, and also for storing the voice library
- New voices downloadable via the USB port
- Small and lightweight for easy transport and setup
In the Box Hammond Sk1 - Portable Hammond Organ and Stage Keyboard (Burgundy/Black) External Power Supply One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond Sk1 - Portable Hammond Organ and Stage Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond Sk1 Specs | Sound Generator | Organ Section
2 - VASE III for digital tonewheels, transistor organ and pipe organ
61-note polyphony (for manual, except pipe organ)
8-note polyphony (for pedal, except pipe organ)
63-note polyphony (maximum on pipe organ)
Extra Voice Section
VASE III, 63-note polyphony maximum | | Keyboard | 1 x 61 keys (C1 to C6) | | Harmonic Drawbars | Drawbars
9 pitches, assignable for Upper, Pedal, Lower
Voicing
Manuals: 6 choices (B-Type1, B-Type2, Mellow, Vx, Farf, Pipe), variable key-click
Pedal: 4 choices (Normal, Muted, Synth1, Synth2), 5 choices key-click | | Touch Response Percussion | Buttons
Second Harmonic, Third Harmonic, Fast Decay, Volume Soft
Adjustable
Touch, Velocity, Decay (Fast, Slow), Level (Normal, Soft) | | Extra Voice | Instruments
6 Groups (A. Piano, E. Piano, Keyboard, Wind, Other, Library)
Upgradable via Library
Control
Allocate Upper/Lower, Solo, Group | | Effects | Vibrato and Chorus
Digital Scanner
Buttons: 1, 2, Chorus, Upper On, Lower On
Overdrive
Digital, 4 programs
Control: On, Amount
Multi Effects
8 programs for Organ/Extra Voice individually
Control: On, Amount
Equalizer
Organ: Bass, Mid (sweep), Treble, Tone
Extra Voice: Bass, Mid (sweep), Treble
Internal Leslie
Advanced Digital, 2 Rotors
Buttons: Bypass, Stop, Fast
Reverb
Digital, 11 programs
Control: On, Depth
Master Equalizer
Control: Bass, Mid Gain, Mid Frequency, Treble | | Keymap | Buttons
Manual Bass, Split, Octave Up, Octave Down, Lower, Transpose
Adjustable
Coupler Highest note, Split Point | | Patches | Capacity
100 User Patches, 100 Preset Patches, Manual
Favorites
10 buttons
Patch Load Options
Drawbar Registration, Drawbar Parameters, Extra Voice, Internal Zone,
External Zone, Organ Effects, EXV Effects, Reverb | | Controllers | Volumes
Master Volume, Music Volume, Extra Voice Volume
Switch
Power On/Off | | Music Player | File Format
WAV (44.1 kHz, 16-bit, Stereo), MP3 (44.1 kHz, 128 kbps, Stereo)
Control
Song, Play/Pause | | MIDI | Templates
5 Templates
External Zones

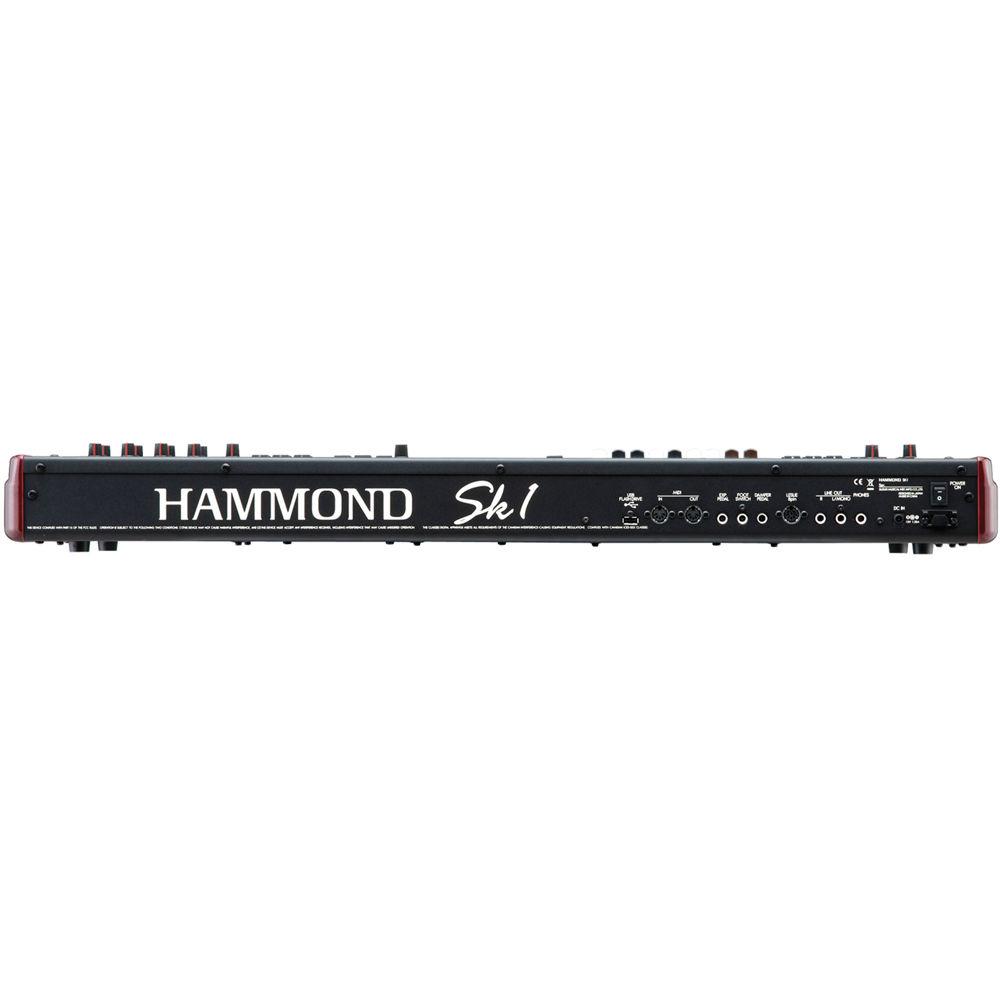

3 Zones, assignable | | Connectors | 2 x 1/4" TS Main Out
1 x 1/4" TRS Headphone
2 x 5-pin DIN MIDI I/O
1 x 1/4" TS Footswitch (pedal not included)
1 x 1/4" TS Damper Pedal (pedal not included)
1 x 1/4" TRS Expression Pedal (pedal not included)
1 x 8-pin DIN Leslie
1 x USB Type-A | | Storage | USB Flash Drive | | Display | 20 x Characters, 2 x Lines
8 Control Buttons and Value knob | | Power Requirements | 120 VAC, 60 Hz for included external power supply | | Dimensions (WxDxH) | 35.2 x 11.9 x 3.9" (894 x 303 x 99 mm) | | Weight | 15.4 lb (7 kg) | | | | Package Weight | 22.4 lb | | Box Dimensions (LxWxH) | 39.9 x 14.4 x 7.4" |
