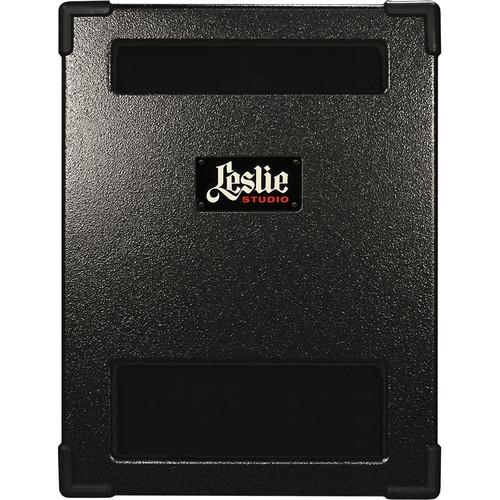

User Manual for Hammond Studio 12 Leslie Dual-Rotary Speaker Click to enlarge the picture
Contents of the user manual for the Hammond Studio 12 Leslie Dual-Rotary Speaker
- Product category: Keyboard Amplifiers Hammond
- Brand: Hammond
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hammond Keyboard Amplifiers
|
User manual for the Hammond Studio 12 Leslie Dual-Rotary Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hammond product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hammond user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hammond product will considerably shorten its lifespan!
|
Product description The black Hammond Studio 12 Leslie Dual-Rotary Speaker is the smallest-ever dual-rotor Leslie speaker designed for general applications such as for keyboard players performing Rock and Jazz genres on stage. The same size as the Leslie G37 Guitar cabinet, the speaker uses a 100W solid-state power amplifier with a vacuum tube preamplifier to drive a 12" Eminence woofer and the same horn used in other Leslie speakers.
Single-channel input is provided by either a low gain 1/4" connector for instruments such as keyboards or a high gain 1/4" connector for instruments such as a guitar. A 1/4" foot switch input connects to the included FS-10TL speed control pedal for individually adjusting the slow/fast speed of the horn and bass rotor. The rotor will automatically stop in the forward position when the stop mode is selected to maximize the sound directed toward the audience.
The unit is also compatible with the optional FS-1T single foot switch to remotely control the channel selection, the V-20RT speed control pedal for performing expressive swells, an 11-pin to 1/4" adapter for interfacing new Hammond organs to the amp, and an 8-pin to 1/4" adapter for interfacing legacy Hammond organs. In the Box Hammond Studio 12 Leslie Dual-Rotary Speaker (Black) Leslie Foot Switch FS-10TL bcexrauqzrervwbdzxdtzvzfvzxqub Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond Studio 12 Leslie Dual-Rotary Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond Studio 12 Specs | Channel | Single | | Input | 1/4" low gain for keyboards
1/4" high gain for guitar | | Design | Dual two-speed horn and bass rotors | | Amplifier | 100 W RMS Solid State Amplifier with Vacuum Tube pre-amplifier | | Speakers | High-power horn driver
12" Eminence woofer | | Control Input | Channel select foot switch
Speed select foot switch (slow, fast, stop)
Speed control adapter cables 11-pin or 8-pin
Variable speed control pedal input for optional V-20RT | | Controls | Clean volume
Channel Select
Overdrive Gain
Overdrive Volume
Overdrive Contour
Treble Equalizer
Mid equalizer
Bass equalizer
Slow rotor speed
Fast rotor speed
Power switch | | Cabinet | Rugged-built, black painted cabinet with protective corners and two folding handles | | Power Supply | 120 VAC at 60 Hz | | Dimensions (WxDxH) | 29.25 x 20.5 x 26.75" (74.30 x 52.07 x 67.95 cm) | | Weight | 85 lb (38.6 kg) | | | | Package Weight | 88.0 lb | | Box Dimensions (LxWxH) | 30.0 x 23.0 x 23.0" |
