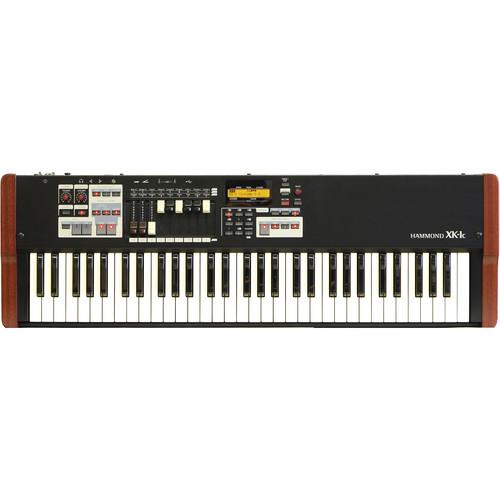

User Manual for Hammond XK-1c - Portable Hammond Organ Click to enlarge the picture
Contents of the user manual for the Hammond XK-1c - Portable Hammond Organ
- Product category: Stage Pianos & Organs Hammond
- Brand: Hammond
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hammond Stage Pianos & Organs
|
User manual for the Hammond XK-1c - Portable Hammond Organ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hammond product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hammond user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hammond product will considerably shorten its lifespan!
|
Product description The XK-1c from Hammond carries on the tradition of the original drawbar/tonewheel concept first developed in 1934. The single manual, ultra-light (compared to the original) digital recreation provides the essential keyboard sounds required to play any show in any style, including a genuine and vintage-perfect Hammond organ along with an advanced digital Leslie processor.
The keyboard uses the same Virtual Tonewheel "engine" as the company's flagship B3-mkII Console Organ, with all the traditional elements, such as the original chorus/vibrato and touch-response percussion. The latest digital Leslie is also onboard, completing the classic setup, which is one of the most desired pieces of gear for any keyboard player in any genre of music.
In addition to the drawbar profiles, the sounds of two of the most popular transistor combo organs are included, along with twenty-eight equivalent ranks of classical pipe organ sounds. The combo organ and pipe organ voices may be fully registered in traditional fashion via the drawbar controls.
Extensive customization capabilities are available, allowing the organ to replicate any Hammond/Leslie vintage, with all settings stored in each patch. Additionally, the most common aftermarket "Hot Rod" modifications are possible and a wide variety of different Hammond tones are available in the factory patch library. There are sixty-four factory patches and sixty-four user-programmable patches.
The XK-1c can be used as a MIDI controller, with the ability to address three external zones. A physical Leslie speaker can be connected via a dedicated Leslie jack, as can various optional foot controller pedals. - Genuine Hammond organ with Virtual Tonewheels that provide its traditional sound
- Includes vintage "combo" organs, and a variety of pipe organ ranks to provide church and classical organ voices
- Digital and programmable Leslie is available for the drawbar voices, as well as the traditional chorus-vibrato as used on the legendary B-3
- Master EQ allows for tailoring the total tonal response of the keyboard
- Play MP3 type audio files, convenient for accompanying solo performances or practicing
- External Zones are available for use as a MIDI master keyboard
- Sixty-four user-defined patches, along with eight "Favorite" quick-call patches available for on-stage use
- Built-in USB port for easy access to a PC or for saving the audio file set up of the music player, and also for storing the voice library
- New voices downloadable via the USB port
- Small and lightweight for easy transport and setup
In the Box Hammond XK-1c - Portable Hammond Organ (Walnut/Black) External Power Supply One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond XK-1c - Portable Hammond Organ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond XK-1C Specs | Sound Generator | Organ Section
2 - VASE III for digital tone-wheels, transistor organ and pipe organ
61-note polyphony (for manual, except pipe organ)
8-note polyphony (for pedal, except pipe organ)
63-note polyphony (maximum on pipe organ) | | Keyboard | 1 x 61 keys (C1 to C6) | | Harmonic Drawbars | Drawbars
9 pitches, assignable for Upper, Pedal, Lower
Voicing
Manuals: 6 choices (B-Type1, B-Type2, Mellow, Vx, Farf, Pipe), variable key-click
Pedal: 4 choices (Normal, Muted, Synth1, Synth2), 5 choices key-click | | Touch Response Percussion | Buttons
Second Harmonic, Third Harmonic, Fast Decay, Volume Soft
Adjustable
Touch, Velocity, Decay (Fast, Slow), Level (Normal, Soft) | | Effects | Vibrato and Chorus
Digital Scanner
Buttons: 1, 2, Chorus, Upper On, Lower On
Overdrive
Digital, 4 programs
Control: On, Amount
Multi Effects
8 programs
Equalizer
Organ: Bass, Mid, Treble, Tone
Internal Leslie
Advanced Digital, 2 Rotors
Buttons: Bypass, Stop, Fast
Reverb
Digital, 11 programs
Control: On, Depth
Leslie on Reverb
Master Equalizer
Control: Bass, Mid, Treble | | Keymap | Buttons
Manual Bass, Split
Adjustable
Coupler Highest note, Split Point, Octave Up, Octave Down, Lower, Transpose | | Patches | Capacity
64 User Patches, 64 Preset Patches, Manual
Favorites
8 buttons
Patch Load Options
Drawbar Registration, Drawbar Parameters, Internal Zone, External Zone, Effects, Reverb | | Controllers | Volumes
Master Volume
Switch
Power On/Off | | Storage | USB Flash Drive | | MIDI | Templates
8 Templates
External Zones
3 Zones, assignable | | Connectors | 2 x 1/4" TS Main Out
1 x 1/4" TRS Headphone
2 x 5-pin DIN MIDI I/O
1 x 1/4" TS Footswitch (pedal not included)
1 x 1/4" TRS Expression Pedal (pedal not included)
1 x 8-pin DIN Leslie
1 x USB Type-A | | Display | 20 x Characters, 2 x Lines
Control Buttons and Value knob | | Power Requirements | 120VAC, 60 Hz for included external power supply | | Dimensions (WxDxH) | 37.7 x 12 x 4" (958 x 305 x 102 mm) | | Weight | 16.5 lb (7.5 kg) | | | | Package Weight | 21.8 lb | | Box Dimensions (LxWxH) | 44.3 x 14.6 x 6.8" |
