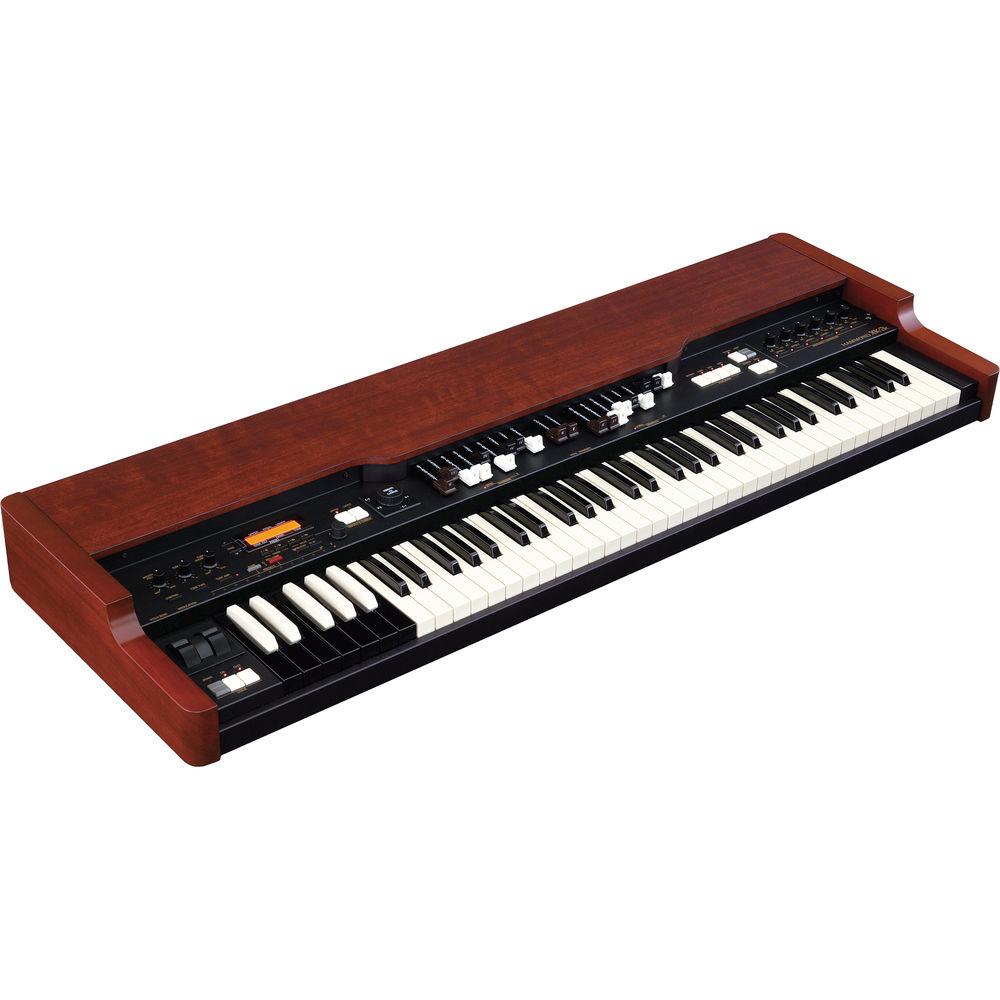

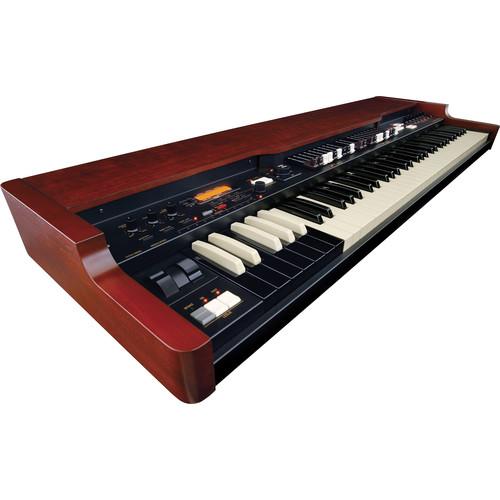

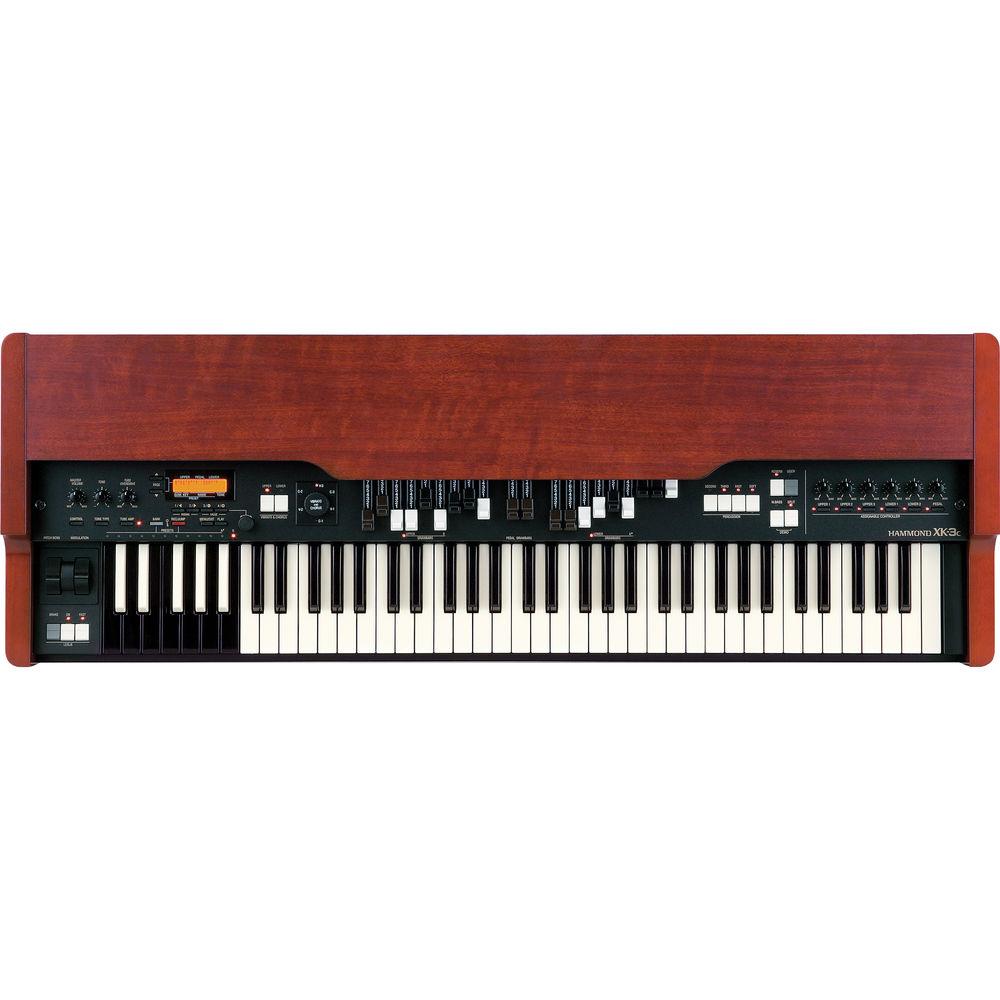

Product description If a 300+ pound B-3 is not available, the next best thing is the XK-3c from Hammond that comes in at a little over tenth of the weight while still delivering the genuine and original sounds of the B-3. For all practical purposes the 73-note keyboard is the top manual of a Hammond B- 3, with two sets of harmonic drawbars, chorus-vibrato, and Touch-Response Percussion. The reverse-key presets function exactly as they do on the original, and the Waterfall keyboard allows for traditional organ playing techniques.
Extensive editing capabilities allow for voicing (volume, timbre, leakage, motor noise) for each of the ninety-six digital tonewheels, with the ability to save these profiles for instant recall. Twelve factory digital tonewheel profiles ranging from "showroom clean" to "road worn" are available for instant customization. The traditional "hot rod modifications" for vintage B- 3's can be achieved on this modern recreation using all the included parameters. Modified presets can be stored internally or to optional CompactFlash cards via the built-in card reader.
The keyboard can also function as a MIDI controller, with the ability to address six external zones on two manuals and pedals, with dedicated and assignable switches and rotaries on the front panel. Pitch bend and modulation wheels are provided. Additionally the keyboard can be expanded to include a lower manual, pedal boards, expression pedals, and the unit can be connected to a real Leslie speaker via an 11-pin Leslie connector. - Ninety-six independent oscillating digital tonewheels that accurately reproduce the sound of the vintage B-3/C-3
- Fully polyphonic keyboard with Waterfall keys
- Reverse colored keys for selecting presets
- Preamplifier circuit with two characteristically different tubes, a 12AX7 and a 12AU7, offering a variety of overdrive sounds
- Preamp circuit consists of dual bands allowing for assigning bass and treble to respective tubes with single-band operation also possible
- Adjustable bias voltage for obtaining not only the distortion by general clipping but also nonlinear distortion
- DSP effect generator simulates the scanner-vibrato and Leslie speaker
- Leslie effects simulate the rotation of the two rotors in a traditional Leslie
- Three-band EQ and tone-control
- Tone-control simulates the circuit built in on the vintage B-3/C-3 pre-amp to obtain a gently cut treble
- 11-pin Leslie speaker socket for direct connection to Leslie Speakers
- Save parameter files to an optional CompactFlash card
- Optional Leslie switch can be mounted to the front rail
In the Box Hammond XK-3c - Vintage-Voiced Portable Hammond Organ (Walnut/Black) External Power Supply One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hammond XK-3c - Vintage-Voiced Portable Hammond Organ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHammond XK-3C Specs | Sound Generator | 2 x VASE III for digital tone-wheels | | Keyboard | 1 x 73 keys (61 + 12 preset keys)
Waterfall with velocity | | Harmonic Drawbars | Upper
9 Pitches
B-type 1/B-type 2/Mellow/Brite/Saw
Lower
9 Pitches
Pedal
2 Pitches
Muted/Normal/Synth 1/Synth 2 | | Touch Response Percussion | Tabs
Second On, Third On
Fast Decay, Soft
Adjustable
Touch, Velocity
Decay (Fast, Slow)
Level (Normal, Soft) | | Tuning | Master: 430 to 450 1 Hz steps
Transpose: -6/0/+6 semitones | | Effects | Internal Leslie
Advanced Digital, 2 Rotors
On, Fast, Brake
Vibrato and Chorus
Digital Scanner
V1, V2, V3, C1, C2, C3
Upper On, Lower On
Speed: 5 (6.10 to 7.25 Hz)
Tremolo, Emphasis, Depth
Preamp
Vacuum Tubes: 12AX7, 12AU7
Preamp On, Overdrive
EQ
3 Bands, Tone Control
Tone Type, Tone knob
Reverb
10 Programs with Leslie on Reverb
Reverb On
Sustain
5 Lengths (Pedal) | | Internal Zone | Tabs
Split
Manual Bass
Adjustable
Map Low, High
Split Point
Lower Octave
Pedal Top key | | Combination Presets | 12 Banks x 11 Presets
+ Adjust B
Switchable: Link/Independent | | Controllers | Switches
Power On/Off
Control
User
Rotary Controllers
Master Volume
Tube Overdrive
Tone
Wheels
Pitch Bend
Modulation
Assignable Controllers
6 Switches/6 Knobs: Upper 1, Upper 2, Upper3, Lower 1, Lower 2, Pedal | | Storage | CompactFlash card (not included) | | MIDI | Templates

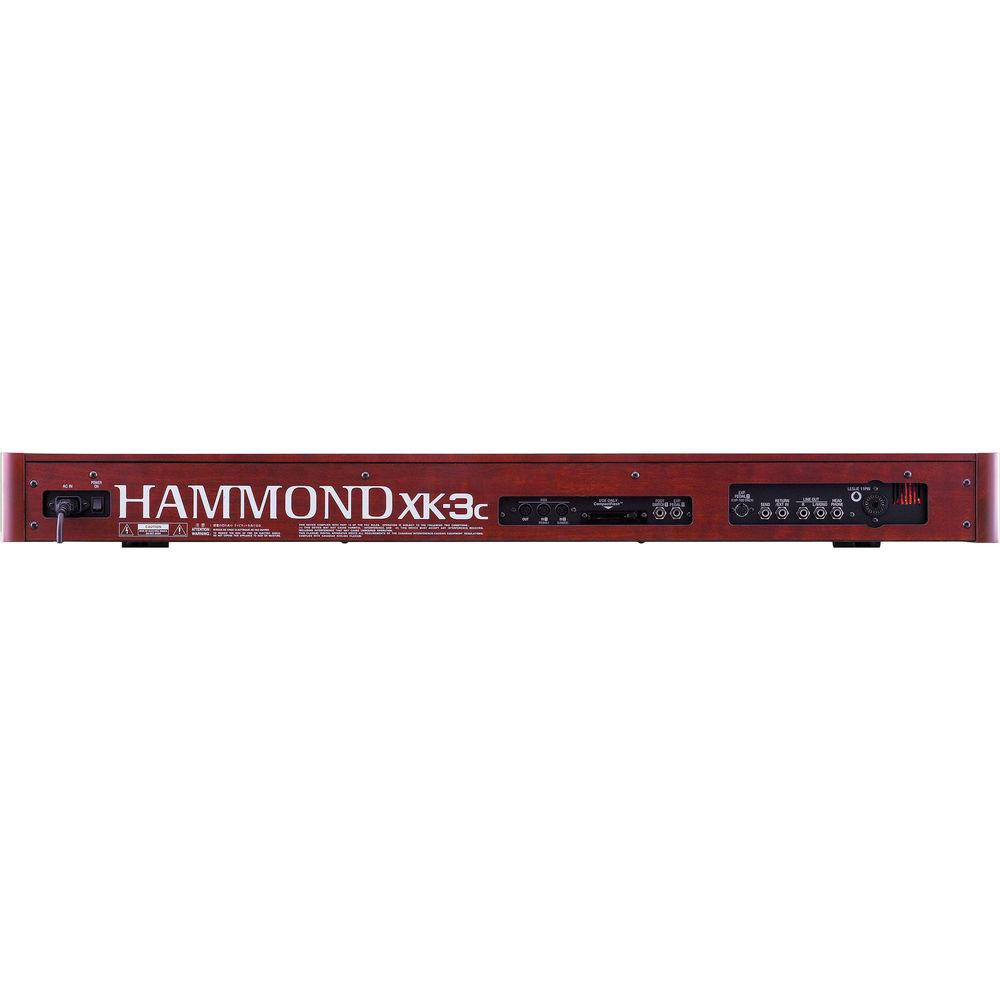

5 Modes | | Connectors | 2 x 1/4" TS Main Out
1 x 1/4" TRS Headphone
1 x 1/4" Send
1 x 1/4" Return/External In
3 x 5-pin DIN MIDI
1 x 1/4" TS Footswitch (pedal not included)
1 x 1/4" TRS Expression Pedal (pedal not included)
1 x EXP-100 Expression Pedal (pedal not included)
1 x 11-pin Leslie | | Display | 20 x Characters, 2 x Lines
9 Control Switches and Rotary Encoder | | Power Requirements | 120VAC, 60 Hz for included external power supply | | Dimensions (WxDxH) | 47 x 15.8 x 4.7" (1190 x 400 x 120 mm) | | Weight | 40.8 lb (18.5 kg) |
