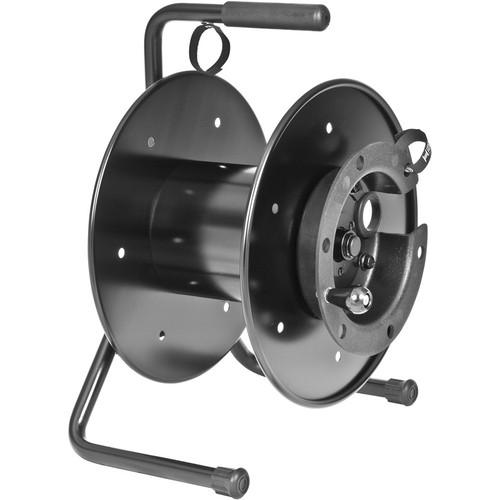

User Manual for Hannay Reels AVC16-14-16DE Portable Cable Storage Reel with Storage Drum Extension Click to enlarge the picture
Contents of the user manual for the Hannay Reels AVC16-14-16DE Portable Cable Storage
- Product category: Cable Management Accessories Hannay Reels
- Brand: Hannay Reels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hannay Reels Cable Management Accessories
|
User manual for the Hannay Reels AVC16-14-16DE Portable Cable Storage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hannay Reels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hannay Reels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hannay Reels product will considerably shorten its lifespan!
|
Product description The black AVC16-14-16DE Portable Cable Storage Reel with Storage Drum Extension from Hannay Reels is ideal for use in communication, broadcast and pro audio applications. This versatile reel features a steel frame and aluminum spool construction with a non-reflective finish. Additionally, a handle allows for easy carrying. An adjustable cam-lock drag brake locks the cable in place. The drum extension allow access to both ends of the cable. You can have a short amount of cable on the extension while the rest is on the reel, which allows you to plug in both ends without having to remove all the cable from the reel. Without it you would have to pull all the cable off the reel to access both ends, since one end would be buried under the rest of the cable on the spool. - Rugged steel and aluminum construction
- Equipped with hook-and-loop cable fastener
- Adjustable cam-lock drag brake
- Non-reflective black matte finish standard
- Optional PL-1 pinlock available
In the Box Hannay Reels AVC16-14-16DE Portable Cable Storage Reel with Storage Drum Extension Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hannay Reels AVC16-14-16DE Portable Cable Storage Reel with Storage Drum Extension in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHannay Reels 13-19 Specs | Hose Capacity | 0.25 OD: 1100' (335 m)
0.32 OD: 600' (183 m)
0.38 OD: 450' (137 m)
0.41 OD: 350' (107 m)
0.45 OD: 275' (84 m)
0.49 OD: 250' (76 m)
0.58 OD: 125' (58 m)
0.67 OD: 100' (30 m) | | Dimensions (HxWxD) | 19.3 x 12.8 x 15.5" (489 x 324 x 394 mm) | | Weight | 17 lb. (8kg) | | | | Package Weight | 20.2 lb | | Box Dimensions (LxWxH) | 26.4 x 23.1 x 22.0" |
