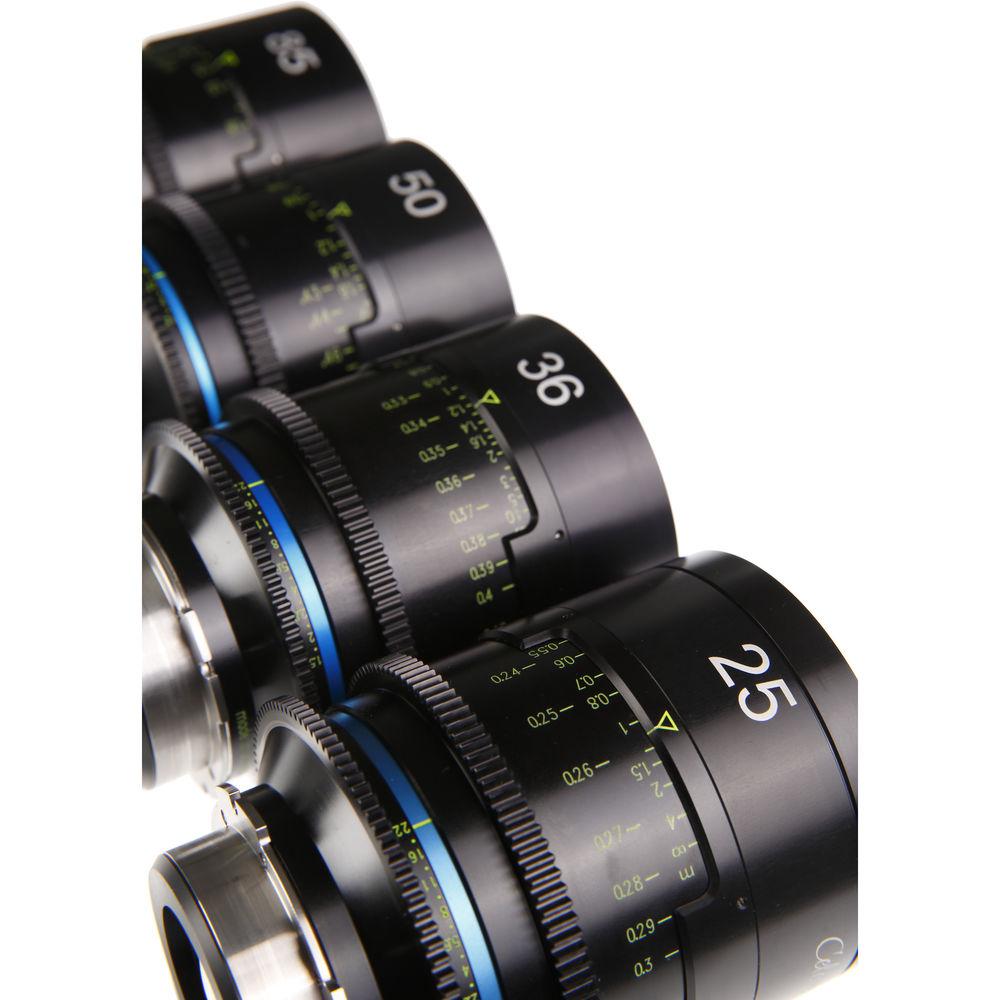

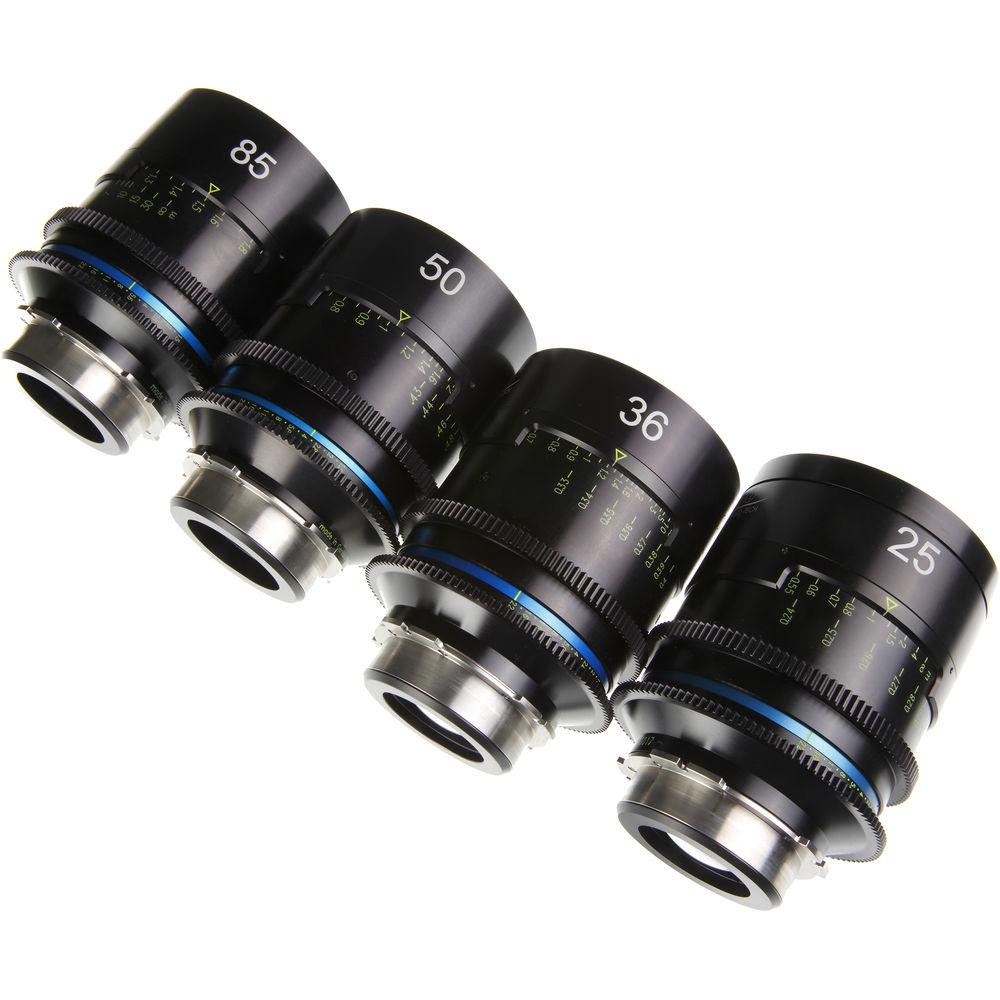

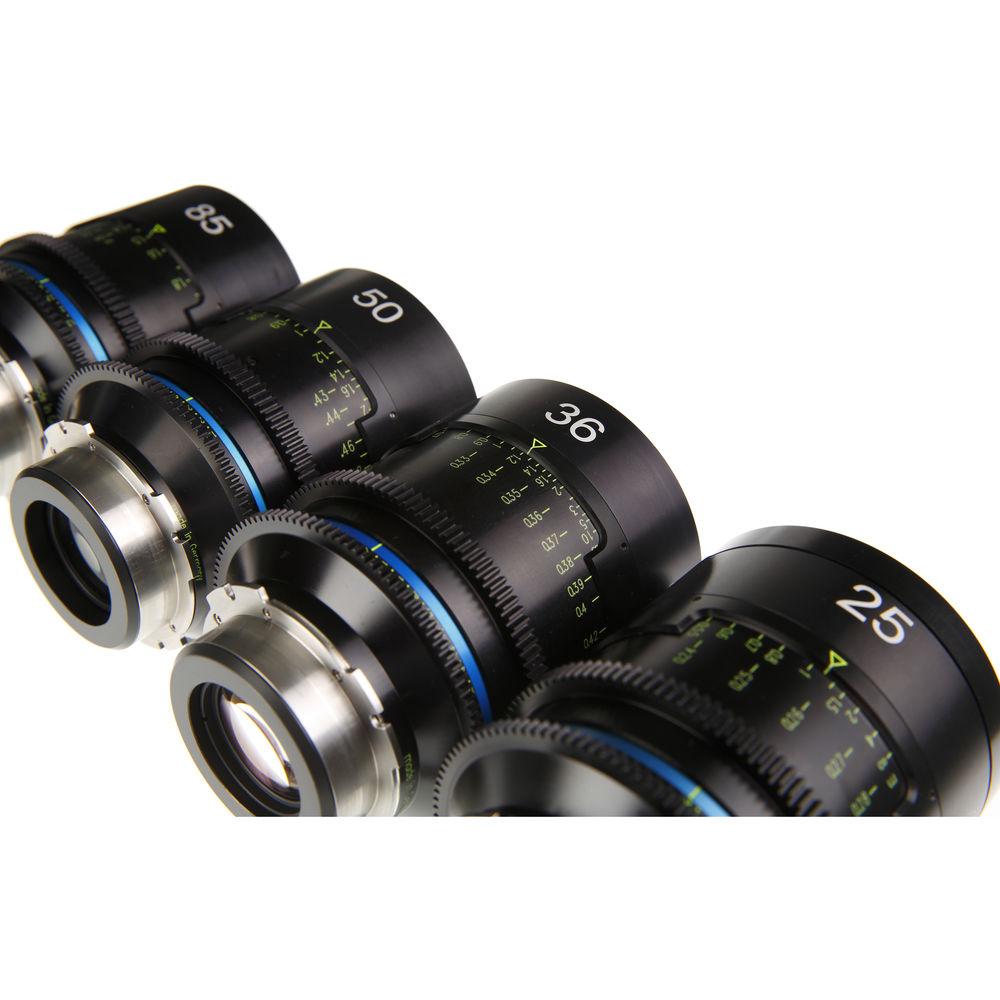

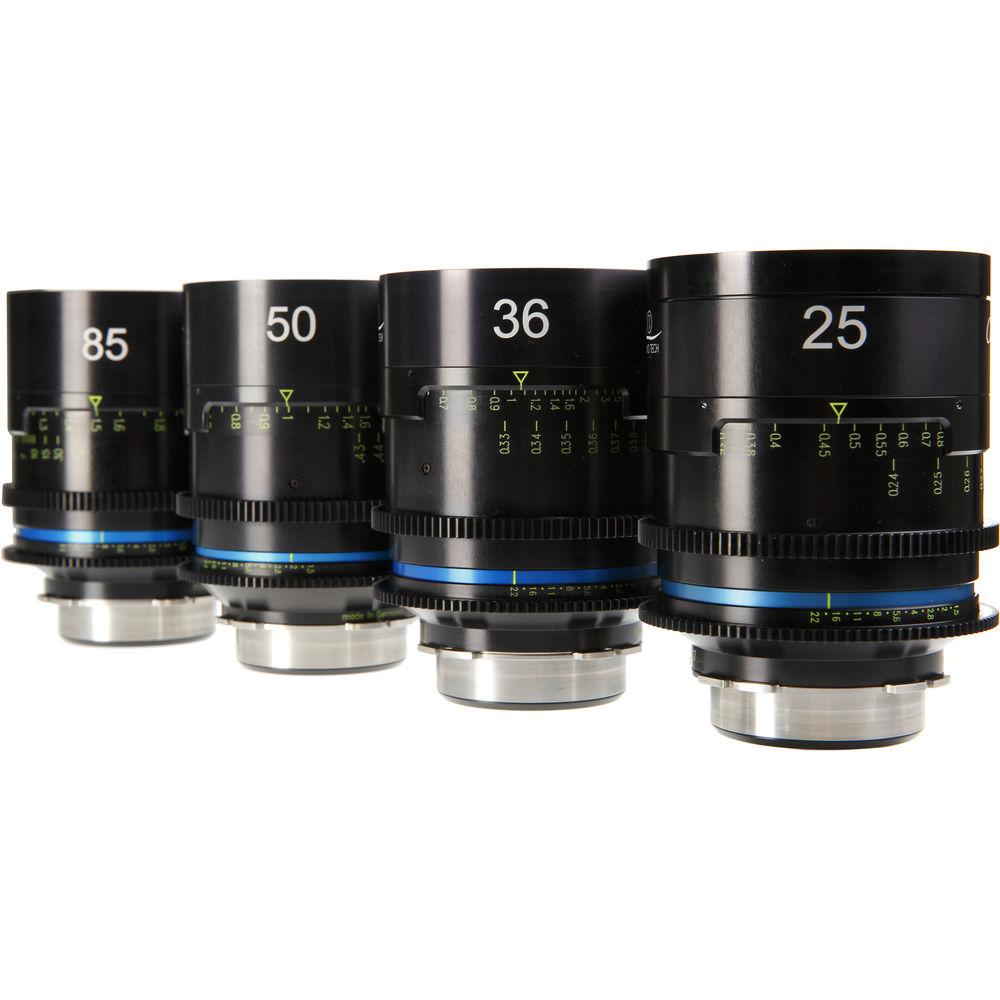

Product description Cinema Lens Care and Maintenance Read More This set of HANSE INNO TECH Celere HS 25, 36, 50, 85mm consists of four manual focus prime lenses that covers Full Frame and Super 35 sensor formats. The included 25, 26, 50, and 85mm lenses have an interchangeable PL-mount and are marked in feet. They offer a maximum aperture of T1.5, useful when shooting in low-light situations or when you want to capture that exceedingly shallow depth of field look. The 8-blade iris that provides round, out-of-focus highlights for a natural-looking bokeh. The lens barrel features 250° of smooth rotation from close focus to infinity, giving you a high degree of precision, and the internal focus design keeps the length of the lens consistent throughout the focus range.
The lens is designed to minimize focus breathing and incorporates dual focus scales with markings on both sides of the barrel. The Celere HS lenses share the same 250° focus rotation, as well as focus and iris gear positions, allowing for easier swaps. In addition, all Celere lenses (except the 18.5mm) feature an 85mm front barrel diameter, are the same length, and weigh within a few grams of each other making them well-suited for use on stabilized camera support systems with critical balance requirements. Although these lenses come in a PL-mount, they incorporate a universal mounting system allowing you to swap mounts between PL, Canon EF, and Sony E-mount. - Celere HS 25mm (PL-Mount, Feet) The HANSE INNO TECH Celere HS 25mm is a wide-angle, manual focus prime lens that covers Full Frame and Super 35 sensor formats. This 25mm focal length lens comes in a PL-mount and is marked in feet. It offers a maximum aperture of T1.5, useful when shooting in low-light situations or when you want to capture that exceedingly shallow depth of field look. It has an 8-blade iris that provides round, out-of-focus highlights for a natural looking bokeh. The lens barrel features 250° of smooth rotation from close focus to infinity, giving you a high degree of precision, and the internal focus design keeps the length of the lens consistent throughout the focus range.
The lens is designed to minimize focus breathing and incorporates dual focus scales with markings on both sides of the barrel. The Celere HS lenses share the same 250° focus rotation, as well as focus and iris gear positions, allowing for easier swaps. In addition, all Celere lenses (except the 18.5mm) feature an 85mm front barrel diameter, are the same length, and weigh within a few grams of each other making them well-suited for use on stabilized camera support systems with critical balance requirements. Although this lens comes in a PL-mount, it incorporates a universal mounting system allowing you to swap mounts between PL, Canon EF, and Sony E-mount. - Key Features
-
- Completely covers Full Frame and Super 35 sensors
- 8-blade iris
- Focus breathing minimized to virtually zero
- Markings on both sides of the barrel
- Focus and iris lens gears are 0.8 MOD 32 pitch
- The Vario-Mount System enables swapping of mounts between PL, EF, and E-mounts without sending the lens back to the factory
- Industry standard shims are available for precise collimation adjustments
- 25mm Front Lens Ring
- Unlike other lenses in the series, the 25mm lens comes with two interchangeable front filter rings. The shorter ring is used when shooting full frame and reduces the length of the lens by about half an inch as compared to the longer ring used when shooting Super 35mm. Because the filter rings weigh the same, this allows the lens to weigh the same no matter which ring is mounted.
- PL-Mount
-
- With the PL-mount version, an optional black ring that enables the use of a rear-mounted 40.5mm screw-in filter. The 40.5mm rear-mounted filter still permits using the lens with full-frame capture.
- The PL-mount version also incorporates a rear net mounting assembly, so you do not need to use tape, rubber cement, or nail polish to mount a rear net, and with the optional black ring you can use 40.5mm filters and rear nets at the same time.
- Each Flange on the PL-mount features a locating slot, allowing you to mount the lens in one of four orientations.

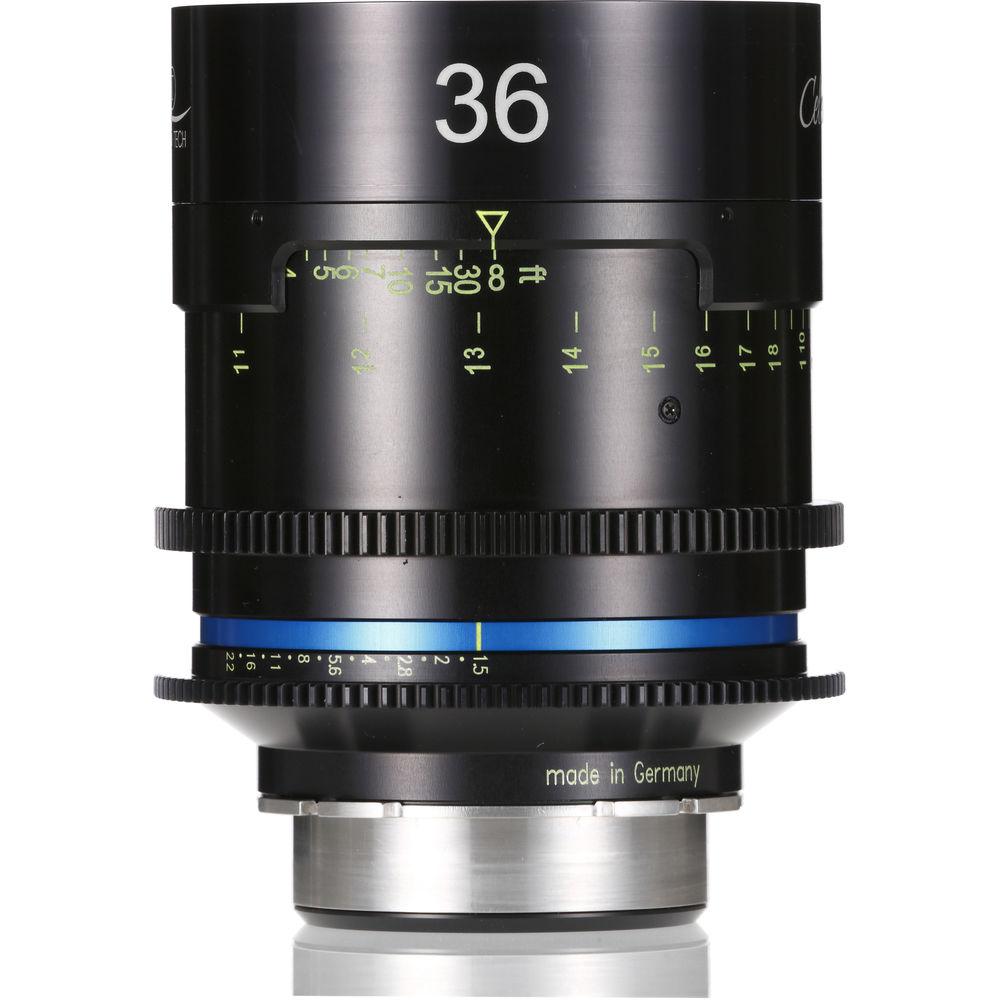

- Celere HS 36mm (PL-Mount, Feet) The HANSE INNO TECH Celere HS 36mm is a manual focus prime lens that covers Full Frame and Super 35 sensor formats. This 36mm focal length lens comes in a PL-mount and is marked in feet. It offers a maximum aperture of T1.5, useful when shooting in low-light situations or when you want to capture that exceedingly shallow depth of field look. It has an 8-blade iris that provides round, out-of-focus highlights for a natural-looking bokeh. The lens barrel features 250° of smooth rotation from close focus to infinity, giving you a high degree of precision, and the internal focus design keeps the length of the lens consistent throughout the focus range.
The lens is designed to minimize focus breathing and incorporates dual focus scales with markings on both sides of the barrel. The Celere HS lenses share the same 250° focus rotation, as well as focus and iris gear positions, allowing for easier swaps. In addition, all Celere lenses (except the 18.5mm) feature an 85mm front barrel diameter, are the same length, and weigh within a few grams of each other making them well-suited for use on stabilized camera support systems with critical balance requirements. Although this lens comes in a PL-mount, it incorporates a universal mounting system allowing you to swap mounts between PL, Canon EF, and Sony E-mount. - Key Features
-
- Completely covers Full Frame and Super 35 sensors
- 8-blade iris
- Focus breathing minimized to virtually zero
- Markings on both sides of the barrel
- Focus and iris lens gears are 0.8 MOD 32 pitch
- The Vario-Mount System enables swapping of mounts between PL, EF, and E-mounts without sending the lens back to the factory
- Industry standard shims are available for precise collimation adjustments
- PL-Mount
-
- With the PL-mount version, an optional black ring that enables the use of a rear-mounted 40.5mm screw-in filter. The 40.5mm rear-mounted filter still permits using the lens with full-frame capture.
- The PL-mount version also incorporates a rear net mounting assembly, so you do not need to use tape, rubber cement, or nail polish to mount a rear net, and with the optional black ring you can use 40.5mm filters and rear nets at the same time.
- Each Flange on the PL-mount features a locating slot, allowing you to mount the lens in one of four orientations.
- Celere HS 50mm (PL-Mount, Feet) The HANSE INNO TECH Celere HS 50mm is a manual focus prime lens that covers Full Frame and Super 35 sensor formats. This 50mm focal length lens comes in a PL-mount and is marked in feet. It offers a maximum aperture of T1.5, useful when shooting in low-light situations or when you want to capture that exceedingly shallow depth of field look. It has an 8-blade iris that provides round, out-of-focus highlights for a natural-looking bokeh. The lens barrel features 250° of smooth rotation from close focus to infinity, giving you a high degree of precision, and the internal focus design keeps the length of the lens consistent throughout the focus range.
The lens is designed to minimize focus breathing and incorporates dual focus scales with markings on both sides of the barrel. The Celere HS lenses share the same 250° focus rotation, as well as focus and iris gear positions, allowing for easier swaps. In addition, all Celere lenses (except the 18.5mm) feature an 85mm front barrel diameter, are the same length, and weigh within a few grams of each other making them well-suited for use on stabilized camera support systems with critical balance requirements. Although this lens comes in a PL-mount, it incorporates a universal mounting system allowing you to swap mounts between PL, Canon EF, and Sony E-mount. - Key Features
-
- Completely covers Full Frame and Super 35 sensors
- 8-blade iris
- Focus breathing minimized to virtually zero
- Markings on both sides of the barrel
- Focus and iris lens gears are 0.8 MOD 32 pitch
- The Vario-Mount System enables swapping of mounts between PL, EF, and E-mounts without sending the lens back to the factory
- Industry standard shims are available for precise collimation adjustments
- PL-Mount
-
- With the PL-mount version, an optional black ring that enables the use of a rear-mounted 40.5mm screw-in filter. The 40.5mm rear-mounted filter still permits using the lens with full-frame capture.
- The PL-mount version also incorporates a rear net mounting assembly, so you do not need to use tape, rubber cement, or nail polish to mount a rear net, and with the optional black ring you can use 40.5mm filters and rear nets at the same time.
- Each Flange on the PL-mount features a locating slot, allowing you to mount the lens in one of four orientations.

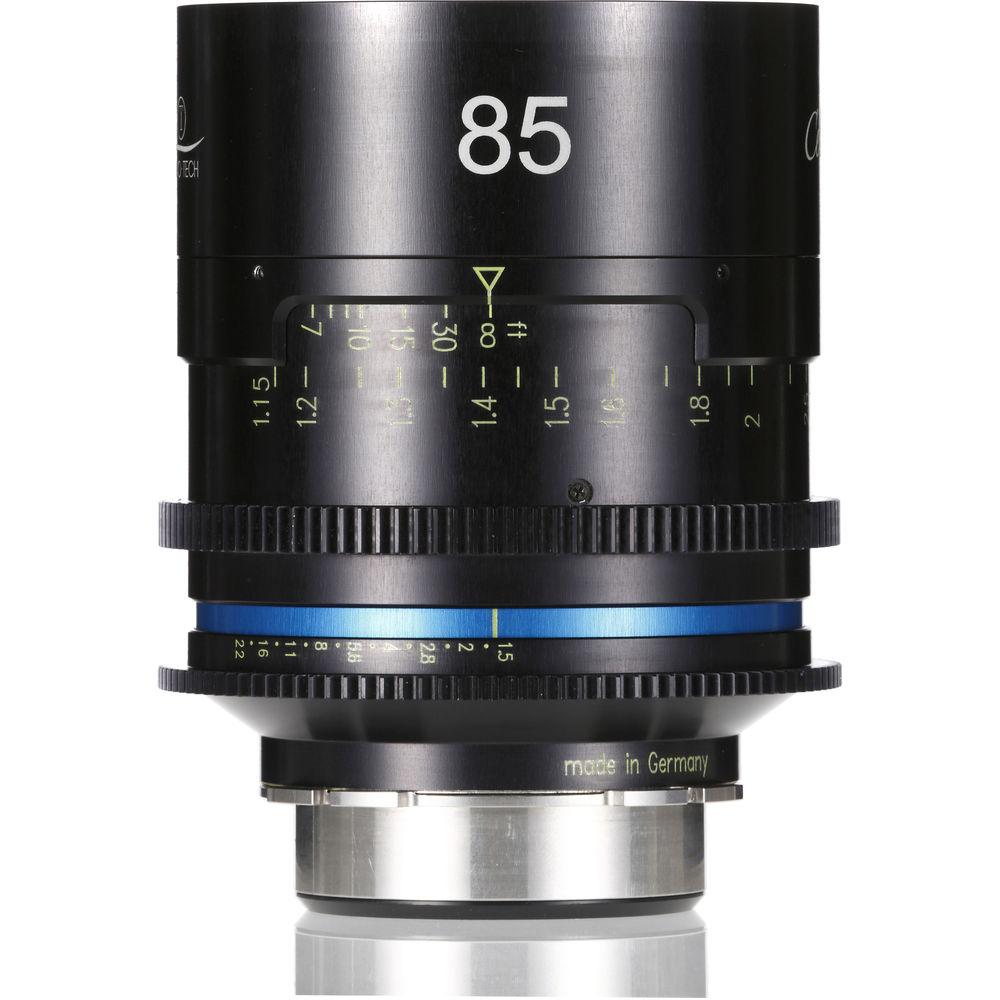

- Celere HS 85mm (PL-Mount, Feet) The HANSE INNO TECH Celere HS 85mm is a manual focus prime lens that covers Full Frame and Super 35 sensor formats. This 85mm focal length lens comes in a PL-mount and is marked in feet. It offers a maximum aperture of T1.5, useful when shooting in low-light situations or when you want to capture that exceedingly shallow depth of field look. It has an 8-blade iris that provides round, out-of-focus highlights for a natural-looking bokeh. The lens barrel features 250° of smooth rotation from close focus to infinity, giving you a high degree of precision, and the internal focus design keeps the length of the lens consistent throughout the focus range.
The lens is designed to minimize focus breathing and incorporates dual focus scales with markings on both sides of the barrel. The Celere HS lenses share the same 250° focus rotation, as well as focus and iris gear positions, allowing for easier swaps. In addition, all Celere lenses (except the 18.5mm) feature an 85mm front barrel diameter, are the same length, and weigh within a few grams of each other making them well-suited for use on stabilized camera support systems with critical balance requirements. Although this lens comes in a PL-mount, it incorporates a universal mounting system allowing you to swap mounts between PL, Canon EF, and Sony E-mount. - Key Features
-
- Completely covers Full Frame and Super 35 sensors
- 8-blade iris
- Focus breathing minimized to virtually zero
- Markings on both sides of the barrel
- Focus and iris lens gears are 0.8 MOD 32 pitch
- The Vario-Mount System enables swapping of mounts between PL, EF, and E-mounts without sending the lens back to the factory
- Industry standard shims are available for precise collimation adjustments
- PL-Mount
-
- With the PL-mount version, an optional black ring that enables the use of a rear-mounted 40.5mm screw-in filter. The 40.5mm rear-mounted filter still permits using the lens with full-frame capture.
- The PL-mount version also incorporates a rear net mounting assembly, so you do not need to use tape, rubber cement, or nail polish to mount a rear net, and with the optional black ring you can use 40.5mm filters and rear nets at the same time.
- Each Flange on the PL-mount features a locating slot, allowing you to mount the lens in one of four orientations.
In the Box Bundle Items Celere HS 25mm (PL-Mount, Feet) yeuvwwwxdcdwcadzefu - Super 35mm Filter Ring (Attached to Lens)
Celere HS 36mm (PL-Mount, Feet) Celere HS 50mm (PL-Mount, Feet) Celere HS 85mm (PL-Mount, Feet) Table of Contents
|
Upload User Manual
Have you got an user manual for the HANSE INNO TECH Set of Celere HS 25, 36, 50, 85mm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Celere HS 25mm (PL-Mount, Feet)
| Focal Length | 25mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Iris Blades | 8 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 85 mm | | Filter Thread | 77 mm | | Focus Scales | Imperial | | Focus Rotation | 250° | | Length | 4.25" / 108 mm This is the length when shooting Full Frame. When shooting Super 35mm, replace the shorter ring with the longer ring which will make the lens 4.65" / 118 mm. | | Weight | 2.3 lb / 1050.0 g | | | | Box Dimensions (LxWxH) | 13.0 x 8.7 x 7.8" | - Celere HS 36mm (PL-Mount, Feet)
| Focal Length | 36mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 13" / 33.02 cm | | Iris Blades | 8 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 85 mm | | Filter Thread | 77 mm | | Focus Scales | Imperial | | Focus Rotation | 250° | | Length | 4.65" / 118 mm | | Weight | 2.3 lb / 1050.0 g | | | | Box Dimensions (LxWxH) | 12.9 x 8.8 x 7.5" | - Celere HS 50mm (PL-Mount, Feet)
| Focal Length | 50mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 18.9" / 48.01 cm | | Iris Blades | 8 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 85 mm | | Filter Thread | 77 mm | | Focus Scales | Imperial | | Focus Rotation | 250° | | Length | 4.65" / 118 mm | | Weight | 2.3 lb / 1050.0 g | | | | Box Dimensions (LxWxH) | 12.9 x 8.7 x 7.7" | - Celere HS 85mm (PL-Mount, Feet)
| Focal Length | 85mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 18.9" / 48.01 cm | | Iris Blades | 8 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 85 mm | | Filter Thread | 77 mm | | Focus Scales | Imperial | | Focus Rotation | 250° | | Length | 4.65" / 118 mm | | Weight | 2.3 lb / 1050.0 g | | | | Box Dimensions (LxWxH) | 13.0 x 8.7 x 7.7" |
