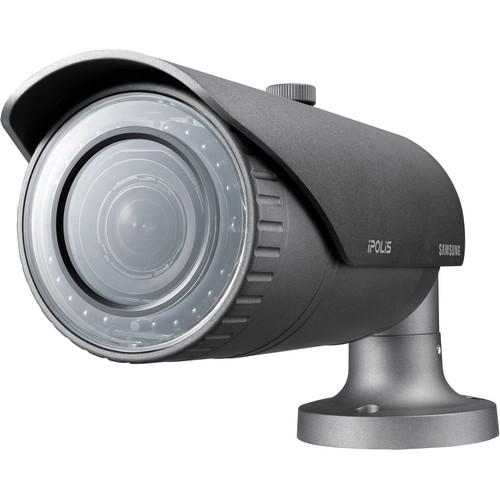

Product description The dark gray 2 Mp 1080p Full HD Weatherproof Network IR Camera by Samsung Techwin WiseNet III delivers 2 Mp 1080p high-definition images. Its functionalities include 100 dB WDR, which delivers 30 fps at 2 Mp 1080p, built-in IR LEDs creating clear images even in the darkness of 0 lux, and a motorized varifocal lens, which result in easy focus control. Designed to combat the challenges of tough environmental conditions, the SNO-6084R Camera meets the needs of the professional security market. Rated IP66 with an integrated sunshield, this camera is supplied with a mounting bracket that allows it to be installed either on a wall or ceiling. This helps ensure that the required field of view is obtained every time. - Maximum 2M (1920 x 1080) resolution
- 16:9 Full HD (1080p) resolution support
- 3 to 8.5mm (2.8x) motorized varifocal lens
- H.264, MJPEG dual codec, multiple streaming
- Audio / Face / Motion detection
- Simple focus, UPnP, Defog
- Built-in SD / SDHC / SDXC memory slot
- IR LED (20 each), PoE, IP66, IK10, Bi-directional audio support
- Day/Night (ICR), Enhanced DIS
- WDR (100 dB, 30 fps at 2 Mp)
In the Box Hanwha Techwin 2 Mp 1080p Full HD Weatherproof Network IR Camera (Dark Gray) Sunshield Mounting Bracket Limited 3-Year Warranty Brochure PDF 447.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin 2 Mp 1080p Full HD Weatherproof Network IR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNO-6084R Specs | | | Imaging Device | 1/2.8" PS Exmor 2.38 M CMOS | | Total Pixels | 1952 (H) x 1116 (V) | | Effective Pixels | 1944 (H) x 1104 (V) | | Scanning System | Progressive | | Minimum Illumination | Color : 0.1 lux (1 / 30 sec, F1.2, 50 IRE), 0.0017 lux (2 sec, F1.2, 50 IRE),B/W : 0 lux (IR LED on) | | Signal to Noise Ratio | 50 dB | | Video Output | CVBS : 1.0 Vpp / 75 Ω composite, 704 x 480 (N), 704 x 576 (P), for installation, DIP connector type | | | | Focal Length (Zoom Ratio) | 3 to 8.5 mm (2.8x) motorized varifocal | | Maximum Aperture Ratio | F1.2 | | Angular Field of View | H : 105.5° (Wide) to 37.1° (Tele)V : 57.5° (Wide) to 21.0° (Tele) | | Minimum Object Distance | 1.64' (0.50 m) | | Focus Control | Simple focus (Motorized V / F) / manual remote control via network (Manual, Simple focus) | | Lens Type | DC auto iris | | Mount Type | Board-in type | | | | IR LED | 20 each | | Viewable Size | 98.43' (30.00 m) | | Camera Title | Off / On (Displayed up to 45 characters) | | Day & Night | Auto (ICR) / Color / B/W / External / Schedule | | Backlight Compensation | Off / BLC | | Wide Dynamic Range | 100 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNR III (2D+3D noise filter) (Off / On) | | Digital Image Stabilizer | Off / On | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 zones of 4-point polygons) | | Privacy Masking | Off / On (32 zones of 4-point polygons) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, Appear / Disappear, Audio detection, Face detection | | Alarm I/O | Input 1 each / Output 1 each | | Alarm Triggers | Motion detection, Tampering, Audio detection, Face detection, Video analytics, Network disconnection, Alarm input | | Alarm Events | File upload via FTP and email, notification via email, TCP, local storage (SD / SDHC / SDXC) recording at network disconnected & event (Alarm triggers), external output | | | | Ethernet | RJ-45 (10 / 100BASE-T) | | Video Compression Format | H.264 (MPEG-4 part 10 / AVC), MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: maximum 60 fps at all resolutionsMJPEG:1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768: maximum 15 fps800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180: maximum 30 fps | | Video Quality Adjustment | H.264: Compression level, Target bit-rate level control, MJPEG: Quality level control | | Bit-Rate | Bit-rate Control Method: H.264: CBR or VBR, MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to 10 profiles) | | Audio Input | Selectable (Mic in / Line in)Maximum Output Level: 1 VrmsSupply Voltage : 2.5 VDC (4 mA)Input Impedance: Approximately 2 kΩ | | Audio Output | Line out (3.5 mm stereo mini jack) | | Audio Compression Format | G.711 u-law / G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16 Kb/s, 24 Kb/s, 32 Kb/s, 40 Kb/s | | Audio Communication | Bi-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at Unicast mode | | Memory Slots | MicroSD/SDHC/SDXC Motion images recorded in the SDXC / SDHC / SD Memory card can be downloaded | | Application Programming Interface | ONVIF profile S, HTTP API v2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish | | Web Viewer | Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 Supported Browser : Microsoft Internet Explorer (Versions 10, 9, 8, 7), Mozilla Firefox: (Versions 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9), Google Chrome (Versions 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15), Apple Safari (Versions 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only | | CMS | SmartViewer 4.0 | | | | Temperature | Operating:24 VAC: -58 to 131°F (-50 to 55°C)12 VDC, PoE: +14 to 131°F (-10 to 55°C)Storage: 22 to 140°F (-30 to 60°C) | | Humidity | Operating & Storage: Less than 90% RH | | Ingress protection | IP66 grade | | Vandal Resistant | IK10 | | | | Input Voltage/Current | 12 VDC, 24 VAC, PoE (IEEE802.3af) | | Power Consumption | Maximum 11 W (Heater off), maximum 17 W (24 VAC - Heater on) | | | | Material | Metal | | Dimensions (W x H x D) | 3.56 x 3.78 x 13.12" (9.04 x 9.60 x 33.32 cm) | | Weight | 2.62 lb (1.19 kg) | | | | Package Weight | 4.48 lb | | Box Dimensions (LxWxH) | 14.5 x 14.5 x 6.3" |
