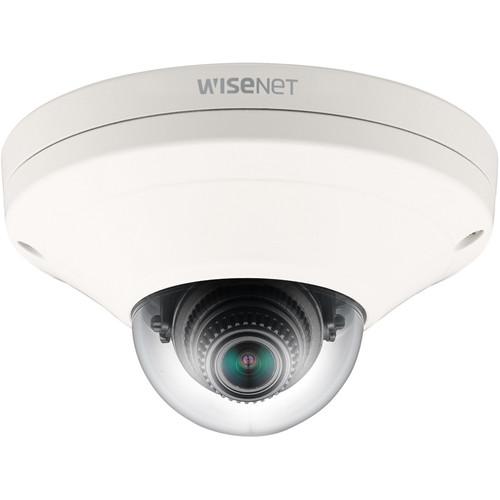

Product description The 2MP Vandal-Resistant Pan/Tilt Network Dome Camera with 2.8mm Lens from Hanwha Techwin has a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Its 2.8mm fixed lens has a wide-angle 112° horizontal field of view to monitor large, outdoor areas. Additionally, the camera pans from 0 to 353°, tilts from 0 to 59°, and rotates from 0 to 353° for varying surveillance vantage points. Alarm triggers can be set for motion detection, video analytics, and disconnection from your network. When triggered, the alarm events can notify you via email. They can also be uploaded to an FTP server, or stored on a NAS (network attached storage) drive, or on a microSD card. The camera supports microSD cards up to 256GB, which are available for purchase separately.The camera is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure to protect it from dust, water, corrosion, ice, vibration, and impact, making it suitable for outdoor use. - 2MP 1/2.8" progressive scan CMOS sensor captures 1080p video at up to 60 fps
- H.265, H.264, and MJEPG video compression
- Wide dynamic range, backlight compensation, and defog for clear images
- RJ45 Ethernet with PoE for data and power
- Video analytics for tampering, loitering, directional detection, defocus detection, fog detection, virtual line, enter/exit, (dis) appear, face detection, motion detection, digital auto tracking, people counting, heatmap, queue management
- Lens distortion correction (LDC)
- IP66-, NEMA 4X-, and IK10-rated for outdoor use
- Includes monitor testing cable, template, tapping screws, machine screws, L wrench, plastic anchors, and RJ45 waterproof accessory
In the Box Hanwha Techwin 2MP Vandal-Resistant Pan/Tilt Network Dome Camera with 2.8mm Lens Monitor Testing Cable Template 2 x Tapping Screw 2 x Machine Screw L Wrench 2 x Plastic Anchor RJ45 Waterproof Accessory Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin 2MP Vandal-Resistant Pan Tilt Network Dome Camera with 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XNV-6011 Specs | | | Imaging Device | 2 MP 1/2.8" CMOS | | Total Pixels (H x V) | 1945 x 1109 | | Effective Pixels (H x V) | 1945 x 1097 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.055 Lux (1/30 sec, f/2.0)
B/W: 0.055 Lux (1/30 sec, f/2.0)
| | S / N Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p / 75 Ohms composite, 720 x 480 (N), 720 x 576 (P), for installation
USB: 1 x micro-USB type-B, 1280 x 720, for installation | | | | Focal Length | 2.8mm fixed | | Maximum Aperture Ratio | f/2.0 | | Angular Field of View | Horizontal: 112°
Vertical: 62°
Diagonal: 130° | | Minimum Object Distance | 0.66' (0.2 m) | | Focus Control | Manual | | Lens/Mount | Fixed/board-in type | | | | Range | Pan: 0 to 353°
Tilt: 0 to 59°
Rotate: 0 to 353° | | | | Camera Title | Off/On (displayed up to 85 characters)
W/W: English, numeric, special characters
China: English, numeric, special, Chinese characters
Common: Multi-Line (max 5), color (gray, green, red, blue, black, white), transparency, auto scale by resolution | | Day & Night | Auto (electrical)
Color
B/W | | Backlight Compensation | Off/BLC/HLC (masking/dimming)/WDR | | Wide Dynamic Range | 150 dB | | Contrast Enhancement | SSDR (Off/On) | | Digital Noise Reduction | SSNRV (2D + 3D noise filter) (Off, On) | | Digital Image Stabilizer | Off/On | | Defog | Off/Auto (input from fog detection)/Manual | | Motion Detection | Off/On (8 ea, 8 point polygonal zones), handover | | Privacy Masking | Off/On (32 ea, polygonal zones)
Color: Grey, green, red, blue, black, white - mosaic
| | Gain Control | Off, low, middle, high | | White Balance | ATW, AWC, manual, indoor, outdoor (included mercury & sodium) | | Contrast | Level adjustment | | Lens Distortion Correction | Off, On (5 levels with min/max) | | Electronic Shutter Speed | Minimum, maximum, anti-flicker (2 - 1/12,000 sec) | | Digital PTZ | 24x, digital PTZ (preset, group) | | Flip / Mirror | Off, On, Hallway View: 90°/270° | | Video Analytics | Tampering, loitering, directional detection, defocus detection, fog detection, virtual line, enter/exit, (dis) appear, face detection, motion detection, digital auto tracking, people counting, heatmap, queue management | | Alarm Triggers | Motion detection, video analytics, network disconnect | | Alarm Events | File upload via FTP, e-mail, notification via e-mail, local storage (SD/SDHC/SDXC) or NAS recording at event triggers, DPTZ preset | | Pixel Counter | Support | | | | Ethernet | 1 x RJ45 (10/100 BASE-T) | | Video Compression Format | H.265, H.264 (MPEG-4 part 10/AVC), Main/Baseline/High, MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Maximum Frame Rate | H.265/H.264: 60 fps Max
MJPEG: 30 fps Max
| | Smart Codec | Manual mode (area-based: 5 ea) | | Video Quality Adjustment | H.265/H.264/MJPEG: Target bitrate level control | | Bitrate Control Method | H.265/H.264: CBR or VBR
MJPEG: VBR
| | Streaming Capability | Multiple streaming (up to 10 profiles) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication IP address filtering, user access log, 802.1X authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast/multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | SD/SDHC/SDXC (256 GB)
Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded
NAS (Network Attached Storage)
Local PC for instant recording | | Application Programming Interface | ONVIF Profile S/G, SUNAPI (HTTP API), open platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin web viewer
Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 10 (Mac OS X only)
Plug-in web viewer
Supported Browser: MS Explore 11, Apple Safari 9 (Mac OS X only) | | Central Management | SmartViewer, SSM | | | | Operating Temperature / Humidity | -22 to 131°F (-30 to 55°C)/less than 90% RH
Start up should be done at above -4°F (-20°C) | | Storage Temperature / Humidity | -22 to 140°F (-30 to 60°C)/less than 90% RH | | Ingress Protection | IP66 | | Vandal Resistance | IK10, NEMA 4X | | | | Input Voltage/Current | PoE (IEEE802.3af, Class3) | | Power Consumption | 6.5 W max | | | | Color | Ivory | | Material | Metal | | Dimensions (W x H) | 4.44 x 2.51" (112.8 x 63.7 mm) | | Weight | 0.93 lb (420 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 7.0 x 6.9 x 6.5" |
